EXIT

1 M09_prisazene_prime.jpg

MATERIAL:
white polycarbonate body
transparent polycarbonate cover
MOUNTING:

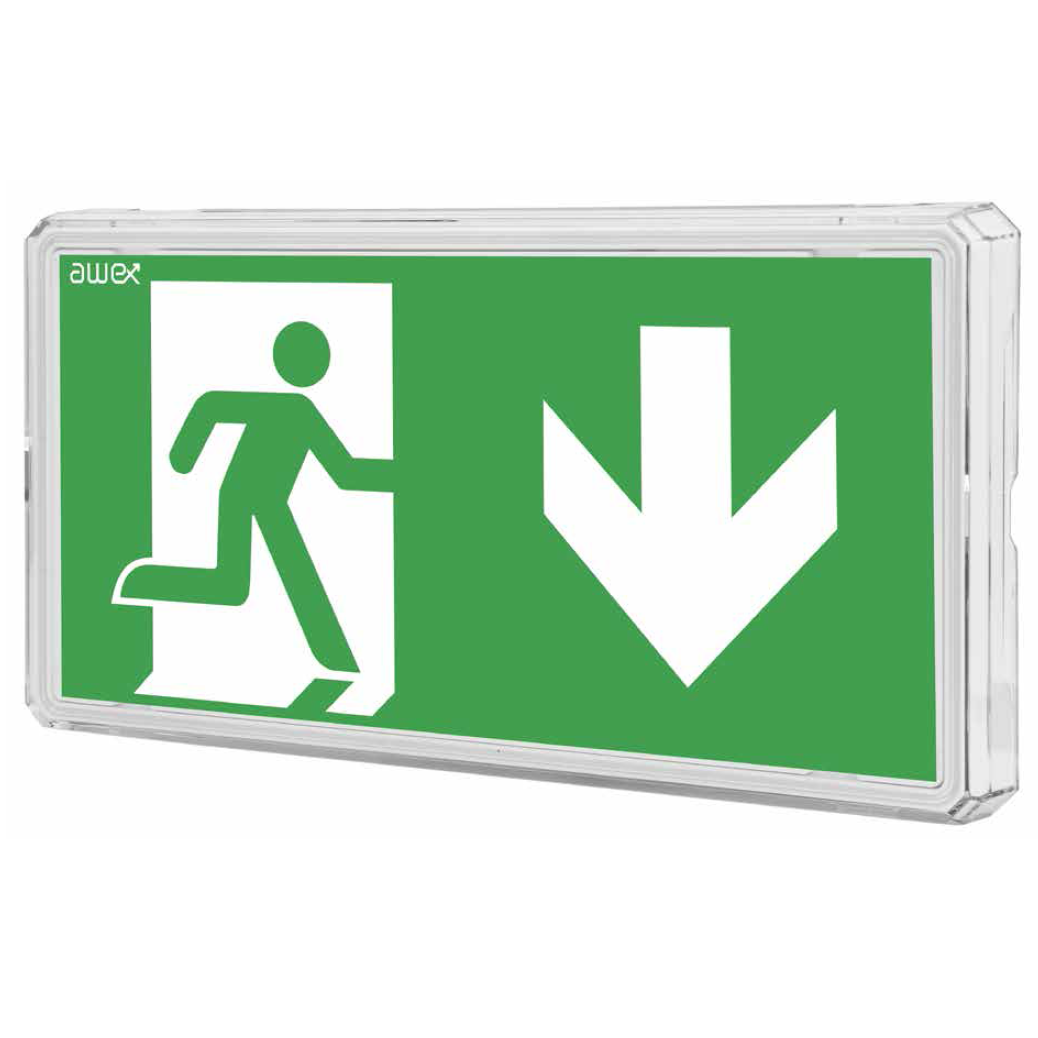

surface (wall, ceiling)
optionally recessed (wall, ceiling)- cut out 125x260mm

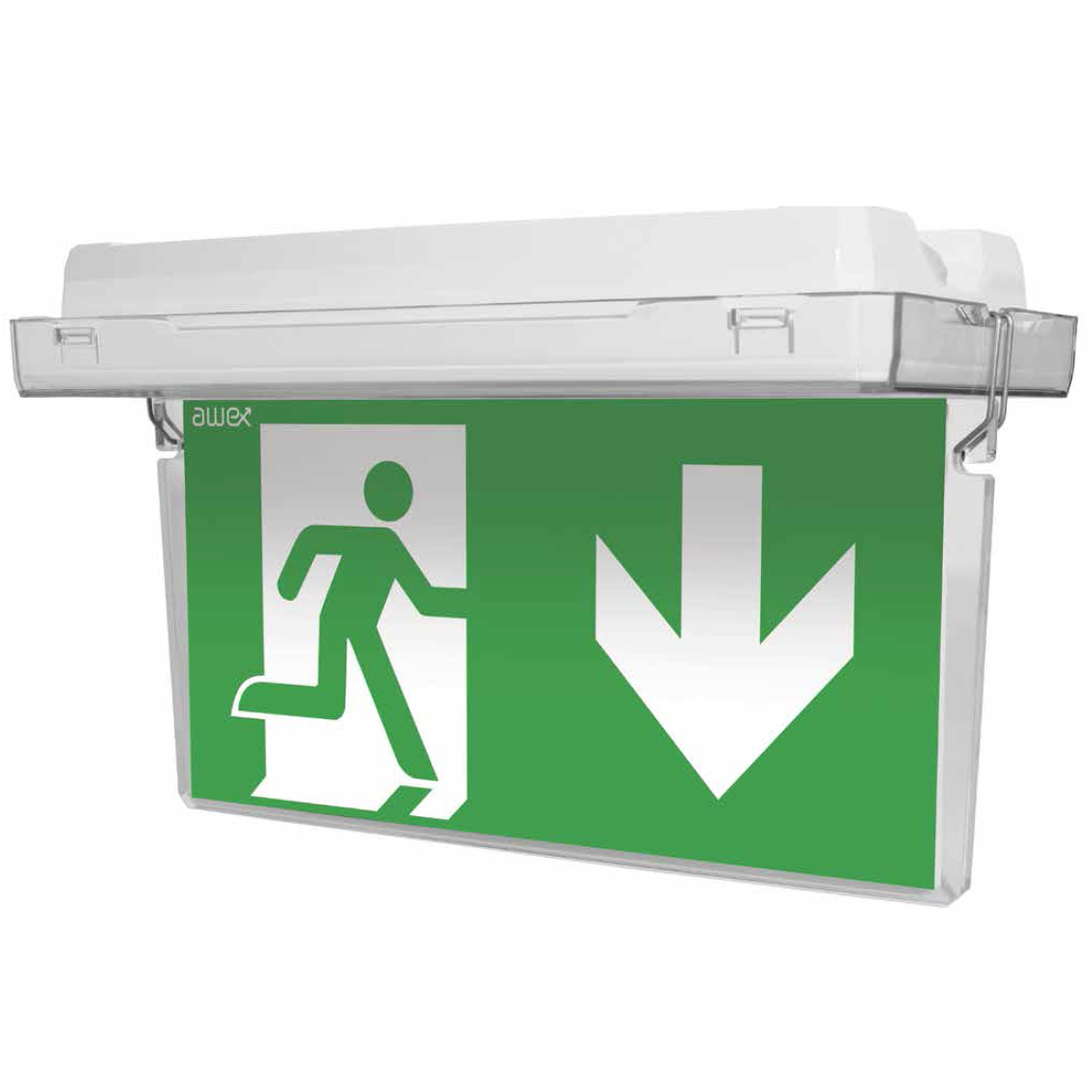

optionally pendant (ceiling)
POWER SUPPLY:
self contained – 220÷240VAC/50÷60Hz
central battery –220÷240VAC/50÷60Hz; 216VDC
central battery FZLV – 24VDC
LIGHT SOURCE:
1W LED (up to 130lm)
2W LED (up to 270lm)
3W LED (up to 350lm)
CHARGING:
BASIC: max. 24h
STANDARD: max. 24h
PREMIUM: max. 12h; energy-saving electronic charger
AUTONOMY AND BATTERIES:
BASIC: 1h or 3h, Ni-Cd 3,6V batteries
STANDARD: 1h or 3h, Ni-Cd 3,6V batteries
PREMIUM: 1h or 3h, Ni-MH 4,8V batteries
INSULATION CLASS:
II
IP RATING:
IP65
AMBIENT TEMPERATURE:
ta: 0°C ÷ 40°C;
ta: -25°C ÷ 40°C – together with heater for low temperatures;
OPTIONS:
SE – non maintained
SA – maintained
PT – manual test button
AT – autotest
RU – Rubic UNA central monitoring
FZLV – central battery FZLV 24V
CB – central battery
ADDITIONAL INFORMATION:
LED indicator signalizes mains power supply and battery charging deep discharge protection
optional adaptation of the fixture for low temperatures up to -25°C
III class of insulation of FZLV version

ACCESSORIES:

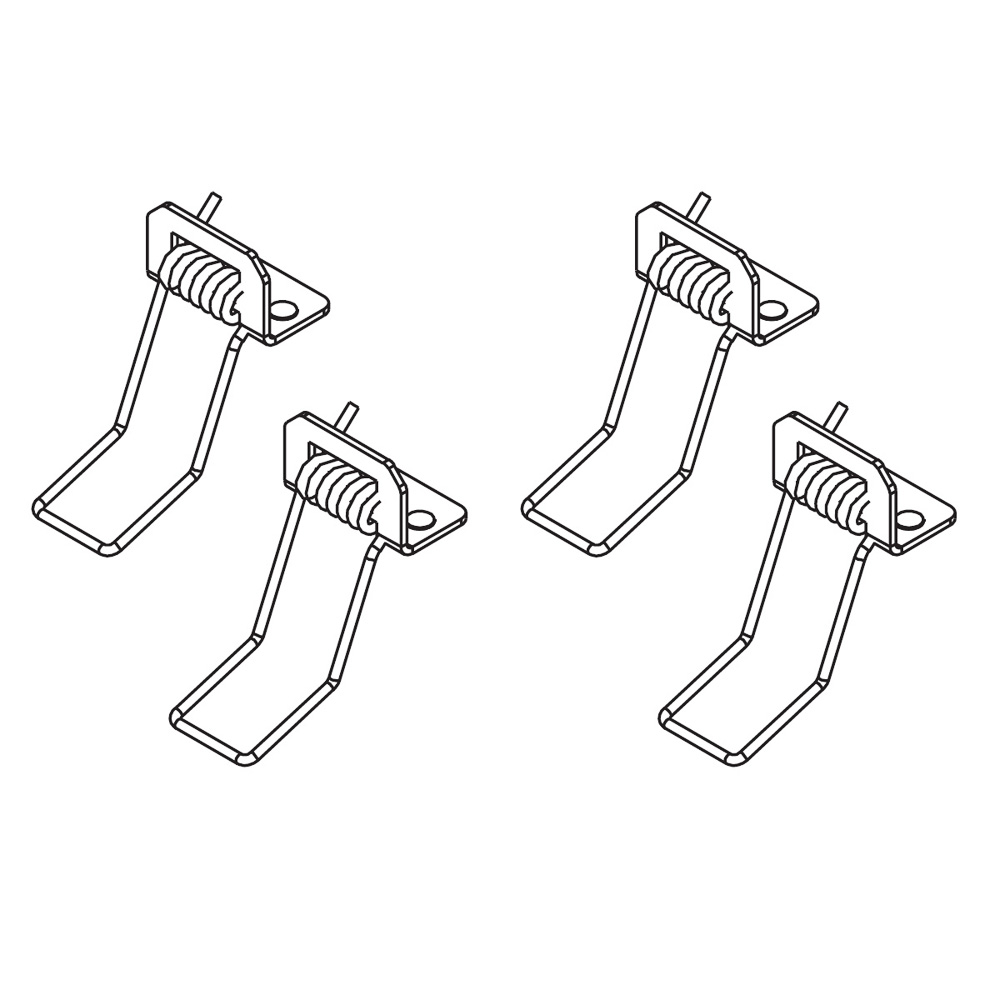

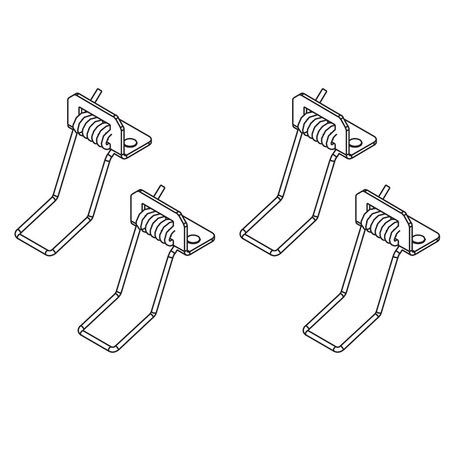

Clips for recessed installation ETE/REC (set of 4ks)

Plexi glass set ETE/PLX

Show more...

Main features

Lamp type:LED
Power supply system:Central battery, Individual baterry
Protection class:II
Degree of protection (IP):IP65
Mounting method:Surface mounting, Built-in
Nominal service time (h):1, 3

Download

Versions

Lamp power (W): 1
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: Automatic self test
Lamp power (W): 1
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: None
Lamp power (W): 1
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: None
Lamp power (W): 1
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: None
Lamp power (W): 4
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Standby switching
Nominal service time (h): 3
Monitoring equipment: None
Lamp power (W): 2
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: Automatic self test
Lamp power (W): 2
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: None
Lamp power (W): 2
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 3
Monitoring equipment: None
Lamp power (W): 3
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: Automatic self test
Lamp power (W): 3
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: None
Lamp power (W): 3
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: None
Lamp power (W): 3
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 3
Monitoring equipment: None
Lamp power (W): 3
Power supply system: Central battery
Degree of protection (IP): IP65
Monitoring equipment: None
Lamp power (W): 1
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: None
Lamp power (W): 1
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: None
Lamp power (W): 3
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: None
