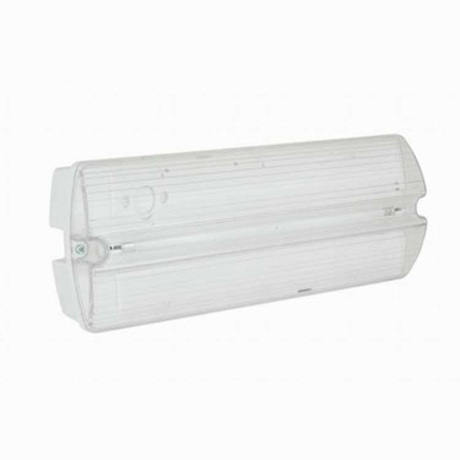

HELIOS

2 Z2_zar T5.jpg
2 Z5_zaz 2G7.jpg

MATERIALS:
White polycarbonate body
Transparent polycarbonate cover with Fresnel optics
MOUNTING:
Surface (wall, ceiling)
POWER SUPPLY:
Self contained – 220÷240VAC/50÷60Hz
Central battery –220÷240VAC/50÷60Hz; 176 – 275VDC
LIGHT SOURCE:
8W, 11W, 18W fluorescent lamp
CHARGING:
Maximum 24h
AUTONOMY AND BATTERIES:
1h, 2h, 3h , Ni-Cd batteries
INSULATION CLASS:
II
IP RATING:
IP42 or IP65
AMBIENT TEMPERATURE:
ta: 0°C ÷ 40°C
ta: -25°C ÷ 40°C – together with heater for low temperatures
OPTIONS:
SE – non maintained
SA – maintained
PT – manual test button
AT – autotest
RU – Rubic UNA central monitoring
CB – central battery
ADDITIONAL INFORMATION:
LED indicator signalizes mains power supply and battery charging
Deep discharge protection
Optional adaptation of the fixture for low temperatures up to -25°C
Protection against mechanical impacts – IK08

Show more...

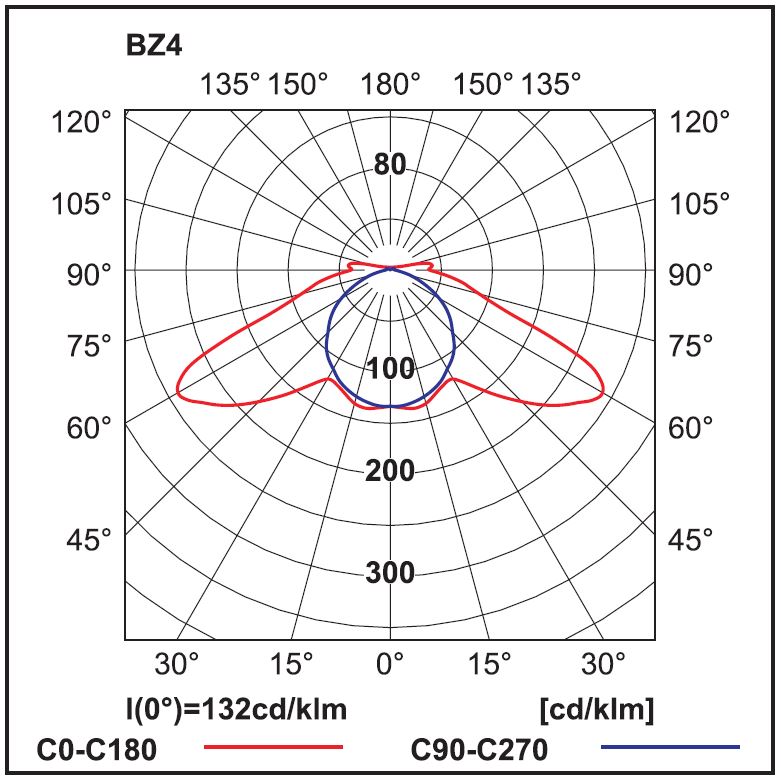

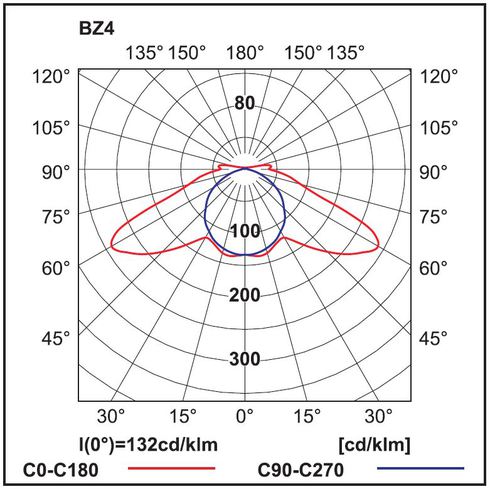

Light distribution


Main features

Lamp type:Compact fluorescent lamp, Fluorescent lamp T5
Lamp holder:2G7, G5
Protection class:II
Degree of protection (IP):IP42, IP65
Mounting method:Surface mounting

Download

Versions

Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: Automatic self test
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: Test button
Lamp type: Fluorescent lamp
Lamp power (W): 18
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: Safety module for monitoring
Lamp type: Fluorescent lamp
Lamp power (W): 18
Power supply system: Central battery
Degree of protection (IP): IP65
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: Automatic self test
Lamp type: Fluorescent lamp
Lamp power (W): 18
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: Automatic self test
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: Test button
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: Test button
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: Safety module for monitoring
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: Automatic self test
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: Automatic self test
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 3
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Standby switching
Nominal service time (h): 3
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Central battery
Degree of protection (IP): IP65
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 18
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: Automatic self test
Lamp type: Fluorescent lamp
Lamp power (W): 18
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: Automatic self test
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: Automatic self test
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 3
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Individual baterry
Degree of protection (IP): IP65
Wiring system: Standby switching
Nominal service time (h): 3
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Central battery
Degree of protection (IP): IP65
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Central battery
Degree of protection (IP): IP65
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: Automatic self test
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: Test button
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: Automatic self test
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Standby switching
Nominal service time (h): 3
Monitoring equipment: Automatic self test
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Standby switching
Nominal service time (h): 3
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Central battery
Degree of protection (IP): IP42
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 18
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 18
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Standby switching
Nominal service time (h): 3
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: Automatic self test
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: None
Lamp power (W): 8
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 3
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Standby switching
Nominal service time (h): 3
Monitoring equipment: Automatic self test
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Individual baterry
Degree of protection (IP): IP42
Wiring system: Standby switching
Nominal service time (h): 3
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Central battery
Degree of protection (IP): IP42
Monitoring equipment: None
