Product series

MODUS AREL AS

LED luminaire with asymetrical reflector

AREL4000RMAS
přisazené asymetrické.PNG
závěesné asymetrické.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request

Body:

White painted (RAL 9016) metal sheet, available also in grey RAL 9007





LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Wiring:

LED current driver

ND - not dimmable (standard)

DALI - dimmable DALI

Luminaire can be supplied with wireless Bluetooth control - more information here.



Application:

Surface or pendant installation

These LED fitting are recomended school blackboards, shops and for illumination of another vertical areas



Accessories:

- Suspension set ZH11

Size version:L
1500 mm
M
1200 mm
Body material:White painted steel
Mounting method:Surface mounting asymmetric, Pendant asymmetricProtection class:I
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89, 90-100
Light source type:LEDLight outlet:Direct
Nominal voltage (V):220...240Degree of protection (IP):IP20
Color temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500Rated lifetime L80/B50 (h):80000
Dimming 1-10 V:YesDimming DALI:Yes
Optical system:ALDP
double parabolic highly polished aluminium louvre category C2

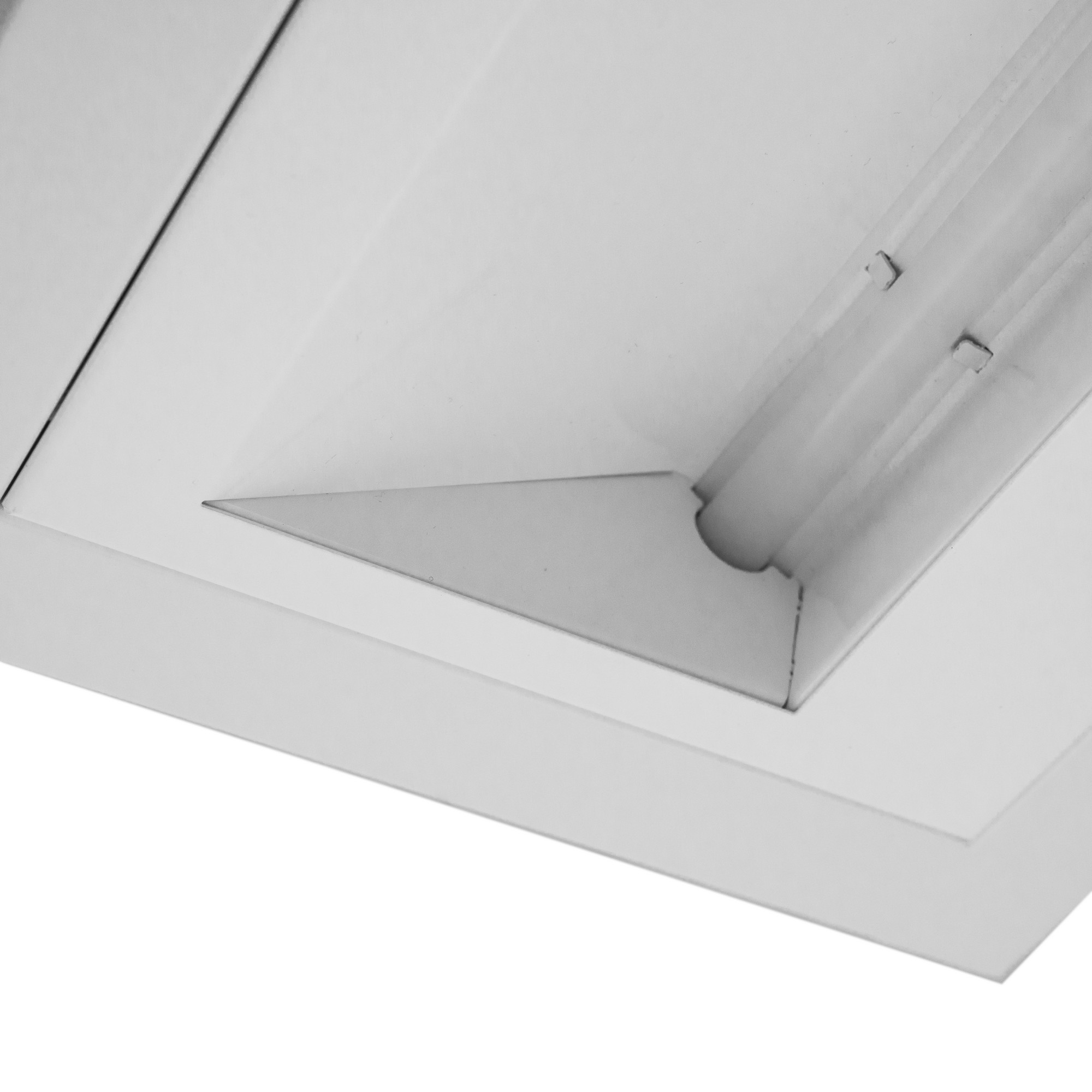

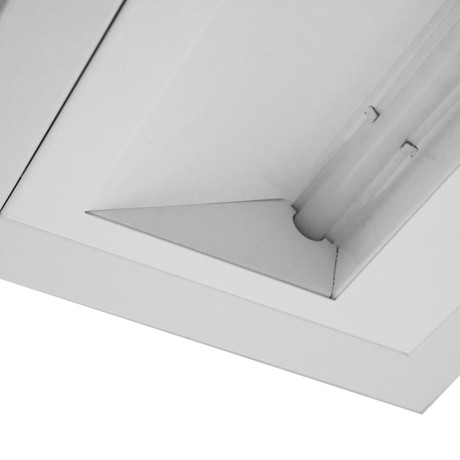

AS
Asymetric reflector
Made in Czech republic:Yes
Replaceability:Removeable light source, replaceable ballast
Removeable light source, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

3800
6200

System power (W)

37
47
Product name
AREL4000RLAS4ND/9003
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 4000
Length (mm): 1545
AREL4000RLAS6DALI
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 6500
Length (mm): 1545
AREL4000RMAS3DALI
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Length (mm): 1245
AREL4000RMAS3DALIT/9003
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Length (mm): 1245
AREL4000RMAS3ND
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Length (mm): 1245
AREL4000RMAS4DALI
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Length (mm): 1245
AREL4000RMAS4DALI/90
Effective luminous flux (lm): 3800
System power (W): 37
Color temperature (K): 4000
Length (mm): 1245
AREL4000RMAS4DALIT
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Length (mm): 1245
AREL4000RMAS4DIM
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Length (mm): 1245
AREL4000RMAS4ND
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Length (mm): 1245
AREL6000RLAS3DALI
Effective luminous flux (lm): 6200
System power (W): 47
Color temperature (K): 3000
Length (mm): 1545
AREL6000RLAS3DALIT/9003
Effective luminous flux (lm): 6200
System power (W): 47
Color temperature (K): 3000
Length (mm): 1545
AREL6000RLAS3ND
Effective luminous flux (lm): 6200
System power (W): 47
Color temperature (K): 3000
Length (mm): 1545
AREL6000RLAS4DALI
Effective luminous flux (lm): 6200
System power (W): 47
Color temperature (K): 4000
Length (mm): 1545
AREL6000RLAS4DALI/9003
Effective luminous flux (lm): 6200
System power (W): 47
Color temperature (K): 4000
Length (mm): 1545
AREL6000RLAS4ND
Effective luminous flux (lm): 6200
System power (W): 47
Color temperature (K): 4000
Length (mm): 1545
AREL6000RLAS4ND/9003
Effective luminous flux (lm): 6200
System power (W): 47
Color temperature (K): 4000
Length (mm): 1545
AREL6000RLAS4ND/9003/90
Effective luminous flux (lm): 5300
System power (W): 47
Color temperature (K): 4000
Length (mm): 1545
AREL6000RLAS4ND/9006
Effective luminous flux (lm): 6200
System power (W): 47
Color temperature (K): 4000
Length (mm): 1545
AREL6000RLAS6DALI
Effective luminous flux (lm): 6200
System power (W): 47
Color temperature (K): 6500
Length (mm): 1545
