Product series

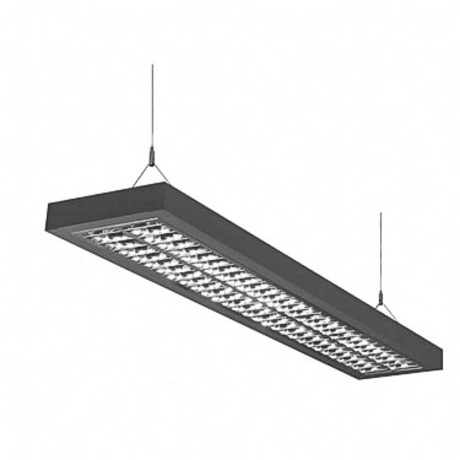

MODUS ARES

Pendant/surface louvre fitting

MODUS ARES

Standard price from:

On request
Body:
Grey (RAL 9007) painted metal sheet
On request can be produced also in white RAL9003 colour
Optic:
ALDP  double parabolic louvre category C2 of highly polished aluminium
MATDP  double parabolic louvre category C2 of mat aluminium
Wiring:
EP         high frequention ballast  HFB(standard)
EPSA    HFB analogue dimmabe (1-10 V)
EPSD  HFB digital dimmable TRIDONIC ECO
EPSDD HFB digital dimmable DALI
MULTIWATT  - universal HFB for T5 lamps
Application:
These fittings are recommended for offices, for lighting  areas with high requirements for light and glare control.
Versions:
ARES – pendant fittings for direct / indirect illumination (open upper side of the fittings), suspension set included
ARESD  – pendant fittings for direct illumination only (closed upper side of the fittings), suspension set included
ARESP – surface installed fittings for direct  illumination only, without suspension set
ARES /R – pendant fittings for direct / indirect illumination (open upper side of the fittings), for connection to rows
Accessories:
1661004001 Suspension  ARES /R 1x (connection part and cord suspension included creating 1 fixing point)
1662004001 Suspension  ARES /R 2x (connection part and cord suspension included creating 1 fixing point)
Note:
The fittings ARES/R  are delivered with connection endcaps, with through wiring 5x 1,5mm2
The row can be compilated by START, CONT and END fittings:

ARES START - contents start terminal board, 1 standard endcap, 1 connecting endcap with terminal board

ARES CONT – contents 2 connecting endcaps with terminal boards

ARES END – contents 1 connecting endcap with terminal board, 1 standard endcap

The fittings are hanged and connected to the row by   „Suspension  ARES /R“,  which needs to be  used on the both ends of the row and in the each connection point.
