Product series
MODUS BALOV
Pendant LED glass luminaire
MODUS BALOV100
Standard price from:
On request
Combination of Bohemia glass and modern LED technology
Body:

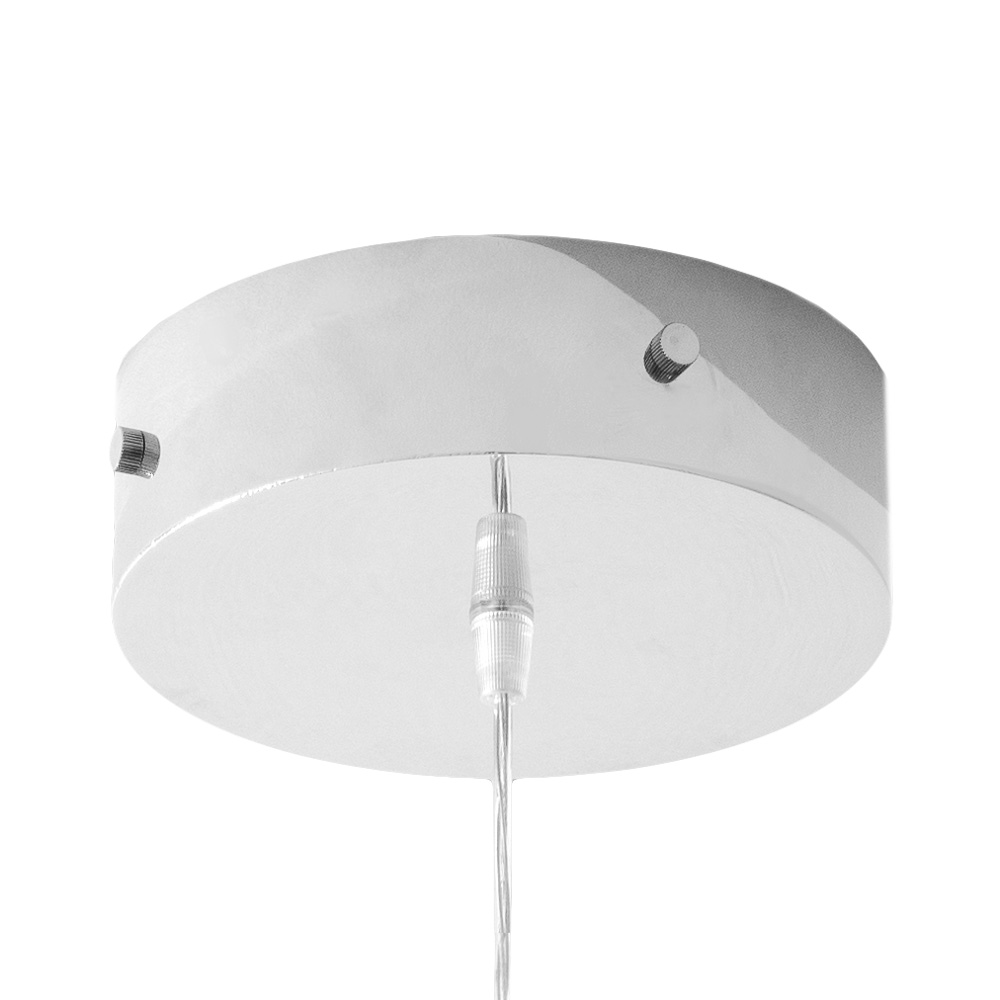

Chrome plated metal sheet
LED:
Mid Power LED
3...warm white 3000K
4...cold white 4000K
Wiring:
LED driver (constant current)
ND – not dimmable (standard)
DALI – digital dimmable DALI

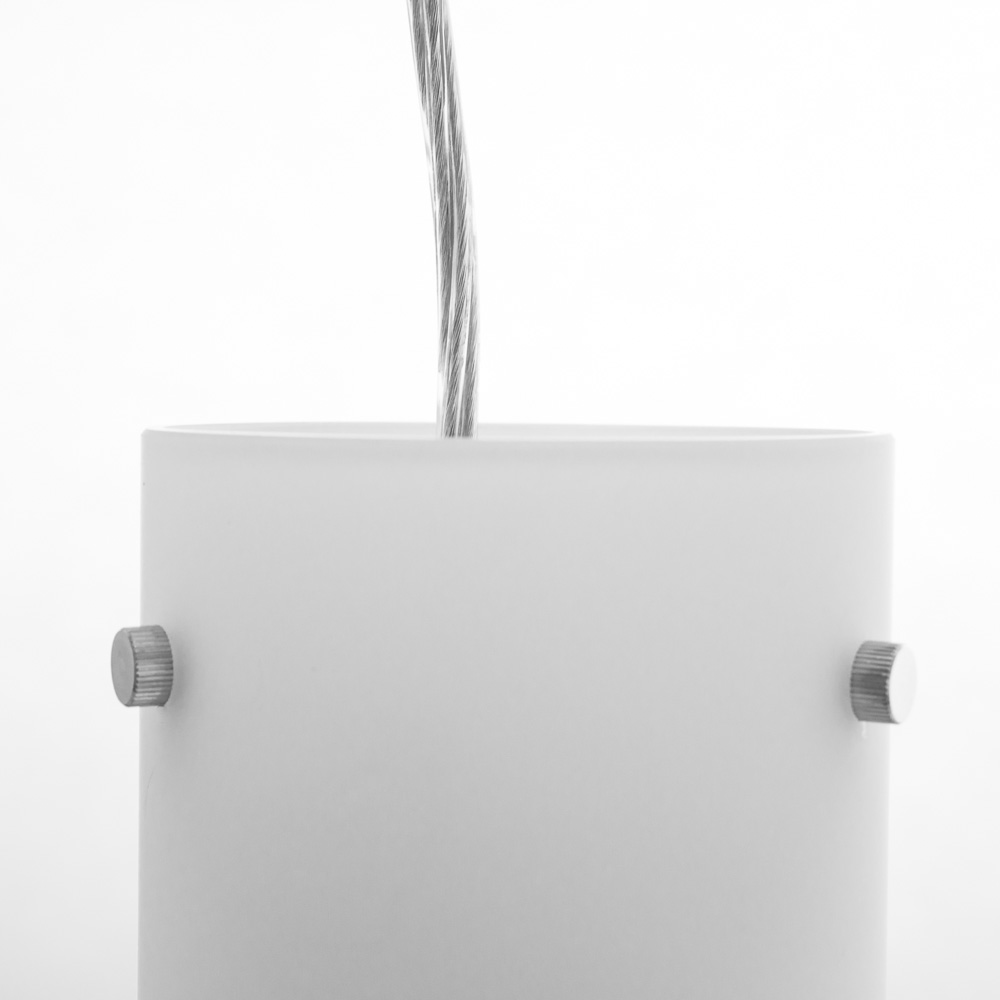

Suspension:
L - Self-supporting transparent 2m cable
| Body material: | Chromed ceiling base | Mounting method: | Závěsné BAL | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Color temperature controllable (K): | Yes | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 |
| Color temperature (K): | 4000, 6500, 3000, 2700, 5700, 2700...6500 | Rated lifetime L80/B50 (h): | 80000 | Dimming DALI: | Yes | Optical system: | TRIPLEX opal glass cover | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Diameter (mm)
Height/depth (mm)
BALOV100L3V1/600DALI
Effective luminous flux (lm): 1700
System power (W): 20
Color temperature (K): 3000
Diameter (mm): 100
Height/depth (mm): 300
BALOV100L3V1/600ND
Effective luminous flux (lm): 1700
System power (W): 20
Color temperature (K): 3000
Diameter (mm): 100
Height/depth (mm): 300
BALOV100L4V1/600DALI
Effective luminous flux (lm): 1700
System power (W): 20
Color temperature (K): 4000
Diameter (mm): 100
Height/depth (mm): 300
BALOV100L4V1/600ND
Effective luminous flux (lm): 1700
System power (W): 20
Color temperature (K): 4000
Diameter (mm): 100
Height/depth (mm): 300
Product page - PDF
LDT files
