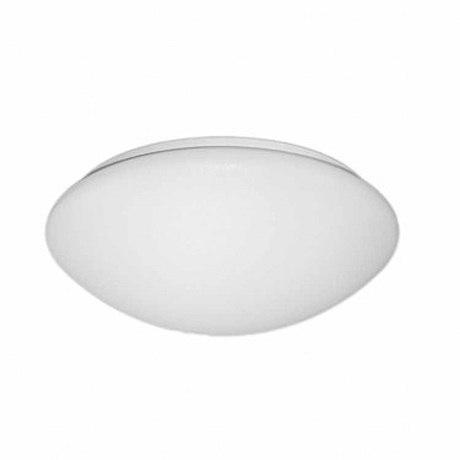

MODUS BRKL
Residental light fitting

2 Z5_zaz 2G7.jpg
5 P4_E27.jpg
2 Z3_zar G23.jpg
1 M09_prisazene_prime.jpg

Body:

White painted (RAL 9003) metal sheet



Optic:

KO - opal PMMA cover



Wiring:

N     uncompensated, ballast cat. B

EP    high frequency ballast

E27  with socket for E27 lamps



Application:

Surface mounted luminaire for residential use.



Version:

300 small fitting (Ø 300 mm)

375 middle fitting (Ø 375 mm)

480 large fitting (Ø 480 mm) N



Note: Fittings with E27 lampholders can be used with bulb 60W at most.

Show more...

Main features

Lamp type:Compact fluorescent lamp, Incandescent lamp
Lamp holder:2G7, 2G10, E27, G23, G24d-2, G24q-2/GX24q-2, G24q-3/GX24q-3
Protection class:I
Degree of protection (IP):IP40
Nominal voltage (V):220...240
Mounting method:Surface mounting
Type of dimming:Not dimmable

Download

Versions

Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 1
Lamp power (W): 18
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: G24q-2/GX24q-2
Diameter (mm): 375
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 22
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: Other
Diameter (mm): 375
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: 2G10
Diameter (mm): 375
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: 2G10
Diameter (mm): 480
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: 1-10 V
Optical system: KO
Lamp holder: 2G10
Diameter (mm): 480
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: 2G10
Diameter (mm): 375
Lamp type: Incandescent lamp
Suitable for number of lamps: 1
Lamp power (W): 60
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: E27
Diameter (mm): 300
Lamp type: Incandescent lamp
Suitable for number of lamps: 1
Lamp power (W): 60
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: E27
Diameter (mm): 375
Lamp type: Incandescent lamp
Suitable for number of lamps: 1
Lamp power (W): 60
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: E27
Diameter (mm): 300
Lamp type: Incandescent lamp
Suitable for number of lamps: 1
Lamp power (W): 60
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: E27
Diameter (mm): 375
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 9
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: 2G7
Diameter (mm): 300
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 9
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: 2G7
Diameter (mm): 375
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 11
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: 2G7
Diameter (mm): 375
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 18
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: G24q-2/GX24q-2
Diameter (mm): 375
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 18
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: G24q-2/GX24q-2
Diameter (mm): 375
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 18
Type of dimming: 1-10 V
Optical system: KO
Lamp holder: G24q-2/GX24q-2
Diameter (mm): 375
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 18
Type of dimming: 1-10 V
Optical system: KO
Lamp holder: G24q-2/GX24q-2
Diameter (mm): 480
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 18
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: G24q-2/GX24q-2
Diameter (mm): 375
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 24
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: 2G10
Diameter (mm): 480
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 24
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: 2G10
Diameter (mm): 480
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 24
Type of dimming: 1-10 V
Optical system: KO
Lamp holder: 2G10
Diameter (mm): 480
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 26
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: G24q-3/GX24q-3
Diameter (mm): 480
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: 2G10
Diameter (mm): 480
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: 2G10
Diameter (mm): 480
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: 2G10
Diameter (mm): 600
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: 1-10 V
Optical system: KO
Lamp holder: 2G10
Diameter (mm): 480
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: DALI
Optical system: KO
Lamp holder: 2G10
Diameter (mm): 480
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: DALI
Optical system: KO
Lamp holder: 2G10
Diameter (mm): 480
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: 2G10
Diameter (mm): 480
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: 2G10
Diameter (mm): 480
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: 1-10 V
Optical system: KO
Lamp holder: 2G10
Diameter (mm): 480
Lamp type: Incandescent lamp
Suitable for number of lamps: 2
Lamp power (W): 60
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: E27
Diameter (mm): 375
Lamp type: Incandescent lamp
Suitable for number of lamps: 2
Lamp power (W): 60
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: E27
Diameter (mm): 480
Lamp type: Compact fluorescent lamp
Suitable for number of lamps: 3
Lamp power (W): 24
Type of dimming: Not dimmable
Optical system: KO
Lamp holder: 2G10
Diameter (mm): 600
