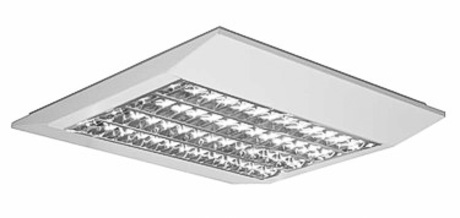

MODUS F
Semi-recessed fitting

2 Z2_zar T5.jpg
1 M09_prisazene_prime.jpg
Body:
White painted (RAL 9003) metal sheet
Optic:
ALDP    double parabolic louvre category C2 of highly polished aluminium
MATDP  double parabolic louvre category C2 of mat aluminium
Wiring:
EP         high frequention ballast  HFB(standard)
EPSA     HFB analogue dimmabe (1-10 V)
EPSD     HFB digital dimmable TRIDONIC ECO
EPSDD   HFB digital dimmable DALI
MULTIWATT  - universal HFB for T5 lamps
Application:
These  light fittings can be used as surface mounted or partially recessed into false ceiling with visible supporting structure ( 600x600 module) or gypsum plasterboard type ceiling by holders.
These fittings are recomended for offices, for lighting  areas with high requirements for light and glare control.
Accessories:
Holders set 16720040001 – for 2 lamps fittings
Holders set 16740040001 – for 4 lamps fittings
Versions:
NZ        emergency pack
OK       2 circuits wiring
Show more...

Main features

Lamp type:Fluorescent lamp T5
Protection class:I
Degree of protection (IP):IP20
Nominal voltage (V):220...240
Mounting method:Built-in, Surface mounting
Type of dimming:DALI, 1-10 V, Not dimmable

Download

Versions

Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power at multiwatt: 28/54 W
Type of dimming: Not dimmable
Length (mm): 1220
Width (mm): 370
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power at multiwatt: 28/54 W
Type of dimming: Not dimmable
Length (mm): 1220
Width (mm): 370
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power at multiwatt: 28/54 W
Type of dimming: Not dimmable
Width (mm): 596
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power at multiwatt: 28/54 W
Type of dimming: 1-10 V
Length (mm): 1220
Width (mm): 370
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power at multiwatt: 28/54 W
Type of dimming: DALI
Length (mm): 1220
Width (mm): 370
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power at multiwatt: 28/54 W
Type of dimming: Not dimmable
Length (mm): 1220
Width (mm): 370
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 28
Type of dimming: Not dimmable
Length (mm): 1220
Width (mm): 370
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 28
Type of dimming: Not dimmable
Length (mm): 1220
Width (mm): 370
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 28
Type of dimming: Not dimmable
Width (mm): 596
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 28
Type of dimming: Not dimmable
Width (mm): 596
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power at multiwatt: 35/49/80 W
Type of dimming: Not dimmable
Length (mm): 1520
Width (mm): 370
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power at multiwatt: 35/49/80 W
Type of dimming: 1-10 V
Length (mm): 1520
Width (mm): 370
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power at multiwatt: 35/49/80 W
Type of dimming: 1-10 V
Length (mm): 1520
Width (mm): 370
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power at multiwatt: 35/49/80 W
Type of dimming: DALI
Width (mm): 596
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power at multiwatt: 35/49/80 W
Type of dimming: Not dimmable
Length (mm): 1520
Width (mm): 370
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 35
Type of dimming: Not dimmable
Length (mm): 1520
Width (mm): 370
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 35
Type of dimming: DALI
Length (mm): 1520
Width (mm): 370
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 35
Type of dimming: Not dimmable
Width (mm): 596
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 35
Type of dimming: Not dimmable
Length (mm): 1520
Width (mm): 370
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 49
Type of dimming: Not dimmable
Length (mm): 1520
Width (mm): 370
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 49
Type of dimming: Not dimmable
Width (mm): 596
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 54
Type of dimming: Not dimmable
Length (mm): 1220
Width (mm): 370
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 54
Type of dimming: DALI
Length (mm): 1220
Width (mm): 370
Width (mm): 596
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 54
Type of dimming: Not dimmable
Width (mm): 596
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 80
Type of dimming: Not dimmable
Length (mm): 1520
Width (mm): 370
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 80
Type of dimming: 1-10 V
Length (mm): 1520
Width (mm): 370
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power at multiwatt: Other
Type of dimming: Not dimmable
Length (mm): 620
Width (mm): 620
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power at multiwatt: Other
Type of dimming: Not dimmable
Length (mm): 620
Width (mm): 620
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power at multiwatt: Other
Type of dimming: Not dimmable
Length (mm): 620
Width (mm): 620
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power (W): 14
Type of dimming: Not dimmable
Length (mm): 620
Width (mm): 620
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power (W): 14
Type of dimming: Not dimmable
Width (mm): 596
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power (W): 14
Type of dimming: Not dimmable
Length (mm): 620
Width (mm): 620
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power (W): 14
Type of dimming: Not dimmable
Length (mm): 620
Width (mm): 620
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power (W): 14
Type of dimming: 1-10 V
Length (mm): 620
Width (mm): 620
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power (W): 14
Type of dimming: DALI
Width (mm): 596
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power (W): 14
Type of dimming: DALI
Width (mm): 596
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power (W): 14
Type of dimming: DALI
Length (mm): 620
Width (mm): 620
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power (W): 14
Type of dimming: Not dimmable
Length (mm): 620
Width (mm): 620
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power (W): 14
Type of dimming: Not dimmable
Width (mm): 596
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power (W): 14
Type of dimming: Not dimmable
Length (mm): 620
Width (mm): 620
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power (W): 14
Type of dimming: DALI
Width (mm): 596
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power (W): 24
Type of dimming: Not dimmable
Length (mm): 620
Width (mm): 620
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power (W): 24
Type of dimming: 1-10 V
Length (mm): 620
Width (mm): 620
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power (W): 24
Type of dimming: Other
Width (mm): 596
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power (W): 24
Type of dimming: DALI
Length (mm): 620
Width (mm): 620
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power (W): 24
Type of dimming: Not dimmable
Length (mm): 620
Width (mm): 620
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power (W): 24
Type of dimming: Not dimmable
Width (mm): 596
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 4
Lamp power (W): 24
Type of dimming: Not dimmable
Width (mm): 596
