MODUS HLT

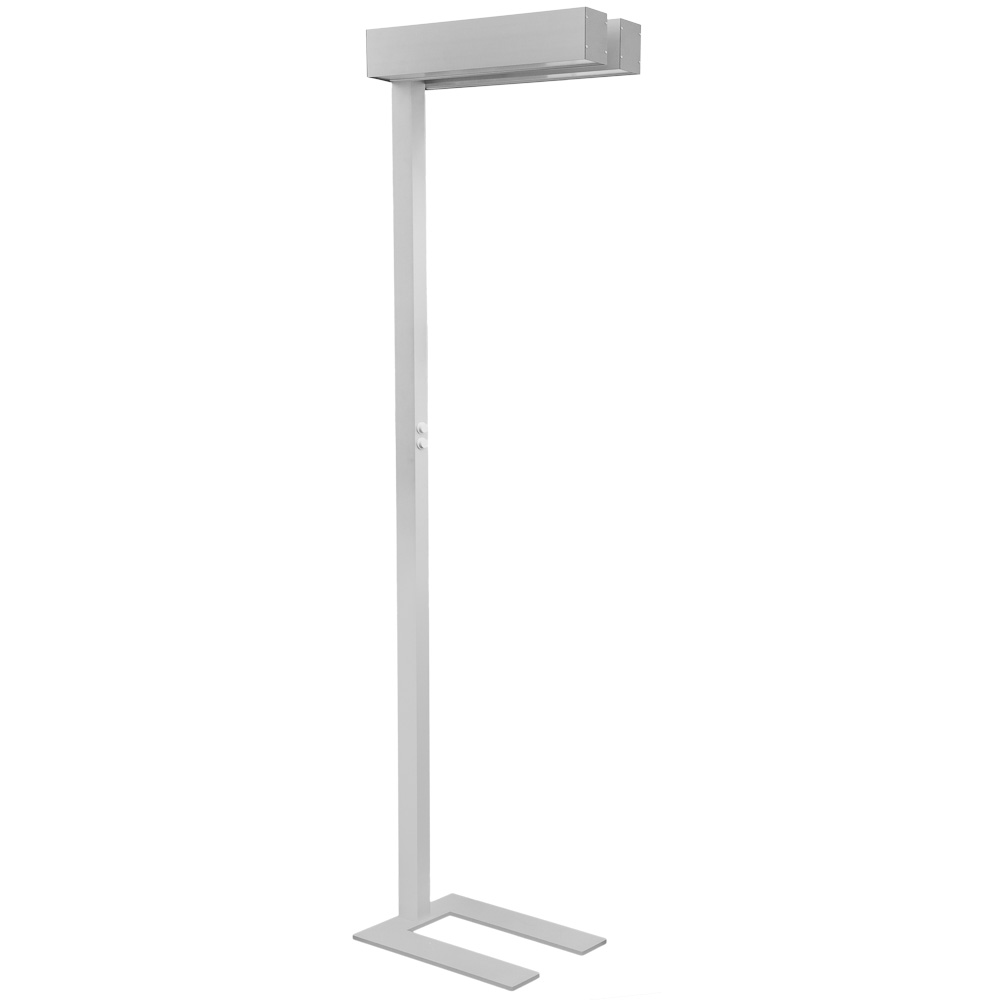

Floorstanding fitting

11 L80_50000_h.jpg
12 CCT_3000.jpg
12 CCT_4000.jpg

Body:

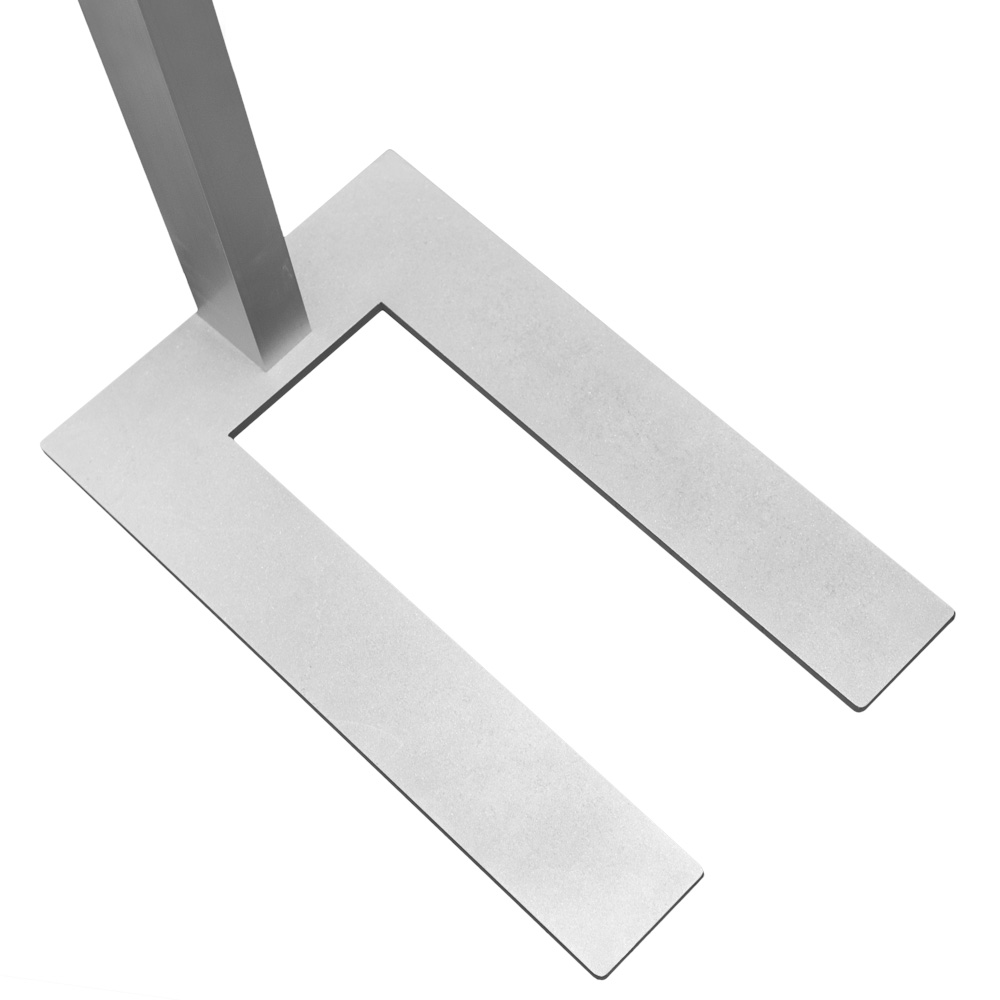

Eloxal aluminium profile, steel base (RAL9007) for improved stability

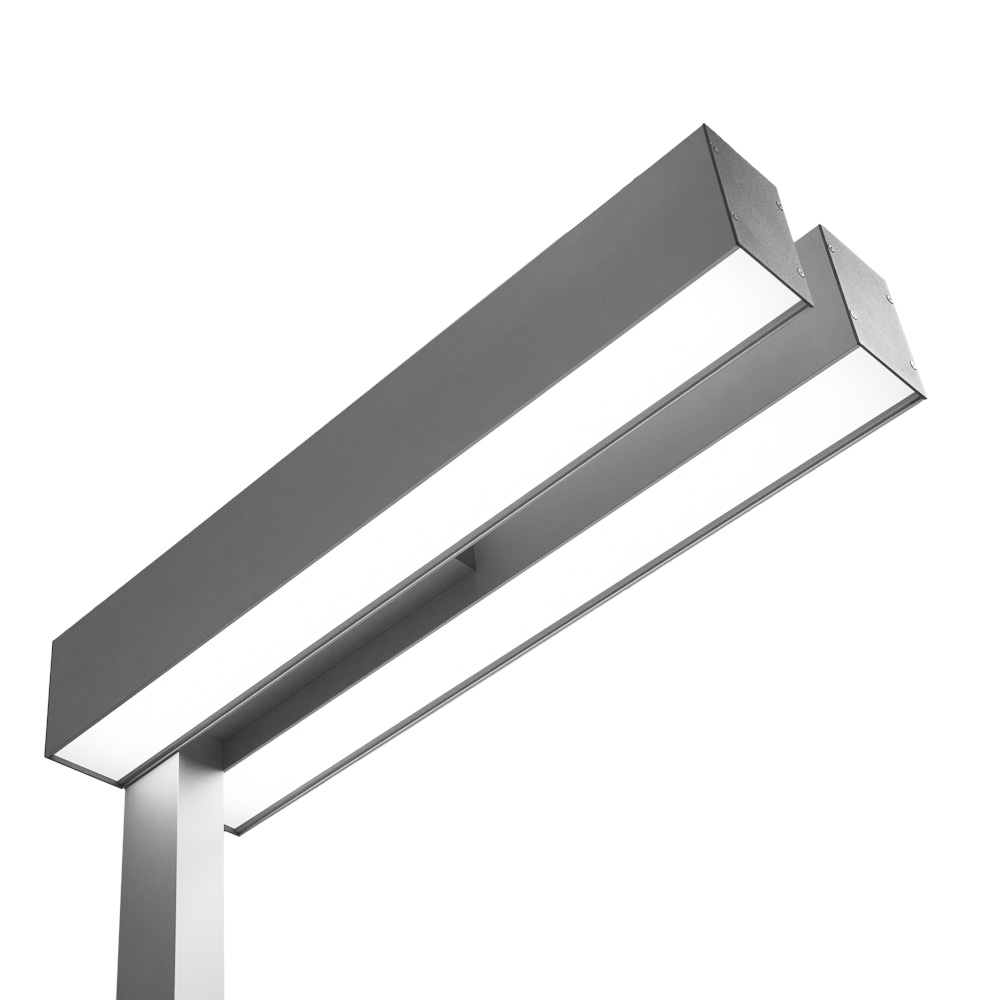

Optic:

KO - opal cover ACRYL SATINE

Direct / indirect light distribution



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

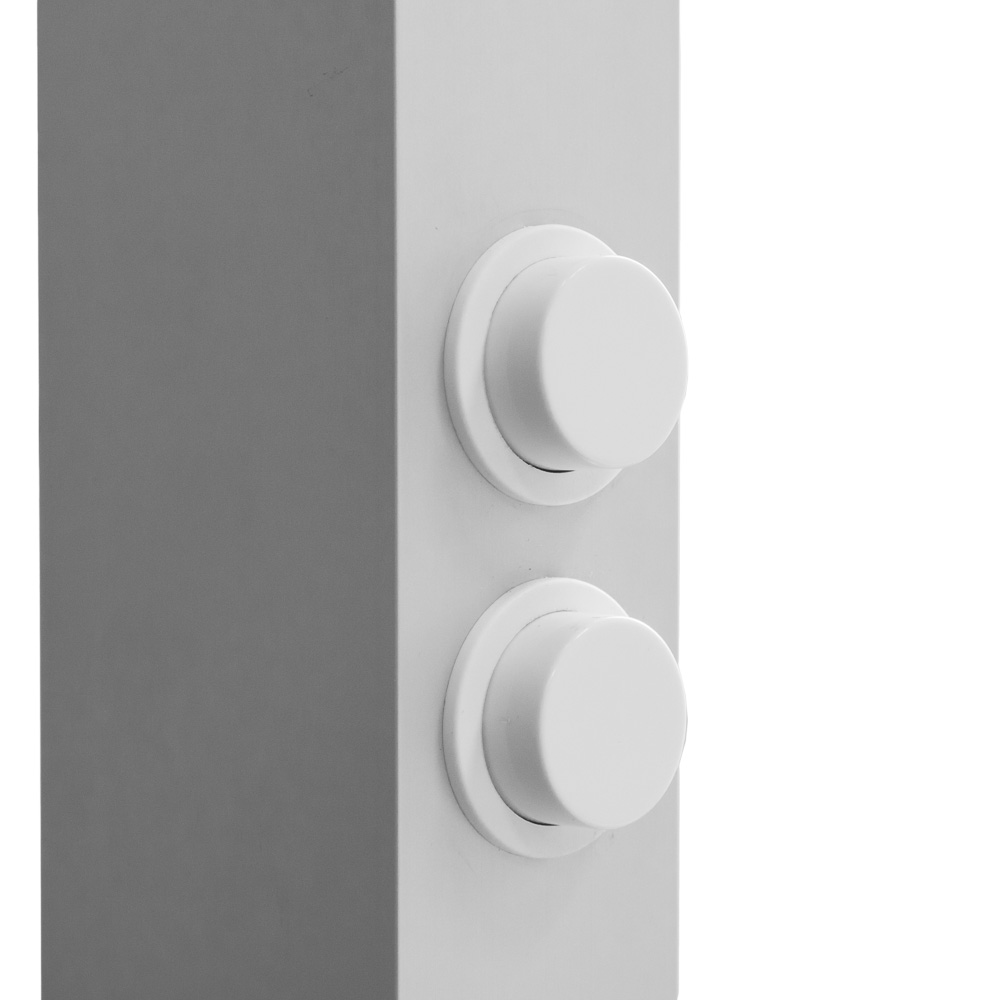

TD - touch dimmable



Application:

Free-standing luminaires can be positioned in any location in the room, at any position relative to the task area.

Indirect / direct light can be switched / dimmed separately. Light distribution - 50% direct / 50% indirect.

Luminaire height 2m.

Show more...

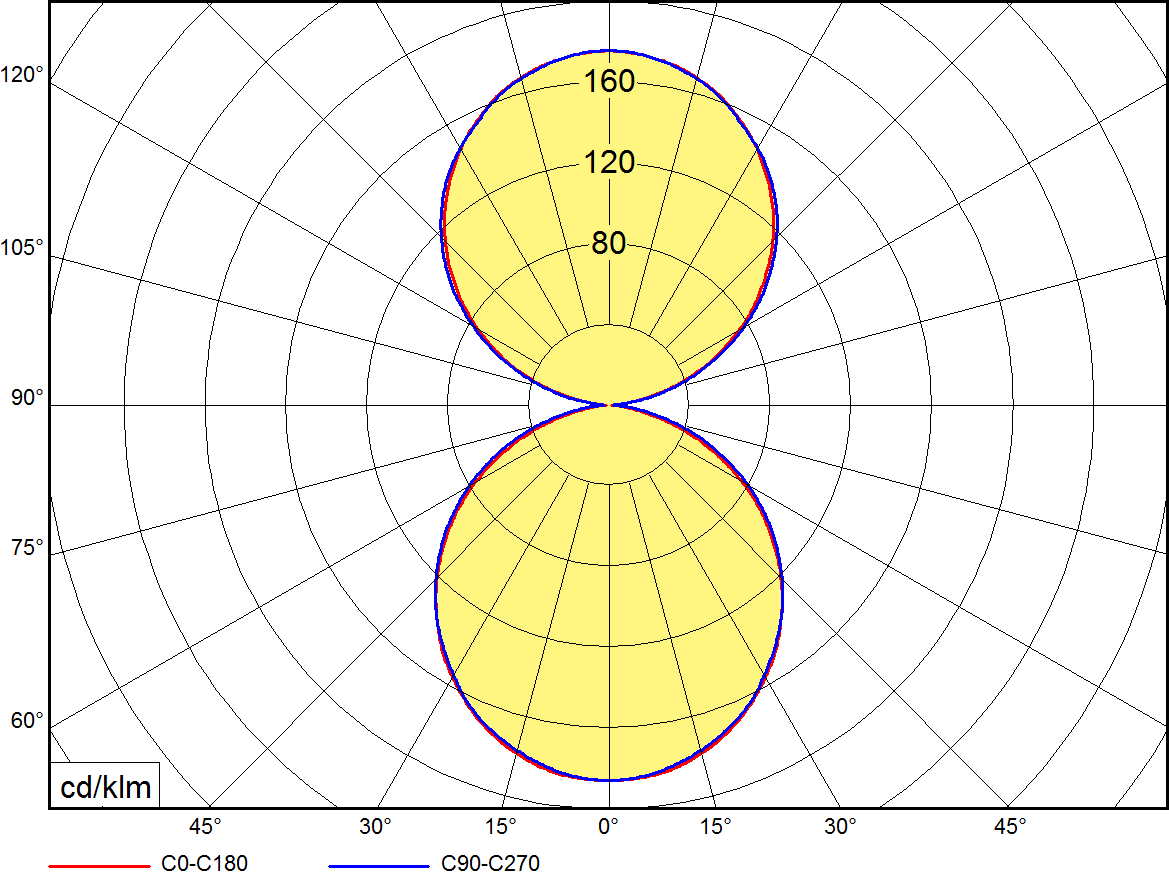

Light distribution


Main features

Lamp type:LED
Rated life time L80/B50 (h):50000
Color temperature (K):3000, 4000
Color rendering index CRI:80-89, 90-100
Type of dimming:DALI, Not dimmable
Optical system:KO D/I - opálový kryt pro přímo nepřímé osvětlení
Protection class:I
Degree of protection (IP):IP20
Nominal voltage (V):220...240
Body material:Eloxal aluminium profile

Download

Versions

Lamp power (W): 36
Effective luminous flux (lm): 5600
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: KO D/I
Length (mm): 596
Width (mm): 300
Height/depth (mm): 2040
Lamp power (W): 36
Effective luminous flux (lm): 5600
Color temperature (K): 3000
Type of dimming: DALI
Optical system: KO D/I
Length (mm): 596
Width (mm): 300
Height/depth (mm): 2040
Lamp power (W): 36
Effective luminous flux (lm): 5600
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: KO D/I
Length (mm): 596
Width (mm): 300
Height/depth (mm): 2040
Lamp power (W): 36
Effective luminous flux (lm): 5600
Color temperature (K): 4000
Type of dimming: DALI
Optical system: KO D/I
Length (mm): 596
Width (mm): 300
Height/depth (mm): 2040

Produced in Czech Republic

Fittings are proudly produced in our production plant.

Only quality electro-components used


LED fittings

Long-life. Minimal consuption.

No service needed.
