Product series

MODUS INL

Recessed indirect fitting

MODUS INL
MODUS INLMODUS INL
třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

Body:

White painted (RAL 9003) metal sheet



Optic:

White painted matt reflector

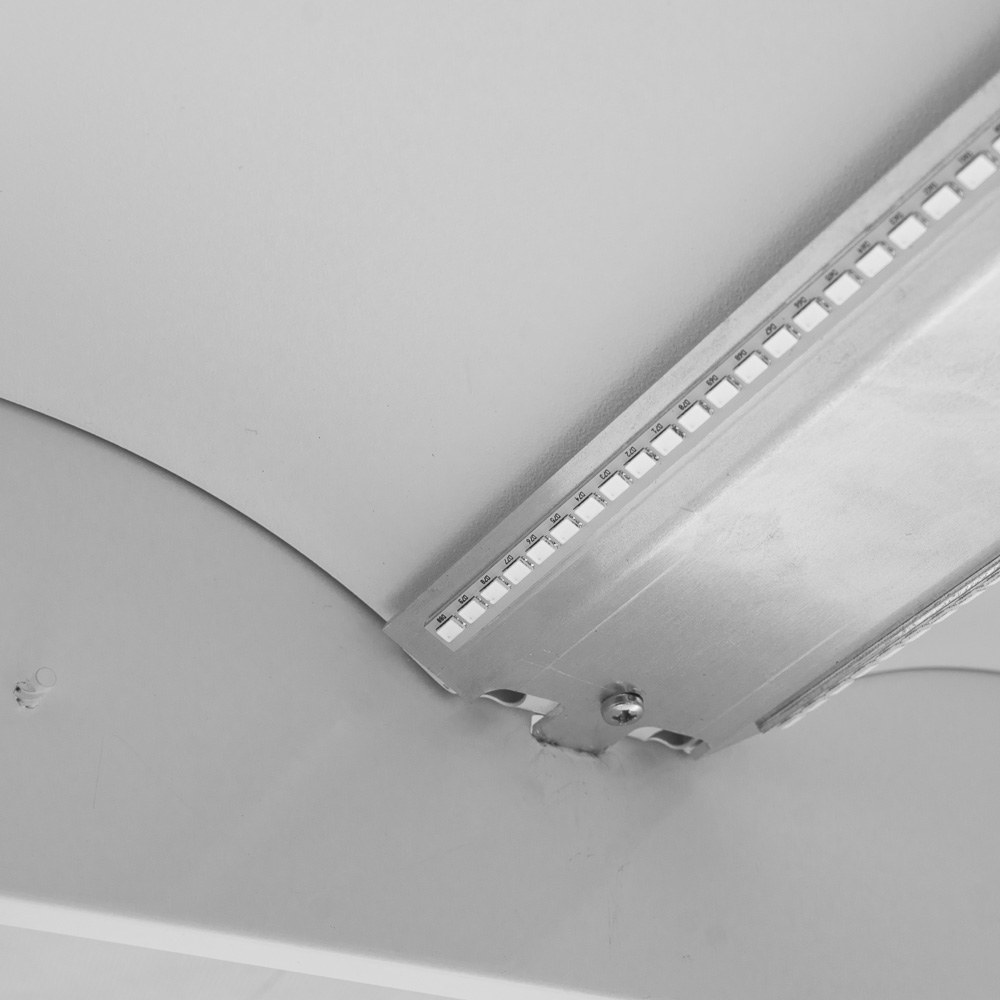

LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - dimmable 1-10V DC

Luminaire can be supplied with wireless Bluetooth control - more information here.



Application:

Recessed fitting for installation into gypsum plasterboard-type ceiling or into false ceiling with visible supporting structure (both 600x600 or 625x625 modules).

These LED fitting are recomended for offices, for lighting areas with high requirements for light and glare control.



Versions:

600 - for 600 module

625 - for 625 module

K - with GESIS connector

F - with flexible cord



Accessories:

1000004004 - fixing clips for installation into gypsum ceiling

Body material:White painted steelMounting method:Built-in
Protection class:IType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89, 90-100Light source type:LED
Color temperature controllable (K):YesLight outlet:Direct/indirect
Nominal voltage (V):220...240Degree of protection (IP):IP20
Color temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500Rated lifetime L80/B50 (h):80000
Dimming 1-10 V:YesDimming DALI:Yes

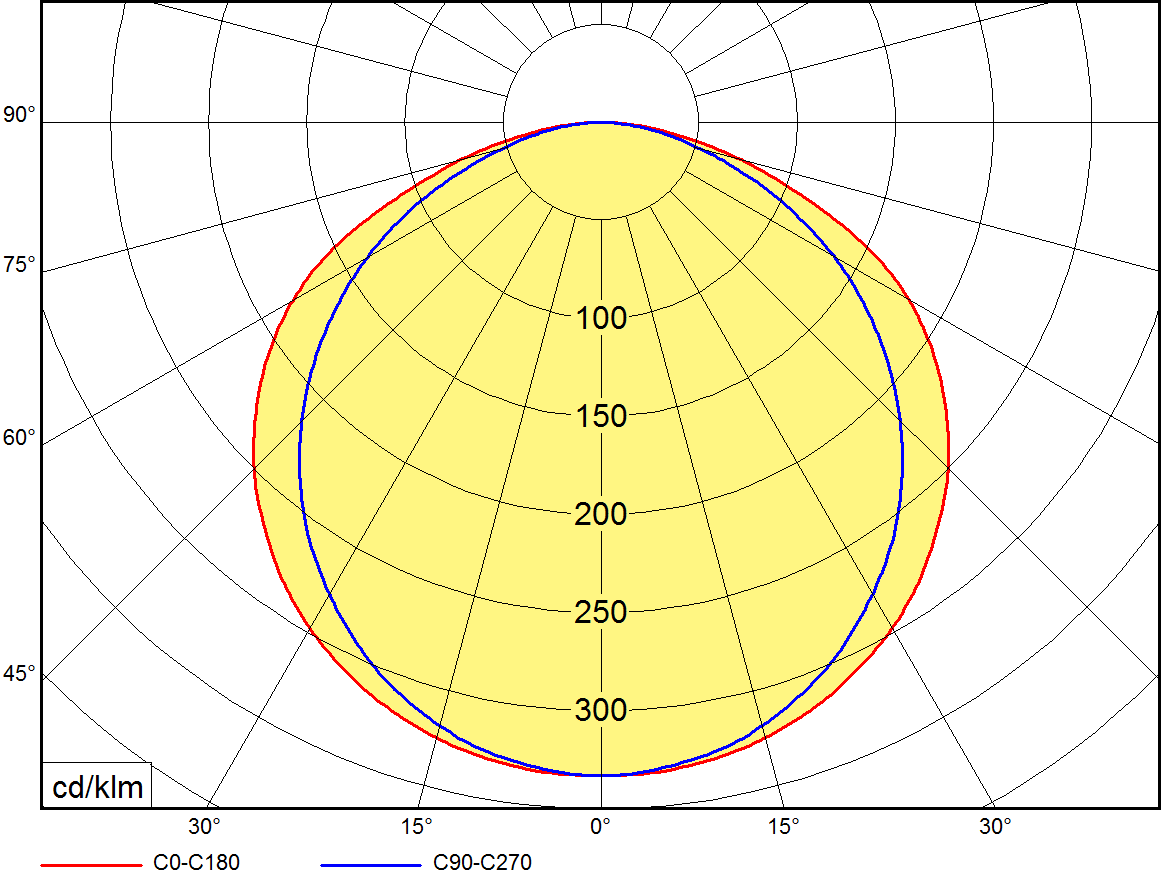

Optical system:INL

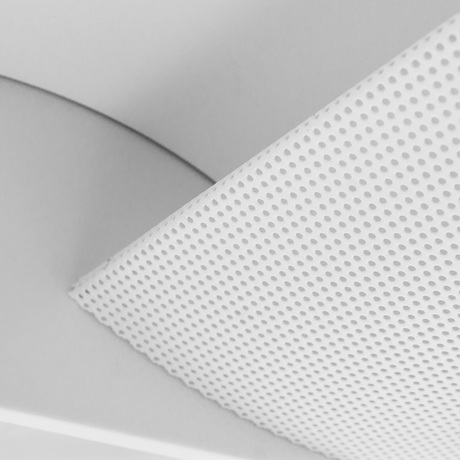

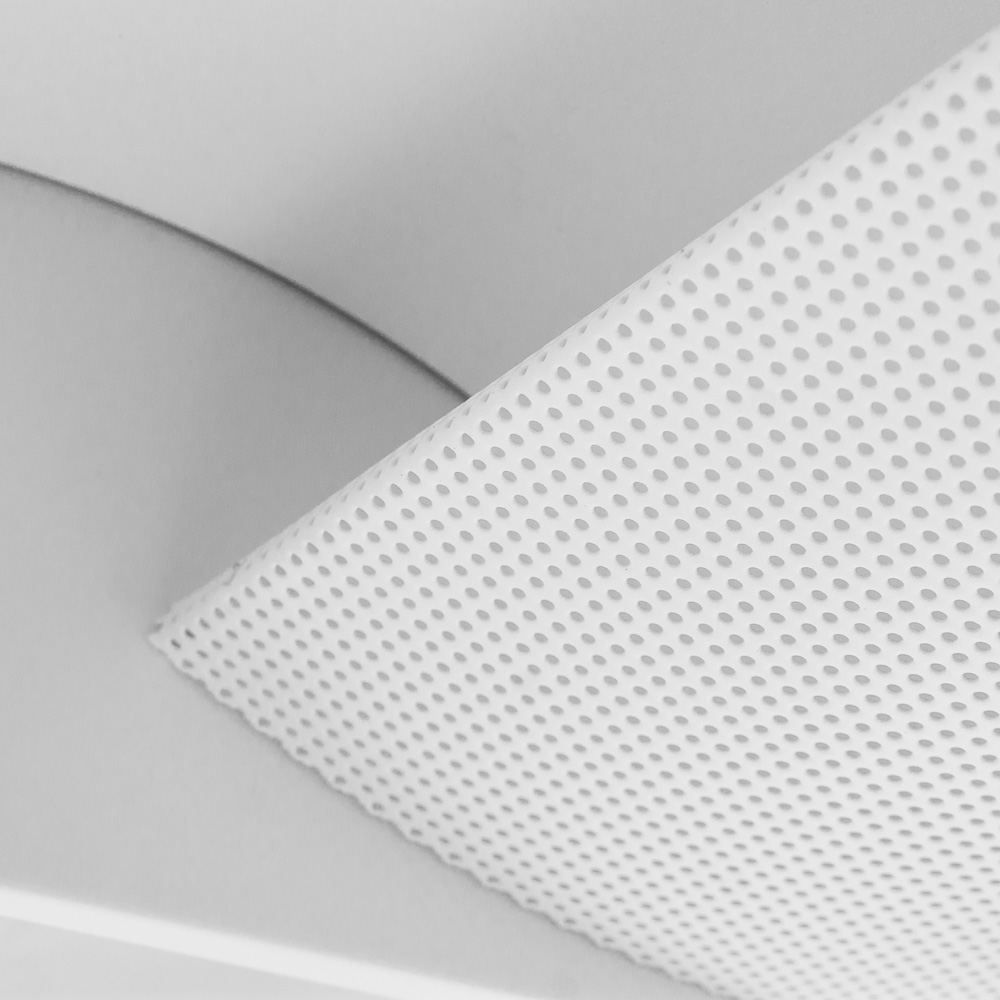

Perforovaný plech a bílé reflektory pro indirektní výstup světla
Made in Czech republic:Yes
Replaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

2750
3800

System power (W)

32
50
Product name
INLA1A4V1600/1050DALI
Effective luminous flux (lm): 3800
System power (W): 50
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
INLA1A4V1600/1050ND
Effective luminous flux (lm): 3800
System power (W): 50
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
INLA1A4V1600/1050ND/90
Effective luminous flux (lm): 3250
System power (W): 50
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
INLA1C3V1600/1050DALI
Effective luminous flux (lm): 3800
System power (W): 50
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
INLA1C3V1600/1050ND
Effective luminous flux (lm): 3800
System power (W): 50
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
INLA1C3V1600/1050ND/F
Effective luminous flux (lm): 3800
System power (W): 50
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
INLA1C3V1600/1050NDK
Effective luminous flux (lm): 3800
System power (W): 50
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
INLA1C3V1600/1050NDK/90
Effective luminous flux (lm): 3800
System power (W): 50
Color temperature (K): 3000
Length (mm): 622
Raster (mm): 600
INLA1C3V1600/700DALI
Effective luminous flux (lm): 2750
System power (W): 32
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
INLA1C3V1600/700DALIT
Effective luminous flux (lm): 2750
System power (W): 32
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
INLA1C3V1600/700ND
Effective luminous flux (lm): 2750
System power (W): 32
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
INLA1C3V1600/700NDF
Effective luminous flux (lm): 2750
System power (W): 32
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
INLA1C3V1600/700NDK
Effective luminous flux (lm): 2750
System power (W): 32
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
INLA1C3V1600/700NDK/7040
Effective luminous flux (lm): 2750
System power (W): 32
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
INLA1C3V1625/1050DALI
Effective luminous flux (lm): 3800
System power (W): 50
Color temperature (K): 3000
Length (mm): 622
Raster (mm): 625
INLA1C3V1625/1050ND
Effective luminous flux (lm): 3800
System power (W): 50
Color temperature (K): 3000
Length (mm): 622
Raster (mm): 625
INLA1C3V1625/700DALI
Effective luminous flux (lm): 2750
System power (W): 32
Color temperature (K): 3000
Length (mm): 622
Raster (mm): 625
INLA1C3V1625/700ND
Effective luminous flux (lm): 2750
System power (W): 32
Color temperature (K): 3000
Length (mm): 622
Raster (mm): 625
INLA1C4V1600/1050DALI
Effective luminous flux (lm): 3800
System power (W): 50
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
INLA1C4V1600/1050DALIF5S
Effective luminous flux (lm): 3800
System power (W): 50
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
INLA1C4V1600/1050DALIK3
Effective luminous flux (lm): 3800
System power (W): 50
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
INLA1C4V1600/1050ND
Effective luminous flux (lm): 3800
System power (W): 50
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
INLA1C4V1600/1050ND/90
Effective luminous flux (lm): 3300
System power (W): 50
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
INLA1C4V1600/1050NDK
Effective luminous flux (lm): 3800
System power (W): 50
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
INLA1C4V1600/700DALI
Effective luminous flux (lm): 2750
System power (W): 32
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
INLA1C4V1600/700DALIK3
Effective luminous flux (lm): 2750
System power (W): 32
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
INLA1C4V1600/700ND
Effective luminous flux (lm): 2750
System power (W): 32
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
INLA1C4V1600/700NDK
Effective luminous flux (lm): 2750
System power (W): 32
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
INLA1C4V1625/1050DALI
Effective luminous flux (lm): 3800
System power (W): 50
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 625
INLA1C4V1625/1050ND
Effective luminous flux (lm): 3800
System power (W): 50
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 625
INLA1C4V1625/1050ND/9010
Effective luminous flux (lm): 3800
System power (W): 50
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 625
INLA1C4V1625/700DALI
Effective luminous flux (lm): 2750
System power (W): 32
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 625
INLA1C4V1625/700ND
Effective luminous flux (lm): 2750
System power (W): 32
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 625
INLA1C4V1625/700ND/9010
Effective luminous flux (lm): 2750
System power (W): 32
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 625
INLA1C5V1600/1050NDK
Effective luminous flux (lm): 3800
System power (W): 50
Color temperature (K): 5700
Length (mm): 622
Raster (mm): 600
