Product series

MODUS LVX

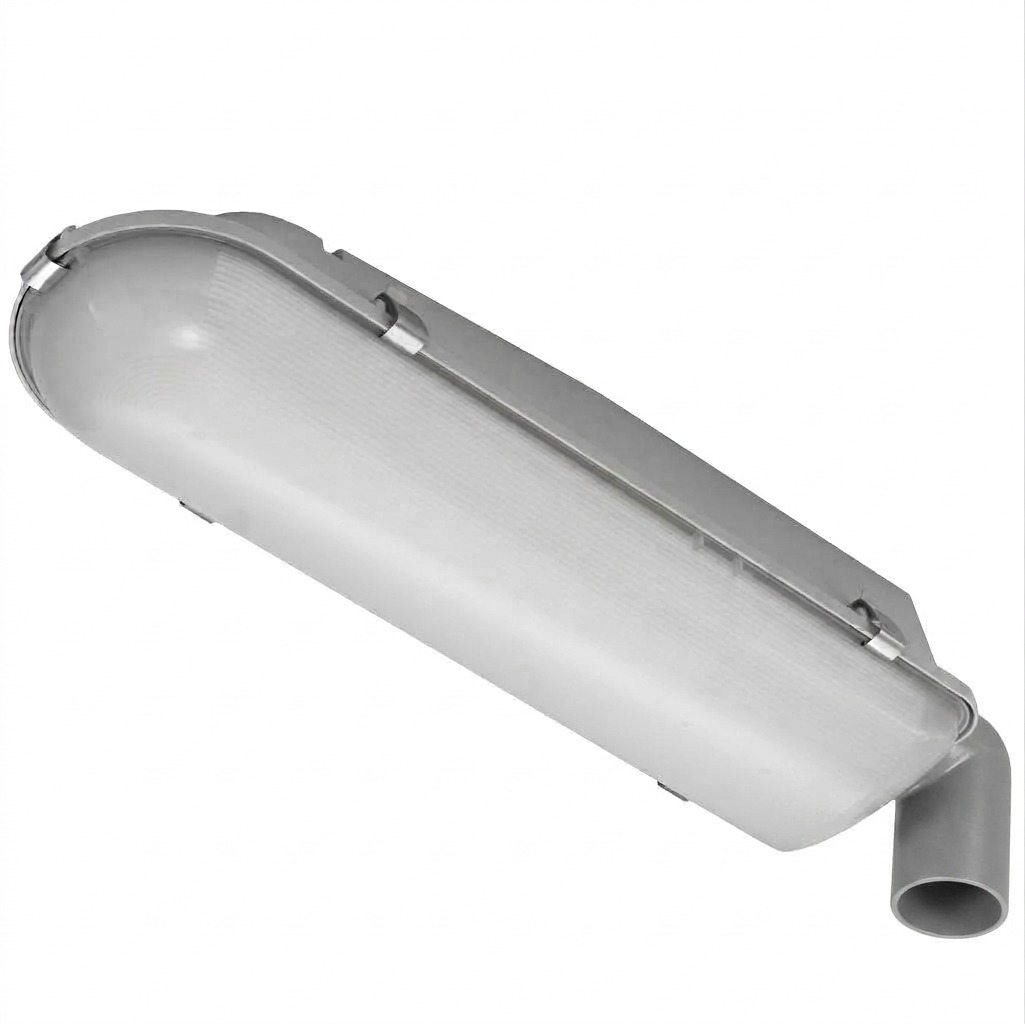

LED street light fitting

MODUS LVX
1 M21_ulicni_sadovka.jpg
třída ochrany I.PNG
220-240 v.png
11 L70_40000_h.jpg
en 62 471.png

Standard price from:

On request

Body:

High quality glass reinforced pressed polyester body

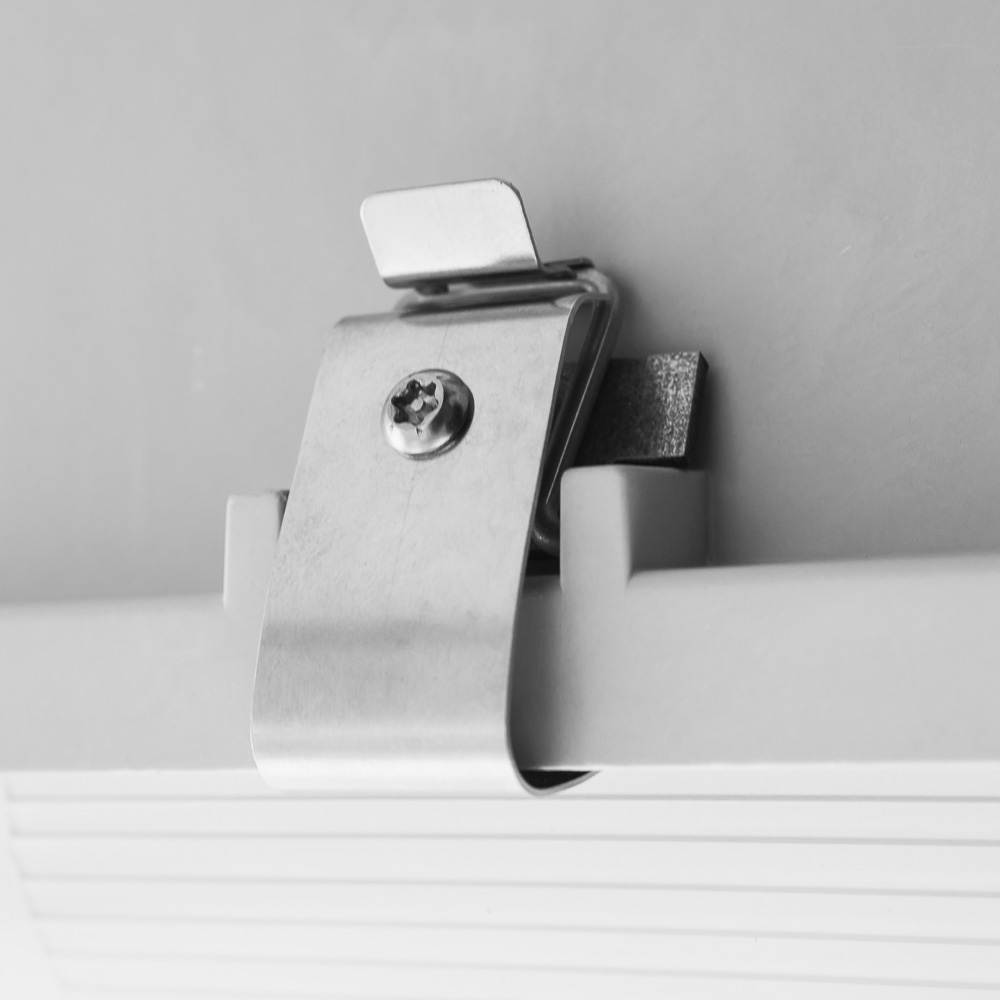

INOX clips



LED:

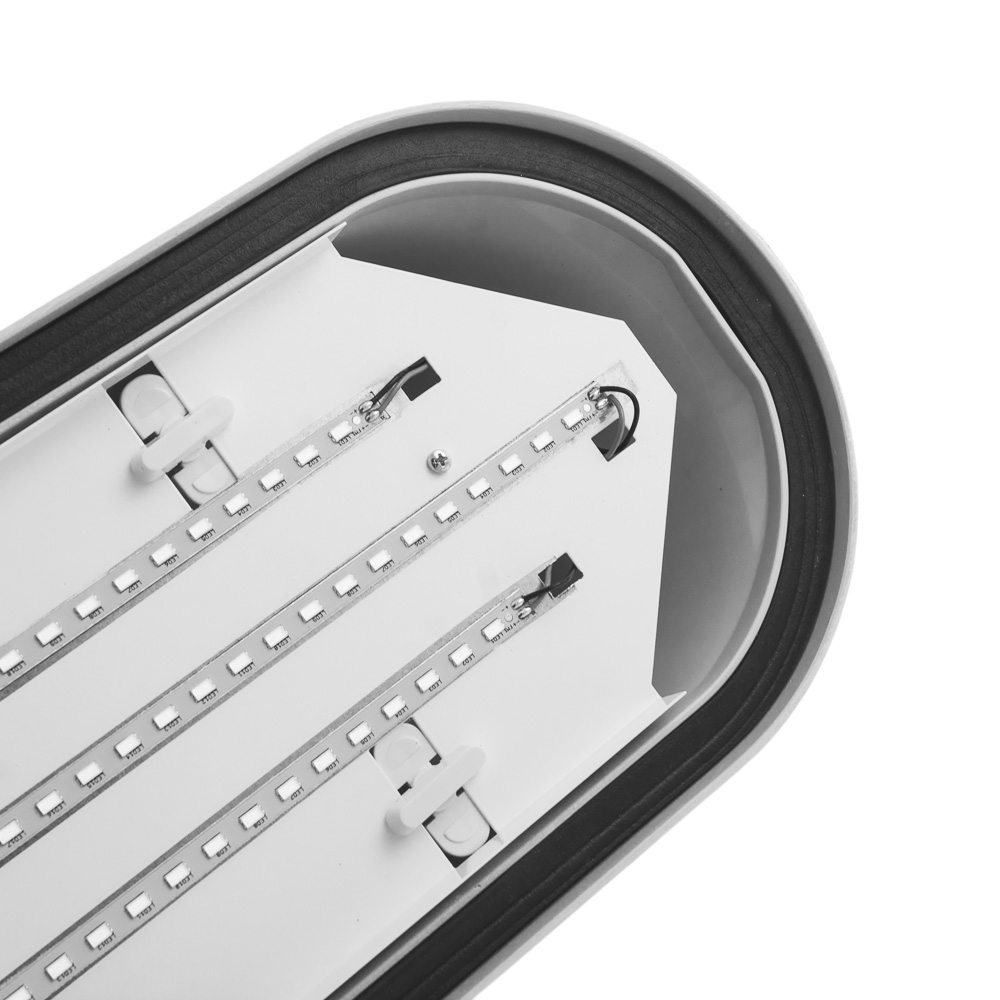

Mid Power LED

3...warm white 3 000K

4...cold white 4 000K



Wiring:

LED current driver

ND – not dimmable



Application:

Multi-purpose exterior fitting for roads, streets, park lots, paths and others applications

Optimal for 4 - 7m posts



Note:

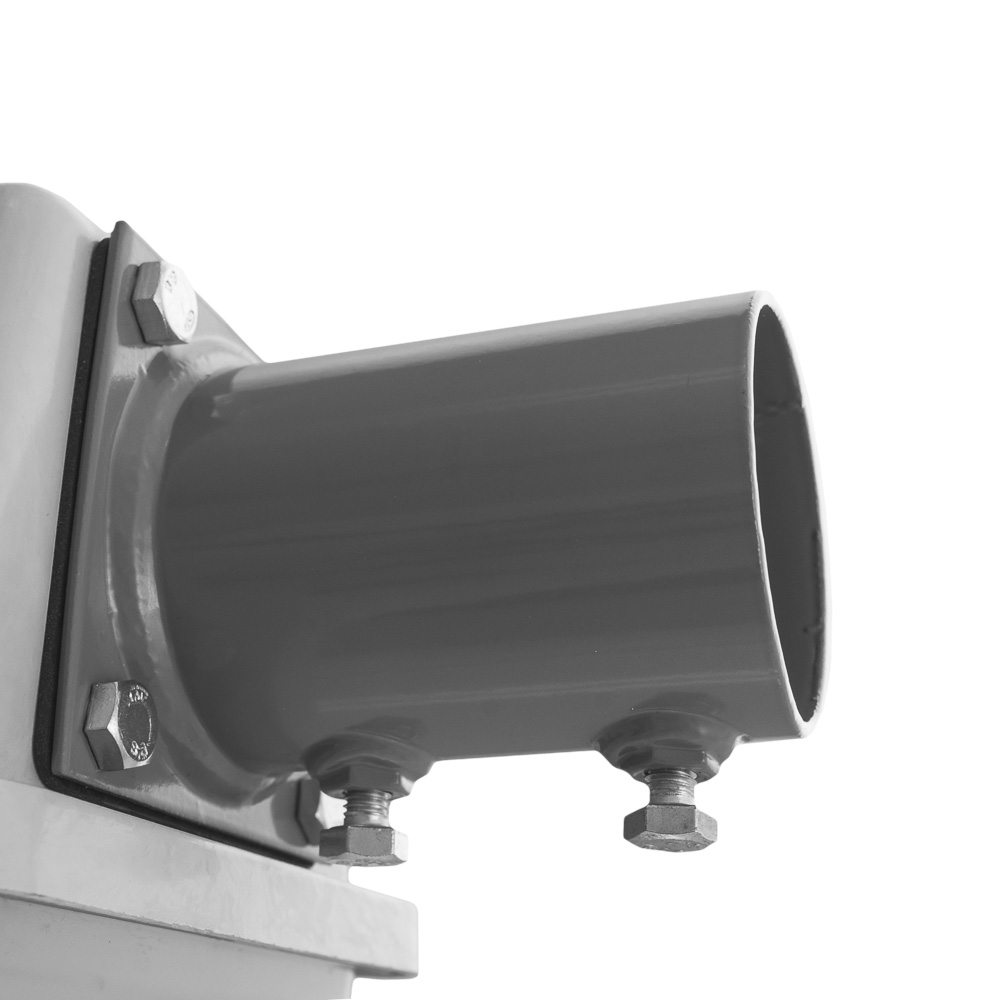

Flanges of LV LED luminaires are the same with flanges of classic LV.

The fittings are delivered with flange, but type of flange must be specificated in order.

Body material:High quality glass reinforced pressed polyester bodyMounting method:Side-entry, Post-top
Protection class:IType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89Light source type:LED
Impact strength:IK08Nominal voltage (V):220...240
Degree of protection (IP):IP65
Color temperature (K):4000, 3000, 2700, 5700
Rated lifetime L70/B50 (h):40000Optical system:S
flat glass cover
PCO
polycarbonate opal cover
Made in Czech republic:Yes Without Chinese components:Ano
Replaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

3200
5000

System power (W)

32
39
Product name
LVX3000NO3V1/NDS60
Effective luminous flux (lm): 3200
System power (W): 32
Color temperature (K): 3000
Optical system: PCO
Suitable for top end size (mm): 60
Mounting method: Post-top
LVX3000NO3V1/NDV60
Effective luminous flux (lm): 3200
System power (W): 32
Color temperature (K): 3000
Optical system: PCO
Suitable for top end size (mm): 60
Mounting method: Side-entry
LVX3000NO4V1/NDS60
Effective luminous flux (lm): 3200
System power (W): 32
Color temperature (K): 4000
Optical system: PCO
Suitable for top end size (mm): 60
Mounting method: Post-top
LVX3000NO4V1/NDS60/EU
Effective luminous flux (lm): 3200
System power (W): 32
Color temperature (K): 4000
Optical system: PCO
Suitable for top end size (mm): 60
Mounting method: Post-top
LVX3000NO4V1/NDS76
Effective luminous flux (lm): 3200
System power (W): 32
Color temperature (K): 4000
Optical system: PCO
Suitable for top end size (mm): 76
Mounting method: Post-top
LVX3000NO4V1/NDV60
Effective luminous flux (lm): 3200
System power (W): 32
Color temperature (K): 4000
Optical system: PCO
Suitable for top end size (mm): 60
Mounting method: Side-entry
LVX3000NO4V1/NDV60/EU
Effective luminous flux (lm): 3200
System power (W): 32
Color temperature (K): 4000
Optical system: PCO
Suitable for top end size (mm): 60
Mounting method: Side-entry
LVX3000NO4V1/NDV76
Effective luminous flux (lm): 3200
System power (W): 32
Color temperature (K): 4000
Optical system: PCO
Suitable for top end size (mm): 76
Mounting method: Side-entry
LVX4500NO2V1/NDV42
Effective luminous flux (lm): 5000
System power (W): 39
Color temperature (K): 2700
Optical system: PCO
Suitable for top end size (mm): 42
Mounting method: Side-entry
LVX4500NO2V1/NDV60
Effective luminous flux (lm): 5000
System power (W): 39
Color temperature (K): 2700
Optical system: PCO
Suitable for top end size (mm): 60
Mounting method: Side-entry
LVX4500NO4V1/NDS60
Effective luminous flux (lm): 5000
System power (W): 39
Color temperature (K): 4000
Optical system: PCO
Suitable for top end size (mm): 60
Mounting method: Post-top
LVX4500NO4V1/NDS60/EU
Effective luminous flux (lm): 5000
System power (W): 39
Color temperature (K): 4000
Optical system: PCO
Suitable for top end size (mm): 60
Mounting method: Post-top
LVX4500NO4V1/NDS76
Effective luminous flux (lm): 5000
System power (W): 39
Color temperature (K): 4000
Optical system: PCO
Suitable for top end size (mm): 76
Mounting method: Post-top
LVX4500NO4V1/NDV42
Effective luminous flux (lm): 5000
System power (W): 39
Color temperature (K): 4000
Optical system: PCO
Suitable for top end size (mm): 42
Mounting method: Side-entry
LVX4500NO4V1/NDV60
Effective luminous flux (lm): 5000
System power (W): 39
Color temperature (K): 4000
Optical system: PCO
Suitable for top end size (mm): 60
Mounting method: Side-entry
LVX4500NO4V1/NDV60/EU
Effective luminous flux (lm): 5000
System power (W): 39
Color temperature (K): 4000
Optical system: PCO
Suitable for top end size (mm): 60
Mounting method: Side-entry
LVXS3000G3V1/NDS60
Effective luminous flux (lm): 3200
System power (W): 32
Color temperature (K): 3000
Optical system: S
Suitable for top end size (mm): 60
Mounting method: Post-top
LVXS3000G4V1/NDS60
Effective luminous flux (lm): 3200
System power (W): 32
Color temperature (K): 4000
Optical system: S
Suitable for top end size (mm): 60
Mounting method: Post-top
LVXS3000G4V1/NDV60
Effective luminous flux (lm): 3200
System power (W): 32
Color temperature (K): 4000
Optical system: S
Suitable for top end size (mm): 60
Mounting method: Side-entry
LVXS3000G5V1/NDS60
Effective luminous flux (lm): 3200
System power (W): 32
Color temperature (K): 5700
Optical system: S
Suitable for top end size (mm): 60
Mounting method: Post-top
LVXS4500G4V1/NDS60
Effective luminous flux (lm): 5000
System power (W): 39
Color temperature (K): 4000
Optical system: S
Suitable for top end size (mm): 60
Mounting method: Post-top
LVXS4500G4V1/NDV60
Effective luminous flux (lm): 5000
System power (W): 39
Color temperature (K): 4000
Optical system: S
Suitable for top end size (mm): 60
Mounting method: Side-entry
