MODUS MEGAL
Industrial fitting with higher IP protection

11 L80_50000_h.jpg
12 CCT_3000.jpg
12 CCT_4000.jpg
12 CCT_5700.jpg
1 M01_zaves_prime_osv.jpg

Body:

White painted (RAL9003) metal sheet



Optic:

Highly polished reflectors made of MIRO® aluminium





LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4…cold white 4000K

5…daylight 5700K



Wiring:

LED current driver

ND – not dimmable (standard)

DALI – dimmable DALI



Application:

Supermarkets, assembly halls, stocks, etc. - as an alternative for discharge or fluorescent lamp luminaires



Assembly:

- pendant installation

- Fixtures are equipped with 4 snap hooks for easy hanging by chains or ropes with eyelet

- To connetct to the power are fittings equipped with cable with IP65 connector

- IK10 - available version with higher resistance with cover PC or PCO

- Fittings are certified to the ambient temperature Ta = 45 ° C



Show more...
  • MODUS MEGAL 4SMODUS MEGAL 4S

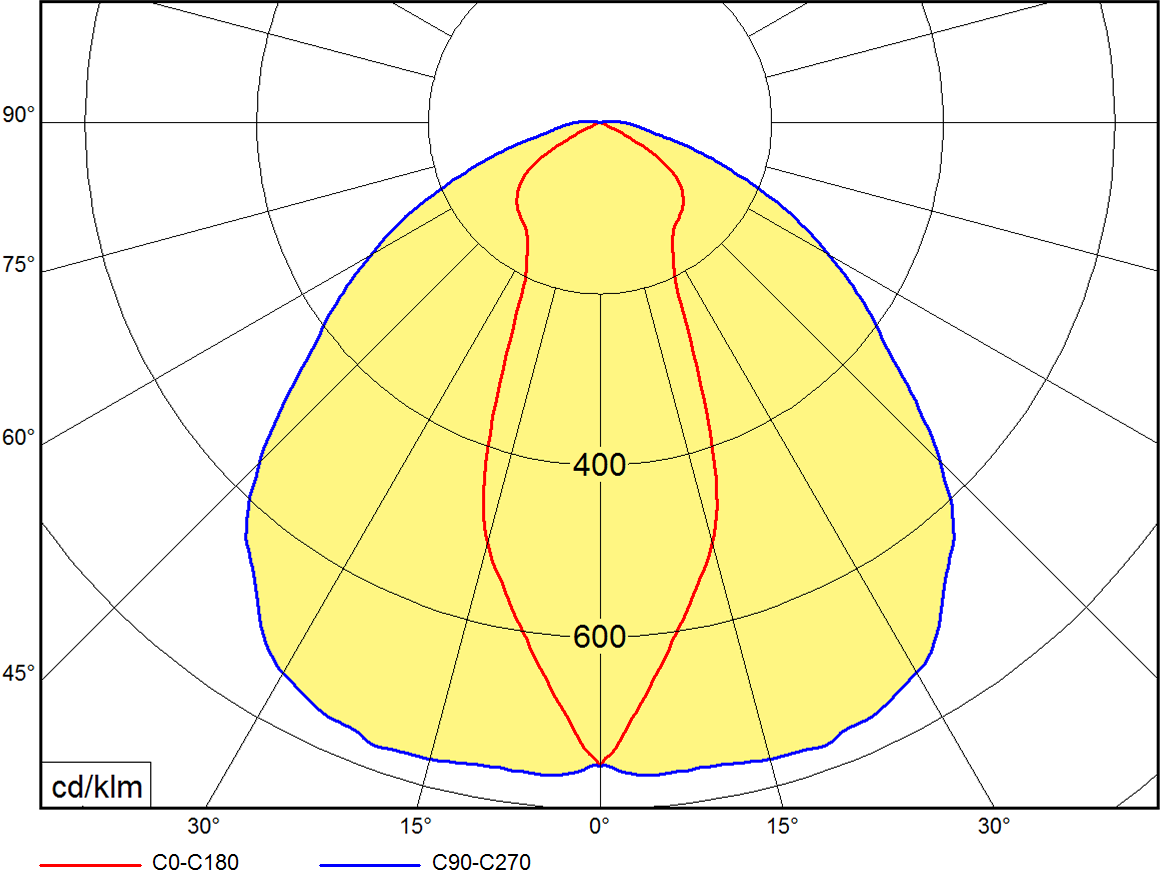

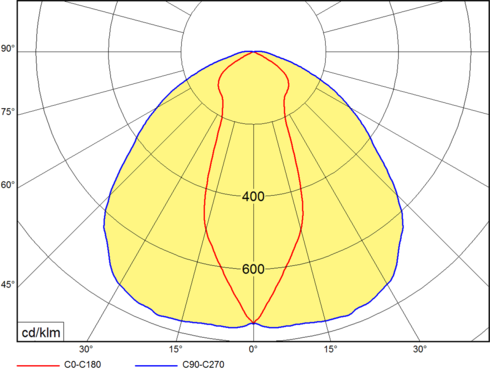

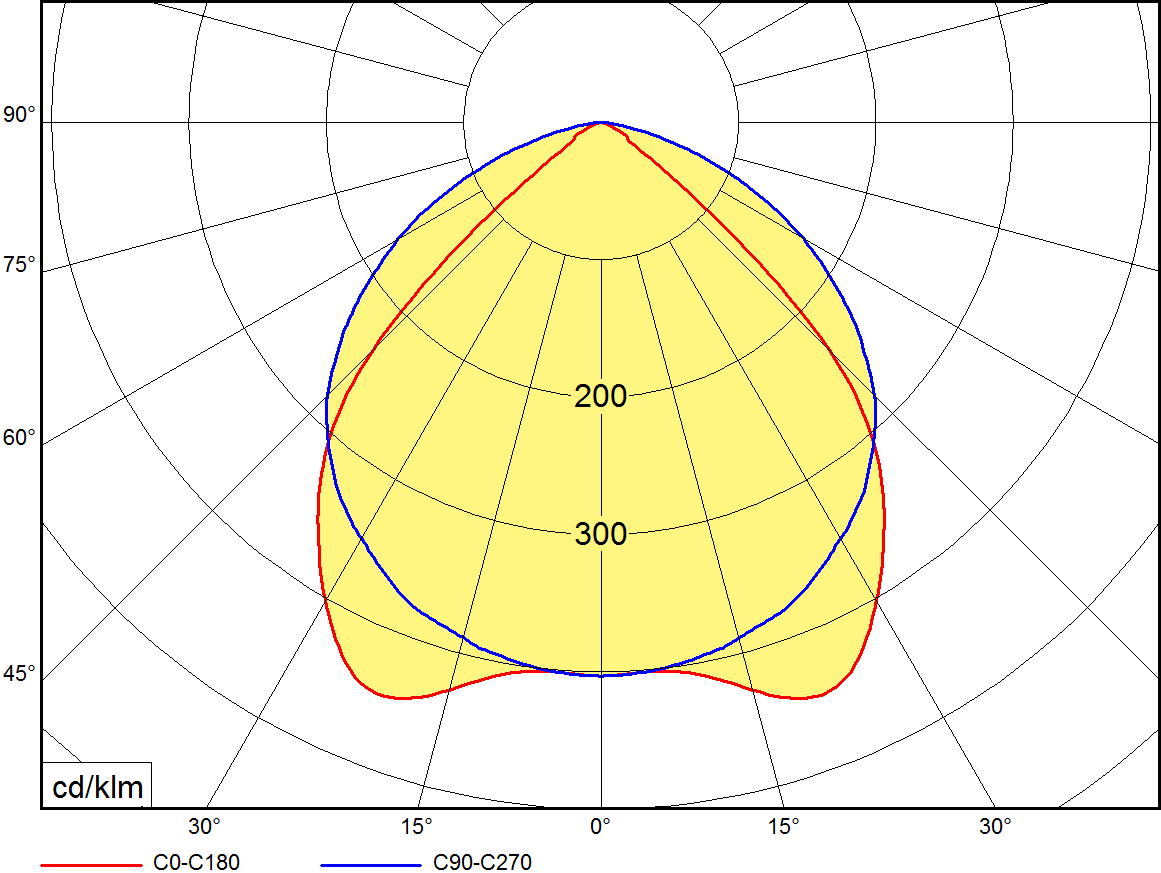

Light distribution


Main features

UGR:<22
Lamp type:LED
Rated life time L80/B50 (h):50000
Color temperature (K):3000, 4000, 5700
Color rendering index CRI:80-89, 90-100
Type of dimming:DALI, Not dimmable
Optical system:C - front glass cover
KN - nanoprizmatic cover
PC - polycarbonate cover
PCN - polykarbonátový mikroprizmatický kryt
PCO - polycarbonate opal cover
Light sharing:Narrow beam, Wide beam
Degree of protection (IP):IP65
Impact strength:IK10
Nominal voltage (V):220...240
Mounting method:Surface mounting, Built-in, Pendant
Size version:M - 1200 mm
S - 600 mm
Body material:White painted steel

Accessories

MEGALVESTRAM/4SFrame for recessed installation of MEGAL 4S
MEGAMONTSET2Installation set MEGA 2x, MEGAL 2M
MEGAMONTSET4Installation set MEGA 4S, 4M
MEGALPIR/2MSenzor MEGAL 2M, 4S
MEGALPIR/4MSenzor MEGAL 4M
MEGALPIR/RCRemote controller for MEGALPIR

Download

Versions

Lamp power (W): 106
Effective luminous flux (lm): 14500
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: C
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 13500
Color temperature (K): 4000
Type of dimming: DALI
Optical system: KN
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 13500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: KN
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 14000
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: PCN
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 14000
Color temperature (K): 4000
Type of dimming: DALI
Optical system: PC
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 14000
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: PC
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 14500
Color temperature (K): 4000
Type of dimming: DALI
Optical system: C
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 14000
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: PC
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 14500
Color temperature (K): 5700
Type of dimming: DALI
Optical system: C
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 14500
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: C
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 56
Effective luminous flux (lm): 6500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: KN
Light sharing: Narrow beam
Length (mm): 650
Width (mm): 190
Lamp power (W): 56
Effective luminous flux (lm): 6900
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: C
Light sharing: Narrow beam
Length (mm): 650
Width (mm): 190
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: C
Light sharing: Narrow beam
Length (mm): 650
Width (mm): 190
Lamp power (W): 215
Effective luminous flux (lm): 22700
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: PCN
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 29500
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: C
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 27600
Color temperature (K): 4000
Type of dimming: DALI
Optical system: KN
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 22700
Color temperature (K): 4000
Type of dimming: DALI
Optical system: PCN
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 22700
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: PCN
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 28800
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: PC
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 29500
Color temperature (K): 4000
Type of dimming: DALI
Optical system: C
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 29500
Color temperature (K): 4000
Type of dimming: 1-10 V
Optical system: C
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 29500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: C
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 28800
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: PC
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 29500
Color temperature (K): 5700
Type of dimming: DALI
Optical system: C
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 29500
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: C
Light sharing: Narrow beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 106
Effective luminous flux (lm): 14500
Color temperature (K): 3000
Type of dimming: DALI
Optical system: C
Light sharing: Narrow beam
Length (mm): 650
Width (mm): 350
Lamp power (W): 106
Effective luminous flux (lm): 14500
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: C
Light sharing: Narrow beam
Length (mm): 650
Width (mm): 350
Lamp power (W): 106
Effective luminous flux (lm): 13500
Color temperature (K): 4000
Type of dimming: DALI
Optical system: KN
Light sharing: Narrow beam
Length (mm): 650
Width (mm): 350
Lamp power (W): 106
Effective luminous flux (lm): 13500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: KN
Light sharing: Wide beam
Length (mm): 650
Width (mm): 350
Lamp power (W): 106
Effective luminous flux (lm): 14000
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: PC
Light sharing: Narrow beam
Length (mm): 650
Width (mm): 350
Lamp power (W): 106
Effective luminous flux (lm): 14500
Color temperature (K): 4000
Type of dimming: DALI
Optical system: C
Light sharing: Narrow beam
Length (mm): 650
Width (mm): 350
Lamp power (W): 106
Effective luminous flux (lm): 14500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: C
Light sharing: Narrow beam
Length (mm): 650
Width (mm): 350
Lamp power (W): 106
Effective luminous flux (lm): 14500
Color temperature (K): 5700
Type of dimming: DALI
Optical system: C
Light sharing: Narrow beam
Length (mm): 650
Width (mm): 350
Lamp power (W): 106
Effective luminous flux (lm): 14500
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: C
Light sharing: Narrow beam
Length (mm): 650
Width (mm): 350
Lamp power (W): 70
Effective luminous flux (lm): 8400
Color temperature (K): 3000
Type of dimming: DALI
Optical system: PCO
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 70
Effective luminous flux (lm): 8400
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: PCO
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 14500
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: PC
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 15000
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: C
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 70
Effective luminous flux (lm): 10400
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: KO
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 15000
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: KO
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 70
Effective luminous flux (lm): 8400
Color temperature (K): 4000
Type of dimming: DALI
Optical system: PCO
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 70
Effective luminous flux (lm): 8400
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: PCO
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 12000
Color temperature (K): 4000
Type of dimming: DALI
Optical system: PCO
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 12000
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: PCO
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 70
Effective luminous flux (lm): 10000
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: PC
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 14500
Color temperature (K): 4000
Type of dimming: DALI
Optical system: PC
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 14500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: PC
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 15000
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: C
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 12000
Lamp power (W): 106
Effective luminous flux (lm): 12000
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: PCO
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 14500
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: PC
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 70
Effective luminous flux (lm): 10400
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: C
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 15000
Color temperature (K): 5700
Type of dimming: DALI
Optical system: C
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 106
Effective luminous flux (lm): 15000
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: C
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 190
Lamp power (W): 56
Effective luminous flux (lm): 7000
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: C
Light sharing: Wide beam
Length (mm): 650
Width (mm): 190
Lamp power (W): 56
Effective luminous flux (lm): 5600
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: PCO
Light sharing: Wide beam
Length (mm): 650
Width (mm): 190
Lamp power (W): 56
Effective luminous flux (lm): 7000
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: C
Light sharing: Wide beam
Length (mm): 650
Width (mm): 190
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: C
Light sharing: Wide beam
Length (mm): 650
Width (mm): 190
Lamp power (W): 218
Effective luminous flux (lm): 2910
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: PC
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 140
Effective luminous flux (lm): 20500
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: C
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 30000
Color temperature (K): 3000
Type of dimming: DALI
Optical system: C
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 30000
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: C
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 24000
Lamp power (W): 140
Effective luminous flux (lm): 16700
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: PCO
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 24000
Color temperature (K): 4000
Type of dimming: DALI
Optical system: PCO
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 24000
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: PCO
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 140
Effective luminous flux (lm): 19900
Color temperature (K): 4000
Type of dimming: DALI
Optical system: PC
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 29100
Color temperature (K): 4000
Type of dimming: DALI
Optical system: PC
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 29100
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: PC
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 140
Effective luminous flux (lm): 20500
Color temperature (K): 4000
Type of dimming: DALI
Optical system: C
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 140
Effective luminous flux (lm): 20500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: C
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 30000
Color temperature (K): 4000
Type of dimming: DALI
Optical system: C
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 29100
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: PC
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 30000
Color temperature (K): 5700
Type of dimming: DALI
Optical system: C
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 215
Effective luminous flux (lm): 30000
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: C
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 350
Lamp power (W): 106
Effective luminous flux (lm): 15000
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: C
Light sharing: Wide beam
Length (mm): 650
Width (mm): 350
Lamp power (W): 106
Effective luminous flux (lm): 12000
Color temperature (K): 4000
Type of dimming: DALI
Optical system: PCO
Light sharing: Wide beam
Length (mm): 650
Width (mm): 350
Lamp power (W): 106
Effective luminous flux (lm): 14500
Color temperature (K): 4000
Type of dimming: DALI
Optical system: PC
Light sharing: Wide beam
Length (mm): 650
Width (mm): 350
Lamp power (W): 106
Effective luminous flux (lm): 14500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: PC
Light sharing: Wide beam
Length (mm): 650
Width (mm): 350
Lamp power (W): 70
Effective luminous flux (lm): 10400
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: C
Light sharing: Wide beam
Length (mm): 650
Width (mm): 350
Lamp power (W): 106
Effective luminous flux (lm): 15000
Color temperature (K): 4000
Type of dimming: DALI
Optical system: C
Light sharing: Wide beam
Length (mm): 650
Width (mm): 350
Lamp power (W): 106
Effective luminous flux (lm): 12000
Lamp power (W): 106
Effective luminous flux (lm): 12000
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: PCO
Light sharing: Wide beam
Length (mm): 650
Width (mm): 350
Lamp power (W): 106
Effective luminous flux (lm): 15000
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: C
Light sharing: Wide beam
Length (mm): 650
Width (mm): 350
Lamp power (W): 310
Effective luminous flux (lm): 43200
Lamp power (W): 310
Effective luminous flux (lm): 43200
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: C
Light sharing: Wide beam
Length (mm): 1220
Width (mm): 500

Produced in Czech Republic

Fittings are proudly produced in our production plant.

Only quality electro-components used


LED fittings

Long-life. Minimal consuption.

No service needed.


Be in touch

Do you have any question about our products?

Use our contacts here.

Whery you can buy?

Distribution network
