MODUS PL

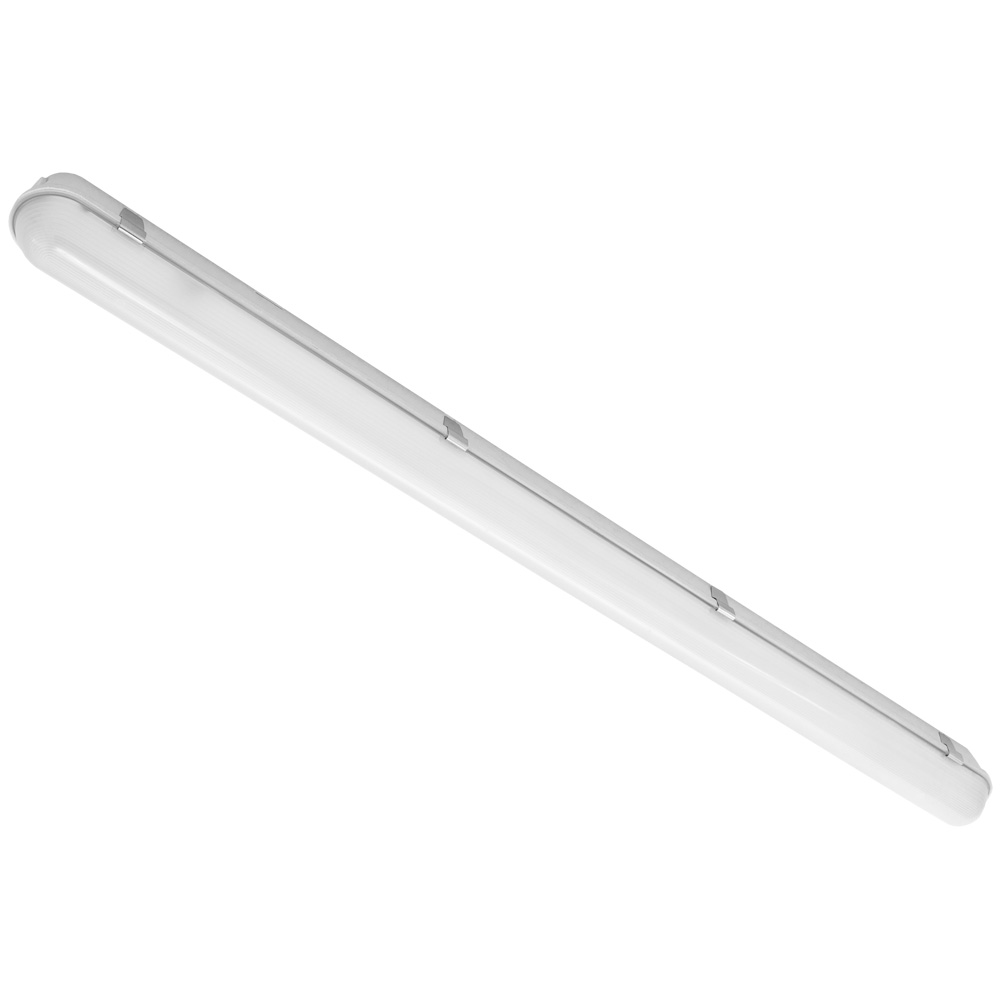

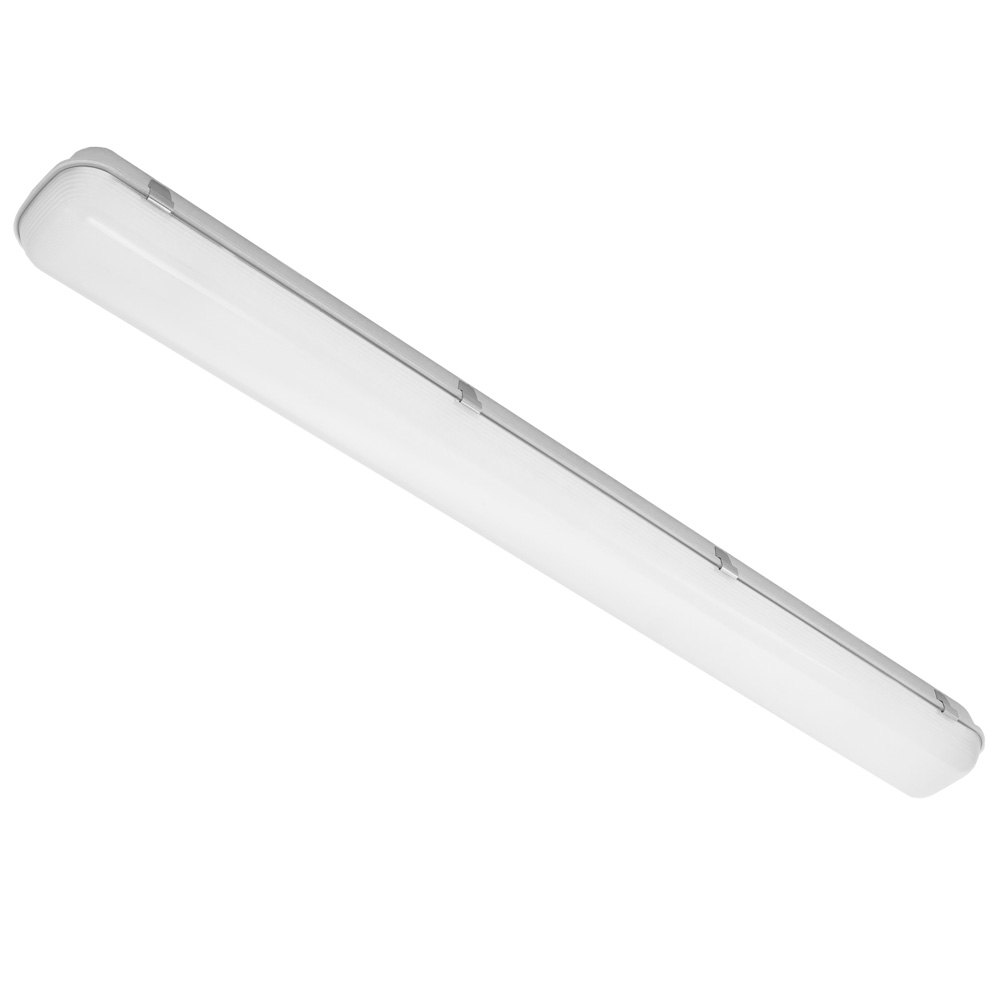

LED waterproof light fitting

11 L80_50000_h.jpg
12 CCT_3000.jpg
12 CCT_4000.jpg
12 CCT_5700.jpg
1 M09_prisazene_prime.jpg
1 M01_zaves_prime_osv.jpg

Body:

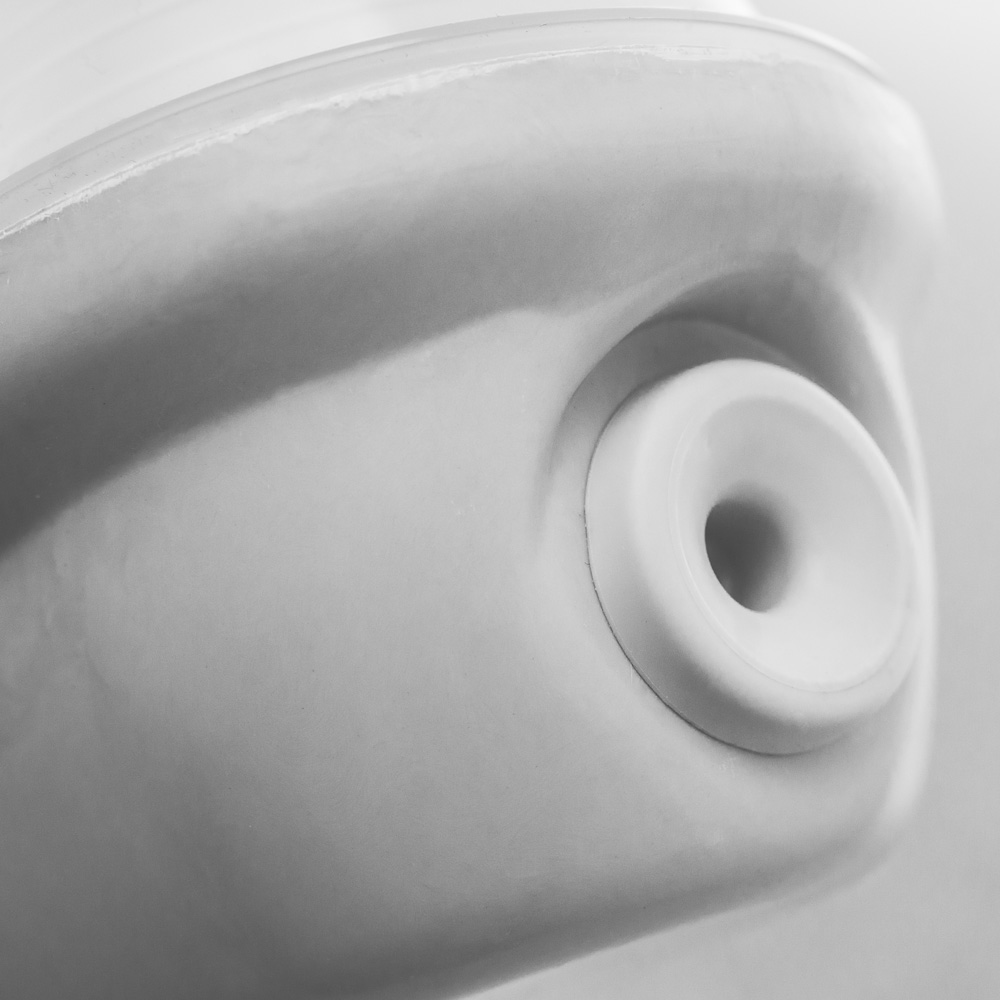

High quality glass reinforced pressed polyester body

White painted (RAL9016) metal sheet

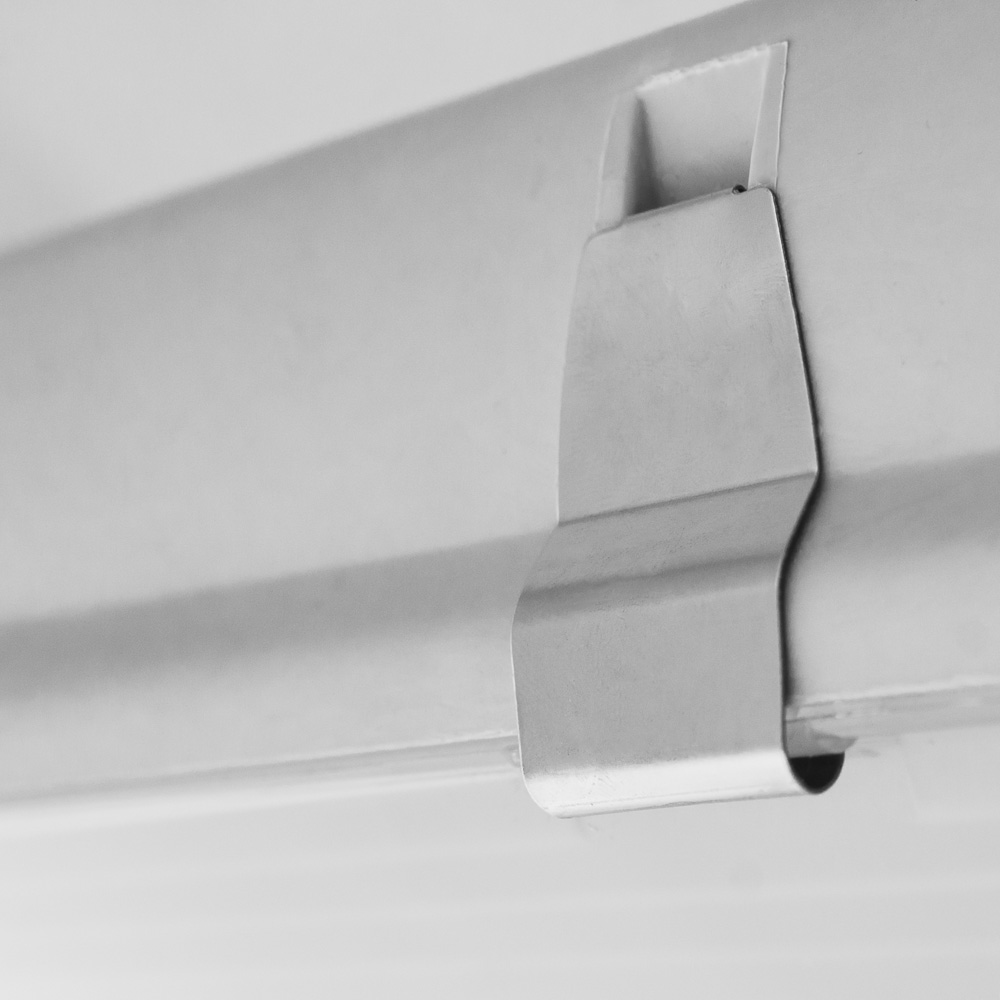

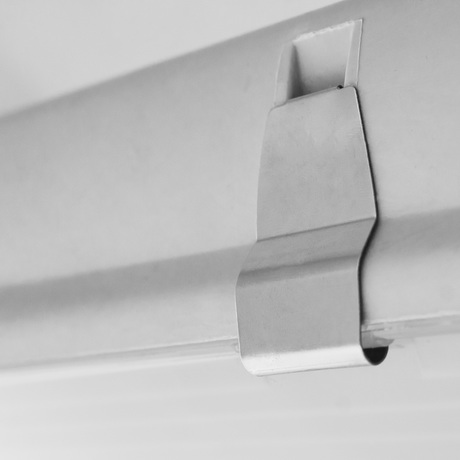

INOX clips





LED:

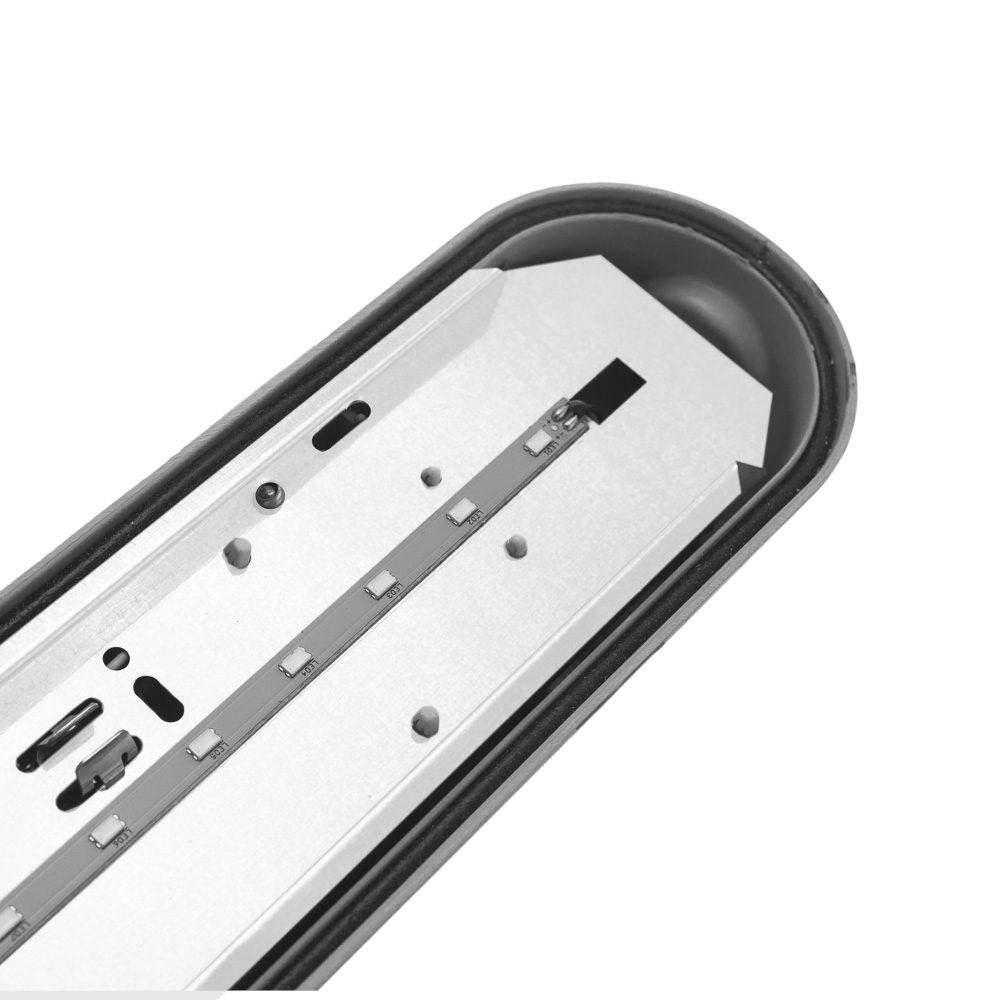

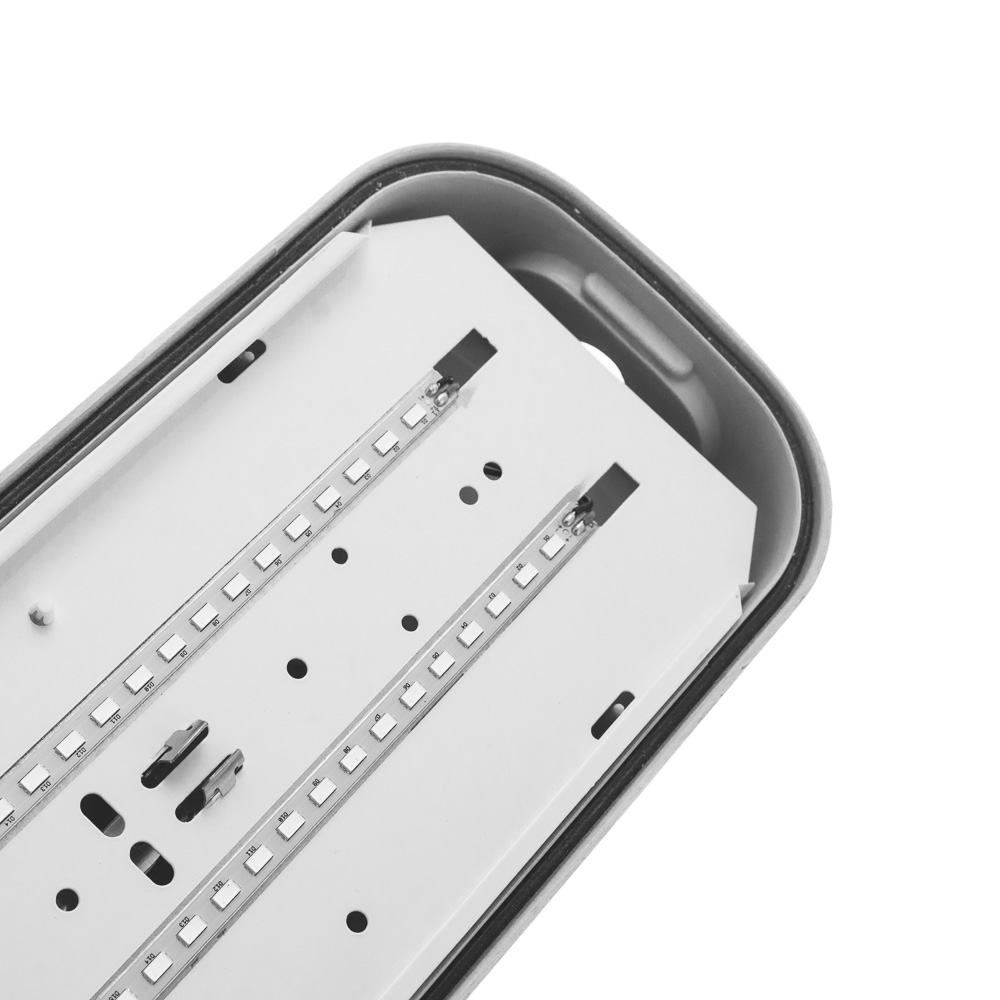

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4…cold white 4000K

5…daylight 5700K



Wiring:

LED current driver

ND – not dimmable (standard)

DALI – dimmable DALI

DIM - dimmable 1-10V DC



Application:

These light fittings can be used as surface mounted or suspended.

Suspension hook and fixation clip is part of packaging (ZAHA + ZAKO)



Accessories:

ZH21 - Cord suspension

OM - Protection grid



Versions:

F - with flexible cord

P - continuous assembly (through wiring) 5x1,5 mm2



Note:

These fittings are intended into normal condition of enviroment - ta= 25°C.

Impact protection IK08



Show more...
  • MODUS PL5000MMODUS PL5000M

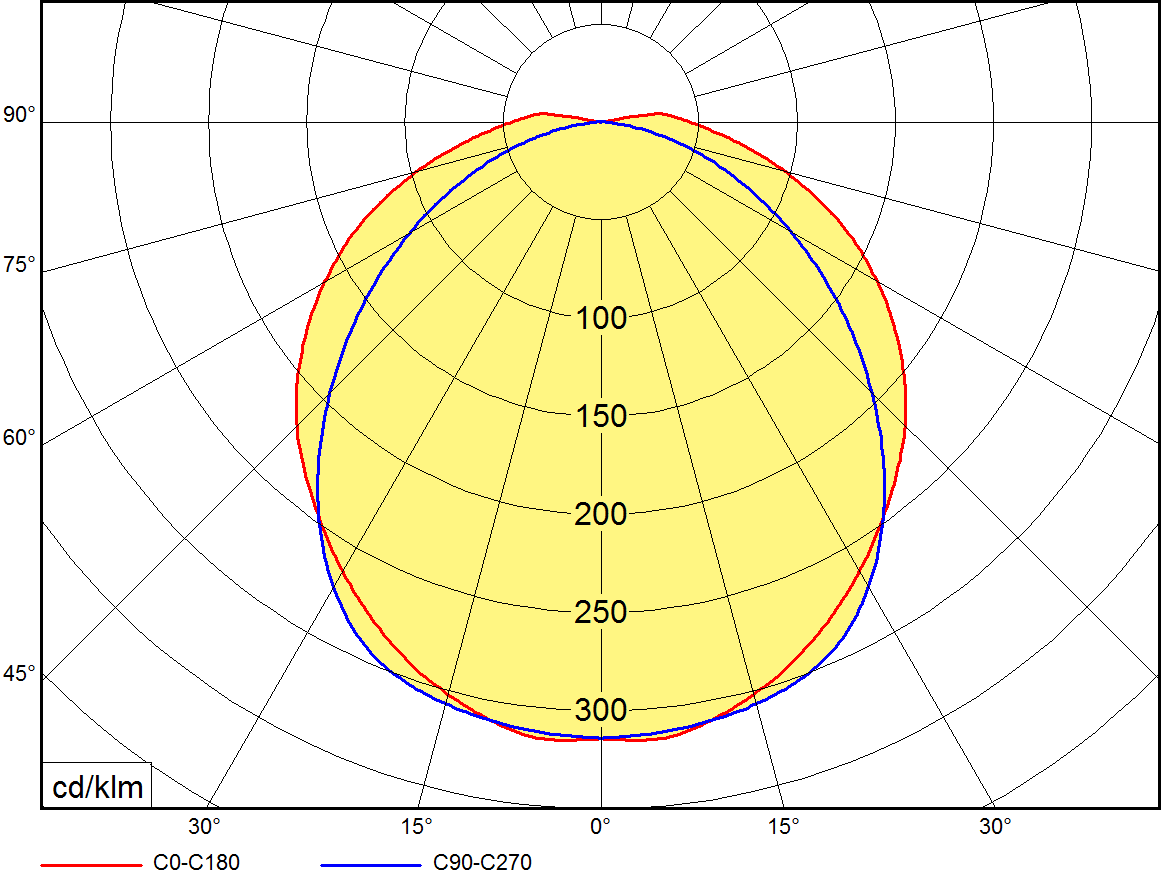

Light distribution


Main features

Lamp type:LED
Rated life time L80/B50 (h):50000
Color temperature (K):3000, 4000, 5700
Color rendering index CRI:80-89, 90-100
Type of dimming:1-10 V, DALI, Not dimmable
Optical system:CO - Polycarbonate opal cover
Protection class:I
Degree of protection (IP):IP65
Impact strength:IK08
Nominal voltage (V):220...240
Mounting method:Surface mounting, Pendant
Size version:L - 1500 mm
M - 1200 mm
S - 600 mm
Body material:High quality glass reinforced pressed polyester body

Download

Versions

Lamp power (W): 77
Effective luminous flux (lm): 9500
Color temperature (K): 3000
Type of dimming: DALI
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 77
Effective luminous flux (lm): 9500
Color temperature (K): 3000
Type of dimming: 1-10 V
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 77
Effective luminous flux (lm): 9500
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 77
Effective luminous flux (lm): 9500
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 77
Effective luminous flux (lm): 9500
Color temperature (K): 4000
Type of dimming: DALI
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 77
Effective luminous flux (lm): 9500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 77
Effective luminous flux (lm): 9500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 77
Effective luminous flux (lm): 9500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 77
Effective luminous flux (lm): 9500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 77
Effective luminous flux (lm): 9500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 77
Effective luminous flux (lm): 9500
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 77
Effective luminous flux (lm): 9500
Color temperature (K): 6500
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 11
Effective luminous flux (lm): 1450
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 675
Width (mm): 135
Size version: S
Lamp power (W): 11
Effective luminous flux (lm): 1450
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 675
Width (mm): 135
Size version: S
Lamp power (W): 11
Effective luminous flux (lm): 1450
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 675
Width (mm): 135
Size version: S
Lamp power (W): 11
Effective luminous flux (lm): 1450
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 675
Width (mm): 135
Size version: S
Lamp power (W): 20
Effective luminous flux (lm): 2700
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1275
Width (mm): 84
Size version: M
Lamp power (W): 20
Effective luminous flux (lm): 2700
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1275
Width (mm): 84
Size version: M
Lamp power (W): 20
Effective luminous flux (lm): 2700
Color temperature (K): 4000
Type of dimming: DALI
Optical system: CO
Length (mm): 1275
Width (mm): 84
Size version: M
Lamp power (W): 20
Effective luminous flux (lm): 2700
Lamp power (W): 20
Effective luminous flux (lm): 2700
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1275
Width (mm): 84
Size version: M
Lamp power (W): 20
Effective luminous flux (lm): 2700
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1275
Width (mm): 84
Size version: M
Lamp power (W): 20
Effective luminous flux (lm): 2700
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1275
Width (mm): 84
Size version: M
Lamp power (W): 20
Effective luminous flux (lm): 2700
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1275
Width (mm): 135
Size version: M
Lamp power (W): 20
Effective luminous flux (lm): 2700
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1275
Width (mm): 135
Size version: M
Lamp power (W): 20
Effective luminous flux (lm): 2700
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1275
Width (mm): 135
Size version: M
Lamp power (W): 20
Effective luminous flux (lm): 2700
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1275
Width (mm): 135
Size version: M
Lamp power (W): 20
Effective luminous flux (lm): 2750
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 675
Width (mm): 135
Size version: S
Lamp power (W): 20
Effective luminous flux (lm): 2750
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 675
Width (mm): 135
Size version: S
Lamp power (W): 20
Effective luminous flux (lm): 2750
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 675
Width (mm): 135
Size version: S
Lamp power (W): 20
Effective luminous flux (lm): 2750
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 675
Width (mm): 135
Size version: S
Lamp power (W): 20
Effective luminous flux (lm): 2750
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 675
Width (mm): 135
Size version: S
Lamp power (W): 20
Effective luminous flux (lm): 2750
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 675
Width (mm): 135
Size version: S
Lamp power (W): 20
Effective luminous flux (lm): 2750
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 675
Width (mm): 135
Size version: S
Lamp power (W): 32
Effective luminous flux (lm): 4000
Color temperature (K): 3000
Type of dimming: DALI
Optical system: CO
Length (mm): 1575
Width (mm): 84
Size version: L
Lamp power (W): 32
Effective luminous flux (lm): 4000
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 84
Size version: L
Lamp power (W): 32
Effective luminous flux (lm): 4000
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 84
Size version: L
Lamp power (W): 32
Effective luminous flux (lm): 4000
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 84
Size version: L
Lamp power (W): 32
Effective luminous flux (lm): 4000
Color temperature (K): 4000
Type of dimming: DALI
Optical system: CO
Length (mm): 1575
Width (mm): 84
Size version: L
Lamp power (W): 32
Effective luminous flux (lm): 4000
Color temperature (K): 4000
Type of dimming: 1-10 V
Optical system: CO
Length (mm): 1575
Width (mm): 84
Size version: L
Lamp power (W): 32
Effective luminous flux (lm): 4000
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 84
Size version: L
Lamp power (W): 32
Effective luminous flux (lm): 4000
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 84
Size version: L
Lamp power (W): 32
Effective luminous flux (lm): 4000
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 84
Size version: L
Lamp power (W): 32
Effective luminous flux (lm): 4000
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 84
Size version: L
Lamp power (W): 32
Effective luminous flux (lm): 4000
Color temperature (K): 6500
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 84
Size version: L
Lamp power (W): 32
Effective luminous flux (lm): 4000
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 32
Effective luminous flux (lm): 4000
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 32
Effective luminous flux (lm): 4000
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 32
Effective luminous flux (lm): 4000
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 32
Effective luminous flux (lm): 4000
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 32
Effective luminous flux (lm): 4000
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 32
Effective luminous flux (lm): 4000
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 40
Effective luminous flux (lm): 5500
Color temperature (K): 3000
Type of dimming: DALI
Optical system: CO
Length (mm): 1275
Width (mm): 135
Size version: M
Lamp power (W): 40
Effective luminous flux (lm): 5500
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1275
Width (mm): 135
Size version: M
Lamp power (W): 40
Effective luminous flux (lm): 5500
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1275
Width (mm): 135
Size version: M
Lamp power (W): 40
Effective luminous flux (lm): 5500
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1275
Width (mm): 135
Size version: M
Lamp power (W): 40
Effective luminous flux (lm): 5500
Color temperature (K): 4000
Type of dimming: DALI
Optical system: CO
Length (mm): 1275
Width (mm): 135
Size version: M
Lamp power (W): 40
Effective luminous flux (lm): 5500
Color temperature (K): 4000
Type of dimming: DALI
Optical system: CO
Length (mm): 1275
Width (mm): 135
Size version: M
Lamp power (W): 40
Effective luminous flux (lm): 5500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1275
Width (mm): 135
Size version: M
Lamp power (W): 40
Effective luminous flux (lm): 5500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1275
Width (mm): 135
Size version: M
Lamp power (W): 40
Effective luminous flux (lm): 5500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1275
Width (mm): 135
Size version: M
Lamp power (W): 40
Effective luminous flux (lm): 5500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1275
Width (mm): 135
Size version: M
Lamp power (W): 40
Effective luminous flux (lm): 5500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1275
Width (mm): 135
Size version: M
Lamp power (W): 40
Effective luminous flux (lm): 5500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1275
Width (mm): 135
Size version: M
Lamp power (W): 40
Effective luminous flux (lm): 5500
Color temperature (K): 5700
Type of dimming: DALI
Optical system: CO
Length (mm): 1275
Width (mm): 135
Size version: M
Lamp power (W): 40
Effective luminous flux (lm): 5500
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1275
Width (mm): 135
Size version: M
Lamp power (W): 40
Effective luminous flux (lm): 5500
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: PM
Length (mm): 1275
Width (mm): 135
Size version: M
Lamp power (W): 61
Effective luminous flux (lm): 7700
Color temperature (K): 3000
Type of dimming: DALI
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 61
Effective luminous flux (lm): 7700
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 61
Effective luminous flux (lm): 7700
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 61
Effective luminous flux (lm): 7700
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 61
Effective luminous flux (lm): 7700
Color temperature (K): 3000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 61
Effective luminous flux (lm): 7700
Color temperature (K): 4000
Type of dimming: DALI
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 61
Effective luminous flux (lm): 7700
Color temperature (K): 4000
Type of dimming: DALI
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 61
Effective luminous flux (lm): 7700
Color temperature (K): 4000
Type of dimming: 1-10 V
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 61
Effective luminous flux (lm): 7700
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 61
Effective luminous flux (lm): 7700
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 61
Effective luminous flux (lm): 7700
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 61
Effective luminous flux (lm): 7700
Color temperature (K): 5700
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 61
Effective luminous flux (lm): 7700
Color temperature (K): 6500
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 61
Effective luminous flux (lm): 7700
Color temperature (K): 6500
Type of dimming: Not dimmable
Optical system: CO
Length (mm): 1575
Width (mm): 135
Size version: L
Lamp power (W): 61
Effective luminous flux (lm): 7700
Lamp power (W): 61
Effective luminous flux (lm): 7700
Lamp power (W): 61
Effective luminous flux (lm): 7700
Color temperature (K): 4000
Type of dimming: Not dimmable
Optical system: PM
Length (mm): 1575
Width (mm): 135
Size version: L

Produced in Czech Republic

Fittings are proudly produced in our production plant.

Only quality electro-components used


LED fittings

Long-life. Minimal consuption.

No service needed.


Be in touch

Do you have any question about our products?

Use our contacts here.

Whery you can buy?

Distribution network
