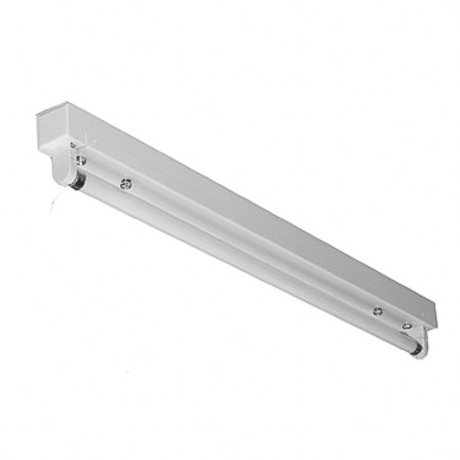

MODUS TE
Industrial batten fitting

2 Z2_zar T5.jpg
2 Z1_zar T8.jpg
1 M01_zaves_prime_osv.jpg
1 M09_prisazene_prime.jpg



Industrial batten light fittings, IP20 Body: White painted (RAL 9003) metal sheet Wiring: EP high frequention ballast HFB (standard) EPSA HFB analogue dimmabe (1-10 V) EPSD HFB digital dimmable TRIDONIC ECO EPSDD HFB digital dimmable DALI MULTIWATT universal HFB for T5 lamps Application: Light fittings for shopping or industrial areas, for surface or pendant installation. Fittings can be connected to row by 3-poles connectors (TE /3K versions). Accessories: reflectors       REFTEAL, REFTEB, REFTEAS Cord suspension ZH21

Show more...

Main features

Lamp type:Fluorescent lamp T5, Fluorescent lamp T8
Protection class:I
Degree of protection (IP):IP20
Nominal voltage (V):220...240
Mounting method:Pendant, Surface mounting
Type of dimming:DALI, 1-10 V, Not dimmable

Download

Versions

Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 14
Type of dimming: Not dimmable
Length (mm): 584
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power at multiwatt: 14/24 W
Type of dimming: Not dimmable
Length (mm): 584
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 14
Type of dimming: Not dimmable
Length (mm): 584
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 14
Type of dimming: 1-10 V
Length (mm): 584
Width (mm): 37
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 18
Type of dimming: Not dimmable
Length (mm): 620
Width (mm): 47
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 18
Type of dimming: 1-10 V
Length (mm): 620
Width (mm): 47
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 18
Type of dimming: Other
Length (mm): 620
Width (mm): 47
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 18
Type of dimming: DALI
Length (mm): 620
Width (mm): 47
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 18
Type of dimming: Not dimmable
Length (mm): 620
Width (mm): 47
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 18
Type of dimming: Not dimmable
Length (mm): 620
Width (mm): 47
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 21
Type of dimming: Not dimmable
Length (mm): 884
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power at multiwatt: 21/39 W
Type of dimming: Not dimmable
Length (mm): 884
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 21
Type of dimming: Not dimmable
Length (mm): 884
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 21
Type of dimming: 1-10 V
Length (mm): 884
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 21
Type of dimming: DALI
Length (mm): 884
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 24
Type of dimming: Not dimmable
Length (mm): 584
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 24
Type of dimming: Not dimmable
Length (mm): 584
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 24
Type of dimming: 1-10 V
Length (mm): 584
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 24
Type of dimming: DALI
Length (mm): 584
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 28
Type of dimming: Not dimmable
Length (mm): 1184
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power at multiwatt: 28/54 W
Type of dimming: Not dimmable
Length (mm): 1184
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power at multiwatt: 28/54 W
Type of dimming: DALI
Length (mm): 1184
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 28
Type of dimming: Not dimmable
Length (mm): 1184
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 28
Type of dimming: Not dimmable
Length (mm): 1184
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 28
Type of dimming: 1-10 V
Length (mm): 1184
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 28
Type of dimming: DALI
Length (mm): 1184
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 28
Type of dimming: DALI
Length (mm): 1184
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 30
Type of dimming: Not dimmable
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 30
Type of dimming: 1-10 V
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 30
Type of dimming: Not dimmable
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 35
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power at multiwatt: 35/49 W
Type of dimming: DALI
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power at multiwatt: 35/49/80 W
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power at multiwatt: 35/49/80 W
Type of dimming: DALI
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 35
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 35
Type of dimming: 1-10 V
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 35
Type of dimming: DALI
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 35
Type of dimming: DALI
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1230
Width (mm): 47
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1230
Width (mm): 47
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: 1-10 V
Length (mm): 1230
Width (mm): 47
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: Other
Length (mm): 1230
Width (mm): 47
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: DALI
Length (mm): 1230
Width (mm): 47
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: DALI
Length (mm): 1230
Width (mm): 47
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1230
Width (mm): 47
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1230
Width (mm): 47
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 39
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 39
Type of dimming: DALI
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 49
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 49
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 49
Type of dimming: 1-10 V
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 49
Type of dimming: DALI
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 49
Type of dimming: DALI
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 54
Type of dimming: Not dimmable
Length (mm): 1184
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 54
Type of dimming: Not dimmable
Length (mm): 1184
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 54
Type of dimming: 1-10 V
Length (mm): 1184
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 54
Type of dimming: DALI
Length (mm): 1184
Width (mm): 37
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1530
Width (mm): 47
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1530
Width (mm): 47
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: 1-10 V
Length (mm): 1530
Width (mm): 47
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: Other
Length (mm): 1530
Width (mm): 47
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: DALI
Length (mm): 1530
Width (mm): 47
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: DALI
Length (mm): 1530
Width (mm): 47
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1530
Width (mm): 47
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1530
Width (mm): 47
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 80
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 80
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 80
Type of dimming: 1-10 V
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 80
Type of dimming: Other
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 80
Type of dimming: DALI
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 1
Lamp power (W): 80
Type of dimming: DALI
Length (mm): 1484
Width (mm): 37
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 14
Type of dimming: Not dimmable
Length (mm): 584
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 14
Type of dimming: Not dimmable
Length (mm): 584
Width (mm): 68
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 18
Type of dimming: Not dimmable
Length (mm): 620
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 18
Type of dimming: Not dimmable
Length (mm): 620
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 18
Type of dimming: Not dimmable
Length (mm): 620
Width (mm): 102
Suitable for number of lamps: 2
Lamp power at multiwatt: 21/39 W
Type of dimming: Not dimmable
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 24
Type of dimming: Not dimmable
Length (mm): 584
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 24
Type of dimming: Not dimmable
Length (mm): 584
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 24
Type of dimming: Other
Length (mm): 584
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 28
Type of dimming: Not dimmable
Length (mm): 1184
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power at multiwatt: 28/54 W
Type of dimming: Not dimmable
Length (mm): 1184
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 28
Type of dimming: Not dimmable
Length (mm): 1184
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 28
Type of dimming: Other
Length (mm): 1184
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 28
Type of dimming: DALI
Length (mm): 1184
Width (mm): 68
Suitable for number of lamps: 2
Lamp power (W): 30
Type of dimming: Not dimmable
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 35
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power at multiwatt: 35/49 W
Type of dimming: DALI
Length (mm): 1484
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power at multiwatt: 35/49 W
Type of dimming: DALI
Length (mm): 1484
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power at multiwatt: 35/49/80 W
Type of dimming: Not dimmable
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 35
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 35
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 68
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1230
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1230
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1230
Width (mm): 102
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 39
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 49
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 49
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 49
Type of dimming: Other
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 49
Type of dimming: DALI
Length (mm): 1484
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 49
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 54
Type of dimming: Not dimmable
Length (mm): 1184
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 54
Type of dimming: Not dimmable
Length (mm): 1184
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 54
Type of dimming: 1-10 V
Length (mm): 1184
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 54
Type of dimming: Other
Length (mm): 1184
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 54
Type of dimming: DALI
Length (mm): 1184
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 54
Type of dimming: Not dimmable
Length (mm): 1184
Width (mm): 68
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1530
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1530
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1530
Width (mm): 102
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 80
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 80
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 80
Type of dimming: 1-10 V
Length (mm): 1484
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 80
Type of dimming: DALI
Length (mm): 1484
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 80
Type of dimming: DALI
Length (mm): 1484
Width (mm): 68
Lamp type: Fluorescent lamp T5
Suitable for number of lamps: 2
Lamp power (W): 80
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 68

Produced in Czech Republic

Fittings are proudly produced in our production plant.

Only quality electro-components used


LED fittings

Long-life. Minimal consuption.

No service needed.


Be in touch

Do you have any question about our products?

Use our contacts here.

Whery you can buy?

Distribution network
