MODUS TEL
LED linear fitting

11 L80_50000_h.jpg
12 CCT_3000.jpg
12 CCT_4000.jpg
12 CCT_5700.jpg
1 M01_zaves_prime_osv.jpg
1 M09_prisazene_prime.jpg

Body:

White painted (RAL9003) metal sheet



Optic:

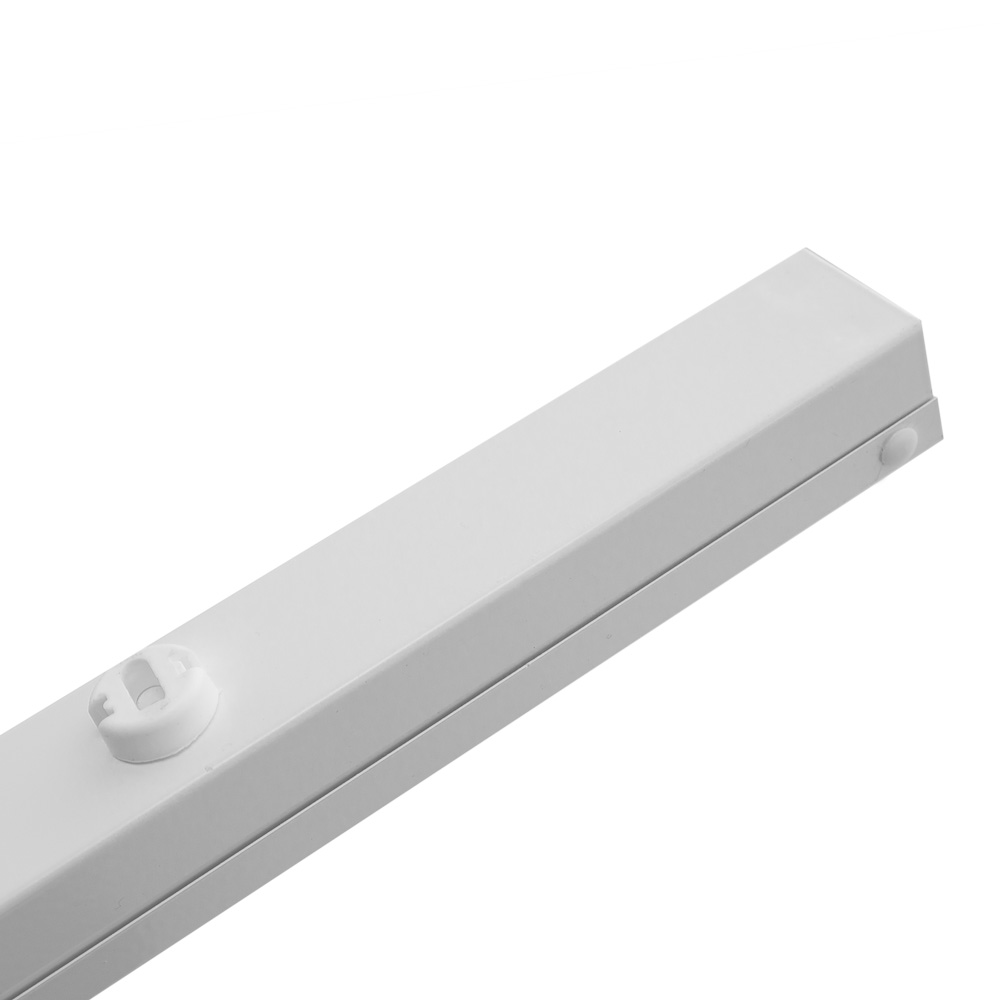

TEL - without reflector

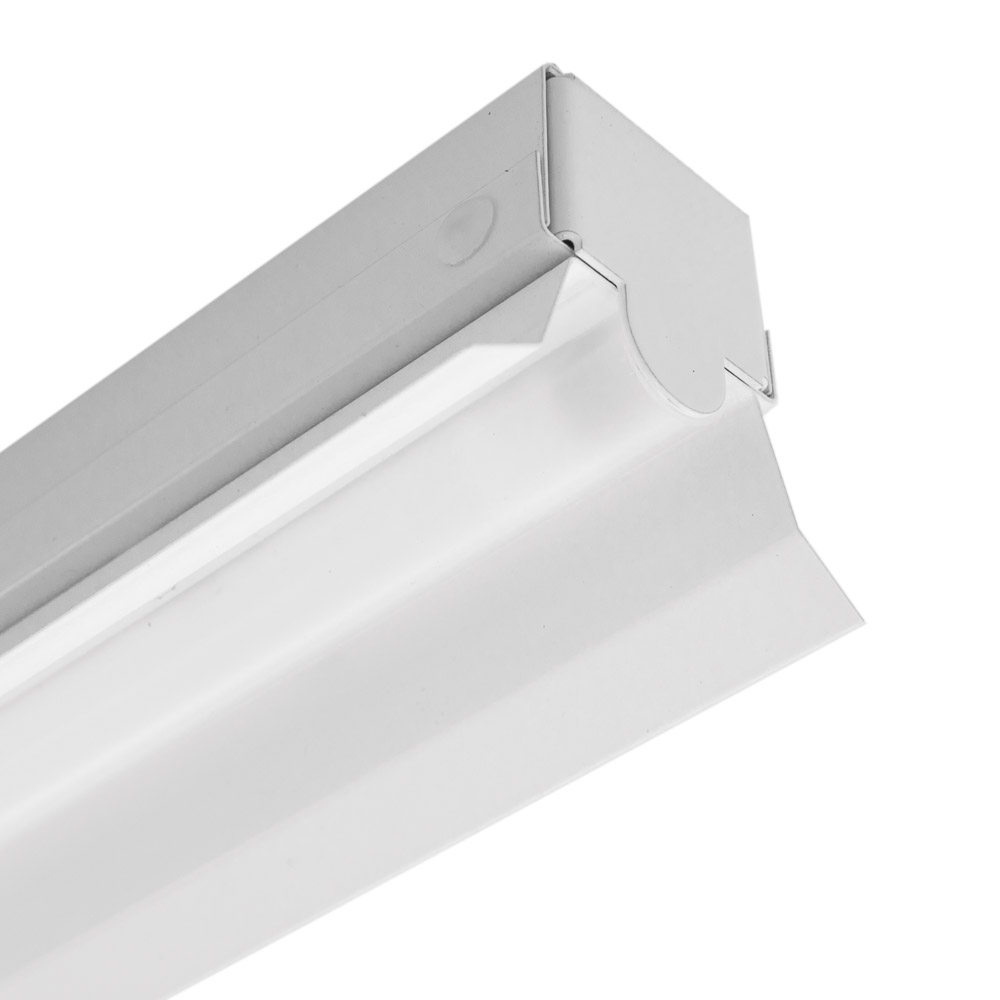

TELN - white painted reflector - narrow beam

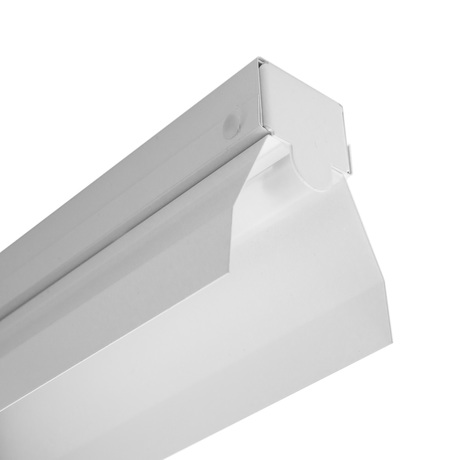

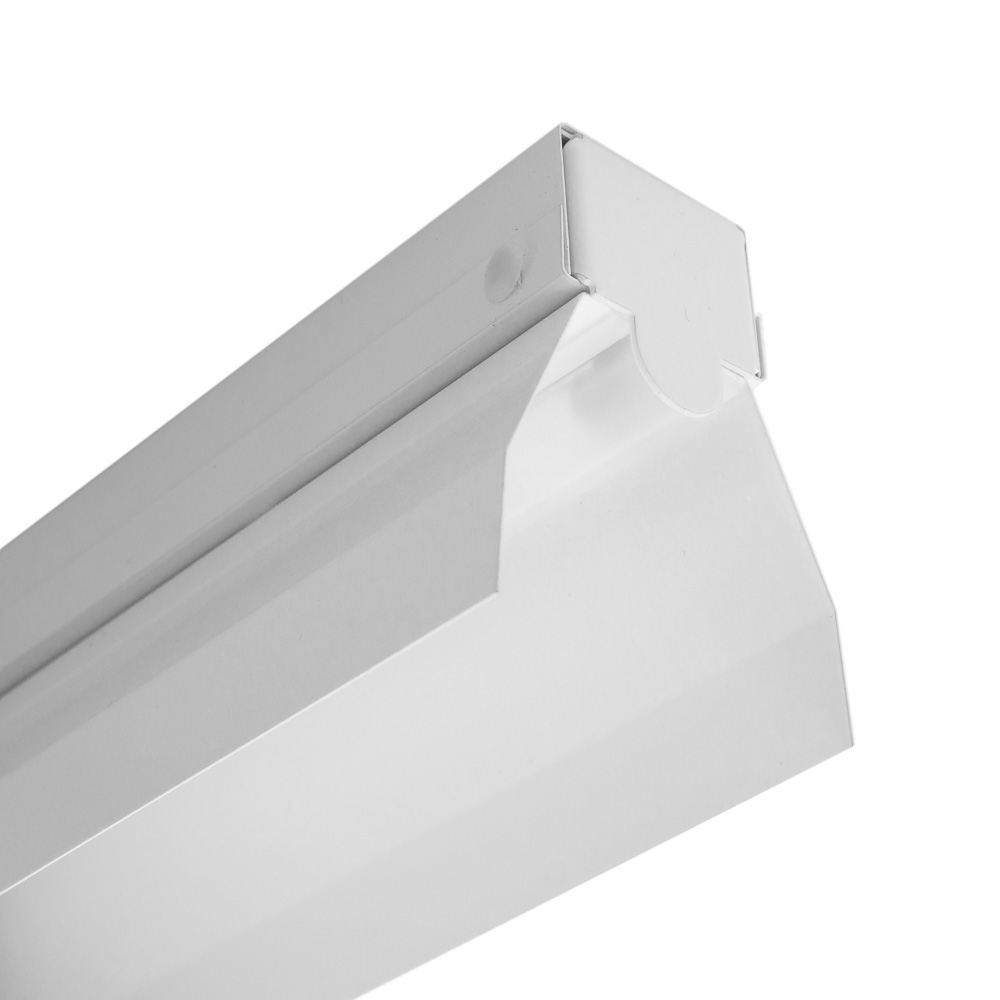

TELW - white painted reflector - wide beam

TELDPM - matt double parabolic aluminium louvre

+

KV - opal cover of LED modules



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4…cold white 4000K

5…daylight 5700K



Wiring:

LED current driver

ND – not dimmable (standard)

DALI – dimmable DALI



Application:

Surface or pendant installation

Can be installed in line, TEL/R (wider body)

To keep uniform luminance of whole line, luminaires with same brightnes must be used:

LP - 2600 lm/m
ST - 3100 lm/m
ES - 4700 lm/m
HP - 6400 lm/m



Accessories:

ZH21 - suspension set

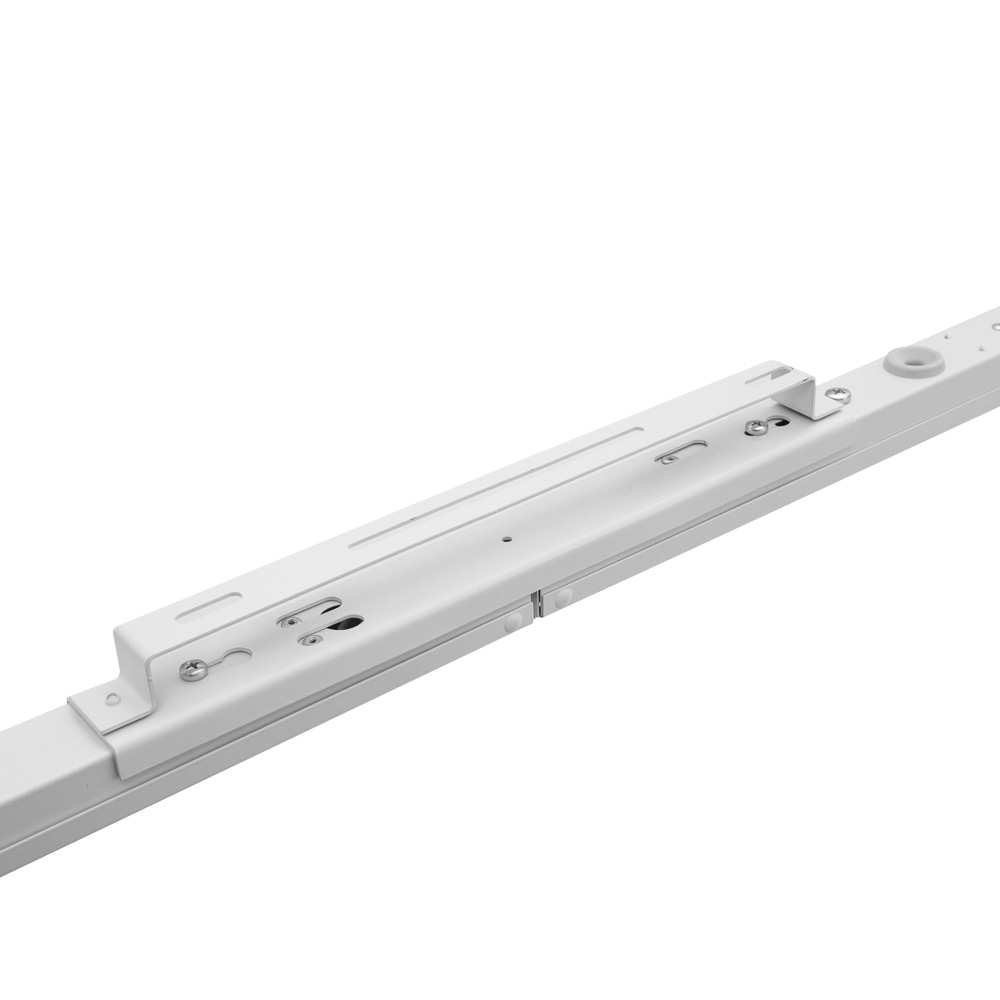

TELSPOJ - linear junction set

TELHAK - suspension for chain

TEL1LKV/R - blind part without electro components

Lifetime:50 000h L80B50
Lamp type:LED
Color temperature (K):3000, 4000, 5700
Color rendering index CRI:80-89, 90-100
Type of dimming:DALI, Not dimmable
Protection class:I
Degree of protection (IP):IP20
Nominal voltage (V):220...240
Mounting method:Pendant, Surface mounting
Size version:S - 600 mm
M - 1200 mm
L - 1500 mm
Body material:White painted steel

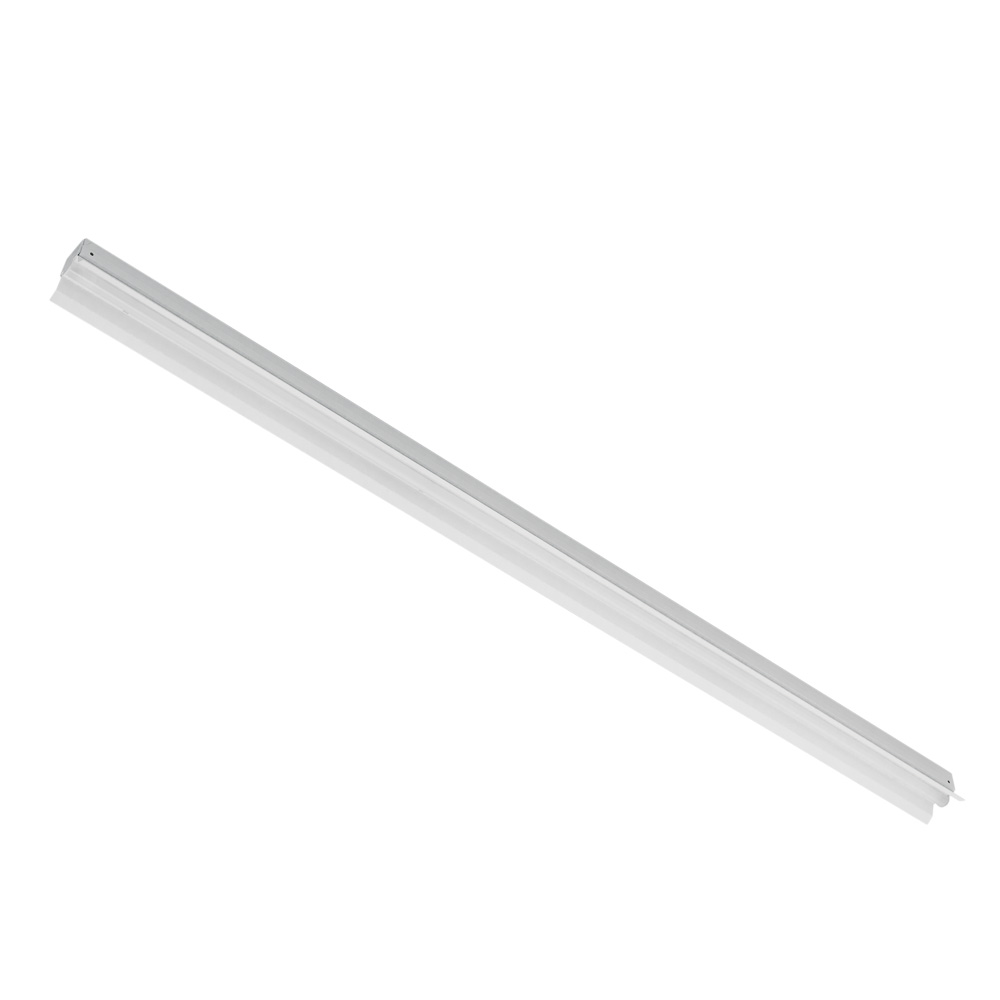

  • MODUS TELW - widebeamMODUS TELW - widebeam

Download

Versions

Lamp power (W): 81
Effective luminous flux (lm): 10400
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 38
Size version: L
Lamp power (W): 81
Effective luminous flux (lm): 10400
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 46
Size version: L
Lamp power (W): 16
Effective luminous flux (lm): 1800
Lamp power (W): 16
Effective luminous flux (lm): 1800
Type of dimming: Not dimmable
Width (mm): 46
Type of dimming: Not dimmable
Length (mm): 1186
Width (mm): 46
Size version: M
Type of dimming: Not dimmable
Width (mm): 46
Lamp power (W): 20
Effective luminous flux (lm): 2400
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 750
Width (mm): 46
Size version: M
Lamp power (W): 28
Effective luminous flux (lm): 3600
Color temperature (K): 3000
Type of dimming: DALI
Length (mm): 1186
Width (mm): 38
Size version: M
Lamp power (W): 28
Effective luminous flux (lm): 3600
Color temperature (K): 3000
Type of dimming: Not dimmable
Length (mm): 1186
Width (mm): 38
Size version: M
Lamp power (W): 28
Effective luminous flux (lm): 3600
Color temperature (K): 3000
Type of dimming: Not dimmable
Length (mm): 1186
Width (mm): 38
Size version: M
Lamp power (W): 28
Effective luminous flux (lm): 3600
Color temperature (K): 3000
Type of dimming: Not dimmable
Length (mm): 1186
Width (mm): 46
Size version: M
Lamp power (W): 28
Effective luminous flux (lm): 3600
Length (mm): 1186
Width (mm): 38
Size version: M
Lamp power (W): 28
Effective luminous flux (lm): 3600
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1186
Width (mm): 46
Size version: M
Lamp power (W): 27
Effective luminous flux (lm): 3500
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 750
Width (mm): 38
Size version: M
Lamp power (W): 43
Effective luminous flux (lm): 5500
Color temperature (K): 2700
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 38
Size version: L
Lamp power (W): 43
Effective luminous flux (lm): 5500
Color temperature (K): 3000
Type of dimming: DALI
Length (mm): 1484
Width (mm): 38
Size version: L
Lamp power (W): 43
Effective luminous flux (lm): 5500
Color temperature (K): 3000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 38
Size version: L
Lamp power (W): 43
Effective luminous flux (lm): 5500
Color temperature (K): 3000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 46
Size version: L
Lamp power (W): 43
Effective luminous flux (lm): 5500
Color temperature (K): 4000
Type of dimming: DALI
Length (mm): 1484
Width (mm): 46
Size version: L
Lamp power (W): 43
Effective luminous flux (lm): 5500
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 38
Size version: L
Lamp power (W): 43
Effective luminous flux (lm): 5500
Length (mm): 1484
Width (mm): 38
Size version: L
Lamp power (W): 43
Effective luminous flux (lm): 5500
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 46
Size version: L
Lamp power (W): 43
Effective luminous flux (lm): 5500
Color temperature (K): 5700
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 38
Size version: L
Lamp power (W): 42
Effective luminous flux (lm): 5300
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 750
Width (mm): 38
Size version: M
Lamp power (W): 42
Effective luminous flux (lm): 5300
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 750
Width (mm): 46
Size version: M
Lamp power (W): 53
Effective luminous flux (lm): 7700
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 38
Size version: L
Lamp power (W): 53
Effective luminous flux (lm): 7700
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 46
Size version: L
Lamp power (W): 53
Effective luminous flux (lm): 7700
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 38
Size version: L
Lamp power (W): 81
Effective luminous flux (lm): 8000
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 100
Size version: L
Lamp power (W): 81
Effective luminous flux (lm): 8000
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 100
Size version: L
Lamp power (W): 28
Effective luminous flux (lm): 2600
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1186
Width (mm): 100
Size version: M
Lamp power (W): 42
Effective luminous flux (lm): 4000
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 750
Width (mm): 100
Size version: M
Lamp power (W): 53
Effective luminous flux (lm): 5500
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 100
Size version: L
Lamp power (W): 53
Effective luminous flux (lm): 5500
Color temperature (K): 5700
Type of dimming: DALI
Length (mm): 1484
Width (mm): 100
Size version: L
Lamp power (W): 53
Effective luminous flux (lm): 5500
Color temperature (K): 5700
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 100
Size version: L
Lamp power (W): 53
Effective luminous flux (lm): 5500
Color temperature (K): 5700
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 100
Size version: L
Lamp power (W): 81
Effective luminous flux (lm): 9600
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 61
Size version: L
Lamp power (W): 28
Effective luminous flux (lm): 3400
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1186
Width (mm): 61
Size version: M
Lamp power (W): 27
Effective luminous flux (lm): 3200
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 750
Width (mm): 61
Size version: M
Lamp power (W): 27
Effective luminous flux (lm): 3200
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 750
Width (mm): 61
Size version: M
Lamp power (W): 43
Effective luminous flux (lm): 5000
Color temperature (K): 3000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 61
Size version: L
Lamp power (W): 43
Effective luminous flux (lm): 5000
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 61
Size version: L
Lamp power (W): 43
Effective luminous flux (lm): 5000
Color temperature (K): 5700
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 61
Size version: L
Lamp power (W): 42
Effective luminous flux (lm): 4900
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 750
Width (mm): 61
Size version: M
Lamp power (W): 42
Effective luminous flux (lm): 4900
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 750
Width (mm): 61
Size version: M
Lamp power (W): 53
Effective luminous flux (lm): 6900
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 61
Size version: L
Lamp power (W): 53
Effective luminous flux (lm): 6900
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 61
Size version: L
Lamp power (W): 81
Effective luminous flux (lm): 10000
Length (mm): 1484
Width (mm): 59
Size version: L
Lamp power (W): 81
Effective luminous flux (lm): 10000
Color temperature (K): 3000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 59
Size version: L
Lamp power (W): 81
Effective luminous flux (lm): 10000
Color temperature (K): 4000
Type of dimming: DALI
Length (mm): 1484
Width (mm): 59
Size version: L
Lamp power (W): 81
Effective luminous flux (lm): 10000
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 59
Size version: L
Lamp power (W): 81
Effective luminous flux (lm): 10000
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 59
Size version: L
Lamp power (W): 20
Effective luminous flux (lm): 2250
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 750
Width (mm): 59
Size version: M
Lamp power (W): 28
Effective luminous flux (lm): 3500
Color temperature (K): 3000
Type of dimming: Not dimmable
Length (mm): 1186
Width (mm): 59
Size version: M
Lamp power (W): 28
Effective luminous flux (lm): 3500
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1186
Width (mm): 59
Size version: M
Lamp power (W): 27
Effective luminous flux (lm): 3300
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 750
Width (mm): 59
Size version: M
Lamp power (W): 27
Effective luminous flux (lm): 3300
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 750
Width (mm): 59
Size version: M
Lamp power (W): 43
Effective luminous flux (lm): 5350
Lamp power (W): 43
Effective luminous flux (lm): 5350
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 59
Size version: L
Lamp power (W): 43
Effective luminous flux (lm): 5350
Color temperature (K): 5700
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 59
Size version: L
Lamp power (W): 42
Effective luminous flux (lm): 5000
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 750
Width (mm): 59
Size version: M
Lamp power (W): 42
Effective luminous flux (lm): 5000
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 750
Width (mm): 59
Size version: M
Lamp power (W): 53
Effective luminous flux (lm): 7200
Color temperature (K): 3000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 59
Size version: L
Lamp power (W): 53
Effective luminous flux (lm): 7200
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 59
Size version: L
Lamp power (W): 53
Effective luminous flux (lm): 7200
Color temperature (K): 4000
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 59
Size version: L
Lamp power (W): 53
Effective luminous flux (lm): 7200
Color temperature (K): 5700
Type of dimming: Not dimmable
Length (mm): 1484
Width (mm): 59
Size version: L

Produced in Czech Republic

Fittings are proudly produced in our production plant.

Only quality electro-components used


LED fittings

Long-life. Minimal consuption.

No service needed.


Be in touch

Do you have any question about our products?

Use our contacts here.

Whery you can buy?

Distribution network
