MODUS TU

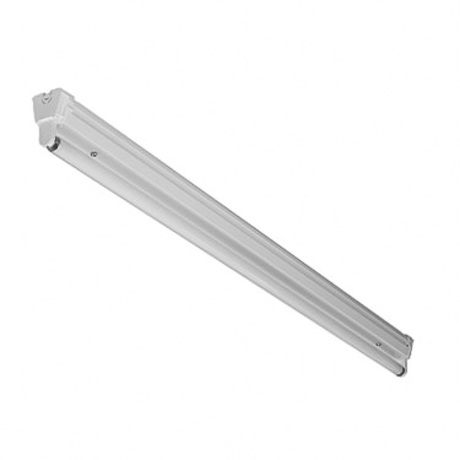

Industrial batten fitting with plastic endcaps

2 Z1_zar T8.jpg
1 M01_zaves_prime_osv.jpg
1 M09_prisazene_prime.jpg

Body: White painted (RAL 9003) metal sheet, plastic endcaps Wiring : N uncompensated. ballast cat. B K compensated, ballast cat. B EP high frequention ballast HFB (standard) EPSA HFB analogue dimmabe (1-10 V) EPSD HFB digital dimmable TRIDONIC ECO EPSDD HFB digital dimmable DALI Application: Surface mounted or suspended light fittings for shopping or industrial areas. Accessories: reflectors       REFTUAL, REFTUB, REFTUAS Cord suspension ZH22 REFTUAL - symetric highly polished aluminium reflector REFTUB - symetric white painted steel reflector REFTUAS - asymetric highly polished aluminium reflector

Lamp type:Fluorescent lamp T8
Protection class:I
Degree of protection (IP):IP20
Nominal voltage (V):220...240
Mounting method:Pendant, Surface mounting
Type of dimming:DALI, 1-10 V, Not dimmable

Download

Versions

Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 18
Type of dimming: Not dimmable
Length (mm): 617
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 18
Type of dimming: Not dimmable
Length (mm): 617
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 18
Type of dimming: 1-10 V
Length (mm): 617
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 18
Type of dimming: Other
Length (mm): 617
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 18
Type of dimming: Not dimmable
Length (mm): 617
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 18
Type of dimming: Not dimmable
Length (mm): 617
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 18
Type of dimming: Not dimmable
Length (mm): 617
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 18
Type of dimming: Not dimmable
Length (mm): 617
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 30
Type of dimming: Not dimmable
Length (mm): 920
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 30
Type of dimming: 1-10 V
Length (mm): 920
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 30
Type of dimming: DALI
Length (mm): 920
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 30
Type of dimming: Not dimmable
Length (mm): 920
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1227
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1227
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1227
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1227
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: 1-10 V
Length (mm): 1227
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: Other
Length (mm): 1227
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: DALI
Length (mm): 1227
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1227
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1227
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1227
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1227
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: 1-10 V
Length (mm): 1527
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: Other
Length (mm): 1527
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: DALI
Length (mm): 1527
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: Not dimmable
Optical system: highly polished aluminium reflector
Length (mm): 1527
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 1
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 90
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 18
Type of dimming: Not dimmable
Length (mm): 617
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 18
Type of dimming: 1-10 V
Length (mm): 617
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 18
Type of dimming: Not dimmable
Length (mm): 617
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 18
Type of dimming: Not dimmable
Length (mm): 617
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 30
Type of dimming: Not dimmable
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 30
Type of dimming: Not dimmable
Length (mm): 920
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1227
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1227
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1227
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1227
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: 1-10 V
Length (mm): 1227
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: DALI
Length (mm): 1227
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1227
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1227
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1227
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: Not dimmable
Optical system: highly polished aluminium reflector
Length (mm): 1227
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1227
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 36
Type of dimming: Not dimmable
Length (mm): 1227
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: 1-10 V
Length (mm): 1527
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: 1-10 V
Length (mm): 1527
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Other
Length (mm): 1527
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: DALI
Length (mm): 1527
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Other
Length (mm): 1527
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Not dimmable
Optical system: highly polished aluminium reflector
Length (mm): 1527
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 102
Lamp type: Fluorescent lamp T8
Suitable for number of lamps: 2
Lamp power (W): 58
Type of dimming: Not dimmable
Length (mm): 1527
Width (mm): 102

Produced in Czech Republic

Fittings are proudly produced in our production plant.

Only quality electro-components used


LED fittings

Long-life. Minimal consuption.

No service needed.


Be in touch

Do you have any question about our products?

Use our contacts here.

Whery you can buy?

Distribution network
