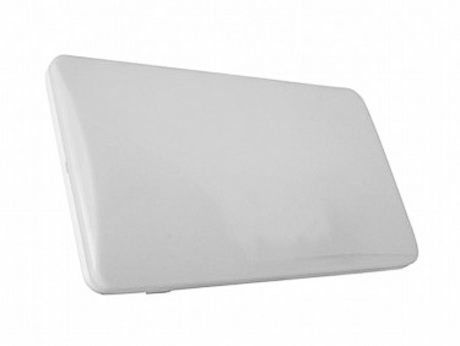

PANORAMA

2 Z2_zar T5.jpg
2 Z5_zaz 2G7.jpg

MATERIALS:
White plastic body
Opal plastic cover
MOUNTING:
Surface (wall, ceiling)
POWER SUPPLY:
Self contained – 220÷240VAC/50÷60Hz
Central battery – 220÷240VAC/50÷60Hz; 176 – 275VDC
Central battery FZLV – 24VDC
LIGHT SOURCE:
3W LED
8W, 11W fluorescent lamp
CHARGING:
STANDARD: max. 24h
PREMIUM: max. 12h; energy-saving electronic charger
AUTONOMY AND BATTERIES:
STANDARD: 1h or 3h, Ni-Cd 3,6V batteries
PREMIUM: 1h or 3h, LiFePO4 6,4V batteries
INSULATION CLASS:
II or III
IP RATING:
IP54
AMBIENT TEMPERATURE:
ta: 0°C ÷ 40°C;
OPTIONS:
SE – non maintained
SA – maintained
PT – manual test button
AT – autotest
RU – Rubic UNA central monitoring
FZLV – central battery FZLV 24VDC
CB – central battery
ADDITIONAL INFORMATION:
LED indicator signalizes mains power supply and battery charging
Deep discharge protection
III class of insulation of FZLV version

Show more...
  • PANORAMAPANORAMA

Main features

Lamp type:Compact fluorescent lamp, LED, Fluorescent lamp T5
Lamp holder:2G7, G5
Protection class:II
Degree of protection (IP):IP54

Download

Versions

Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP54
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: Automatic self test
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Individual baterry
Degree of protection (IP): IP54
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: Test button
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Central battery
Degree of protection (IP): IP54
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP54
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: Automatic self test
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP54
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP54
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: Test button
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP54
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 11
Power supply system: Individual baterry
Degree of protection (IP): IP54
Wiring system: Standby switching
Nominal service time (h): 3
Monitoring equipment: None
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Individual baterry
Degree of protection (IP): IP54
Wiring system: Continuous circuit / emergency circuit
Nominal service time (h): 1
Monitoring equipment: Automatic self test
Lamp type: Fluorescent lamp
Lamp power (W): 8
Power supply system: Individual baterry
Degree of protection (IP): IP54
Wiring system: Standby switching
Nominal service time (h): 1
Monitoring equipment: None
