Product series

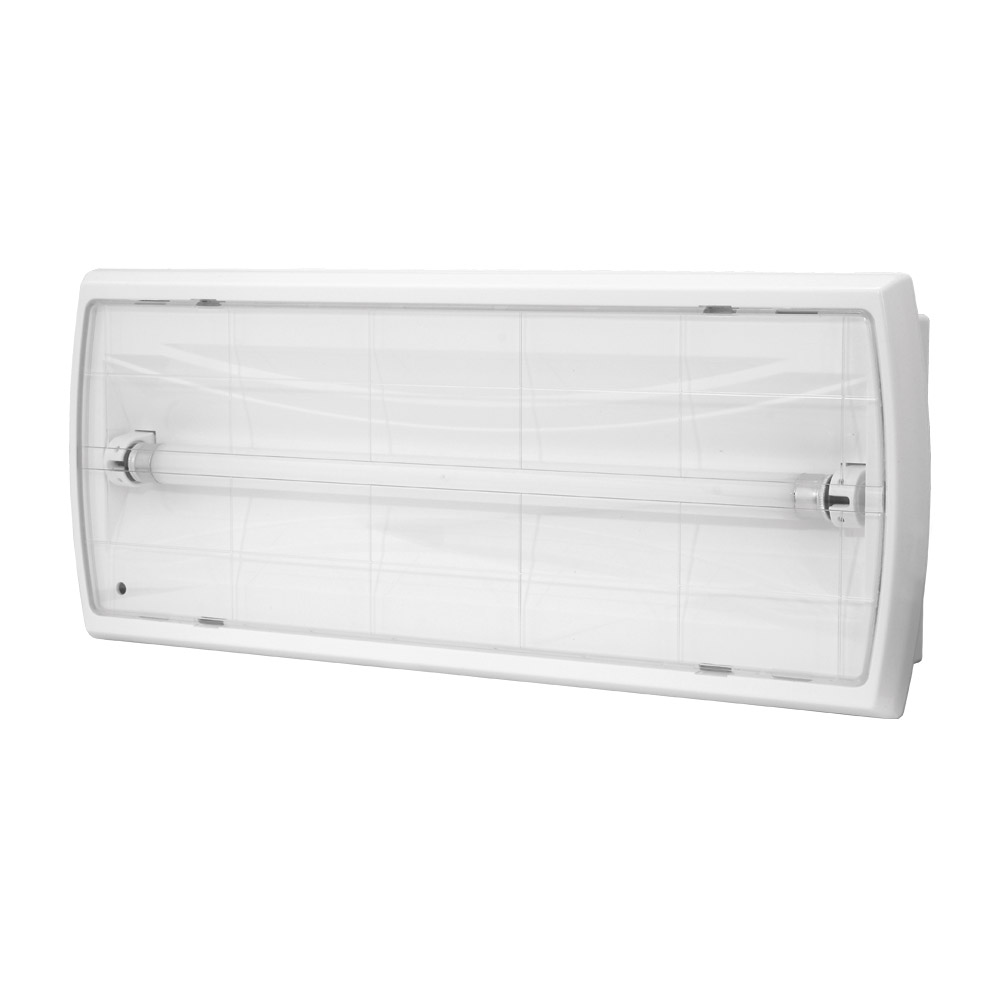

TIGER

TIGER

Standard price from:

On request

MATERIALS:
White polycarbonate body
Transparent polycarbonate cover
MOUNTING:
Surface (wall, ceiling)
Optional assembly in dry-wall or under plastering
POWER SUPPLY:
Self contained – 220÷240VAC/50÷60Hz
Central battery –220÷240VAC/50÷60Hz; 176 – 275VDC
LIGHT SOURCE:
8W fluorescent lamp
CHARGING:
Maximum 24h
AUTONOMY AND BATTERIES:
1h, 2h, 3h , Ni-Cd batteries
INSULATION CLASS:
II
IP RATING:
IP22
AMBIENT TEMPERATURE:
ta: 0°C ÷ 40°C
OPTIONS:
SE – non maintained
SA – maintained
PT – manual test button
AT – autotest
RU – Rubic UNA central monitoring
CB – central battery
ADDITIONAL INFORMATION:
LED indicator signalizes mains power supply and battery charging
Deep discharge protection

ACCESSORIES:

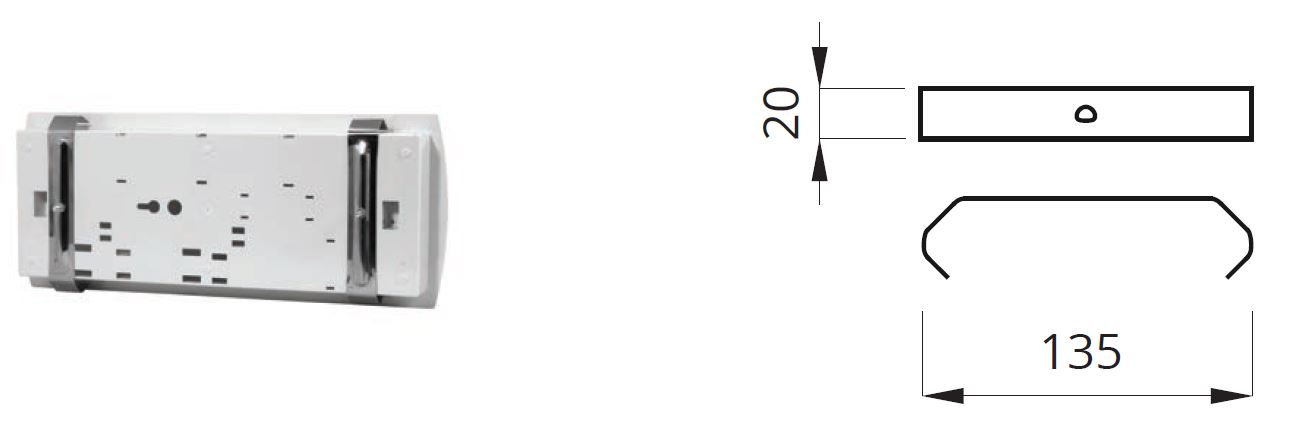

underplastering clip - TGPRICHYTKA
