Product series INFINITY II AC

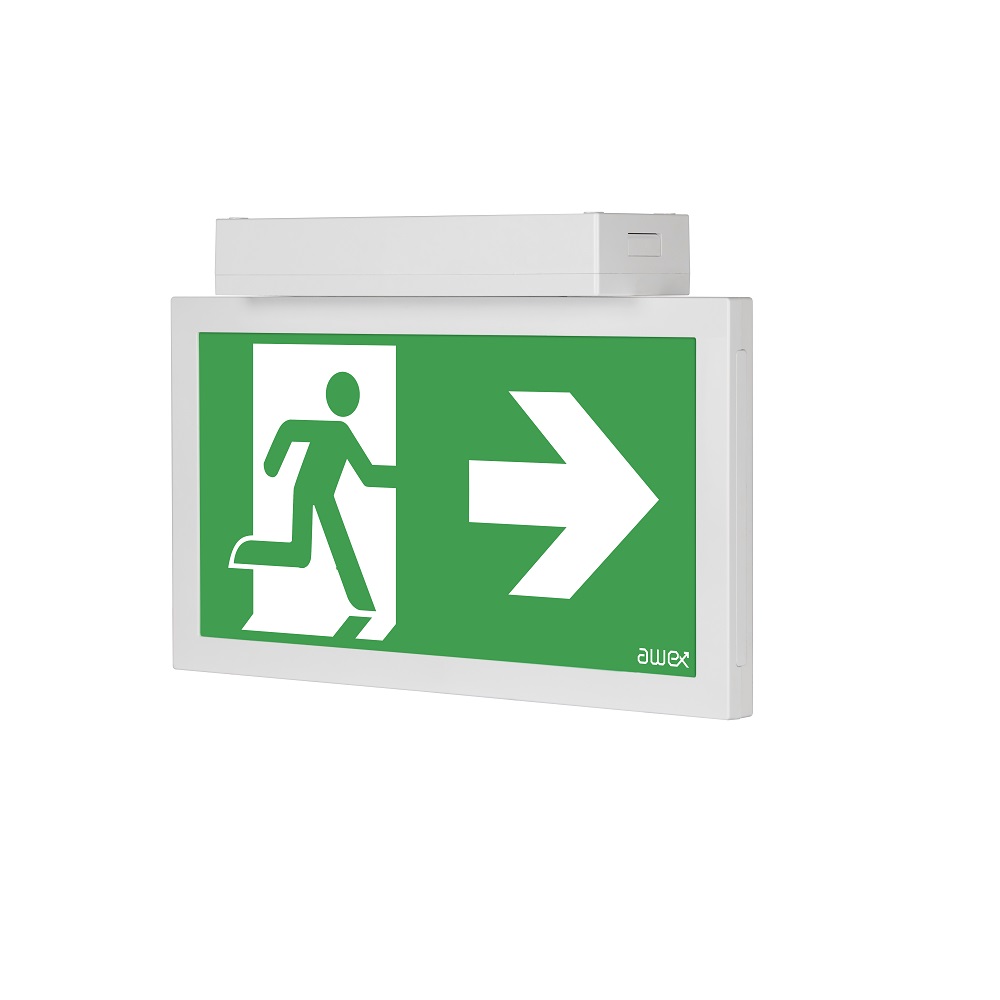

INFINITY II AC 1W LED STANDARD IP40 1h battery maintained/non-maintained white
Code: OZN/IF2ACS/1W/C/1/SA/X/WH
EAN: 5902448971254
Luminaire properties
| Product category: | Emergency luminaires | Degree of protection (IP): | IP40 | Mounting method: | Ceiling surface mounting | Color housing: | White |
| Material housing: | Plastic | Light source included: | Yes | Rated ambient temperature (°C): | 0...+40 |
Light source
| Light source type: | LED | Color temperature (K): | 5700 |
Dimensions
| Length (mm): | 337 | Width (mm): | 72 | Height/depth (mm): | 225 | Weight (kg): | 1,25 |
Electrical values
| Protection class: | II | Voltage type: | AC | Power supply system: | Individual baterry | Nominal voltage (V): | 220...240 |
| Monitoring equipment: | None |
Optical system
| Function: | Escape route signage | Type of indicator: | Double-sided | Recognition distance (m): | 30 |
LDT data does not exist for this item
LoadingProduct name
OZN/IF2ACD/3W/B/1/SA/AT/WH
OZN/IF2ACD/3W/B/1/SE/AT/WH
OZN/IF2ACS/1W/B/1/SA/AT/WH
OZN/IF2ACS/1W/B/1/SE/AT/WH
OZN/IF2ACS/1W/B/3/SA/AT/WH
OZN/IF2ACS/1W/B/3/SE/AT/WH
OZN/IF2ACS/1W/C/1/SA/PT/GR
OZN/IF2ACS/1W/C/1/SA/PT/WH
OZN/IF2ACS/1W/C/1/SA/X/BL
OZN/IF2ACS/1W/C/1/SA/X/GR
OZN/IF2ACS/1W/C/1/SA/X/WH
OZN/IF2ACS/1W/C/3/SA/PT/WH
OZN/IF2ACS/1W/C/3/SA/X/WH
OZN/IF2ACS/1W/C/3/SE/PT/WH
OZN/IF2ACS/1W/E/1/SE/X/WH
OZN/IF2ACS/2W/B/1/SA/AT/GR
OZN/IF2ACS/2W/B/1/SA/AT/WH
OZN/IF2ACS/2W/B/3/SA/AT/WH
OZN/IF2ACS/2W/C/1/SA/PT/GR
OZN/IF2ACS/2W/C/1/SA/PT/WH
OZN/IF2ACS/2W/C/1/SA/X/GR
OZN/IF2ACS/2W/C/1/SA/X/WH
OZN/IF2ACS/2W/C/3/SA/PT/WH
OZN/IF2ACS/2W/C/3/SE/X/BL
OZN/IF2ACS/2W/C/3/SE/X/WH
