MODUS BRS

Product series MODUS BRS

MODUS BRS 480
12 CCT_4000.jpg
11 L80_80000_h.jpg
třída ochrany I.PNG
220-240 v.png
1 M10_nasten_celkove_osv.jpg

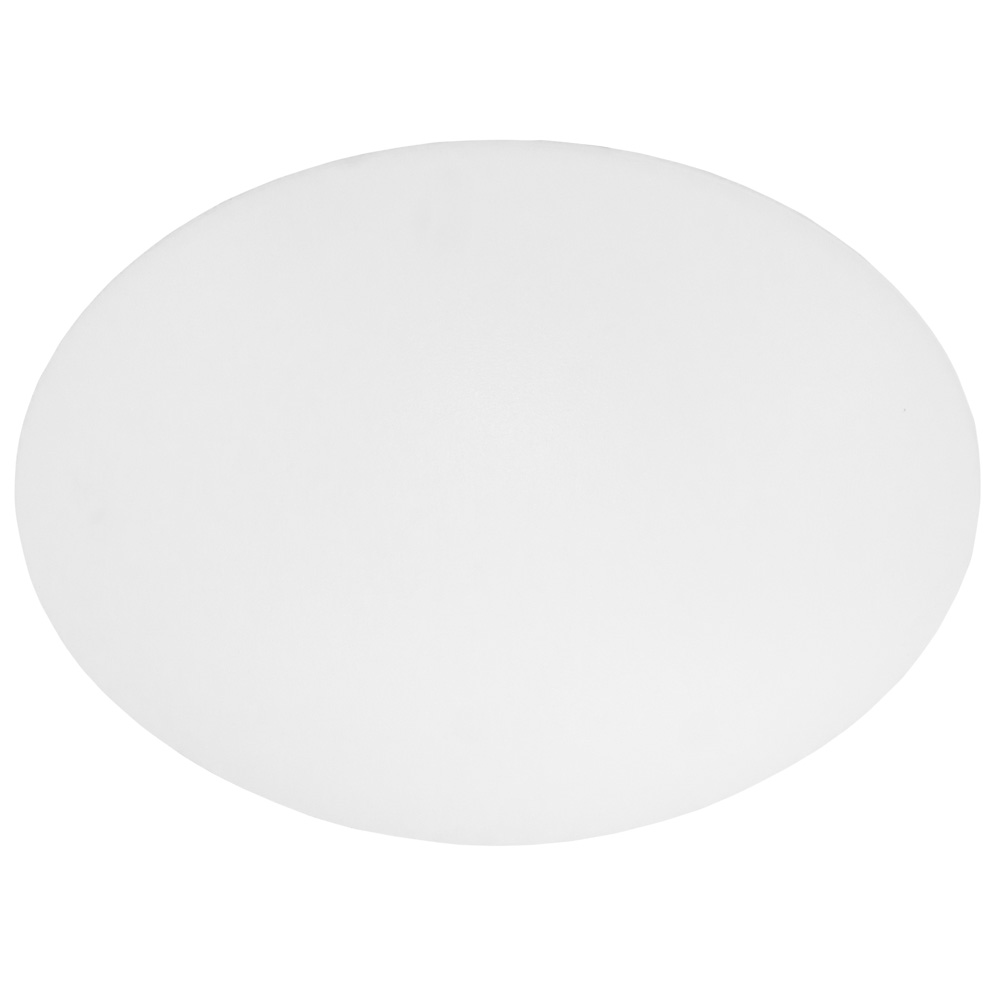

Light fitting BRS 8x12 LED 840, opal PC cover, 480mm, IP40

Surface LED fitting with plastic cover - IP40

Code: BRS4KOPC480V3/ND
EAN: 8595073733600

This product contains a light source with energy efficiency class C

Distribution network
Contacts

Luminaire properties

Product category:Ceiling / wall luminairesEffective luminous flux (lm):3900
System power (W):34Luminaire efficacy (lm/W):115
Rated lifetime L80/B50 (h):80000Degree of protection (IP):IP40
Color housing:WhiteMaterial housing:Steel
Light source included:Yes
Suitable for wall mounting:Yes
Suitable for surface mounting:YesSuitable for ceiling mounting:Yes
Made in Czech republic:Yes

Light source

Light source type:LEDColor temperature (K):4000
Color rendering index CRI:80-89Replaceability:Replaceable light source by professional, replaceable ballast
Light source type:1990120184004Energy efficiency class:C

Optical system

Optical system:KOPCLight outlet:Direct
Light sharing:SymmetricMaterial cover:Plastic, opal
Radiation angle:Open beam/diffuse

Dimensions

Outer diameter (mm):480Height/depth (mm):150
Weight (kg):2,9

Electrical values

Protection class:IConnection type:Pinching contact
Voltage type:ACType of control gear:LED operating device current-controlled
Nominal voltage (V):220...240Control gear included:Yes
No dim function:Yes
LoadingLoading

Filters

Effective luminous flux (lm)

1200
5000

System power (W)

14
44
Product name
BRS3KO300V1/DALI
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 300
BRS3KO300V1/ND
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 300
BRS3KO300V1/NDSM
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 300
With movement sensor: Yes
BRS3KO375V2/DALI
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 375
BRS3KO375V2/DALISM/COR
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 375
With movement sensor: Yes
BRS3KO375V2/ND
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 375
BRS3KO375V2/NDNZ
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 375
BRS3KO375V2/NDNZ3
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 375
BRS3KO375V2/NDSM
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 375
With movement sensor: Yes
BRS3KO480V3/DALI
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 480
BRS3KO480V3/DIM
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 480
BRS3KO480V3/ND
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 480
BRS3KO480V3/NDNZ
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 480
BRS3KO480V3/NDSM
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 480
With movement sensor: Yes
BRS3KO480V5/ND
Effective luminous flux (lm): 5000
System power (W): 44
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 480
BRS3KOPC300V1/DIM
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 300
BRS3KOPC300V1/ND
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 300
BRS3KOPC300V1/NDSM
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 300
With movement sensor: Yes
BRS3KOPC375V2/DIM
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 375
BRS3KOPC375V2/ND
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 375
BRS3KOPC375V2/NDNZ
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 375
BRS3KOPC375V2/NDNZ3
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 375
BRS3KOPC375V2/NDSM
Effective luminous flux (lm): 2900
System power (W): 29
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 375
With movement sensor: Yes
BRS3KOPC480V3/DIM
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 480
BRS3KOPC480V3/ND
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 480
BRS3KOPC480V3/NDNZ3
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 480
BRS3KOPC480V3/NDSM
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 480
With movement sensor: Yes
BRS4KO300V1/ND
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 300
BRS4KO300V1/ND/90
Effective luminous flux (lm): 1200
System power (W): 14
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 300
BRS4KO300V1/ND/EU
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 300
BRS4KO300V1/NDSM
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 300
With movement sensor: Yes
BRS4KO375V2/ND
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 375
BRS4KO375V2/ND/90
Effective luminous flux (lm): 2400
System power (W): 27
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 375
BRS4KO375V2/ND/EU
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 375
BRS4KO375V2/NDNZ
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 375
BRS4KO375V2/NDSM
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 375
With movement sensor: Yes
BRS4KO480V3/DALI
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V3/DALINZ
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V3/ND
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V3/ND/90
Effective luminous flux (lm): 3200
System power (W): 34
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V3/NDNZ
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V3/NDNZ3
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V3/NDSM
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
With movement sensor: Yes
BRS4KO480V3/NDSMNZ
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V3/PHC
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V3/PHCNZ
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V5/ND
Effective luminous flux (lm): 5000
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V5/NDSM
Effective luminous flux (lm): 5000
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
With movement sensor: Yes
BRS4KOPC300V1/DIM
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 300
BRS4KOPC300V1/ND
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 300
BRS4KOPC300V1/NDSM
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 300
With movement sensor: Yes
BRS4KOPC375V2/DALI
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 375
BRS4KOPC375V2/ND
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 375
BRS4KOPC375V2/NDNZ
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 375
BRS4KOPC375V2/NDSM
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 375
With movement sensor: Yes
BRS4KOPC480V3/ND
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 480
BRS4KOPC480V3/NDNZ3
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 480
BRS4KOPC480V3/NDSM
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 480
With movement sensor: Yes
BRS5KO300V1/ND
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 5700
Optical system: KO
Outer diameter (mm): 300
BRS5KO300V1/NDSM
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 5700
Optical system: KO
Outer diameter (mm): 300
With movement sensor: Yes
BRS5KO375V2/ND
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 5700
Optical system: KO
Outer diameter (mm): 375
BRS5KO375V2/NDNZ
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 5700
Optical system: KO
Outer diameter (mm): 375
BRS5KO375V2/NDSM
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 5700
Optical system: KO
Outer diameter (mm): 375
With movement sensor: Yes
BRS5KO480V3/ND
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 5700
Optical system: KO
Outer diameter (mm): 480
BRS5KO480V3/NDNZ3
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 5700
Optical system: KO
Outer diameter (mm): 480
BRS5KO480V3/NDSM
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 5700
Optical system: KO
Outer diameter (mm): 480
With movement sensor: Yes
BRS5KOPC300V1/ND
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 5700
Optical system: KOPC
Outer diameter (mm): 300
BRS5KOPC300V1/NDSM
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 5700
Optical system: KOPC
Outer diameter (mm): 300
With movement sensor: Yes
BRS5KOPC375V2/ND
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 5700
Optical system: KOPC
Outer diameter (mm): 375
BRS5KOPC375V2/NDSM
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 5700
Optical system: KOPC
Outer diameter (mm): 375
With movement sensor: Yes
BRS5KOPC480V3/ND
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 5700
Optical system: KOPC
Outer diameter (mm): 480
BRS5KOPC480V3/NDSM
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 5700
Optical system: KOPC
Outer diameter (mm): 480
With movement sensor: Yes
Show all versions
 Back to serie MODUS BRS

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
