Product series MODUS AREL MOWI

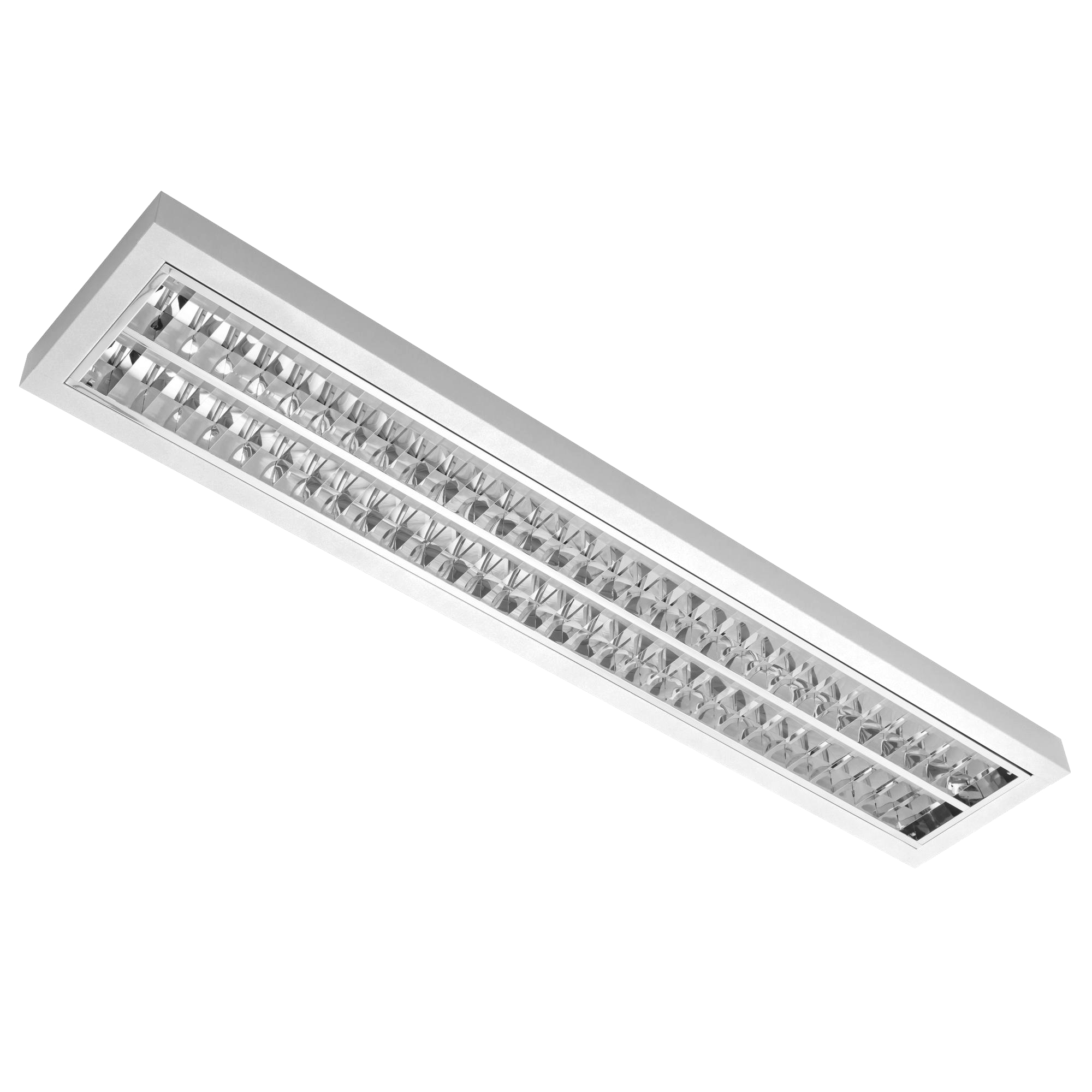

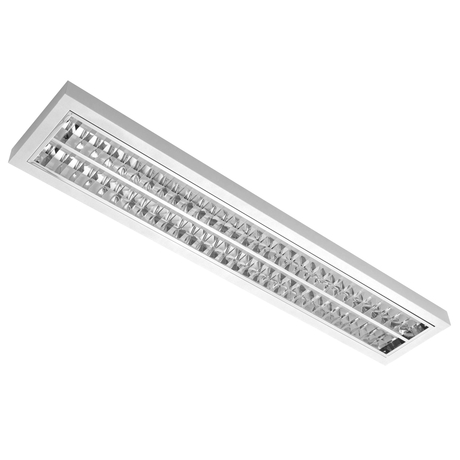

MODUS AREL4000, 2x LED, 1245mm, mat AL louvre , ceiling/pendant, LED 827-865, MIX WHITE, RAL9016, BT control
Intelligent louvre luminaire
Code: AREL4000RM2KVMMIX/9016/BTC
EAN: 8596099039295
Luminaire properties
| Product category: | Ceiling / wall luminaires | Effective luminous flux (lm): | 4450 | System power (W): | 42 | Luminaire efficacy (lm/W): | 106 |
| Degree of protection (IP): | IP20 | Color housing: | White | Suitable for suspended mounting: | Yes | Material housing: | Steel | Light source included: | Yes |
| Suitable for surface mounting: | Yes | Suitable for ceiling mounting: | Yes | Made in Czech republic: | Yes |
Light source
| Light source type: | LED | Color temperature (K): | 2700...6500 | Color rendering index CRI: | 80-89 | Replaceability: | Removeable light source, replaceable ballast |
Optical system
| Optical system: | KVM | Light outlet: | Direct | Type of grid: | Matt | Anti-glare limiting UGR: | 19 |
| Light sharing: | Symmetric | Fit for monitor workplace: | Yes |
Dimensions
| Length (mm): | 1245 | Width (mm): | 245 | Height/depth (mm): | 55 | Weight (kg): | 4 |
Electrical values
| Protection class: | I | Connection type: | Pinching contact | Voltage type: | AC | Type of control gear: | LED operating device current-controlled |
| Nominal voltage (V): | 220...240 | Control gear included: | Yes | Type of wiring: | Suitable for through wiring | Dimming manufacturer's proprietary system: | Yes | Dimming programmable: | Yes |
| Dimming with push-button: | Yes | MODUS SMART: | Bluetooth |
LDT files >
