Product series

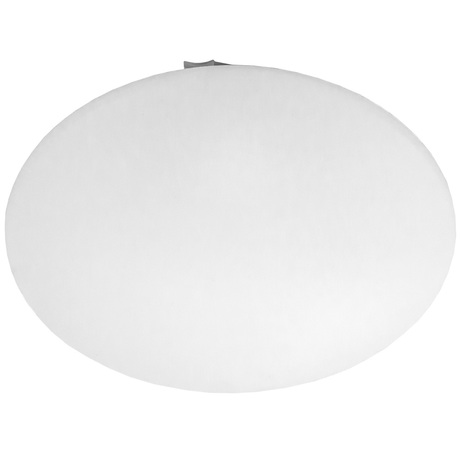

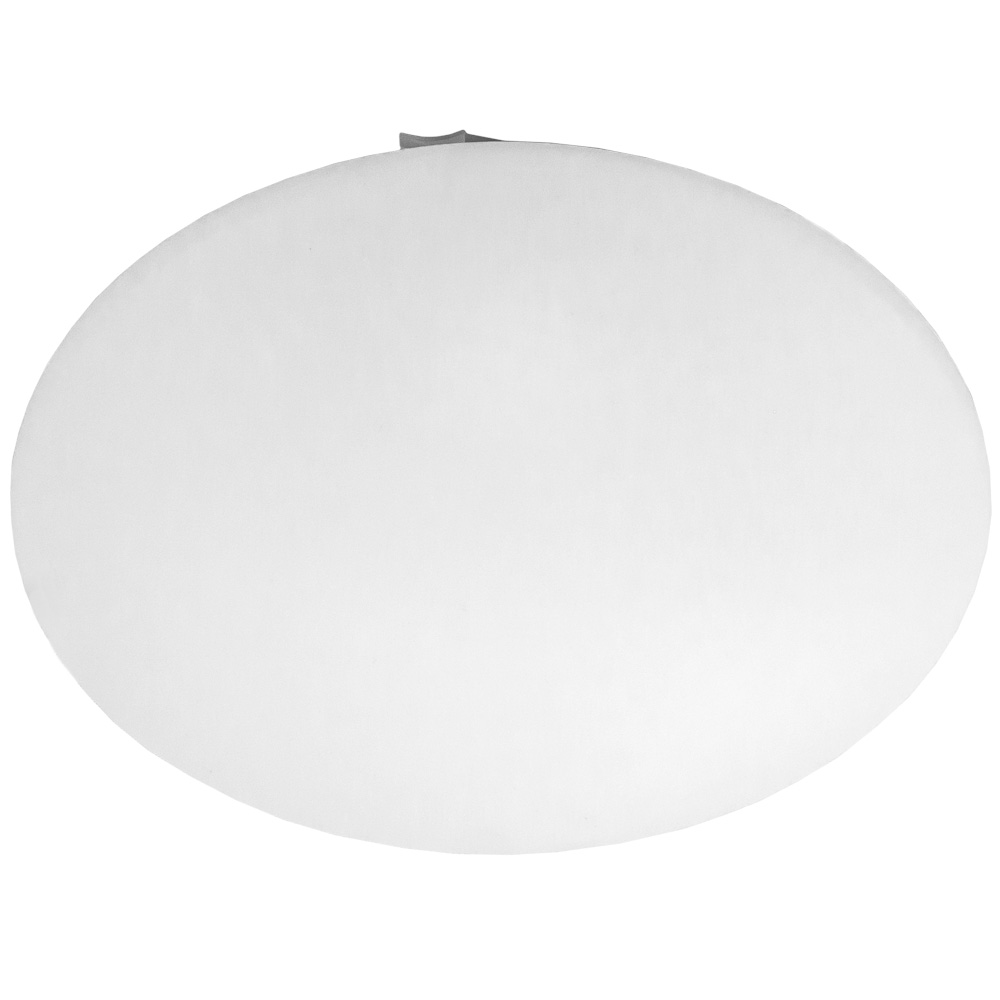

MODUS BRSB

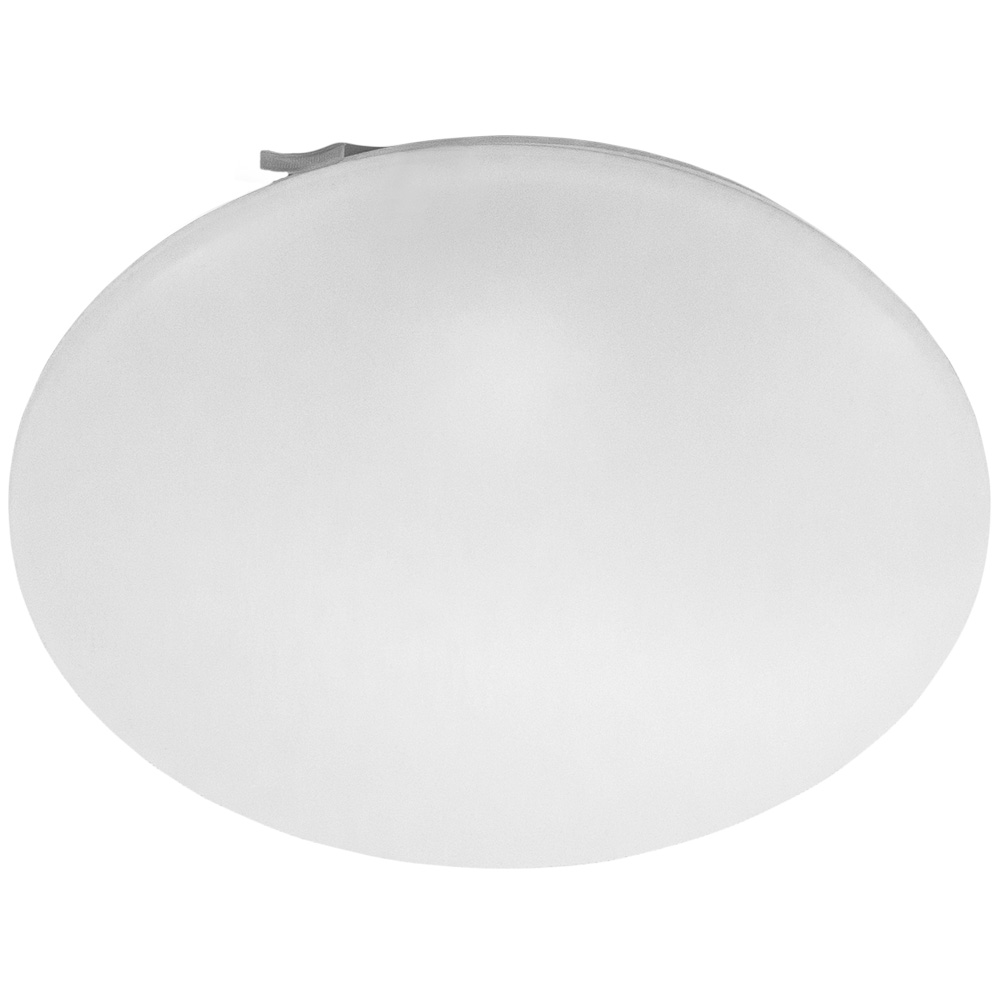

Surface LED fitting with plastic cover - IP44

MODUS BRSB
11 L80_80000_h.jpg

Price from:

620 Kč
( 750 Kč including VAT )

Body:

White painted (RAL 9003) metal sheet



Optical system:

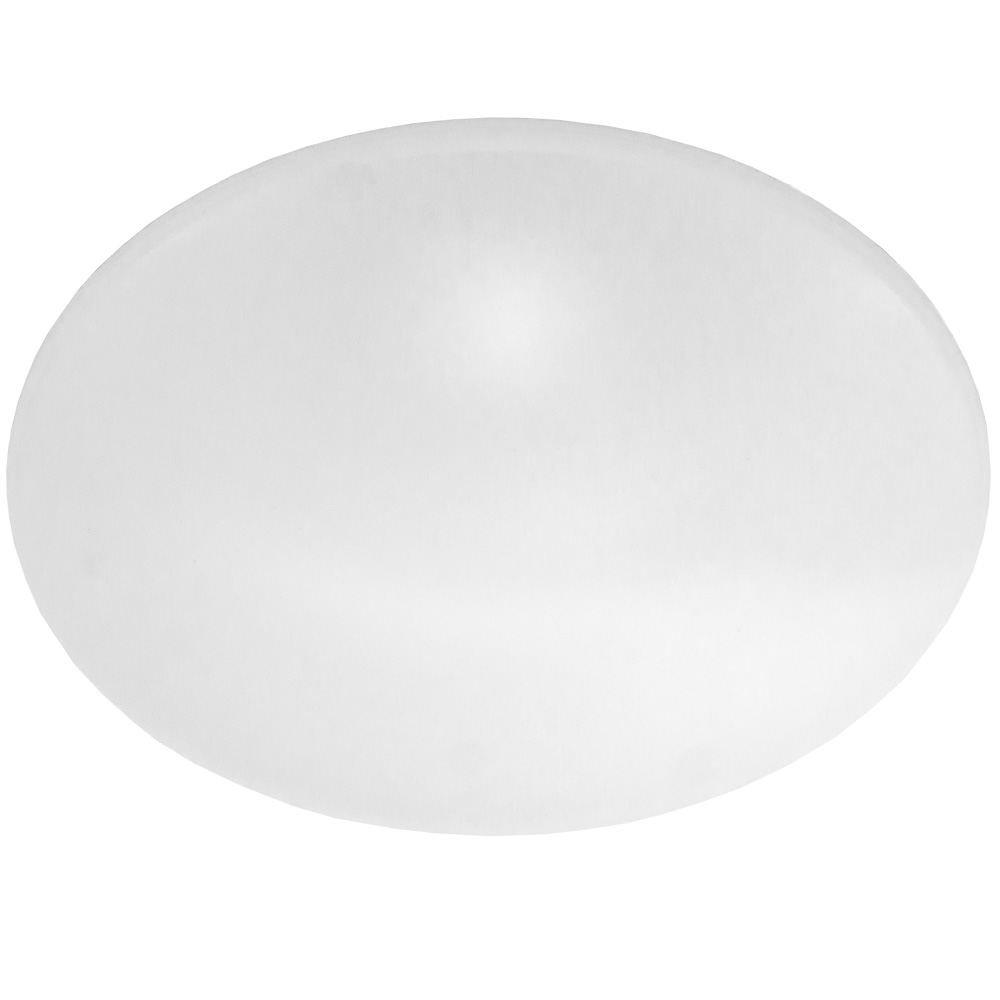

Opal PMMA cover



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K

5...daylight 5700K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V

SM - integrated microwave sensor

SMM - integrated microwave sensor Master connection

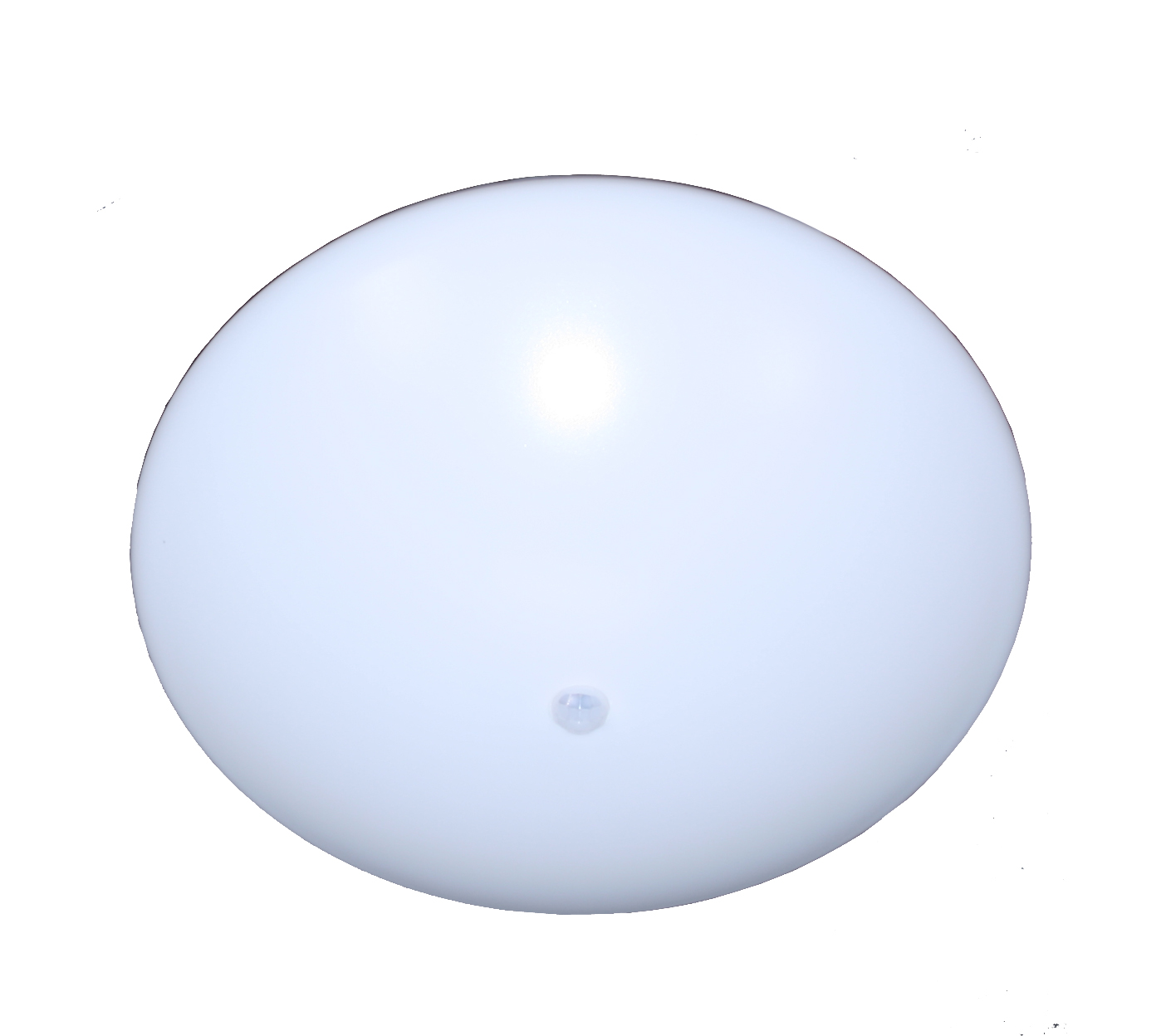

PIR - integrated PIR sensor

PIRM - integrated PIR sensor Master connection

NZ - emergency pack (not for BRSB dia. 300mm)

Luminaire can be supplied with wireless Bluetooth control - more information here.



Application:

Surface mounted luminaire for residential use, corridors, stairs, hygiene facilities.

Suitable for sites with high frequency switching or for systems switched by a presence detector.



Version:

300 - small fitting (Ø 285 mm)

375 - middle fitting (Ø 375 mm)

480 - large fitting (Ø 480 mm)



For tips and standards for school classes, gyms and facilities take a look on our Luminaires for School magazine.

Body material:White painted steelMounting method:Surface mounting
Protection class:IWith movement sensor:Yes
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89
Lamp type:LED
Degree of protection (IP):IP44
Color temperature (K):4000, 3000, 5700Rated life time L80/B50 (h):80000
Dimming 1-10 V:YesDimming DALI:Yes
Optical system:KO
opal cover
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

900
4600

System power (W)

9
44
Product name
BRSB2KO300V0/ND
Effective luminous flux (lm): 900
System power (W): 9
Color temperature (K): 2700
Outer diameter (mm): 285
BRSB2KO300V1/ND
Effective luminous flux (lm): 1400
System power (W): 14
Color temperature (K): 2700
Outer diameter (mm): 285
BRSB2KO375V2/ND
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 2700
Outer diameter (mm): 375
BRSB2KO375V2/NDNZ
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 2700
Outer diameter (mm): 375
BRSB2KO480V3/DALI
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 2700
Outer diameter (mm): 480
BRSB2KO480V3/ND
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 2700
Outer diameter (mm): 480
BRSB3KO300V0/DIM
Effective luminous flux (lm): 900
System power (W): 9
Color temperature (K): 3000
Outer diameter (mm): 285
BRSB3KO300V0/ND
Effective luminous flux (lm): 900
System power (W): 9
Color temperature (K): 3000
Outer diameter (mm): 285
BRSB3KO300V0/NDSM
Effective luminous flux (lm): 900
System power (W): 9
Color temperature (K): 3000
Outer diameter (mm): 285
With movement sensor: Yes
BRSB3KO300V1/BT
Effective luminous flux (lm): 1400
System power (W): 14
Color temperature (K): 3000
Outer diameter (mm): 285
BRSB3KO300V1/DALI
Effective luminous flux (lm): 1400
System power (W): 14
Color temperature (K): 3000
Outer diameter (mm): 285
BRSB3KO300V1/DALISM/COR
Effective luminous flux (lm): 1400
System power (W): 16
Color temperature (K): 3000
Outer diameter (mm): 285
With movement sensor: Yes
BRSB3KO300V1/DIM
Effective luminous flux (lm): 1400
System power (W): 14
Color temperature (K): 3000
Outer diameter (mm): 285
BRSB3KO300V1/ND
Effective luminous flux (lm): 1400
System power (W): 14
Color temperature (K): 3000
Outer diameter (mm): 285
BRSB3KO300V1/ND/PIR
Effective luminous flux (lm): 1400
System power (W): 14
Color temperature (K): 4000
Outer diameter (mm): 285
With movement sensor: Yes
BRSB3KO300V1/NDSM
Effective luminous flux (lm): 1400
System power (W): 16
Color temperature (K): 3000
Outer diameter (mm): 285
With movement sensor: Yes
BRSB3KO300V6/ND/2000
Effective luminous flux (lm): 2000
System power (W): 20
Color temperature (K): 3000
Outer diameter (mm): 285
BRSB3KO300V6/NDSM/2000
Effective luminous flux (lm): 2000
System power (W): 22
Color temperature (K): 3000
Outer diameter (mm): 285
With movement sensor: Yes
BRSB3KO375V1/ND
Effective luminous flux (lm): 1400
System power (W): 14
Color temperature (K): 3000
Outer diameter (mm): 375
BRSB3KO375V1/NDNZ
Effective luminous flux (lm): 1400
System power (W): 14
Color temperature (K): 3000
Outer diameter (mm): 375
BRSB3KO375V1/NDSM
Effective luminous flux (lm): 1400
System power (W): 16
Color temperature (K): 3000
Outer diameter (mm): 375
With movement sensor: Yes
BRSB3KO375V2/DALI
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 3000
Outer diameter (mm): 375
BRSB3KO375V2/DALI/COR
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 3000
Outer diameter (mm): 375
BRSB3KO375V2/DALINZ
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 3000
Outer diameter (mm): 375
BRSB3KO375V2/DALISM/COR
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 3000
Outer diameter (mm): 375
With movement sensor: Yes
BRSB3KO375V2/DALIT
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 3000
Outer diameter (mm): 375
BRSB3KO375V2/DASMNZ/2/COR
Effective luminous flux (lm): 2000
System power (W): 22
Color temperature (K): 3000
Outer diameter (mm): 375
With movement sensor: Yes
BRSB3KO375V2/DIM
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 3000
Outer diameter (mm): 375
BRSB3KO375V2/ND
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 3000
Outer diameter (mm): 375
BRSB3KO375V2/ND/2000
Effective luminous flux (lm): 2000
System power (W): 20
Color temperature (K): 3000
Outer diameter (mm): 375
BRSB3KO375V2/ND/PIR
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 3000
Outer diameter (mm): 375
With movement sensor: Yes
BRSB3KO375V2/NDNZ
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 3000
Outer diameter (mm): 375
BRSB3KO375V2/NDNZ/1500
Effective luminous flux (lm): 1700
System power (W): 15
Color temperature (K): 3000
Outer diameter (mm): 375
BRSB3KO375V2/NDNZ/2000
Effective luminous flux (lm): 2000
System power (W): 20
Color temperature (K): 3000
Outer diameter (mm): 375
BRSB3KO375V2/NDNZ3
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 3000
Outer diameter (mm): 375
BRSB3KO375V2/NDNZ3/2000
Effective luminous flux (lm): 2000
System power (W): 20
Color temperature (K): 3000
Outer diameter (mm): 375
BRSB3KO375V2/NDSM
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 3000
Outer diameter (mm): 375
With movement sensor: Yes
BRSB3KO375V2/NDSMNZ
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 3000
Outer diameter (mm): 375
With movement sensor: Yes
BRSB3KO480V2/ND
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 3000
Outer diameter (mm): 480
BRSB3KO480V2/NDNZ
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 3000
Outer diameter (mm): 480
BRSB3KO480V3/DALI
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 3000
Outer diameter (mm): 480
BRSB3KO480V3/DALINZ
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 3000
Outer diameter (mm): 480
BRSB3KO480V3/DALINZ3
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 3000
Outer diameter (mm): 480
BRSB3KO480V3/DALISM/COR
Effective luminous flux (lm): 3600
System power (W): 36
Color temperature (K): 3000
Outer diameter (mm): 480
With movement sensor: Yes
BRSB3KO480V3/DALIT
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 3000
Outer diameter (mm): 480
BRSB3KO480V3/DIM
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 3000
Outer diameter (mm): 480
BRSB3KO480V3/ND
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 3000
Outer diameter (mm): 480
BRSB3KO480V3/ND/PIR
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 3000
Outer diameter (mm): 480
With movement sensor: Yes
BRSB3KO480V3/NDNZ
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 3000
Outer diameter (mm): 480
BRSB3KO480V3/NDNZ3
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 3000
Outer diameter (mm): 480
BRSB3KO480V3/NDSM
Effective luminous flux (lm): 3600
System power (W): 36
Color temperature (K): 3000
Outer diameter (mm): 480
With movement sensor: Yes
BRSB3KO480V3/NDSMNZ
Effective luminous flux (lm): 3600
System power (W): 36
Color temperature (K): 3000
Outer diameter (mm): 480
With movement sensor: Yes
BRSB3KO480V5/BT
Effective luminous flux (lm): 4600
System power (W): 44
Color temperature (K): 3000
Outer diameter (mm): 480
BRSB3KO480V5/DALI
Effective luminous flux (lm): 4600
System power (W): 44
Color temperature (K): 3000
Outer diameter (mm): 480
BRSB3KO480V5/DIM
Effective luminous flux (lm): 4600
System power (W): 44
Color temperature (K): 3000
Outer diameter (mm): 480
BRSB3KO480V5/ND
Effective luminous flux (lm): 4600
System power (W): 44
Color temperature (K): 3000
Outer diameter (mm): 480
BRSB3KO480V5/NDPIR
Effective luminous flux (lm): 4600
System power (W): 44
Color temperature (K): 3000
Outer diameter (mm): 480
With movement sensor: Yes
BRSB3KO480V5/NDSM
Effective luminous flux (lm): 4600
System power (W): 44
Color temperature (K): 3000
Outer diameter (mm): 480
With movement sensor: Yes
BRSB4KO300V0/ND
Effective luminous flux (lm): 900
System power (W): 9
Color temperature (K): 4000
Outer diameter (mm): 285
BRSB4KO300V0/NDSM
Effective luminous flux (lm): 900
System power (W): 9
Color temperature (K): 4000
Outer diameter (mm): 285
With movement sensor: Yes
BRSB4KO300V0/NDSM/S106
Effective luminous flux (lm): 900
System power (W): 11
Color temperature (K): 4000
Outer diameter (mm): 285
With movement sensor: Yes
BRSB4KO300V1/DALI
Effective luminous flux (lm): 1400
System power (W): 14
Color temperature (K): 4000
Outer diameter (mm): 285
BRSB4KO300V1/DALISM/COR/S106
Effective luminous flux (lm): 1400
System power (W): 16
Color temperature (K): 4000
Outer diameter (mm): 285
With movement sensor: Yes
BRSB4KO300V1/ND
Effective luminous flux (lm): 1400
System power (W): 14
Color temperature (K): 4000
Outer diameter (mm): 285
BRSB4KO300V1/ND/PIR
Effective luminous flux (lm): 1400
System power (W): 14
Color temperature (K): 4000
Outer diameter (mm): 285
With movement sensor: Yes
BRSB4KO300V1/NDSM
Effective luminous flux (lm): 1400
System power (W): 16
Color temperature (K): 4000
Outer diameter (mm): 285
With movement sensor: Yes
BRSB4KO300V6/DALI/2000
Effective luminous flux (lm): 2000
System power (W): 20
Color temperature (K): 4000
Outer diameter (mm): 285
BRSB4KO300V6/ND/2000
Effective luminous flux (lm): 2000
System power (W): 20
Color temperature (K): 4000
Outer diameter (mm): 285
BRSB4KO300V6/NDSM/2000
Effective luminous flux (lm): 2000
System power (W): 22
Color temperature (K): 4000
Outer diameter (mm): 285
With movement sensor: Yes
BRSB4KO375V2/DALI
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 4000
Outer diameter (mm): 375
BRSB4KO375V2/DALI/COR
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 4000
Outer diameter (mm): 375
BRSB4KO375V2/DALI/S104
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 4000
Outer diameter (mm): 375
BRSB4KO375V2/DALINZ
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 4000
Outer diameter (mm): 375
BRSB4KO375V2/DIM
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 4000
Outer diameter (mm): 375
BRSB4KO375V2/ND
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 4000
Outer diameter (mm): 375
BRSB4KO375V2/ND/2000
Effective luminous flux (lm): 2000
System power (W): 20
Color temperature (K): 4000
Outer diameter (mm): 375
BRSB4KO375V2/ND/PIR
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 4000
Outer diameter (mm): 375
With movement sensor: Yes
BRSB4KO375V2/NDNZ
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 4000
Outer diameter (mm): 375
BRSB4KO375V2/NDNZ/2000
Effective luminous flux (lm): 2000
System power (W): 22
Color temperature (K): 4000
Outer diameter (mm): 375
BRSB4KO375V2/NDNZ3
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 4000
Outer diameter (mm): 375
BRSB4KO375V2/NDNZ3AT
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 4000
Outer diameter (mm): 375
BRSB4KO375V2/NDSM
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 4000
Outer diameter (mm): 375
With movement sensor: Yes
BRSB4KO375V2/NDSMNZ
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 4000
Outer diameter (mm): 375
With movement sensor: Yes
BRSB4KO480V3/DALI
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 4000
Outer diameter (mm): 480
BRSB4KO480V3/DALINZ
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 4000
Outer diameter (mm): 480
BRSB4KO480V3/DALINZ3
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 4000
Outer diameter (mm): 480
BRSB4KO480V3/DALISM/COR
Effective luminous flux (lm): 3600
System power (W): 36
Color temperature (K): 4000
Outer diameter (mm): 480
With movement sensor: Yes
BRSB4KO480V3/DALIT
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 4000
Outer diameter (mm): 480
BRSB4KO480V3/DIM
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 4000
Outer diameter (mm): 480
BRSB4KO480V3/ND
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 4000
Outer diameter (mm): 480
BRSB4KO480V3/ND/2000/S174
Effective luminous flux (lm): 1900
System power (W): 17
Color temperature (K): 4000
Outer diameter (mm): 480
BRSB4KO480V3/ND/PIR
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 4000
Outer diameter (mm): 480
With movement sensor: Yes
BRSB4KO480V3/NDNZ
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 4000
Outer diameter (mm): 480
BRSB4KO480V3/NDNZ3
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 4000
Outer diameter (mm): 480
BRSB4KO480V3/NDSM
Effective luminous flux (lm): 3600
System power (W): 36
Color temperature (K): 4000
Outer diameter (mm): 480
With movement sensor: Yes
BRSB4KO480V3/NDSMNZ
Effective luminous flux (lm): 3600
System power (W): 36
Color temperature (K): 4000
Outer diameter (mm): 480
With movement sensor: Yes
BRSB4KO480V3/NDSMNZ3
Effective luminous flux (lm): 3600
System power (W): 36
Color temperature (K): 4000
Outer diameter (mm): 480
With movement sensor: Yes
BRSB4KO480V4/ND
Effective luminous flux (lm): 4000
System power (W): 40
Color temperature (K): 4000
Outer diameter (mm): 480
BRSB4KO480V5/DALI
Effective luminous flux (lm): 4600
System power (W): 44
Color temperature (K): 4000
Outer diameter (mm): 480
BRSB4KO480V5/ND
Effective luminous flux (lm): 4600
System power (W): 44
Color temperature (K): 4000
Outer diameter (mm): 480
BRSB4KO480V5/NDSM
Effective luminous flux (lm): 4600
System power (W): 44
Color temperature (K): 4000
Outer diameter (mm): 480
With movement sensor: Yes
BRSB5KO300V0/ND
Effective luminous flux (lm): 900
System power (W): 9
Color temperature (K): 5700
Outer diameter (mm): 285
BRSB5KO300V1/ND
Effective luminous flux (lm): 1400
System power (W): 14
Color temperature (K): 5700
Outer diameter (mm): 285
BRSB5KO375V2/ND
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 5700
Outer diameter (mm): 375
BRSB5KO375V2/NDSM
Effective luminous flux (lm): 2700
System power (W): 27
Color temperature (K): 5700
Outer diameter (mm): 375
With movement sensor: Yes
BRSB5KO480V3/DALI
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 5700
Outer diameter (mm): 480
BRSB5KO480V3/ND
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 5700
Outer diameter (mm): 480
BRSB5KO480V5/ND
Effective luminous flux (lm): 4600
System power (W): 44
Color temperature (K): 5700
Outer diameter (mm): 480
BRSB6KO300V1/NDSM
Effective luminous flux (lm): 1400
System power (W): 16
Color temperature (K): 6500
Outer diameter (mm): 285
With movement sensor: Yes
BRSB6KO480V3/ND
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 6500
Outer diameter (mm): 480
BRSB6KO480V5/ND
Effective luminous flux (lm): 4600
System power (W): 44
Color temperature (K): 6500
Outer diameter (mm): 480
BRSBMIXYKO480V7/BT/3500
Effective luminous flux (lm): 3400
System power (W): 35
Color temperature (K): 1800...6500
Outer diameter (mm): 480

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
