Product series
MODUS DS

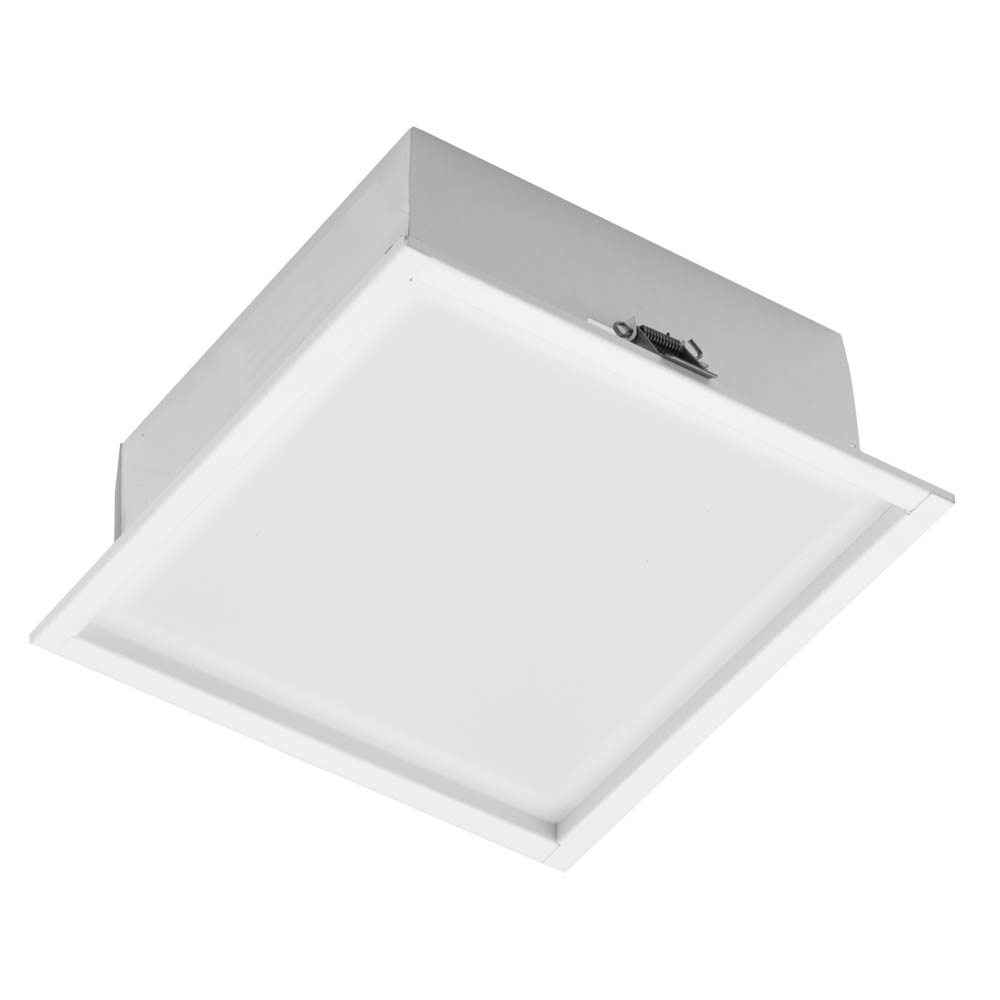

Recessed LED fitting
MODUS DS

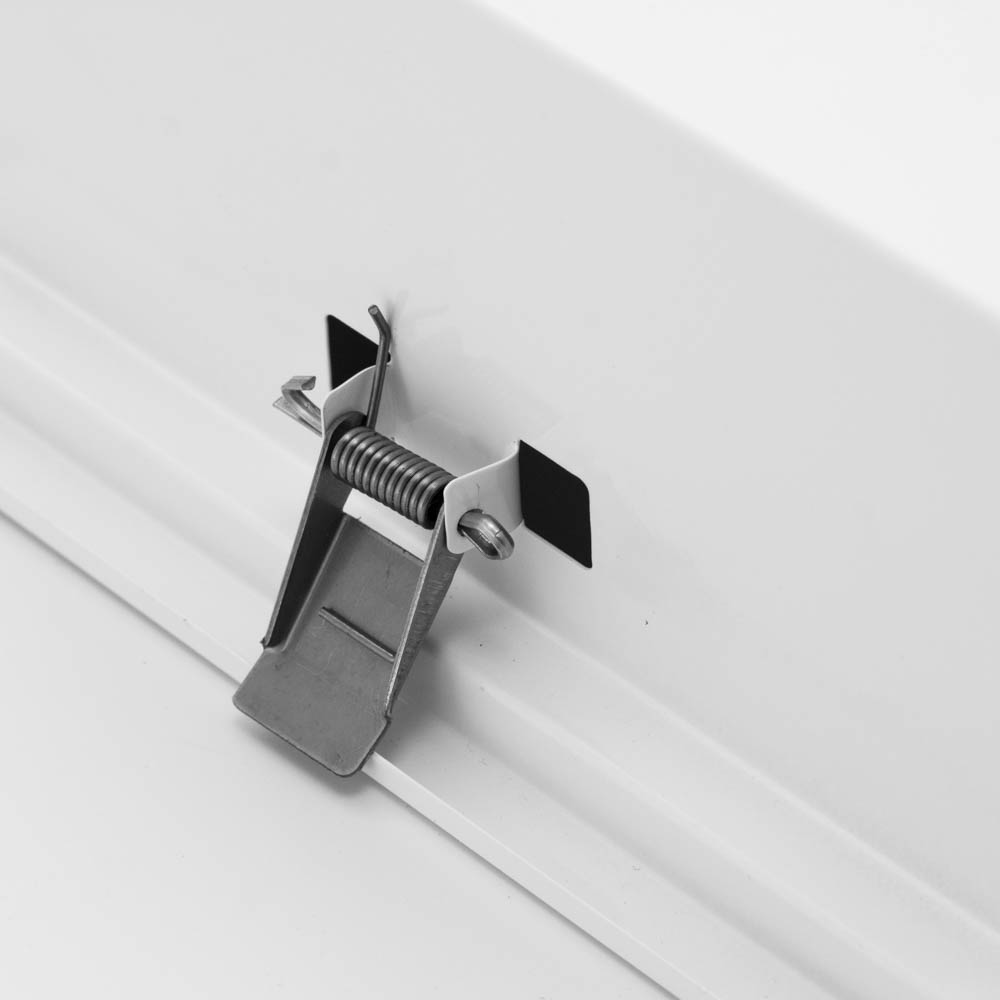

Fixing clip

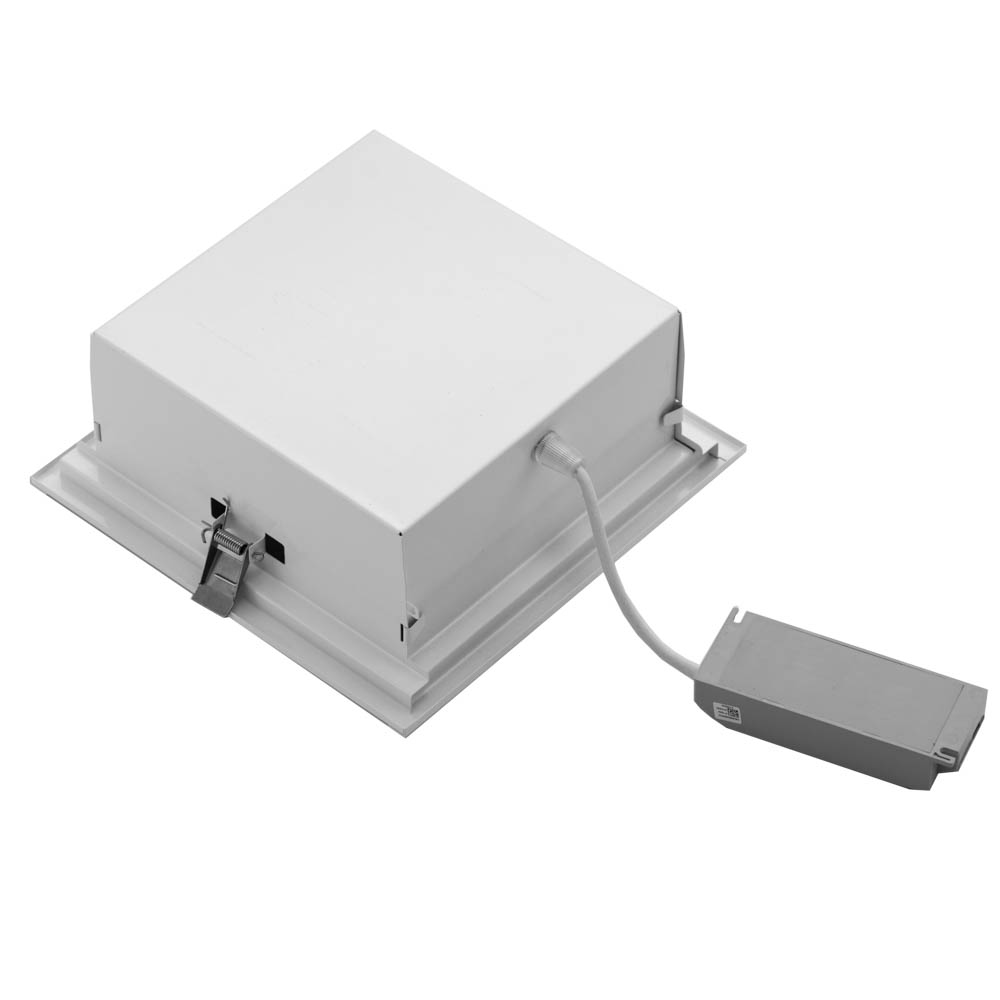

Independent driver

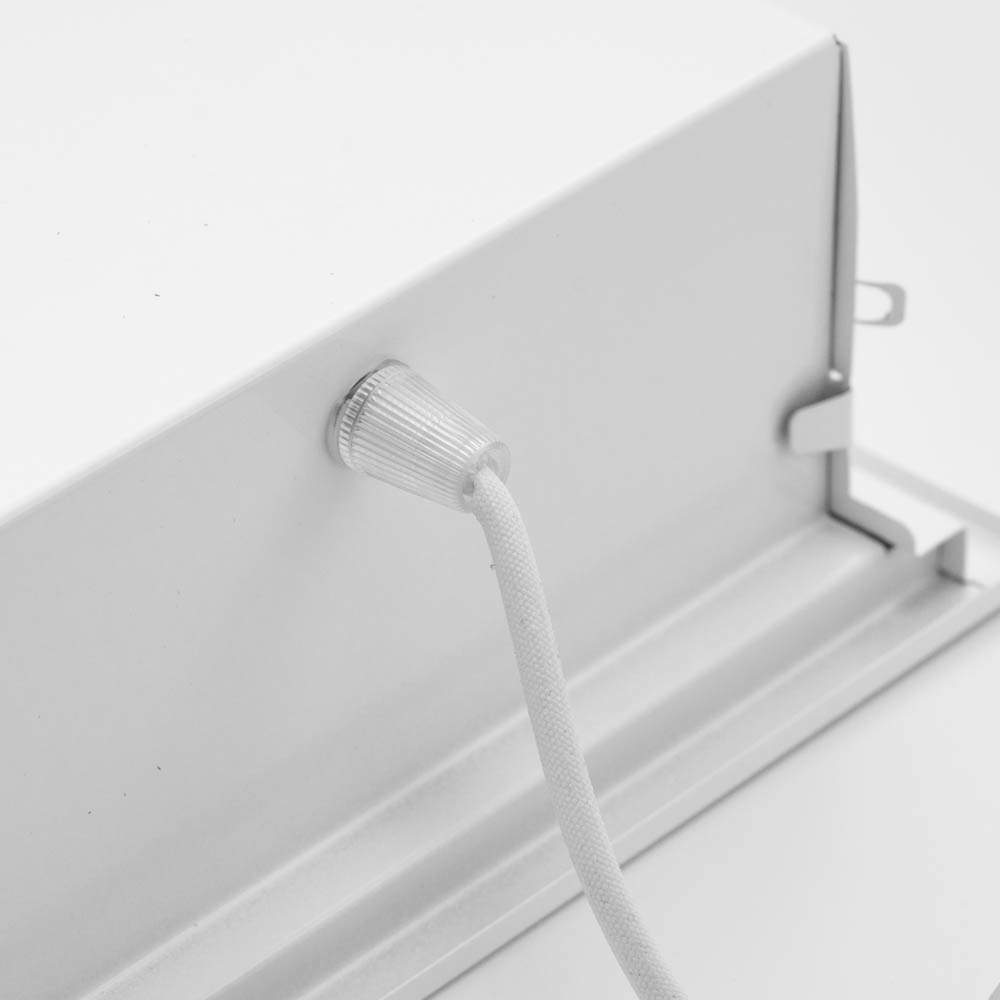

Grommet

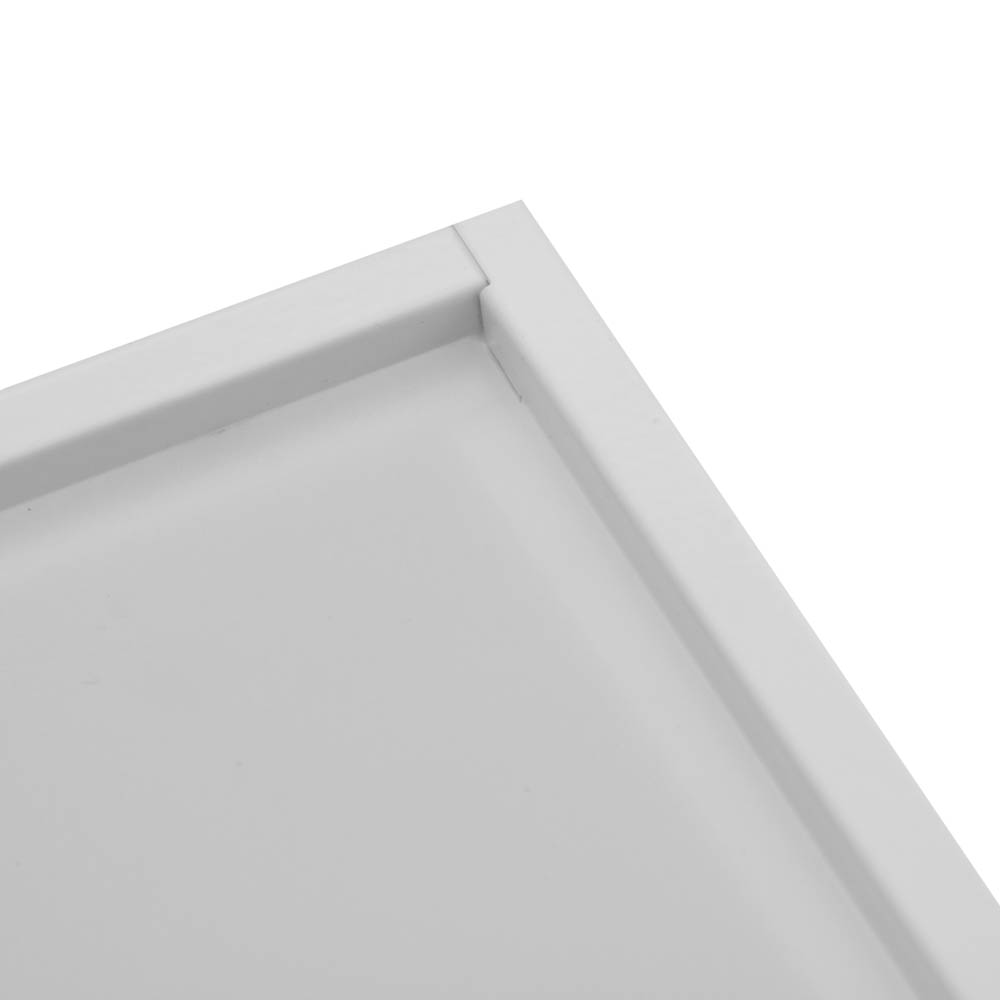

Cover detail
Standard price from:
On request
Body:
White painted (RAL 9016) metal sheet
LED:
Mid Power LED
CRI 80
3...warm white 3000K
4...cold white 4000K
Wiring:
LED driver (constant current)
ND – not dimmable (standard)
DALI – digital dimmable DALI
Application:
- Recessed installation into gypsum or raster ceiling
| Body material: | White painted steel | Mounting method: | Built-in | Protection class: | II | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20, IP40 | Color temperature (K): | 4000, 3000, 2700, 5700 |
| Rated lifetime L80/B50 (h): | 80000 | Dimming DALI: | Yes | Optical system: | KO opal cover | Made in Czech republic: | Yes | Replaceability: | Removeable light source, replaceable ballast Removeable light source, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Length (mm)
DS1000KO3/200/DALI
Effective luminous flux (lm): 1000
Color temperature (K): 3000
Optical system: KO
Length (mm): 224
DS1000KO3/200/ND
Effective luminous flux (lm): 1000
Color temperature (K): 3000
Optical system: KO
Length (mm): 224
DS1000KO4/200/DALI
Effective luminous flux (lm): 1000
Color temperature (K): 4000
Optical system: KO
Length (mm): 224
DS1000KO4/200/ND
Effective luminous flux (lm): 1000
Color temperature (K): 4000
Optical system: KO
Length (mm): 224
DS2000KO3/200/DALI
Effective luminous flux (lm): 2000
System power (W): 19
Color temperature (K): 3000
Optical system: KO
Length (mm): 224
DS2000KO3/200/DALIT
Effective luminous flux (lm): 2000
System power (W): 19
Color temperature (K): 3000
Optical system: KO
Length (mm): 224
DS2000KO3/200/ND
Effective luminous flux (lm): 2000
System power (W): 19
Color temperature (K): 3000
Optical system: KO
Length (mm): 224
DS2000KO3/400/DALI
Effective luminous flux (lm): 2000
System power (W): 19
Color temperature (K): 3000
Optical system: KO
Length (mm): 420
DS2000KO3/400/ND
Effective luminous flux (lm): 2000
System power (W): 19
Color temperature (K): 3000
Optical system: KO
Length (mm): 420
DS2000KO4/200/DALI
Effective luminous flux (lm): 2000
System power (W): 19
Color temperature (K): 4000
Optical system: KO
Length (mm): 224
DS2000KO4/200/ND
Effective luminous flux (lm): 2000
System power (W): 19
Color temperature (K): 4000
Optical system: KO
Length (mm): 224
DS2000KO4/330/ND
Effective luminous flux (lm): 2000
System power (W): 19
Color temperature (K): 4000
Optical system: KO
Length (mm): 350
DS2000KO4/400/ND
Effective luminous flux (lm): 2000
System power (W): 19
Color temperature (K): 4000
Optical system: KO
Length (mm): 420
DS3000KO4/330/ND/IP5420
Effective luminous flux (lm): 3000
System power (W): 28
Color temperature (K): 4000
Optical system: KO
Length (mm): 350
Product page - PDF
CE declaration
LDT files

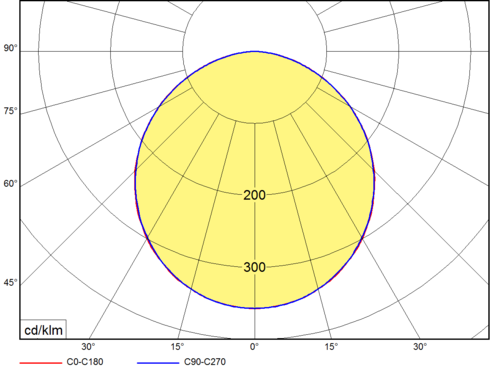

DS.PNGProjekty realizované se svítidly MODUS:
