Product series MODUS FSDON

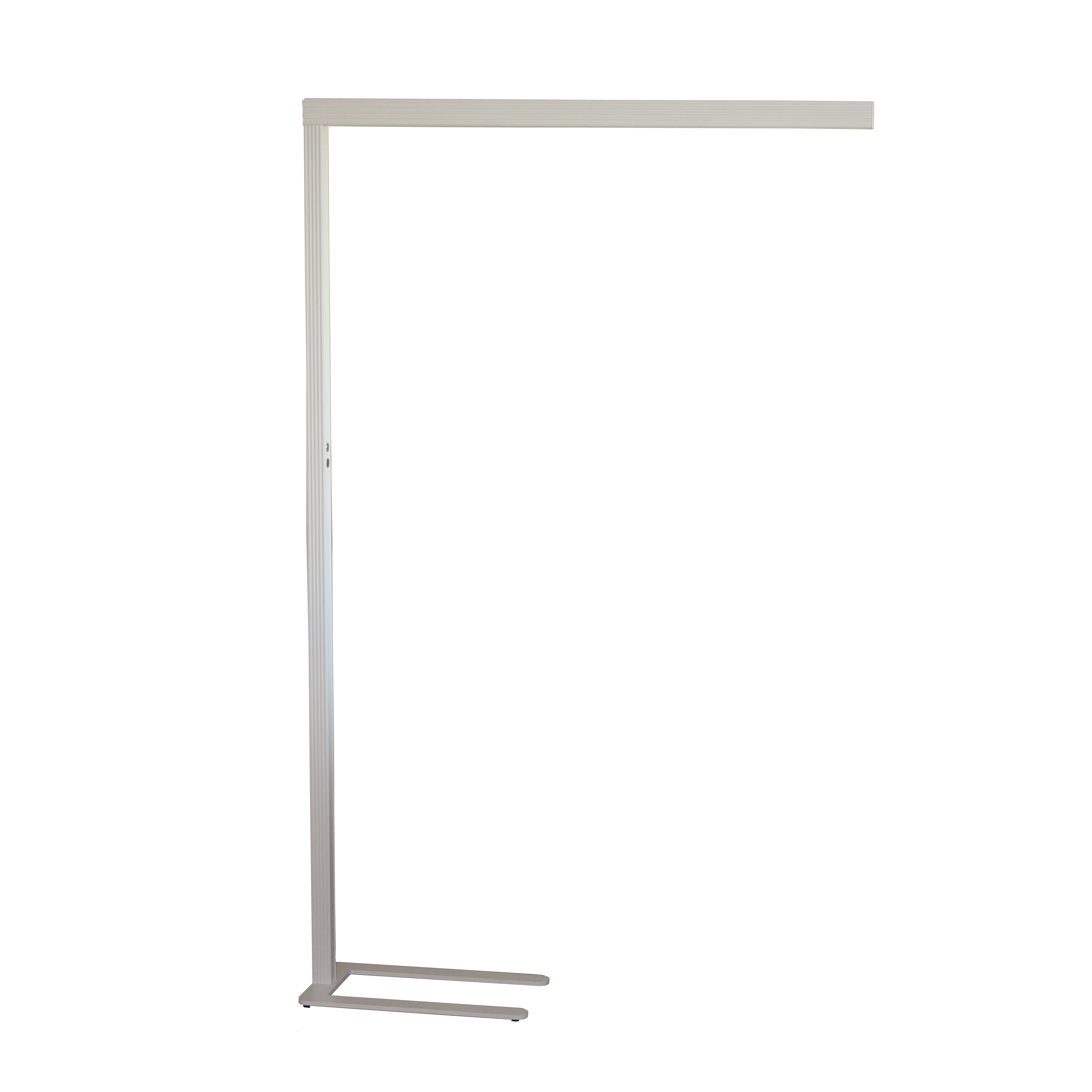

MODUS FSDON 6000, floor standing lamp, LED 827-865 tunable white, white body, white optic 80°, direct / indirect, touch dim
Leg-standing luminaire
Code: FSDON6000MMIXWBBM80/DI/TD
EAN: 8596099196523
Luminaire properties
| Product category: | Floor luminaire | Effective luminous flux (lm): | 5700 | System power (W): | 45 | Luminaire efficacy (lm/W): | 127 |
| Color housing: | White | With switch: | Yes | Material: | Aluminium | Light source included: | Yes | Made in Czech republic: | Yes |
Light source
| Light source type: | LED | Color temperature (K): | 2700...6500 | Color rendering index CRI: | 80-89 | Replaceability: | Removeable light source, replaceable ballast |
Optical system
| Optical system: | KN D/I | Light outlet: | Direct/indirect | Light sharing: | Symmetric | Material cover: | Plastic, structured |
| Luminaire heads flexible: | No |
Dimensions
| Length (mm): | 620 | Width (mm): | 300 | Height/depth (mm): | 2000 | Weight (kg): | 9 |
Electrical values
| Voltage type: | AC | With dimmer: | Yes | Type of control gear: | LED operating device current-controlled | Direct-/indirect proportion separately controllable: | No |
| Nominal voltage (V): | 220...240 | Control gear included: | Yes | Dimming Touch and Dim: | Yes | Dimming with push-button: | Yes |
LDT data does not exist for this item
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
FSDON4000M4BBM80/DI/TD
Effective luminous flux (lm): 4400
System power (W): 42
Color temperature (K): 4000
FSDON4000M4BC50/DI/TD
Effective luminous flux (lm): 4400
System power (W): 42
Color temperature (K): 4000
FSDON4000M4CCM80/DI/TD
Effective luminous flux (lm): 4400
System power (W): 42
Color temperature (K): 4000
FSDON4000M4CCM80/DI/TD/S549
Effective luminous flux (lm): 4400
System power (W): 42
Color temperature (K): 4000
FSDON4000M4SC80/DI/TD
Effective luminous flux (lm): 4400
System power (W): 42
Color temperature (K): 4000
FSDON6000MMIXWBBM80/DI/TD
Effective luminous flux (lm): 5700
System power (W): 45
Color temperature (K): 2700...6500
FSDON7000M3SBM80/DI/TD
Effective luminous flux (lm): 6800
System power (W): 66
