Product series MODUS GEO P

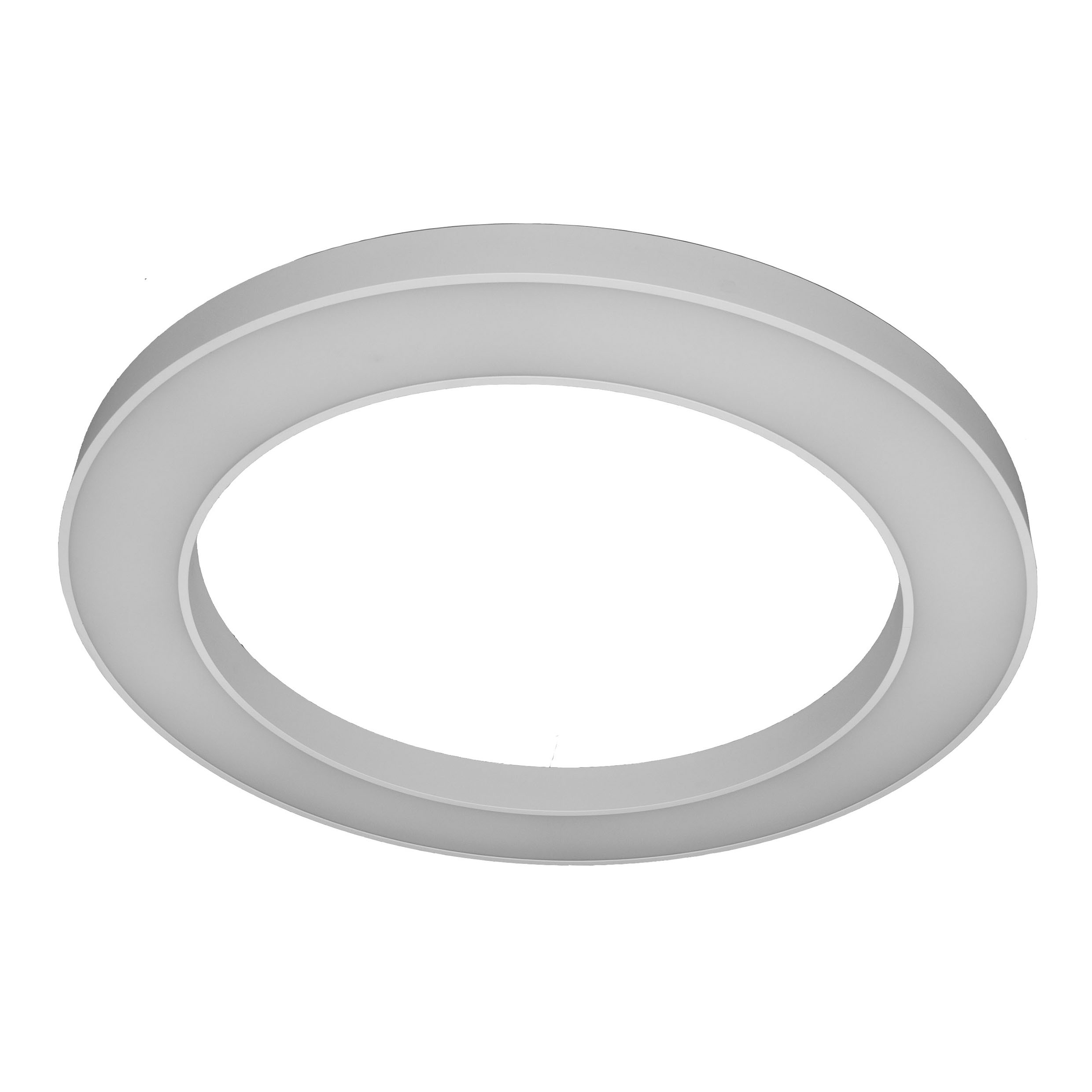

MODUS GEO12000, pendant ring 1150/850mm, LED tunable white, direct, SATIN opal cover, white
Design ring luminaire
Code: GEOPL12000SOMIXWZD/9003
EAN: 8596099139131
Luminaire properties
| Product category: | Ceiling / wall luminaires | Effective luminous flux (lm): | 12000 | System power (W): | 93 | Luminaire efficacy (lm/W): | 129 |
| Degree of protection (IP): | IP20 | Color housing: | White | Suitable for suspended mounting: | Yes | Material housing: | Aluminium | Light source included: | Yes |
| Made in Czech republic: | Yes |
Light source
| Light source type: | LED | Color temperature (K): | 2700...6500 | Color rendering index CRI: | 80-89 | Replaceability: | Replaceable light source by professional, replaceable ballast |
Optical system
| Optical system: | SO | Light outlet: | Direct | Light sharing: | Symmetric | Material cover: | Plastic, opal |
Dimensions
| Outer diameter (mm): | 1150 | Height/depth (mm): | 72 | Built-in length (mm): | 1000 | Built-in width (mm): | 1000 |
| Weight (kg): | 12 |
Electrical values
| Protection class: | I | Voltage type: | AC | Type of control gear: | LED operating device current-controlled | Nominal voltage (V): | 220...240 |
| Control gear included: | Yes | Type of wiring: | Ending | Dimming DALI: | Yes |
LDT data does not exist for this item
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Outer diameter (mm)
Color housing
GEOPL12000SO4Z/355/DALI
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: White
GEOPL12000SO4Z/9005/NDOK
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: Black
GEOPL12000SO4Z/9005/NDOK/5
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: Black
GEOPL12000SO4Z/9007/NDOK
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: Grey
GEOPL12000SO4ZM/9005/DALIT
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: White
GEOPL12000SO4ZM/9005/NDOK
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: Black
GEOPL12000SOMIXWZ/9003
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 2700...6500
Outer diameter (mm): 1150
Color housing: White
GEOPL12000SOMIXWZ/9003/BTC
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 2700...6500
Outer diameter (mm): 1150
Color housing: White
GEOPL12000SOMIXWZ/9005/BTC
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 2700...6500
Outer diameter (mm): 1150
Color housing: Black
GEOPL12000SOMIXWZD/9003
Effective luminous flux (lm): 12000
System power (W): 93
Color temperature (K): 2700...6500
Outer diameter (mm): 1150
Color housing: White
GEOPL12000SOMIXWZM/9003
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 2700...6500
Outer diameter (mm): 1150
Color housing: White
GEOPL12000SOMIXWZMD/9003
Effective luminous flux (lm): 12000
System power (W): 93
Color temperature (K): 2700...6500
Outer diameter (mm): 1150
Color housing: White
GEOPL8000SO3Z/9003/DALI
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 3000
Outer diameter (mm): 1150
Color housing: White
GEOPL8000SO4Z/7016/NDOK
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: Anthracite
GEOPL8000SO4Z/9003/DALI
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: White
GEOPL8000SO4Z/9003/NDOK
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: White
GEOPL8000SO4Z/9005/DALI
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: Black
GEOPL8000SO4Z/9005/DALIBTC
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: Black
GEOPL8000SO4Z/9005/NDOK
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: Black
GEOPL8000SO4Z/9010/NDOK
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: White
GEOPL8000SO4ZM/9003/DALI
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: White
GEOPL8000SO4ZM/9003/NDOK
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: White
GEOPL8000SO4ZM/9005/DALI
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: White
