Product series

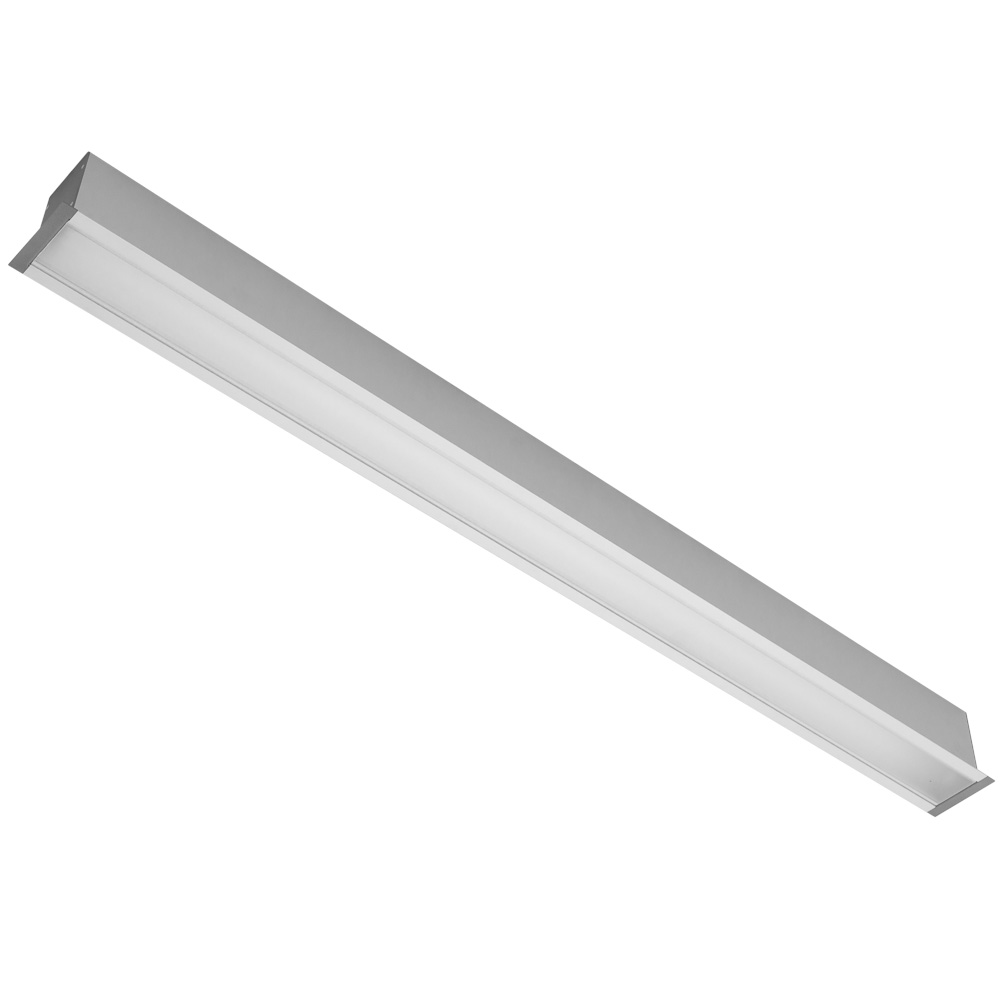

MODUS HVL

Recessed linear opal cover fitting

MODUS HVL
třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request

Body:

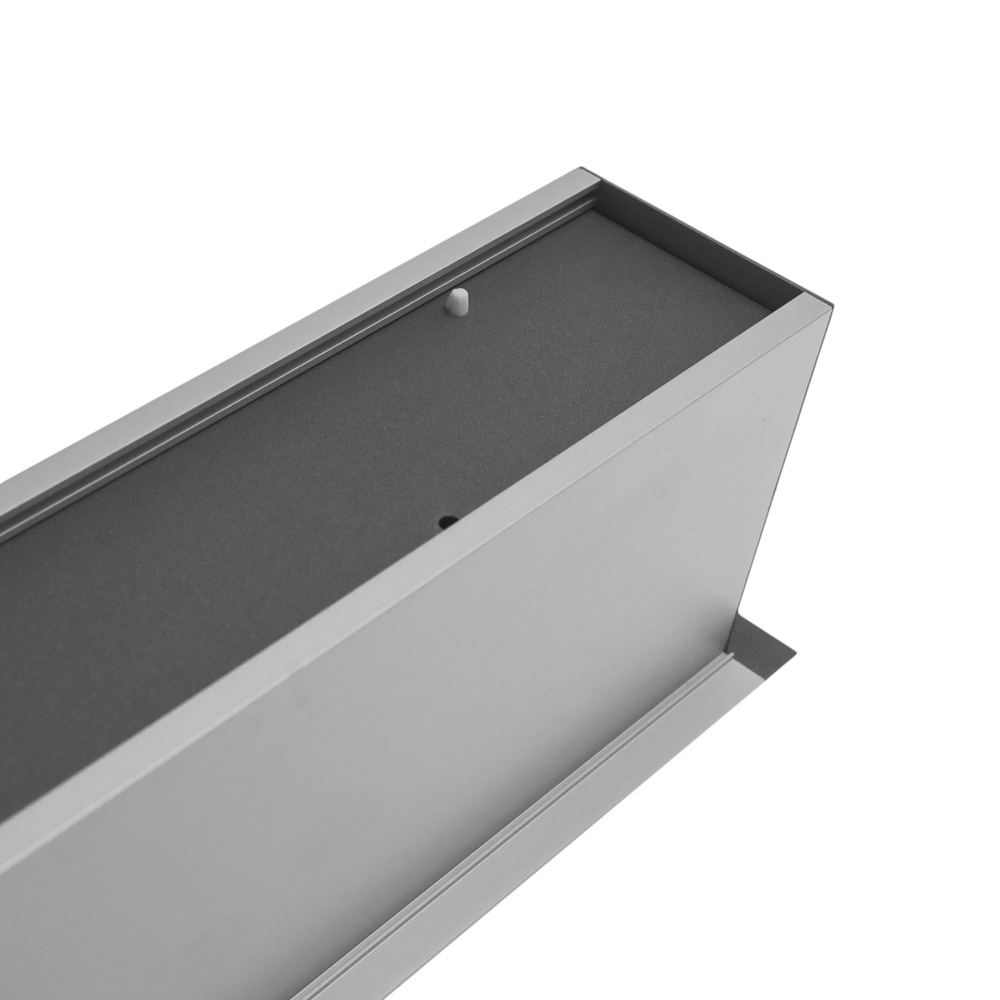

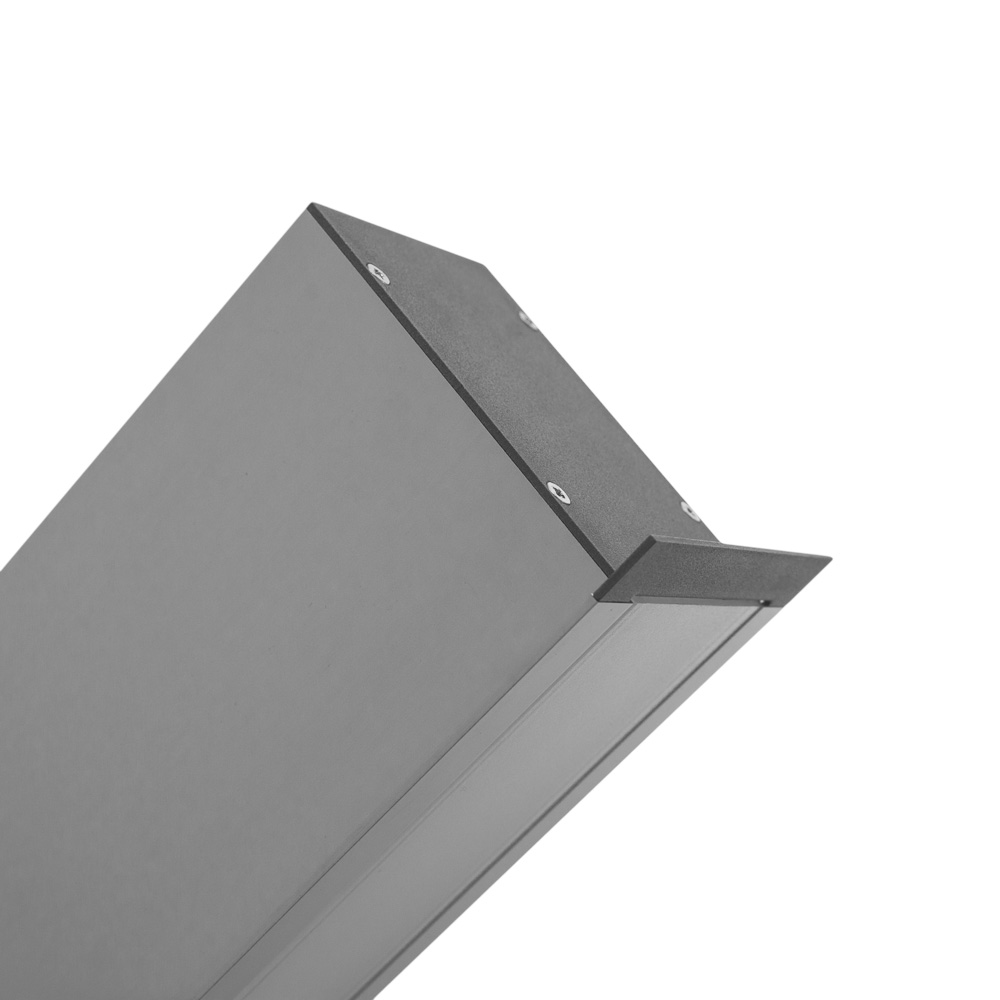

Eloxal aluminium profile, metal plate endcaps finished in RAL9007



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K

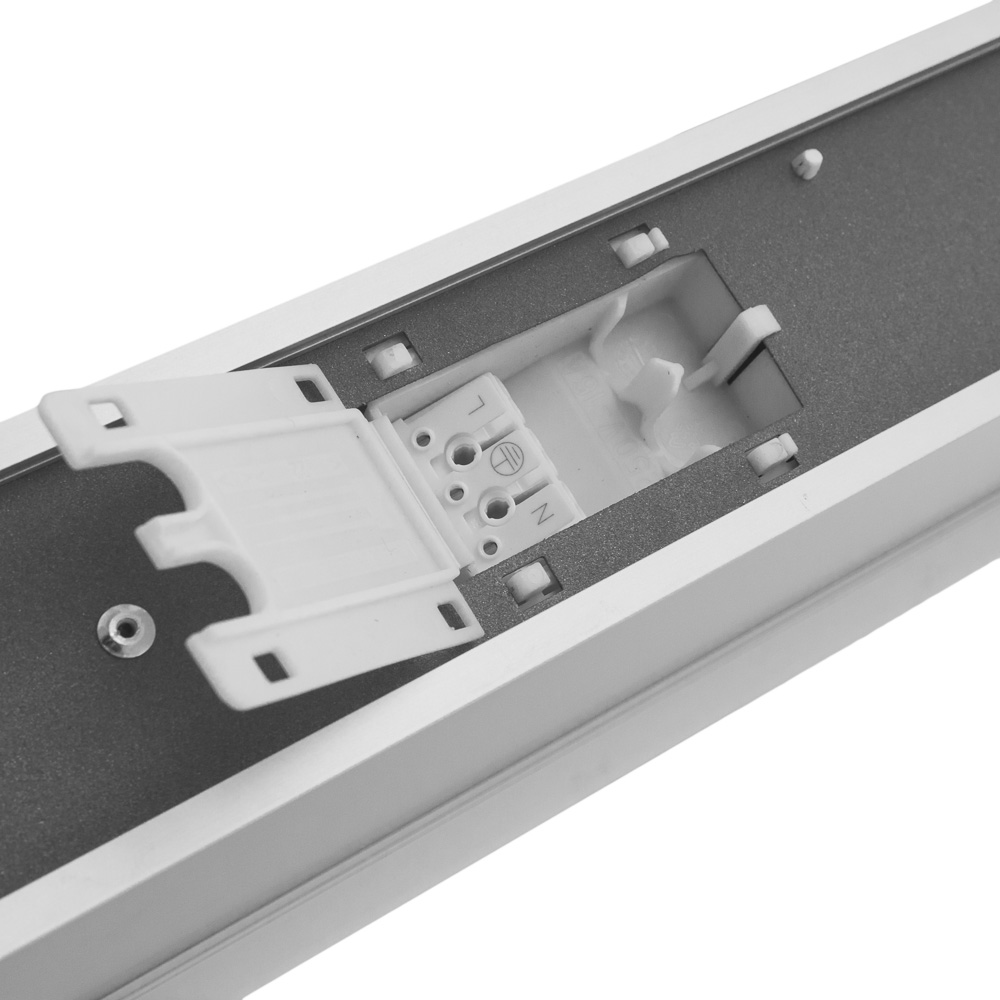

Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V DC



Variants:

HVL - recessed luminaire for single installation into gypsum plasterboard ceiling

HVL /R - recessed installation for linear installation into rows. A rows is completed from START, CONT and END fitting.



Find out more about human centric lighting and tunable white in our MODUS TUNABLE LIGHT catalogue.

Body material:Eloxal aluminium profileMounting method:Built-in
Protection class:IType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89, 90-100Lamp type:LED
Color temperature controllable (K):YesSuitable for light line configuration:Yes
Nominal voltage (V):220...240Degree of protection (IP):IP20
Color temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500Rated life time L80/B50 (h):80000
Dimming 1-10 V:YesDimming DALI:Yes
Optical system:KO
opal cover
Made in Czech republic:Yes
Replaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1450
5600

System power (W)

16
68
Product name
HVL1LKO3V1/1050DALI
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
HVL1LKO3V1/1400DALI
Effective luminous flux (lm): 5600
System power (W): 68
Color temperature (K): 3000
HVL1LKO4V1/1050DALI
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
HVL1LKO4V1/1400ND
Effective luminous flux (lm): 5600
System power (W): 68
Color temperature (K): 4000
HVL1LKO4V1/B1050DALI
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
HVL1LKO4V1/BR1050DALICONT
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1LKO4V1/BR1050DALIEND
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1LKO4V1/BR1050DALISTART
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1LKO4V1/R1050NDSTART
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO3V1/1050DALI
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
HVL1MKO3V1/1050DIM
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
HVL1MKO3V1/1050ND
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
HVL1MKO3V1/700DALI
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
HVL1MKO3V1/700ND
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
HVL1MKO3V1/B1050ND
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
HVL1MKO3V1/B700DALI
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
HVL1MKO3V1/B700ND
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
HVL1MKO3V1/BR1050NDEND
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Suitable for light line configuration: Yes
HVL1MKO3V1/BR1050NDSTART
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Suitable for light line configuration: Yes
HVL1MKO3V1/BR700NDCONT
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
Suitable for light line configuration: Yes
HVL1MKO3V1/BR700NDEND
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
Suitable for light line configuration: Yes
HVL1MKO3V1/BR700NDSTART
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
Suitable for light line configuration: Yes
HVL1MKO3V1/R1050DALICONT
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Suitable for light line configuration: Yes
HVL1MKO3V1/R1050DALIEND
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Suitable for light line configuration: Yes
HVL1MKO3V1/R1050DALISTART
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Suitable for light line configuration: Yes
HVL1MKO3V1/R1050NDCONT
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Suitable for light line configuration: Yes
HVL1MKO3V1/R1050NDEND
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Suitable for light line configuration: Yes
HVL1MKO3V1/R1050NDSTART
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Suitable for light line configuration: Yes
HVL1MKO3V1/R700DALICONT
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
Suitable for light line configuration: Yes
HVL1MKO3V1/R700DALIEND
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
Suitable for light line configuration: Yes
HVL1MKO3V1/R700DALISTART
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
Suitable for light line configuration: Yes
HVL1MKO3V1/R700NDCONT
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
Suitable for light line configuration: Yes
HVL1MKO3V1/R700NDEND
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
Suitable for light line configuration: Yes
HVL1MKO3V1/R700NDSTART
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
Suitable for light line configuration: Yes
HVL1MKO4V1/1050DALI
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
HVL1MKO4V1/1050DIM
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
HVL1MKO4V1/1050ND
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
HVL1MKO4V1/700DALI
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
HVL1MKO4V1/700ND
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
HVL1MKO4V1/B1050DALI
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
HVL1MKO4V1/B1050DIM
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
HVL1MKO4V1/B1050ND
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
HVL1MKO4V1/B700DALI
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
HVL1MKO4V1/B700DIM
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
HVL1MKO4V1/B700ND
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
HVL1MKO4V1/BR1050DALICONT
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/BR1050DALIEND
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/BR1050DALISTART
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/BR1050NDCONT
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/BR1050NDEND
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/BR1050NDSTART
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/BR700DALIEND
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/BR700DALISTART
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/BR700NDCONT
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/BR700NDEND
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/BR700NDSTART
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/C700ND
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
HVL1MKO4V1/R1050DALICONT
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/R1050DALIEND
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/R1050DALISTART
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/R1050DIMCONT
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/R1050DIMEND
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/R1050DIMSTART
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/R1050NDCONT
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/R1050NDEND
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/R1050NDSTART
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/R700DALIEND
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/R700DALISTART
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/R700NDCONT
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/R700NDEND
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO4V1/R700NDSTART
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Suitable for light line configuration: Yes
HVL1MKO5V1/700ND
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 5700
HVL1SKO4V1/350ND
Effective luminous flux (lm): 1450
System power (W): 18
Color temperature (K): 4000
HVL1SKO5V1/350ND
Effective luminous flux (lm): 1450
System power (W): 18
Color temperature (K): 5700
HVL2000SKO3/B/DALI/F5W
Effective luminous flux (lm): 1900
System power (W): 16
Color temperature (K): 3000
HVL2000SKO4/ND
Effective luminous flux (lm): 1900
System power (W): 16
Color temperature (K): 4000
HVL3000MKO3/ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
HVL3000MKO4/ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
HVL3000MKO6/ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 6500
HVL4000LKO4/ND
Effective luminous flux (lm): 4500
System power (W): 33
Color temperature (K): 4000
HVL4000MKO3/C/DALIT
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 3000
HVL4000MKO3/DALIT
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 3000
HVL4000MKO4/DALI
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
HVL5000MKO4/ND
Effective luminous flux (lm): 5000
System power (W): 40
Color temperature (K): 4000

Shopping mall Tel-Aviv

MODUS HVL + MODUS SPMI

Detail reference
hospital Kasindo 2.jpg

Hospital in Bosnia and Herzegovina

MODUS HVL, MODUS IBP, MODUS LAB

Detail reference

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
