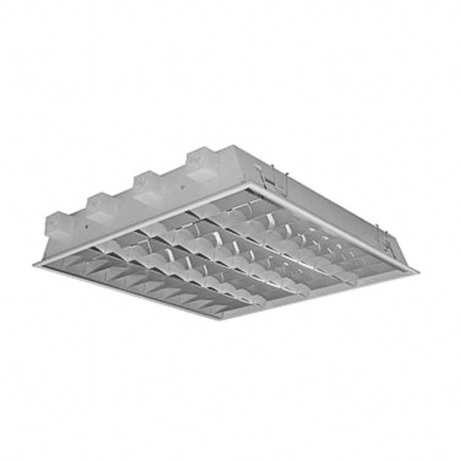

Product series MODUS I T8
MODUS I 4x18 W aluminium HFB, emergency pack
Recessed louvre fitting
Code: I418AL600EPNZ
EAN: 8595073763409
Luminaire properties
| Product category: | Ceiling / wall luminaires | Degree of protection (IP): | IP20 | Color housing: | White | Material housing: | Steel |
| Light source included: | No | Suitable for built-in mounting: | Yes | Made in Czech republic: | Yes |
Light source
| Light source type: | Fluorescent lamp T8 | Suitable for lamp power (W): | 18 | Lamp holder: | G13 | Replaceability: | Replaceable light source by user, replaceable ballast |
Optical system
| Optical system: | AL | Light outlet: | Direct | Type of grid: | High-gloss | Light sharing: | Symmetric |
Dimensions
| Length (mm): | 596 | Width (mm): | 596 | Height/depth (mm): | 94 | Built-in length (mm): | 576 |
| Built-in width (mm): | 576 | Raster (mm): | 600 | Size version: | S | Weight (kg): | 3,2 |
Electrical values
| Protection class: | I | Type of control gear: | Electronic ballast | Nominal voltage (V): | 220...240 | Control gear included: | Yes |
| Suitable for emergency lighting: | Yes |
LoadingProduct name
I418AL600EP
I418AL600EP2
I418AL600EPNZ
I418AL600EPNZ3
I418AL600EPSA
I418AL600EPSDD
I418AL625EP
I418ALDP600EP
I418ALDP600EP2
I418ALDP600EP2NZ
I418ALDP600EPNZ
I418ALDP600EPNZ/ISO5L
I418ALDP600EPNZ3
I418ALDP600EPSA
I418ALDP600EPSANZ
I418ALDP600EPSDD
I418ALDP625EP
I418ALDP625EP/LKIT
I418ALDP625EPSA
I418ALMAT600EP
I418ALMAT625EP
I418ALU600EP
I418ALU600EP2
I418ALU600EPNZ
I418ALU600EPNZ3
I418ALU600EPSDD
I418MATDP600EP
