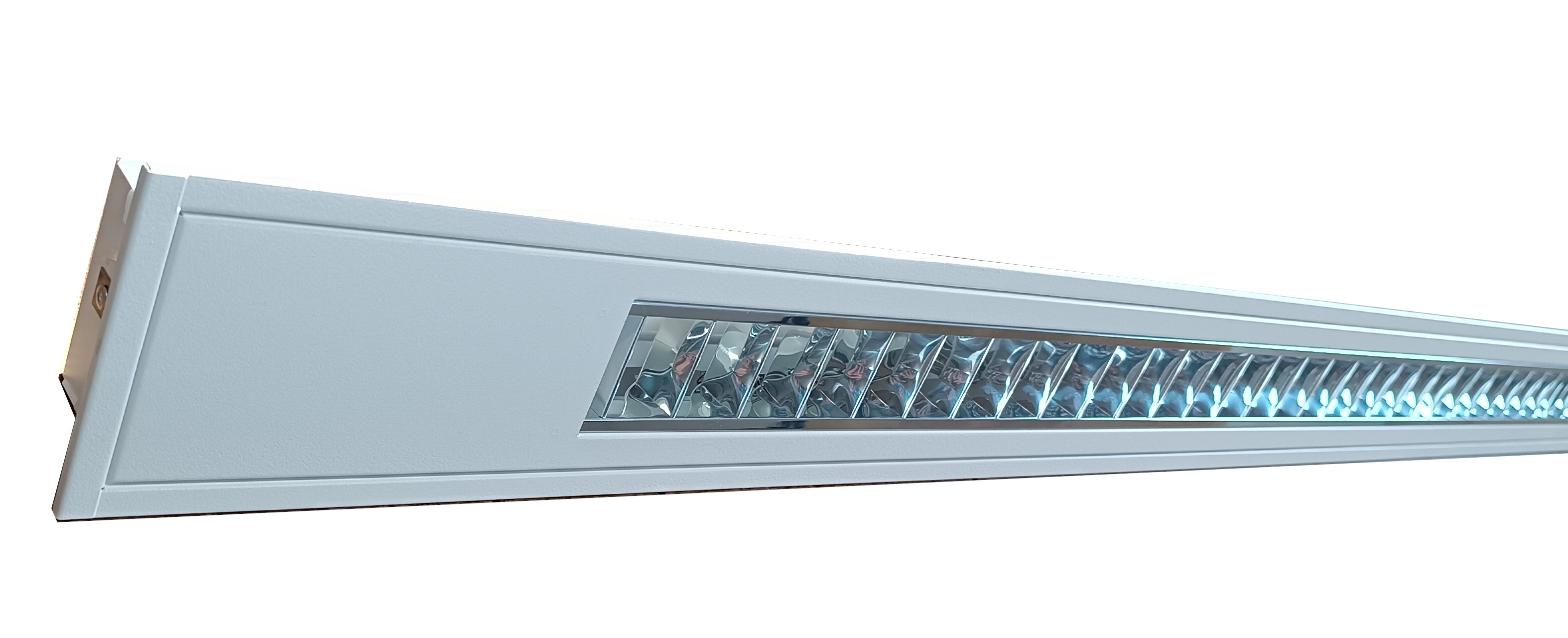

MODUS IS
Recessed louvre fitting

11 L80_80000_h.jpg

Office lighting with glare limitation (UGR 19)



Body:

White painted (RAL 9003) galvanized metal sheet



Optic:

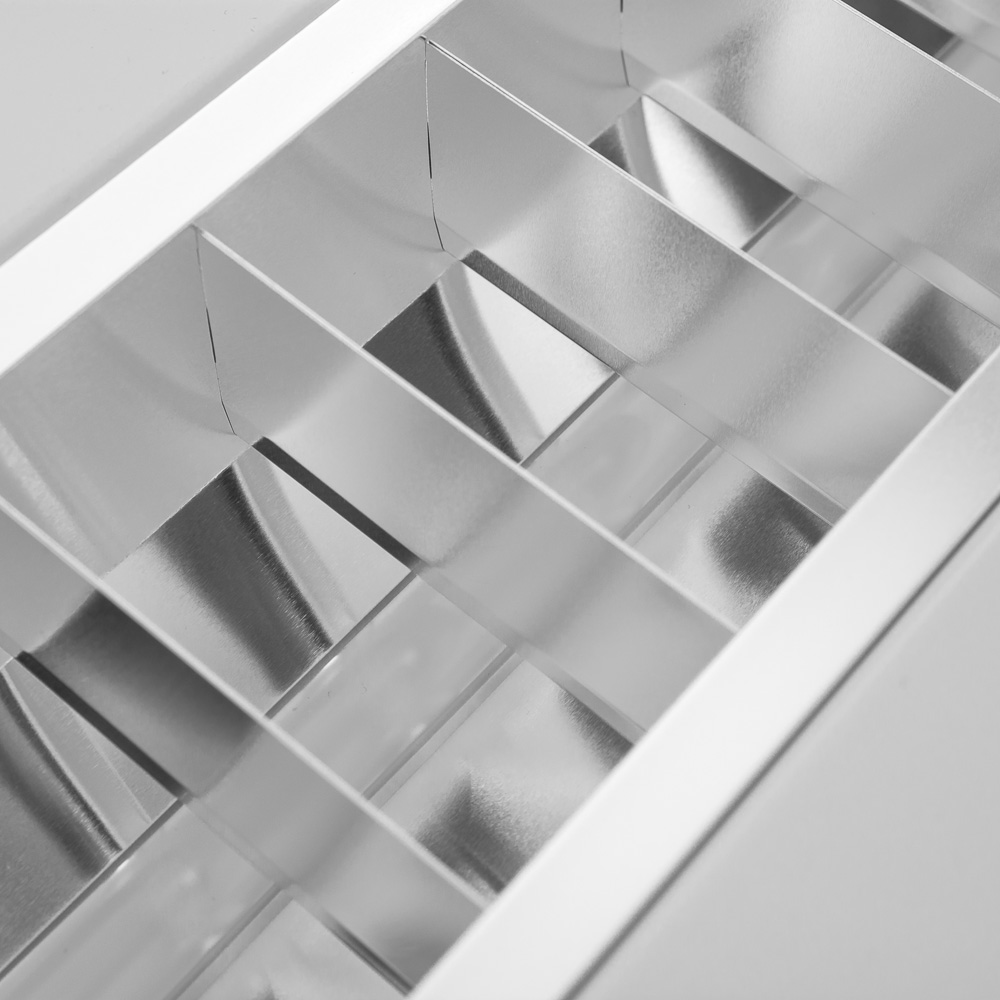

KV - double parabolic louvre category C2 of highly polished aluminium, with opal cover of LED modules

KVM - double parabolic louvre category C2 of mat aluminium, with opal cover of LED modules.



Effectivity is the same for both version (KV and KVM)



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - dimmable 1-10V DC

Luminaire can be supplied with wireless Bluetooth control - more information here.



Fittings are standartly produced with external ISO connector, there is no need to open the luminiare when installed. This terminal box is ready for throughtwirring as well.



Application:

ISR - Recessed - lighting for installation into false ceiling with visible supporting structure (both 600x600 or 625x625 modules). The fixture can not be open - emergency module no available

ISS - Recessed - lighting for installation into gypsum plasterboard-type ceiling or into false ceiling with visible supporting structure (both 600x600 or 625x625 modules). Included fixing clips 1000004004 for installation into gypsum ceiling



These LED fitting are recomended for office, for lighting areas with high requirements for light and glare control



Versions:

600 - for 600 module

625 - for 625 module

K - with GESIS connector

F - with flexible cord

Show more...

Main features

Lamp type:LED
Color temperature (K):3000, 4000, 5700
Color rendering index CRI:80-89, 90-100
Rated life time L80/B50 (h):80000
Degree of protection (IP):IP20
Optical system:KV - opal profile + louvre ALDP
KVM - opal profile + louvre matt DP
Size version:A - 600x600 mm or 625x625 mm
C - 1200x300 mm
Body material:White painted steel
Mounting method:Built-in
Protection class:I
Type of control gear:LED operating device current-controlled
Fit for monitor workplace:Yes
Dimming 1-10 V:Yes
Dimming DALI:Yes

Download

  • MODUS ISRAC4MODUS ISRAC4

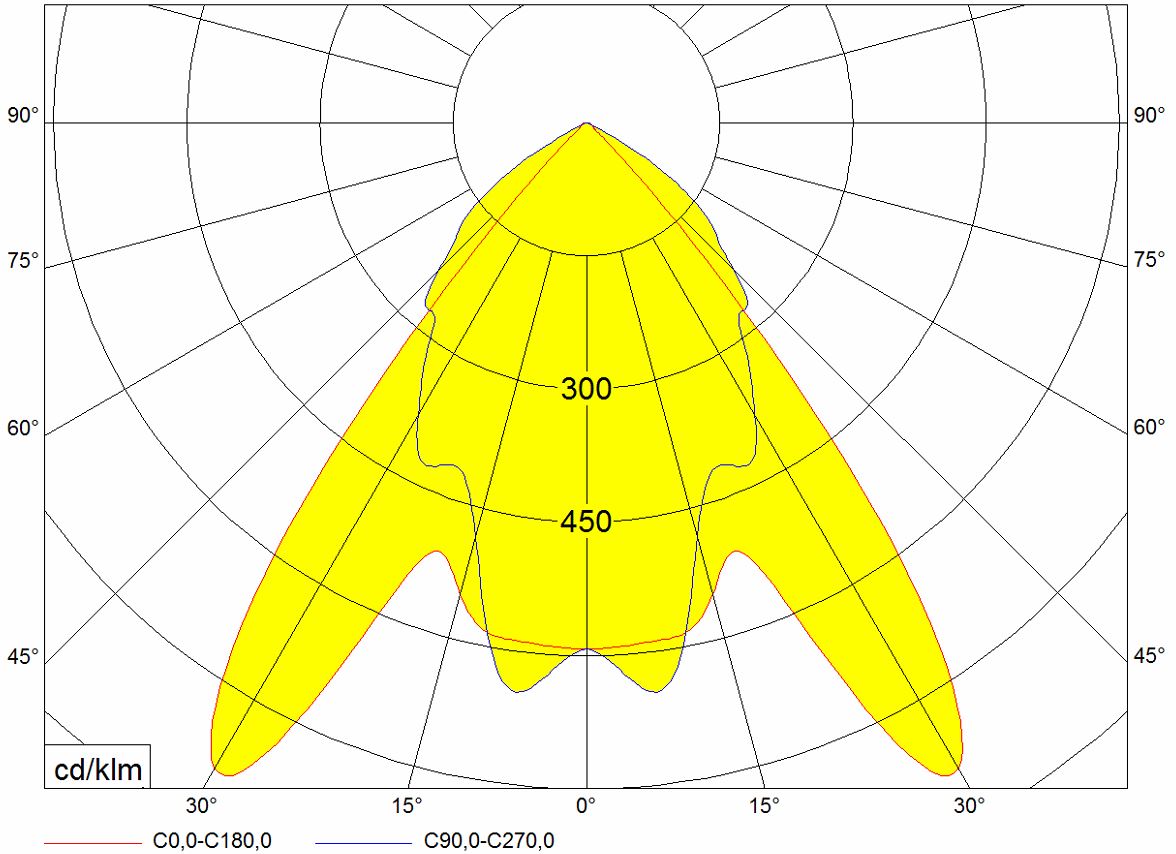

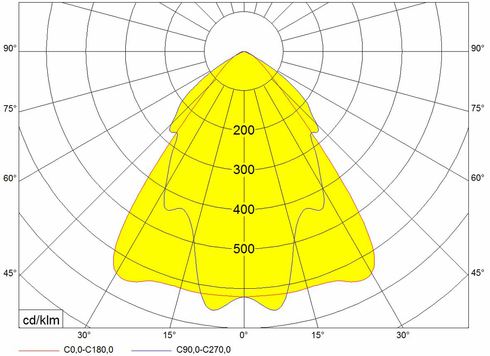

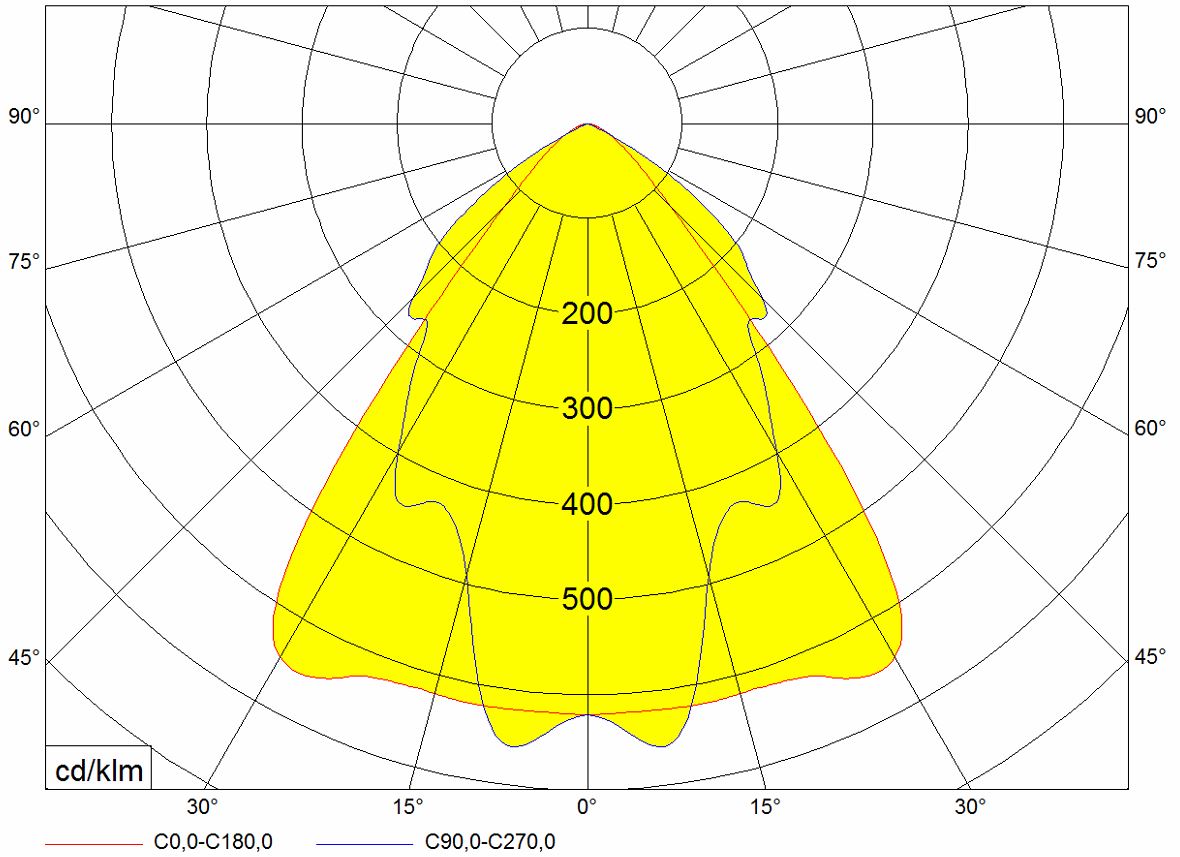

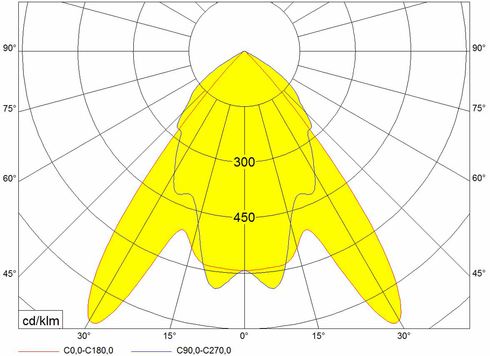

Light distribution


Accessories

Recessed installation of luminairesAccessories for installation into gypsum ceiling
QVESTRAMAluminium frame for recessed installation

Versions

Effective luminous flux (lm): 3600
System power (W): 33
Color temperature (K): 3000
Optical system: KV
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 3600
System power (W): 33
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 3600
System power (W): 33
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 3600
System power (W): 33
Color temperature (K): 3000
Optical system: KVM
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 3600
System power (W): 33
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 3000
Optical system: KV
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KV
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Dimming DALI: Yes
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 5700
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 5700
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KVM
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 39
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KVM
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KVM
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 3300
System power (W): 28
Dimming DALI: Yes
Effective luminous flux (lm): 3300
System power (W): 28
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KVM
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 3300
System power (W): 28
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 4000
Optical system: KVM
Raster (mm): 625
Effective luminous flux (lm): 4300
System power (W): 39
Effective luminous flux (lm): 4300
System power (W): 39
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KVMM
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KVMM
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KVMM
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KV
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 3000
Optical system: KV
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KV
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KV
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KV
Length (mm): 1246
Width (mm): 310
Raster (mm): 625
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KV
Length (mm): 1246
Width (mm): 310
Raster (mm): 625
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 4000
Optical system: KV
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 1246
Width (mm): 310
Raster (mm): 625
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 1246
Width (mm): 310
Raster (mm): 625
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Dimming 1-10 V: Yes
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KVMM
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KVMM
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KVMM
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KVMM
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KVMM
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 3600
System power (W): 33
Effective luminous flux (lm): 3600
System power (W): 33
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KV
Raster (mm): 625
Dimming DALI: Yes
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 3000
Optical system: KV
Raster (mm): 625
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KV
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 3300
System power (W): 28
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 5700
Optical system: KV
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KVM
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
System power (W): 28
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 4000
Optical system: KVM
Raster (mm): 600
Effective luminous flux (lm): 4300
System power (W): 39
Effective luminous flux (lm): 4300
System power (W): 39
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KV
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 39
Color temperature (K): 3000
Optical system: KV
Length (mm): 1246
Width (mm): 310
Raster (mm): 625
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 4000
Optical system: KV
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 3300
System power (W): 28
Effective luminous flux (lm): 3800
System power (W): 39
Color temperature (K): 5700
Optical system: KV
Raster (mm): 625
Effective luminous flux (lm): 3300
System power (W): 28
Effective luminous flux (lm): 4300
System power (W): 39
Effective luminous flux (lm): 3300
System power (W): 28
Effective luminous flux (lm): 4300
System power (W): 39
Effective luminous flux (lm): 4300
System power (W): 39

Produced in Czech Republic

Fittings are proudly produced in our production plant.

Only quality electro-components used


LED fittings

Long-life. Minimal consuption.

No service needed.


Be in touch

Do you have any question about our products?

Use our contacts here.

Whery you can buy?

Distribution network
