Product series

MODUS LLX

Surface louvre fitting

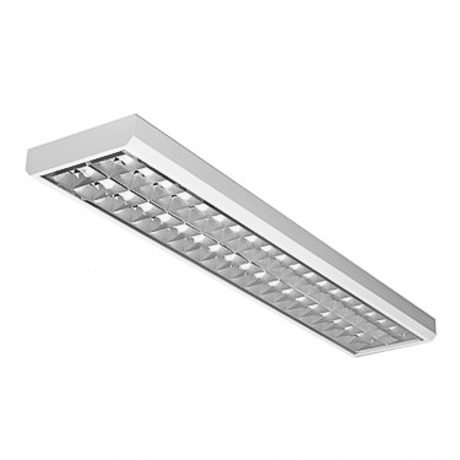

2x36 single louvre (AL)
2 Z1_zar T8.jpg

Price from:

540 Kč
( 653 Kč including VAT )
Body:
White painted (RAL 9003) metal sheet
Optic:
AL         louvre of highly polished aluminium  with mat aluminium cross blades
B           white parabolic louvre
ALDP      double parabolic louvre  of highly polished aluminium
ALMAT    parabolic louvre of mat aluminium
Wiring:
EP         high frequention ballast  HFB
EPSA     HFB analogue dimmabe (1-10 V)
EPSD     HFB digital dimmable TRIDONIC ECO
EPSDD   HFB digital dimmable DALI
Application:
These  light fittings can be used as surface mounted or suspended.
Accessories:
Tube suspension 54107, 54108, 54109, 54110, 54111, 54112 Cord suspension 54103 Protection grid OM
Versions:
NZ – emergency pack
OK - 2 circuits wiring
RAL9006  color RAL 9006
Note:
Recomended  style of installation is as surface mounted. When light fittings are suspended, they should be hung by 4 cords or tubes.
Fittings equipped by magnatic balast are recommended for industrial using only.
Product category:Ceiling / wall luminaires, Pendant luminaireLamp type:Fluorescent lamp T8
Degree of protection (IP):IP20Optical system:AL
highly polished aluminium louvre with mat aluminium cross blades
ALDP2
double parabolic highly polished aluminium louvre (only for LLX and LLY fittings)
ALMAT
mat aluminium parabolic louvre
B
white parabolic louvre
Light outlet:DirectBody material:White painted steel
Mounting method:Surface mounting, PendantType of control gear:Electronic ballast
Light sharing:SymmetricDimming 1-10 V:Yes
Dimming DALI:Yes
Show more...
LoadingLoading
Product name
LLX114ALDP
LLX114MATDP
LLX118ALDP2EP
LLX118ALDP2EPNZ
LLX118ALEP
LLX118ALEPNZ
LLX118BEP
LLX124ALDP
LLX128-54ALDP
LLX128-54ALDPEPSDD
LLX128-54ALMAT
LLX128ALDP
LLX128ALDPEPSDD
LLX128ALDPNZ
LLX128MATDP
LLX128MATDPEPSDD
LLX128MATDPNZ
LLX128MATDPNZ3
LLX135-80ALDP
LLX135-80ALDPEPSA
LLX135-80ALDPEPSDD
LLX135-80ALDPNZ
LLX135-80ALMAT
LLX135ALDP
LLX135ALDPEPSA
LLX135ALDPNZ
LLX135MATDP
LLX135MATDPEPSA/C
LLX135MATDPNZ
LLX136ALDP2EP
LLX136ALDP2EPNZ
LLX136ALDP2EPNZ3
LLX136ALDP2EPSA
LLX136ALDP2EPSDD
LLX136ALDPEP
LLX136ALDPEPSA
LLX136ALEP
LLX136ALEPNZ
LLX136ALEPNZ3
LLX136ALEPSA
LLX136ALEPSDD
LLX136ALMATEP
LLX136ALSEP
LLX136ALSMATEP
LLX136BEP
LLX136BEPNZ
LLX149ALDP
LLX149ALDPEPSA
LLX149ALDPEPSDD
LLX149ALDPNZ
LLX149MATDP
LLX149MATDPEPSA
LLX149MATDPNZ
LLX154ALDP
LLX154ALDPEPSDD
LLX154ALDPNZ
LLX154MATDP
LLX154MATDPEPSDD
LLX158ALDP2EP
LLX158ALDP2EPNZ
LLX158ALDP2EPSA
LLX158ALDP2EPSDD
LLX158ALDPEP
LLX158ALDPEPSA
LLX158ALEP
LLX158ALEPNZ
LLX158ALEPNZ3
LLX158ALEPSA
LLX158ALEPSD
LLX158ALMATEP
LLX158ALMATEPSA
LLX158ALSEP
LLX158ALSEPSA
LLX158ALSMATEP
LLX158BEP
LLX158BEPNZ
LLX158BEPSA
LLX158MATDP2EP
LLX158MATDP2EPNZ
LLX158MATDP2EPSA
LLX180ALDP
LLX180ALDPNZ
LLX214ALDP
LLX214ALDPNZ
LLX214MATDP
LLX218ALDP2EP
LLX218ALDP2EP2
LLX218ALDP2EPNZ
LLX218ALDPEP
LLX218ALEP
LLX218ALEPNZ
LLX218ALEPSA
LLX218ALEPSDD
LLX218ALMATEP
LLX218ALMATEPNZ
LLX218BEP
LLX218BEPNZ
LLX224ALDP
LLX224B
LLX224MATDP
LLX228-54ALDP
LLX228-54ALDPEPSDD
LLX228-54ALDPNZ
LLX228AL
LLX228ALDP
LLX228ALDP/L
LLX228ALDPEP2
LLX228ALDPEPSDDT
LLX228ALDPNZ
LLX228ALDPNZAT
LLX228ALMAT
LLX228MATDP
LLX228MATDP/L
LLX228MATDPEPSA
LLX228MATDPEPSDD
LLX228MATDPNZ
LLX228MATDPNZ3
LLX235-80ALDP
LLX235-80ALDPEPSA
LLX235-80ALDPEPSANZ
LLX235-80ALDPEPSDD
LLX235-80ALDPNZ
LLX235-80ALMAT
LLX235ALDP
LLX235ALDPEPSA
LLX235ALDPEPSDD
LLX235ALDPNZ
LLX235ALDPNZ3
LLX235B
LLX235MATDP
LLX235MATDPEPSDDT
LLX235MATDPNZ
LLX236ALDP2EP
LLX236ALDP2EPNZ
LLX236ALDP2EPNZ3
LLX236ALDP2EPSA
LLX236ALDP2EPSANZ
LLX236ALDP2EPSD
LLX236ALDP2EPSDD
LLX236ALDP2EPSDDNZ
LLX236ALDPEP
LLX236ALDPEPNZ
LLX236ALEP
LLX236ALEP/P1
LLX236ALEP2
LLX236ALEP2NZ
LLX236ALEPNZ
LLX236ALEPNZ3
LLX236ALEPSA
LLX236ALEPSANZ
LLX236ALEPSD
LLX236ALEPSDD
LLX236ALEPSDDNZ
LLX236ALEPSDDT
LLX236ALMATEP
LLX236ALMATEP2
LLX236ALMATEPNZ
LLX236ALMATEPSA
LLX236ALSMATEP/S6
LLX236BEP
LLX236BEP2
LLX236BEPNZ
LLX236BEPNZAT
LLX236BEPSD
LLX236MATDP2EP
LLX249ALDP
LLX249ALDPEPSA
LLX249ALDPNZ
LLX249ALDPNZ3
LLX249B
LLX249MATDP
LLX249MATDPEPSA
LLX249MATDPEPSDD
LLX249MATDPNZ
LLX254AL
LLX254ALDP
LLX254ALDPEP2
LLX254ALDPEPSA
LLX254ALDPEPSDD
LLX254ALDPEPSDDNZ
LLX254ALDPNZ
LLX254ALDPNZ3
LLX254MATDP
LLX258ALDP2EP
LLX258ALDP2EP2
LLX258ALDP2EP2NZ
LLX258ALDP2EPNZ
LLX258ALDP2EPNZ3
LLX258ALDP2EPSA
LLX258ALDP2EPSD
LLX258ALDP2EPSDD
LLX258ALDPEP
LLX258ALDPEPSA
LLX258ALEP
LLX258ALEP2
LLX258ALEPNZ
LLX258ALEPNZ/S59
LLX258ALEPSA
LLX258ALEPSANZ
LLX258ALEPSDD
LLX258ALEPSDDT
LLX258ALMATEP
LLX258ALMATEPNZAT
LLX258ALMATEPSA
LLX258ALSEP
LLX258ALSMATEP
LLX258BEP
LLX258BEPNZ
LLX258BEPNZAT
LLX258BEPSDD
LLX258BEPSDDT
LLX258MATDP2EP
LLX258MATDP2EPNZ
LLX258MATDP2EPSA
LLX280ALDP
LLX280ALDPEPSDNZ
LLX280ALDPEPSDNZ3
LLX280ALDPNZ
LLX280ALDPNZ3
LLX280MATDP
LLX280MATDPEPSDNZ
LLX280MATDPNZ
LLX336ALDP2EP
LLX336ALDP2EPNZ
LLX336ALDP2EPSD
LLX336ALEP
LLX336ALEP/P1
LLX336ALEP/S59
LLX336ALEPNZ
LLX336ALEPNZ3
LLX336ALEPSA
LLX336ALMATEP
LLX336BEP
LLX354ALDP
LLX358ALEP
LLX358ALEPNZ
LLX358ALEPNZ3
LLX414-24ALDPNZ
LLX414AL
LLX414ALDP
LLX414ALDPNZ
LLX414ALNZ
LLX414B
LLX414MATDP
LLX414MATDPEPSA
LLX414MATDPEPSDD
LLX418ALDP2EP
LLX418ALDP2EP2
LLX418ALDP2EPNZ
LLX418ALDP2EPSA
LLX418ALDP2EPSD
LLX418ALDP2EPSDD
LLX418ALDP2EPSDDNZ
LLX418ALDPEP
LLX418ALDPEPNZ
LLX418ALDPEPSA
LLX418ALEP
LLX418ALEP2
LLX418ALEPNZ
LLX418ALEPNZ/S59
LLX418ALEPNZ3
LLX418ALEPSA
LLX418ALEPSANZ
LLX418ALEPSD
LLX418ALEPSDD
LLX418ALMATEP
LLX418ALMATEPNZ
LLX418BEP
LLX418BEPNZ
LLX424AL
LLX424ALDP
LLX424ALDPEPSDD
LLX424ALDPNZ
LLX424MATDP
LLX424MATDPEPSDD
LLX435-80ALDP
LLX436ALDP2EP
LLX436ALDP2EPNZ
LLX436ALDP2EPSA
LLX436ALDP2EPSD
LLX436ALDPEP
LLX436ALEP
LLX436ALEP/P1
LLX436ALEPNZ
LLX436ALEPSA
LLX436ALEPSD
LLX436ALEPSDD
LLX436ALMATEP
LLX436BEP
LLX436BEP2
LLX436BEPSA
LLX458ALDPEP
LLX458ALDPEPNZ
LLX458ALDPEPSA
LLX458ALEP
LLX458ALEPNZ
LLX458ALEPNZ3
LLX458ALEPSA
LLX458BEP
LLXS114ALDP
LLXS128ALDP
LLXS135-80ALDP
LLXS135ALDP
LLXS218ALDP2EP
LLXS228ALDP
LLXS235-80ALDP
LLXS235MATDP
LLXS235MATDPNZ
LLXS418ALDP2EP
LLXS458ALDPEP
