Product series New

MODUS PAR

Tubular aluminum luminaire

PAR
1 M10_nasten_celkove_osv.jpg
třída ochrany I.PNG
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request

The body of the lamp is made of an aluminum profile. The standard painting is black, but it can be produced in silver or white, or other colors as required (RAL sample).

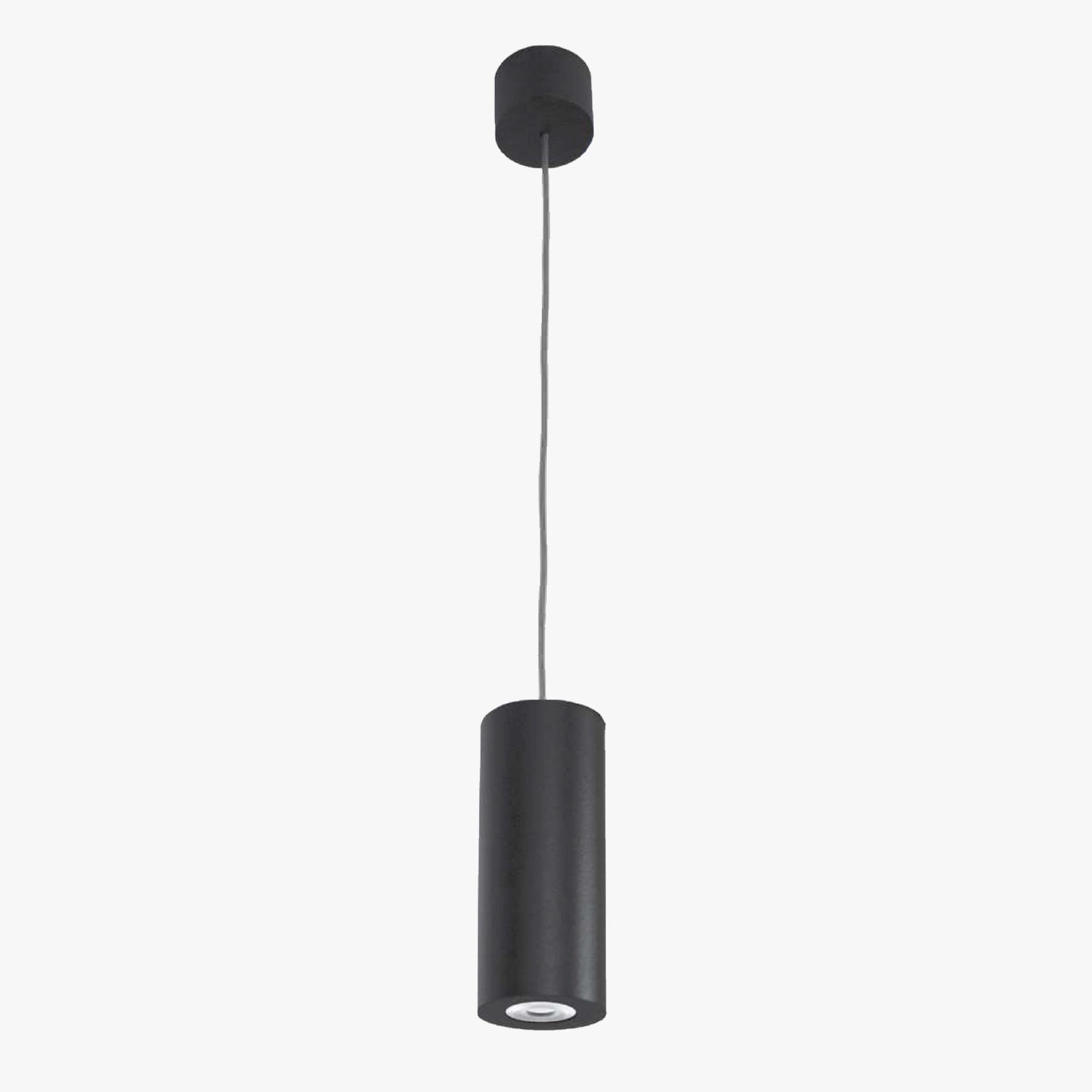

PAR - pendant fitting - the current supply is a transparent electrical supply with a Kevlar core (also used for hanging)

PARD - recessed fitting (standard protection IP44, if required, a version with IP54 can be produced)

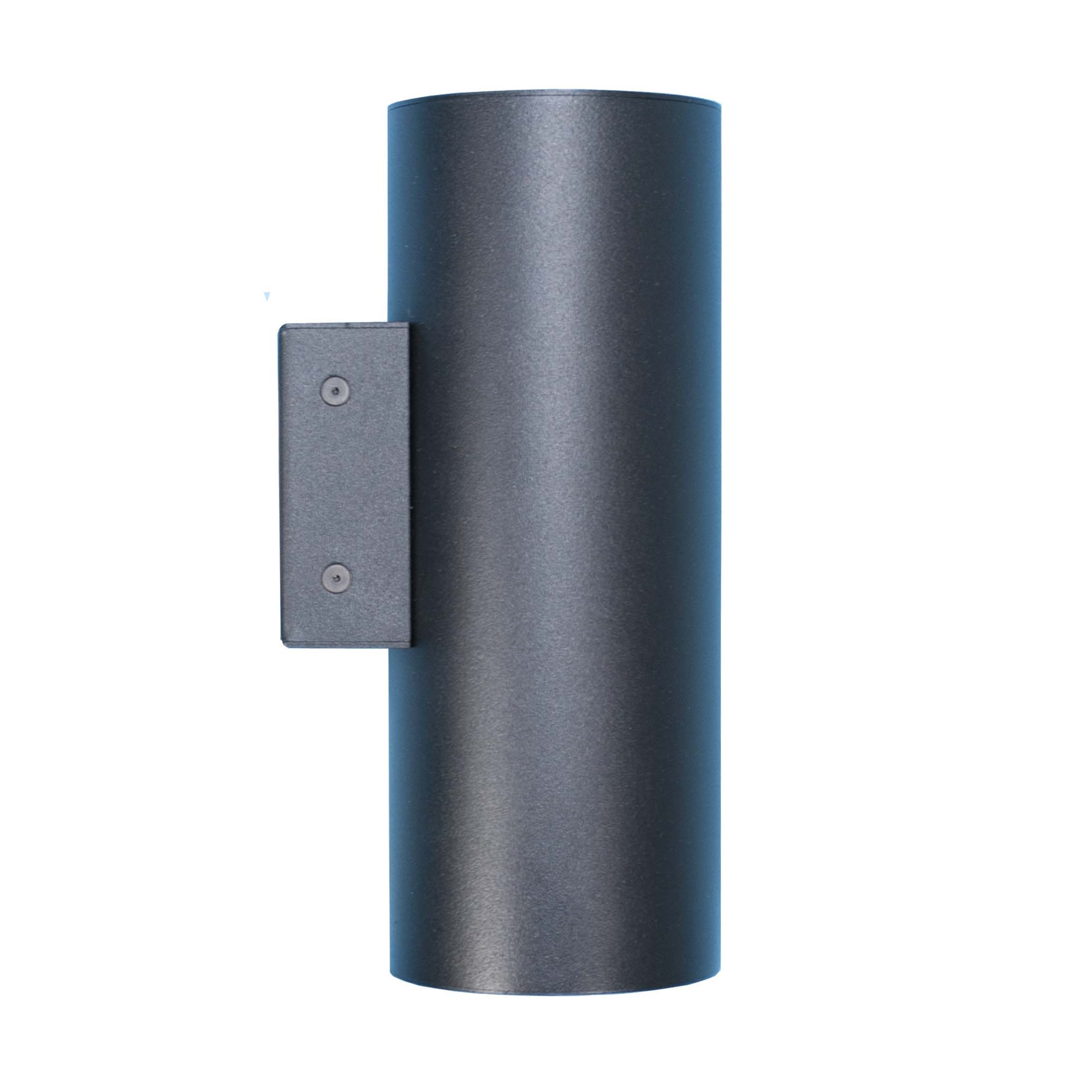

PARS - wall fitting (only direct lighting or direct/indirect)

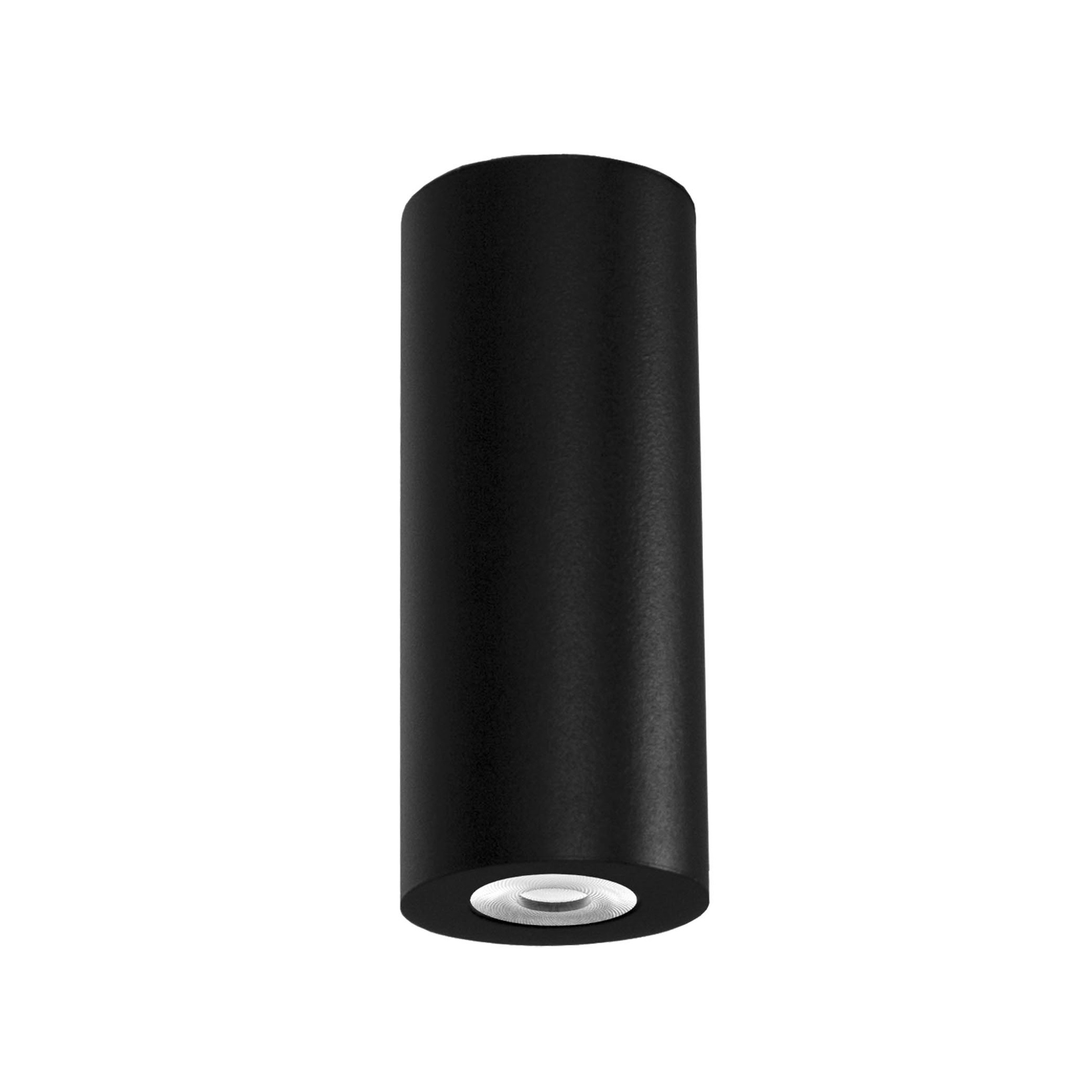

PARP - ceiling surfaced fitting

The optical part of the lamp can be chosen from two types - a deep beam or a wide beam.

Mounting method:Built-in, Pendant, Wall surface mounted, Surface mountingProtection class:I
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89
Light source type:LEDLight outlet:Direct, Direct/indirect
Light sharing:SymmetricNominal voltage (V):220...240
Degree of protection (IP):IP20, IP40, IP54Color temperature (K):4000, 3000, 2700, 5700
Rated lifetime L80/B50 (h):80000Dimming DALI:Yes
Made in Czech republic:YesPhotobiological safety EN 62 471:RG 0
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

750
3000

System power (W)

7
28
Product name
PARD1000N3C/ND
Effective luminous flux (lm): 1050
PARD1000N3C/ND/54
Effective luminous flux (lm): 1050
PARD1000W3B/ND
Effective luminous flux (lm): 1050
PARD1000W3C/DALI
Effective luminous flux (lm): 1050
PARD1000W3C/ND
Effective luminous flux (lm): 1050
PARD1000W4B/ND/54
Effective luminous flux (lm): 1050
PARD1000W4C/ND
Effective luminous flux (lm): 1050
PARD1500N3C/ND
Effective luminous flux (lm): 1500
System power (W): 14
PARD1500N4B/ND
Effective luminous flux (lm): 1500
System power (W): 14
PARD1500W3C/DALI
Effective luminous flux (lm): 1500
System power (W): 14
PARD1500W4B/ND
Effective luminous flux (lm): 1500
System power (W): 14
PARD1500W4B/ND/54
Effective luminous flux (lm): 1500
System power (W): 14
PARD1500W4C/DALI
Effective luminous flux (lm): 1500
System power (W): 14
PARD1500W4C/ND
Effective luminous flux (lm): 1500
System power (W): 14
PARD700N3C/DALI
Effective luminous flux (lm): 750
System power (W): 7
PARD700N3C/ND
Effective luminous flux (lm): 750
System power (W): 7
PARD700N4C/DALI
Effective luminous flux (lm): 750
System power (W): 7
PARD700W3B/ND
Effective luminous flux (lm): 750
System power (W): 7
PARD700W4B/ND/54
Effective luminous flux (lm): 750
System power (W): 7
PARD700W4C/ND
Effective luminous flux (lm): 750
System power (W): 7
PARP1000W4B/ND
Effective luminous flux (lm): 1050
PARP1500N3C/ND
Effective luminous flux (lm): 1500
System power (W): 14
PARP1500W4B/ND
Effective luminous flux (lm): 1500
System power (W): 14
PARP1500W4C/ND
Effective luminous flux (lm): 1500
System power (W): 14
PARP700W4/7016/ND
Effective luminous flux (lm): 750
System power (W): 7
PARP700W4B/ND
Effective luminous flux (lm): 750
System power (W): 7
PARP700W4C/ND
Effective luminous flux (lm): 750
System power (W): 7
PARS1000W4/7016/ND
Effective luminous flux (lm): 1050
PARS1500N3C/DI/ND
Effective luminous flux (lm): 1500
System power (W): 14
PARS1500W3C/DI/ND
Effective luminous flux (lm): 1500
System power (W): 14
PARS1500W4B/DI/ND
Effective luminous flux (lm): 1500
System power (W): 14
PARS1500W4B/ND
Effective luminous flux (lm): 1500
System power (W): 14
PARS1500W4C/ND
Effective luminous flux (lm): 1500
System power (W): 14
PARS3000W3C/DI/ND
Effective luminous flux (lm): 3000
System power (W): 28
PARS700N3B/DI/ND
Effective luminous flux (lm): 750
System power (W): 7
PARS700N3C/DI/ND
Effective luminous flux (lm): 750
System power (W): 7
PARS700N3C/ND
Effective luminous flux (lm): 750
System power (W): 7
PARS700W4/7016/ND
Effective luminous flux (lm): 750
System power (W): 7
PARS700W4C/ND
Effective luminous flux (lm): 750
System power (W): 7
PARZ1000N3C/ND
Effective luminous flux (lm): 1100
PARZ1000N4B/ND
Effective luminous flux (lm): 1100
PARZ1000N4C/ND/2,5
Effective luminous flux (lm): 1100
PARZ1000W3B/ND
Effective luminous flux (lm): 1080
PARZ1000W4C/ND
Effective luminous flux (lm): 1080
PARZ1500N3C/DALI
Effective luminous flux (lm): 1500
System power (W): 14
PARZ1500N4B/ND
Effective luminous flux (lm): 1500
System power (W): 14
PARZ1500W3B/ND
Effective luminous flux (lm): 1500
System power (W): 14
PARZ1500W3C/ND
Effective luminous flux (lm): 1500
System power (W): 14
PARZ1500W4/7016/ND
Effective luminous flux (lm): 1500
System power (W): 14
PARZ1500W4B/ND
Effective luminous flux (lm): 1500
System power (W): 14
PARZ700N3C/DALI
Effective luminous flux (lm): 750
System power (W): 7
PARZ700W3C/ND
Effective luminous flux (lm): 750
System power (W): 7
PARZ700W4C/DALI
Effective luminous flux (lm): 750
System power (W): 7
PARZ700W4C/ND
Effective luminous flux (lm): 750
System power (W): 7
