MODUS QN
LED panel with nanoprisma cover

11 L80_80000_h.jpg

Body:

Eloxal aluminium frame (available also in white)



Optic:

Translucent acrylic desk with microprizmatic layer - UGR <19



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

2...warm white 2900K

3…cold white 3800K

5…daylight 5300K



Wiring:

LED current driver

ND – not dimmable (standard)

DALI – dimmable DALI

DIM - dimmable 1-10V DC

Luminaire can be supplied with wireless Bluetooth control - more information here.



Version (body shape):

QN..A - square 600x600 mm

QN..B - rectangle 600x300 mm

QN..C - rectangle 1200x300 mm



Installation way:

QN - insulation class II, for recessed installation into a raster ceiling 600x600 or 625x625. Using accessories the panels can be also installed as pendant, surfaced or recessed into gypsum plasterboard ceiling

QPN - insulation class I, for surface installation or recessed installation into a raster ceiling 600x600 or 625x625. Using accessories the panels can be also installed as pendant or recessed into gypsum plasterboard ceiling.



Accessories:

UQRAM - a frame for surface installation of QN panels

QVESTRAM - a frame for recessed installation of Q or QP panels into gypsum plasterboard ceiling

51009913 - one magnetic holder for surface installation of Q panels (4pcs / panel with size 60x60cm)

ZHUQ22 - suspension set for QN panels shape A or B

ZHX11 - suspension set for QPN panels and QN panels shape C

Show more...

Main features

Lamp type:LED
Color temperature (K):2900, 3800, 5300
Color rendering index CRI:80-89, 90-100
Rated life time L80/B50 (h):80000
Degree of protection (IP):IP20, IP40
Optical system:KN - nanoprizmatic cover
Size version:A - 600x600 mm or 625x625 mm
B - 600x300 mm
C - 1200x300 mm
Body material:White painted aluminium frame, Eloxal aluminium frame
Mounting method:Surface mounting, Built-in, Pendant
Protection class:II
Type of control gear:LED operating device current-controlled
Fit for monitor workplace:Yes
Dimming 1-10 V:Yes
Dimming DALI:Yes
Dimming phase cut-on:Yes

Download

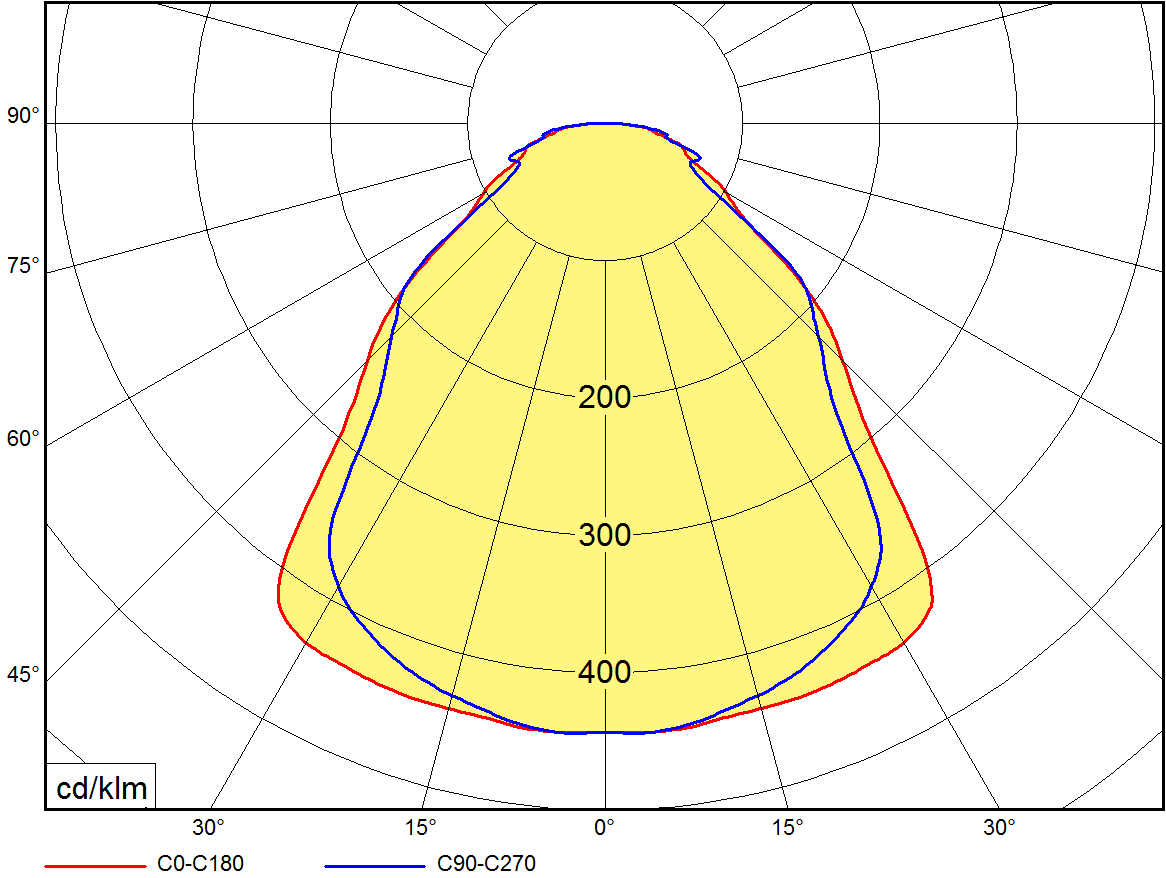

Light distribution


Accessories

MagnetyFor tight installation of LED panels to gypsum ceiling
Pendant mounting of luminairesWire suspensions sets
UQRAMAluminium frame for surface installation of LED panels
QVESTRAMAluminium frame for recessed installation

Versions

Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4800
System power (W): 52
Color temperature (K): 2900
Color rendering index CRI: 90-100
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4100
System power (W): 34
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4800
System power (W): 52
Color temperature (K): 2900
Color rendering index CRI: 90-100
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4100
System power (W): 34
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 3300
System power (W): 35
Color temperature (K): 2900
Color rendering index CRI: 90-100
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4100
System power (W): 34
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 3400
System power (W): 34
Color temperature (K): 2900
Color rendering index CRI: 90-100
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4500
System power (W): 42
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 3300
System power (W): 35
Color temperature (K): 2900
Color rendering index CRI: 90-100
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4100
System power (W): 34
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4100
System power (W): 34
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4100
System power (W): 34
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Dimming DALI: Yes
Effective luminous flux (lm): 4800
System power (W): 52
Color temperature (K): 2900
Color rendering index CRI: 90-100
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 4100
System power (W): 34
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 3400
System power (W): 34
Color temperature (K): 2900
Color rendering index CRI: 90-100
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 4100
System power (W): 34
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Dimming DALI: Yes
Effective luminous flux (lm): 4100
System power (W): 34
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 1750
System power (W): 17
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 296
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 1750
System power (W): 17
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 2500
System power (W): 26
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 296
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 2500
System power (W): 26
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 5600
System power (W): 54
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 5600
System power (W): 54
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 5600
System power (W): 54
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 8500
System power (W): 70
Color temperature (K): 2900
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4700
System power (W): 52
Color temperature (K): 3800
Color rendering index CRI: 90-100
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4800
System power (W): 52
Color temperature (K): 3800
Color rendering index CRI: 90-100
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 2500
System power (W): 26
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 3400
System power (W): 34
Color temperature (K): 3800
Color rendering index CRI: 90-100
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4100
System power (W): 34
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 3400
System power (W): 34
Color temperature (K): 3800
Color rendering index CRI: 90-100
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4700
System power (W): 52
Color temperature (K): 3800
Color rendering index CRI: 90-100
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4100
System power (W): 34
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 3400
System power (W): 34
Color temperature (K): 3800
Color rendering index CRI: 90-100
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4100
System power (W): 34
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 3400
System power (W): 34
Color temperature (K): 3800
Color rendering index CRI: 90-100
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4500
System power (W): 42
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4100
System power (W): 34
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Dimming DALI: Yes
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 4700
System power (W): 52
Color temperature (K): 3800
Color rendering index CRI: 90-100
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 2500
System power (W): 26
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 4100
System power (W): 34
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Dimming DALI: Yes
Effective luminous flux (lm): 4100
System power (W): 34
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Dimming DALI: Yes
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 4100
System power (W): 34
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Dimming DALI: Yes
Effective luminous flux (lm): 4100
System power (W): 34
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 2500
System power (W): 26
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 5600
System power (W): 54
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 5600
System power (W): 54
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 5600
System power (W): 54
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4700
System power (W): 52
Color temperature (K): 3800
Color rendering index CRI: 90-100
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4500
System power (W): 42
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 5600
System power (W): 54
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 6000
System power (W): 48
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 8500
System power (W): 70
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 8500
System power (W): 70
Color temperature (K): 3800
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 5300
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4800
System power (W): 52
Color temperature (K): 5300
Color rendering index CRI: 90-100
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 3400
System power (W): 34
Color temperature (K): 5300
Color rendering index CRI: 90-100
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 5300
Color rendering index CRI: 80-89
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 5300
Color rendering index CRI: 80-89
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 5600
System power (W): 54
Color temperature (K): 5300
Color rendering index CRI: 80-89
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 650
System power (W): 9
Color temperature (K): 5300
Color rendering index CRI: 80-89
Length (mm): 296
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4800
System power (W): 52
Color temperature (K): 6500
Color rendering index CRI: 90-100
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4700
System power (W): 52
Color temperature (K): 6500
Color rendering index CRI: 90-100
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 3400
System power (W): 34
Color temperature (K): 6500
Color rendering index CRI: 90-100
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4800
System power (W): 52
Color temperature (K): 6500
Color rendering index CRI: 90-100
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4100
System power (W): 34
Effective luminous flux (lm): 6800
System power (W): 70
Color temperature (K): 6500
Color rendering index CRI: 90-100
Length (mm): 1196
Width (mm): 596
Raster (mm): 600

Produced in Czech Republic

Fittings are proudly produced in our production plant.

Only quality electro-components used


LED fittings

Long-life. Minimal consuption.

No service needed.


Be in touch

Do you have any question about our products?

Use our contacts here.

Where you can buy?

Distribution network
