Product series New

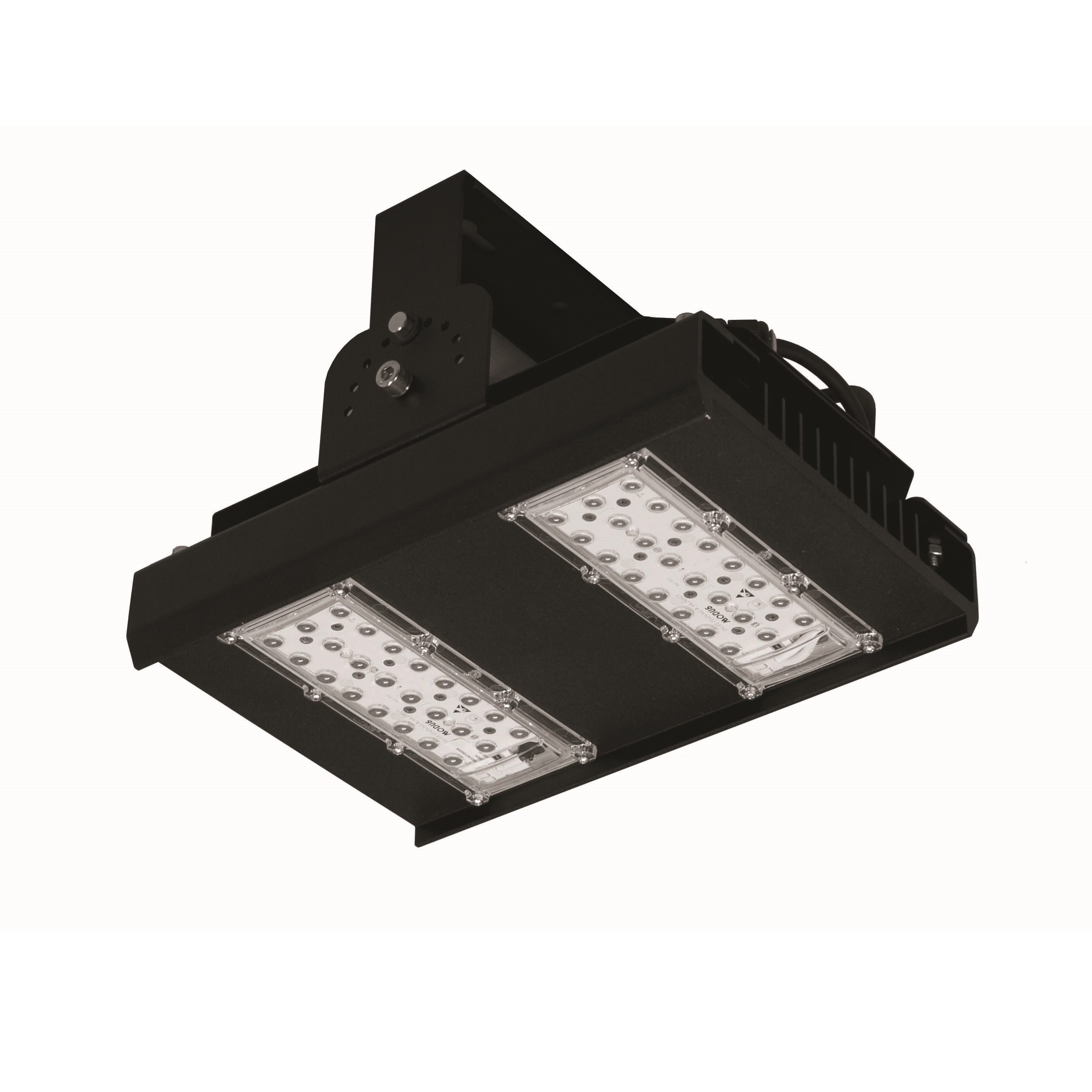

MODUS RH

LED floodlight

MODUS RH
1 M10_nasten_celkove_osv.jpg
třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

Luminaire is made from massive aluminium profile (ideal temperature management) and with clear optic from LEDiL company (ideal lighting characteristic and high effectivity).

Body material:Aluminium die-castMounting method:Pendant, Wall surface mounted, Surface mounting
Protection class:IType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89Light source type:LED
Light outlet:DirectNominal voltage (V):220...240
Degree of protection (IP):IP65Color temperature (K):4000, 6500, 3000, 5000
Rated lifetime L80/B50 (h):80000Dimming DALI:Yes
Made in Czech republic:YesReplaceability:Removeable light source, replaceable ballast
Removeable light source, replaceable ballast
Photobiological safety EN 62 471:RG 0
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

5200
32000

System power (W)

38
224
Product name
RH100AS4/DALI
Effective luminous flux (lm): 10000
System power (W): 75
Color temperature (K): 4000
Length (mm): 95
RH100AS4/ND
Effective luminous flux (lm): 10000
System power (W): 75
Color temperature (K): 4000
Length (mm): 95
RH100N3/DALI
Effective luminous flux (lm): 9800
System power (W): 75
Color temperature (K): 3000
Length (mm): 95
RH100N3/ND
Effective luminous flux (lm): 9800
System power (W): 75
Color temperature (K): 3000
Length (mm): 95
RH100N4/DALI
Effective luminous flux (lm): 9800
System power (W): 75
Color temperature (K): 4000
Length (mm): 95
RH100N4/ND
Effective luminous flux (lm): 9800
System power (W): 75
Color temperature (K): 4000
Length (mm): 95
RH100N5/ND
Effective luminous flux (lm): 9800
System power (W): 75
Color temperature (K): 5000
Length (mm): 95
RH100U4/ND
Effective luminous flux (lm): 9800
System power (W): 75
Color temperature (K): 4000
Length (mm): 95
RH100W3/DALI
Effective luminous flux (lm): 10100
System power (W): 75
Color temperature (K): 3000
Length (mm): 95
RH100W3/ND
Effective luminous flux (lm): 10100
System power (W): 75
Color temperature (K): 3000
Length (mm): 95
RH100W4/DALI
Effective luminous flux (lm): 10100
System power (W): 75
Color temperature (K): 4000
Length (mm): 95
RH100W4/ND
Effective luminous flux (lm): 10100
System power (W): 75
Color temperature (K): 4000
Length (mm): 95
RH100W5/ND
Effective luminous flux (lm): 10100
System power (W): 75
Color temperature (K): 5000
Length (mm): 95
RH150AS4/ND
Effective luminous flux (lm): 15500
System power (W): 109
RH150AS5/ND
Effective luminous flux (lm): 15500
System power (W): 109
Color temperature (K): 5000
Length (mm): 300
RH150N4/ND
Effective luminous flux (lm): 15500
System power (W): 109
Color temperature (K): 4000
Length (mm): 300
RH150N5/ND
Effective luminous flux (lm): 15500
System power (W): 109
Color temperature (K): 5000
Length (mm): 300
RH150W4/ND
Effective luminous flux (lm): 15500
System power (W): 109
Color temperature (K): 4000
Length (mm): 300
RH200AS4/DALI
Effective luminous flux (lm): 21500
System power (W): 145
Color temperature (K): 4000
Length (mm): 300
RH200AS4/ND
Effective luminous flux (lm): 22000
System power (W): 145
Color temperature (K): 4000
Length (mm): 300
RH200N4/DALI
Effective luminous flux (lm): 20800
System power (W): 145
Color temperature (K): 4000
Length (mm): 300
RH200N4/ND
Effective luminous flux (lm): 20800
System power (W): 145
Color temperature (K): 4000
Length (mm): 300
RH200N5/ND
Effective luminous flux (lm): 20800
System power (W): 145
Color temperature (K): 5000
Length (mm): 300
RH200U4/ND
Effective luminous flux (lm): 20800
System power (W): 145
Color temperature (K): 4000
Length (mm): 300
RH200W3/DALI
Effective luminous flux (lm): 21500
System power (W): 145
Color temperature (K): 3000
Length (mm): 300
RH200W3/ND
Effective luminous flux (lm): 21500
System power (W): 145
Color temperature (K): 3000
Length (mm): 300
RH200W3/ND/9003
Effective luminous flux (lm): 21500
System power (W): 145
Color temperature (K): 3000
Length (mm): 300
RH200W4/DALI
Effective luminous flux (lm): 21500
System power (W): 145
Color temperature (K): 4000
Length (mm): 300
RH200W4/ND
Effective luminous flux (lm): 21500
System power (W): 145
Color temperature (K): 4000
Length (mm): 300
RH200W5/ND
Effective luminous flux (lm): 21500
System power (W): 145
Color temperature (K): 5000
Length (mm): 300
RH300AS4/DALI
Effective luminous flux (lm): 32000
System power (W): 224
Color temperature (K): 4000
Length (mm): 480
RH300AS4/ND
Effective luminous flux (lm): 32000
System power (W): 224
Color temperature (K): 4000
Length (mm): 480
RH300N3/ND
Effective luminous flux (lm): 30800
System power (W): 224
Color temperature (K): 3000
Length (mm): 480
RH300N4/ND
Effective luminous flux (lm): 30800
System power (W): 224
Color temperature (K): 4000
Length (mm): 480
RH300W4/DALI
Effective luminous flux (lm): 31800
System power (W): 224
Color temperature (K): 4000
Length (mm): 480
RH300W4/ND
Effective luminous flux (lm): 31800
System power (W): 224
Color temperature (K): 4000
Length (mm): 480
RH300W5/ND
Effective luminous flux (lm): 31800
System power (W): 224
Color temperature (K): 5000
Length (mm): 480
RH400W4/ND
Color temperature (K): 4000
RH50N4/DALI
Effective luminous flux (lm): 5200
System power (W): 38
Color temperature (K): 4000
Length (mm): 95
RH50W3/DALI
Effective luminous flux (lm): 5200
System power (W): 38
Color temperature (K): 3000
Length (mm): 95
RH50W3/ND
Effective luminous flux (lm): 5200
System power (W): 38
Color temperature (K): 3000
Length (mm): 95
RH50W4/DALI
Effective luminous flux (lm): 5200
System power (W): 38
Color temperature (K): 4000
Length (mm): 95
RH50W4/ND
Effective luminous flux (lm): 5200
System power (W): 38
Color temperature (K): 4000
Length (mm): 95
RH50W5/ND
Effective luminous flux (lm): 5200
System power (W): 38
Color temperature (K): 5000
Length (mm): 95
Show all versions

Product page - PDF

KL_EN_RH.pdf >

CE declaration

POS_CZAJ_RH_18-22.pdf >

Assembly instruction

RH_NON_SELV.pdf >

LDT files

MODUS RH-ldt-data.zip >
