Product series

MODUS SBL

Tiny surfaced/pendant cover fitting

MODUS SBL M
MODUS SBL M /RMODUS SBL M /R
MODUS SBL MMODUS SBL M
11 L80_80000_h.jpg

Price from:

950 Kč
( 1 150 Kč including VAT )
Distribution network
Contacts

Body:

Eloxal aluminium profile



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI (only SBL /X)



Installation:

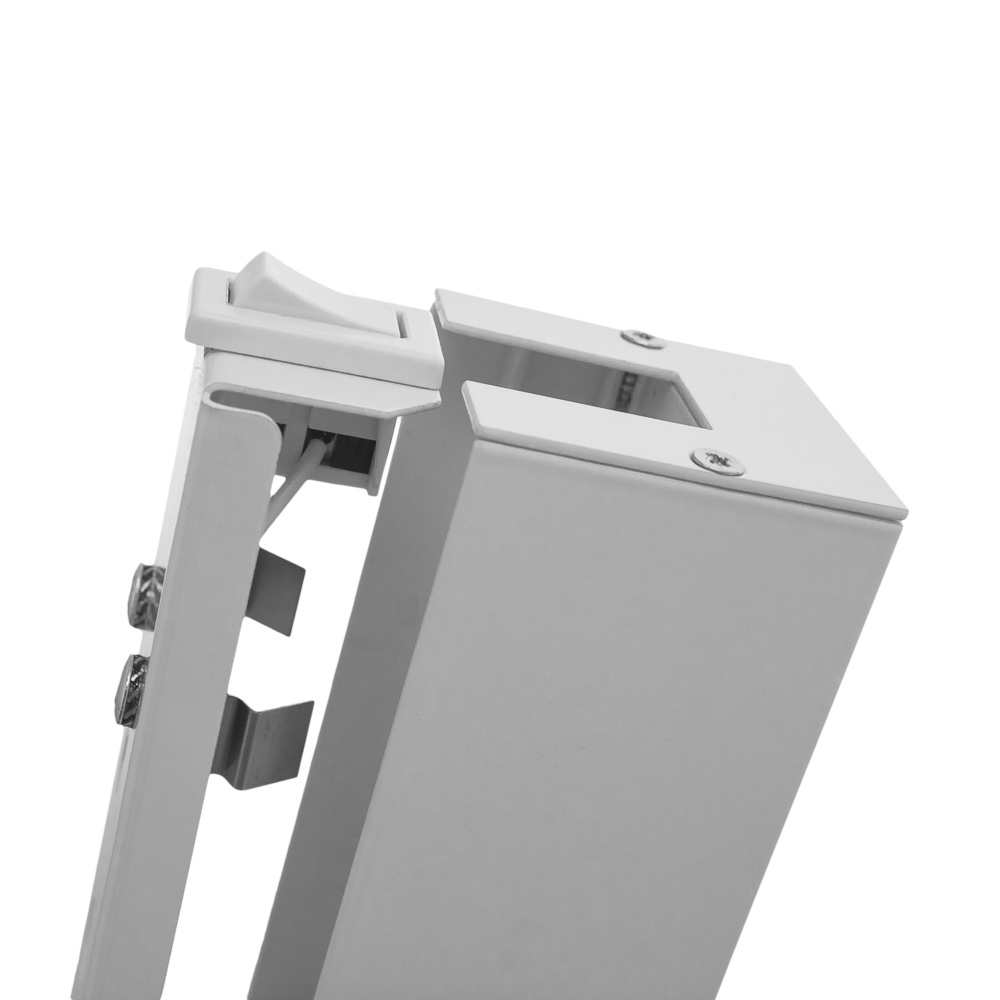

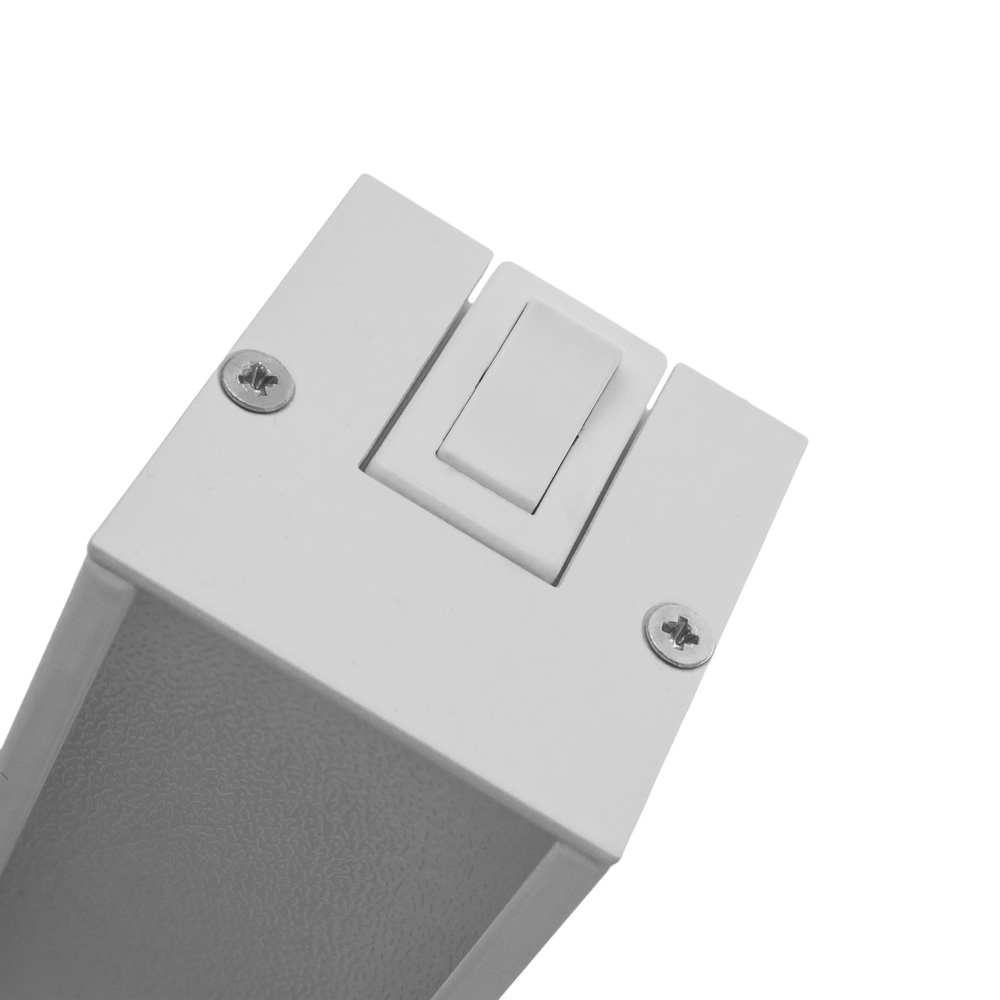

SBL ... luminaire with a switch, eloxal surface

SBL /B ... white painted luminaire

SBL /R ... luminaire for installation to a line

SBL /X ... without switch



Application:

Luminaire for general using in residental or commom space.

Can be installed into straight or oblique lines.



Accessories:

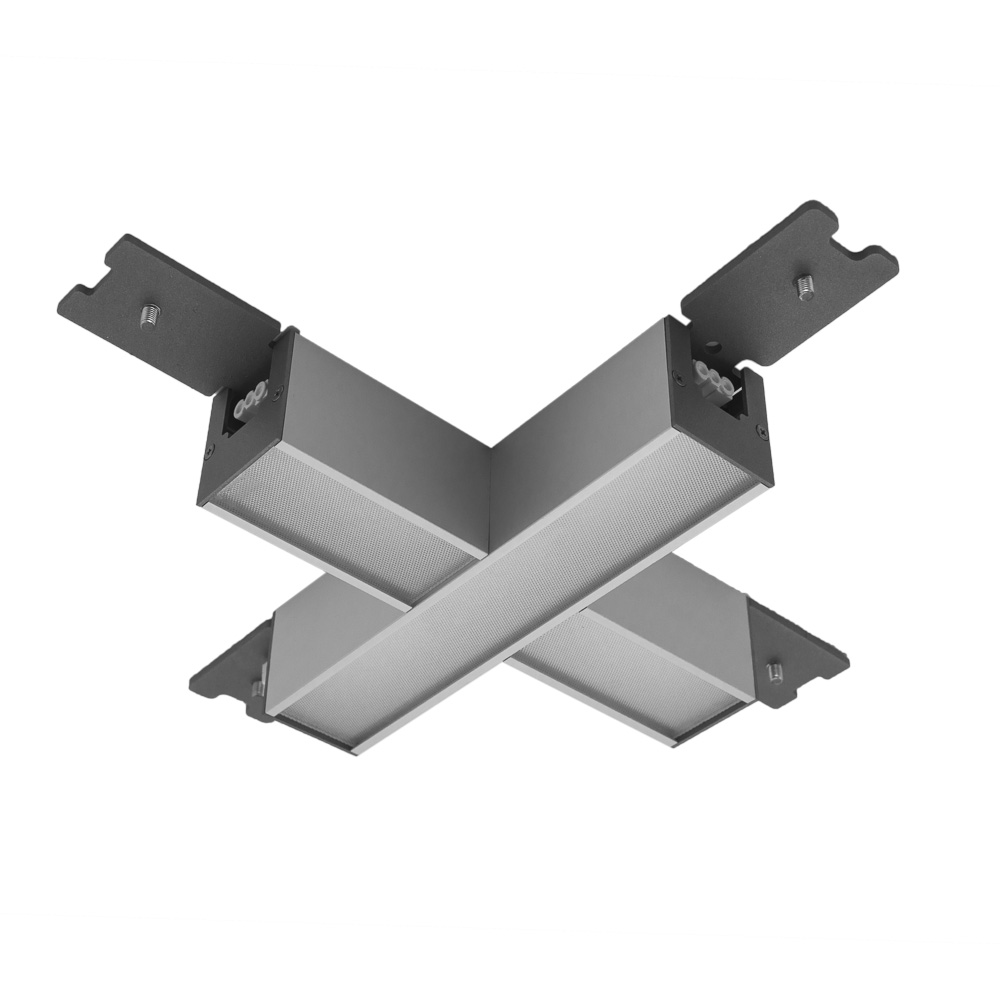

SBLSPOJK - connection part - cross, for SBL/R, incl. wiring, elox

SBLSPOJP - straight connection part, for SBL/R, elox

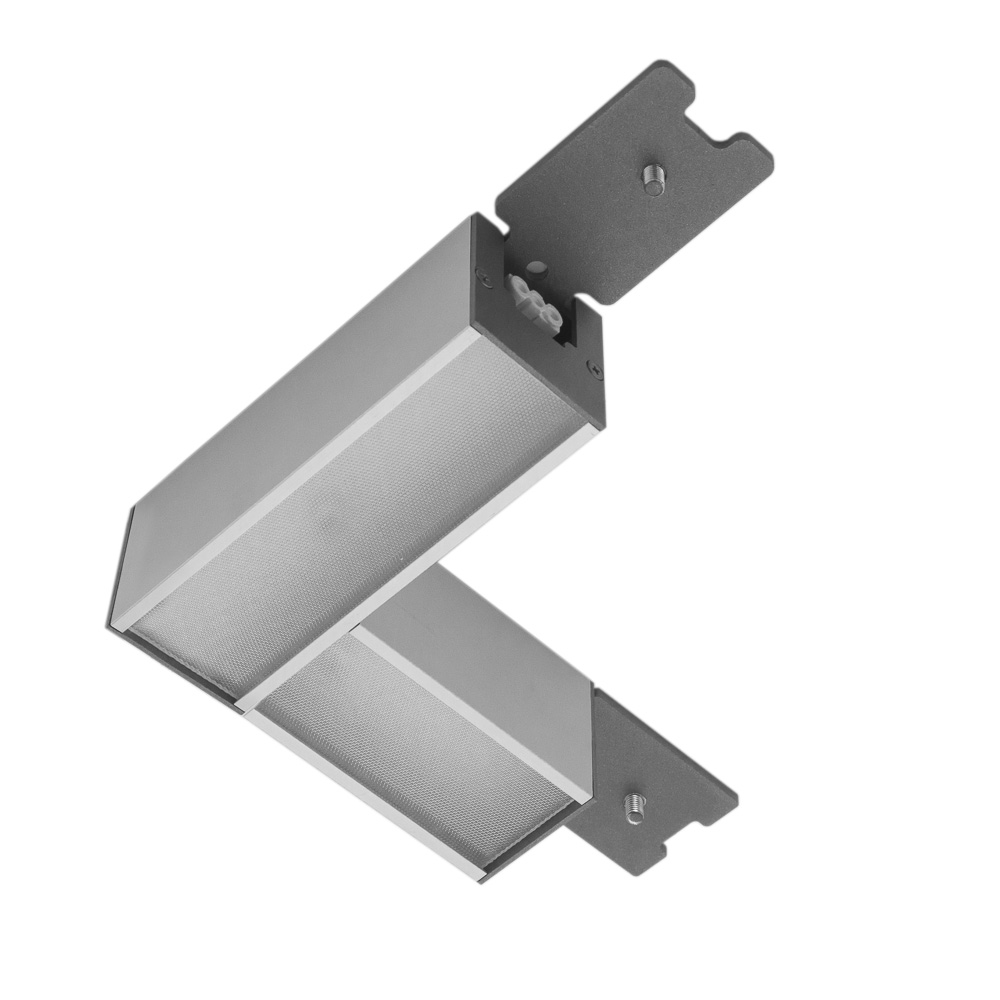

SBLSPOJR - connection part - oblique 90dg., for SBL/R, incl. wiring, elox

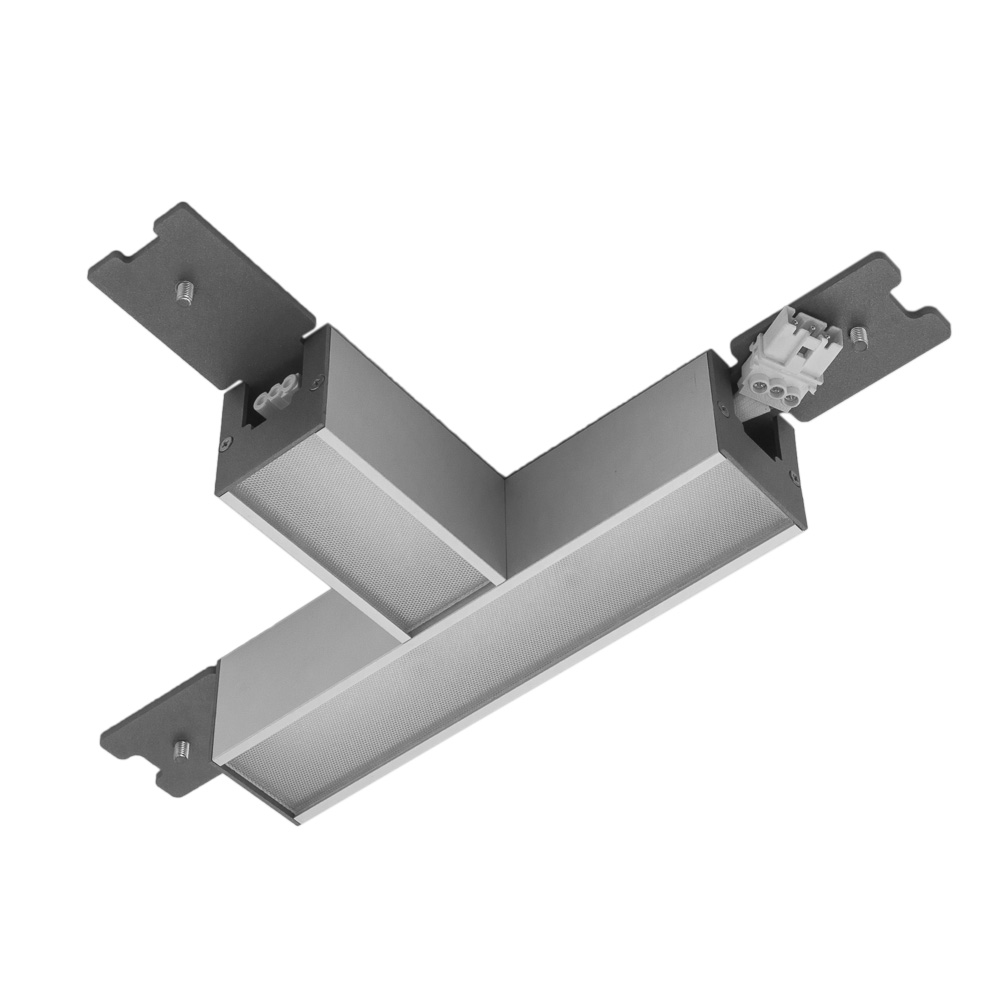

SBLSPOJT - connection part - T shape, for SBL/R, incl. wiring, elox

ZH21 - suspension set (2 hanging points)

Size version:L
1500 mm
M
1200 mm
S
600 mm
Body material:Eloxal aluminium profile
Mounting method:Pendant, Surface mountingProtection class:I
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89, 90-100
Lamp type:LED
Suitable for light line configuration:Yes
Degree of protection (IP):IP20Color temperature (K):4000, 3000
Rated life time L80/B50 (h):80000Dimming DALI:Yes

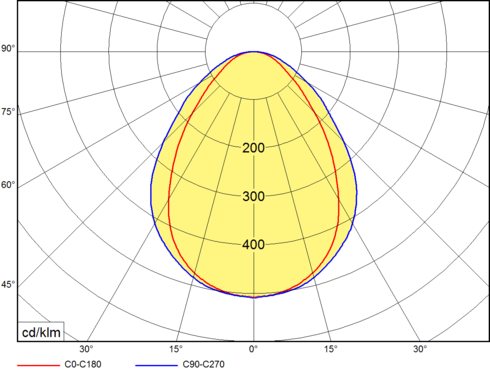

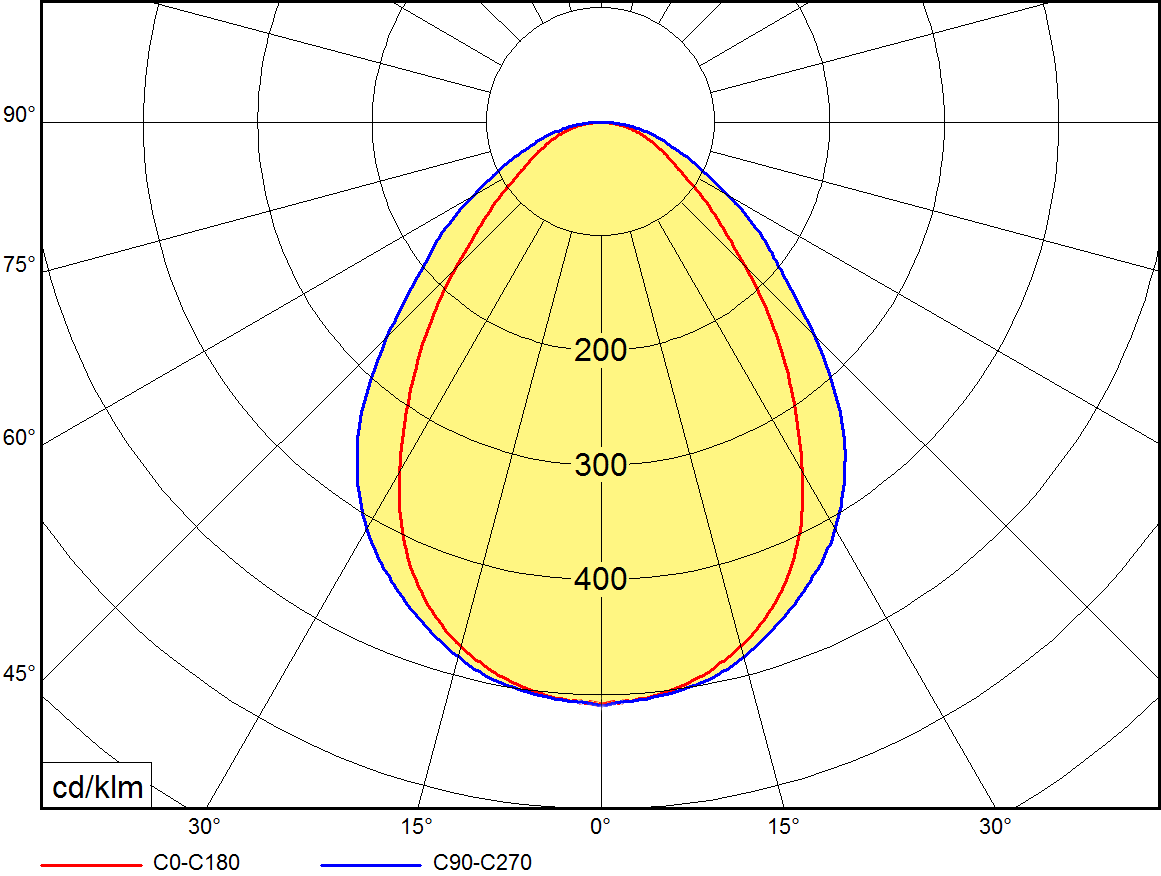

Optical system:KN
nanoprizmatic cover
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1300
4200

System power (W)

15
40
Product name
SBL1500SKN3/B/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Size version: S
SBL1500SKN3/B/ND/REND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Size version: S
Suitable for light line configuration: Yes
SBL1500SKN3/ND/RCONT
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Size version: S
Suitable for light line configuration: Yes
SBL1500SKN3/X/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 3000
Size version: S
SBL1500SKN3/XB/DALI
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Size version: S
SBL1500SKN3/XB/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 3000
Size version: S
SBL1500SKN4/B/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Size version: S
SBL1500SKN4/B/ND/RCONT
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Size version: S
Suitable for light line configuration: Yes
SBL1500SKN4/C/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Size version: S
SBL1500SKN4/C/ND/RCONT
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Size version: S
Suitable for light line configuration: Yes
SBL1500SKN4/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Size version: S
SBL1500SKN4/ND/RCONT
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Size version: S
Suitable for light line configuration: Yes
SBL1500SKN4/ND/REND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Size version: S
Suitable for light line configuration: Yes
SBL1500SKN4/ND/RSTART
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Size version: S
Suitable for light line configuration: Yes
SBL1500SKN4/X/DALI
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Size version: S
SBL1500SKN4/X/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Size version: S
SBL1500SKN4/XB/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Size version: S
SBL1500SKO3/ND
Effective luminous flux (lm): 1300
System power (W): 15
Color temperature (K): 3000
Size version: S
SBL1500SKO3/XB/DALI
Effective luminous flux (lm): 1300
System power (W): 15
Color temperature (K): 4000
Size version: S
SBL2000LKN4/ND/RCONT
Effective luminous flux (lm): 2000
System power (W): 18
Color temperature (K): 4000
Size version: L
Suitable for light line configuration: Yes
SBL2000LKN4/ND/REND
Effective luminous flux (lm): 2000
System power (W): 18
Color temperature (K): 4000
Size version: L
Suitable for light line configuration: Yes
SBL2000LKN4/ND/RSTART
Effective luminous flux (lm): 2000
System power (W): 18
Color temperature (K): 4000
Size version: L
Suitable for light line configuration: Yes
SBL3000MKN3/B/DALI/REND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Size version: M
Suitable for light line configuration: Yes
SBL3000MKN3/B/DALI/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Size version: M
Suitable for light line configuration: Yes
SBL3000MKN3/ND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
SBL3000MKN3/ND/RCONT
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Size version: M
Suitable for light line configuration: Yes
SBL3000MKN3/ND/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Size version: M
Suitable for light line configuration: Yes
SBL3000MKN3/XB/DALI
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Size version: M
SBL3000MKN3/XB/ND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Size version: M
SBL3000MKN3/XC/DALI
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Size version: M
SBL3000MKN3/XC/ND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
SBL3000MKN4/B/DALI/RCONT
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
Suitable for light line configuration: Yes
SBL3000MKN4/B/DALI/REND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
Suitable for light line configuration: Yes
SBL3000MKN4/B/DALI/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
Suitable for light line configuration: Yes
SBL3000MKN4/B/ND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
SBL3000MKN4/B/ND/RCONT
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
Suitable for light line configuration: Yes
SBL3000MKN4/B/ND/REND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
Suitable for light line configuration: Yes
SBL3000MKN4/B/ND/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
Suitable for light line configuration: Yes
SBL3000MKN4/C/DALI/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
Suitable for light line configuration: Yes
SBL3000MKN4/C/ND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
SBL3000MKN4/C/ND/RCONT
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
Suitable for light line configuration: Yes
SBL3000MKN4/C/ND/REND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
Suitable for light line configuration: Yes
SBL3000MKN4/C/ND/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
Suitable for light line configuration: Yes
SBL3000MKN4/DALI/RCONT
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
Suitable for light line configuration: Yes
SBL3000MKN4/DALI/REND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
Suitable for light line configuration: Yes
SBL3000MKN4/DALI/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
Suitable for light line configuration: Yes
SBL3000MKN4/ND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
SBL3000MKN4/ND/RCONT
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
Suitable for light line configuration: Yes
SBL3000MKN4/X/DALI
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
SBL3000MKN4/X/ND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
SBL3000MKN4/XB/DALI
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Size version: M
SBL3000MKO3/X/ND
Effective luminous flux (lm): 2800
System power (W): 29
Color temperature (K): 3000
Size version: M
SBL4000LKN3/B/DALI/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN3/B/DALI/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN3/B/DALI/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN3/B/ND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Size version: L
SBL4000LKN3/B/ND/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN3/B/ND/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN3/B/ND/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN3/C/DALI/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN3/C/DALI/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN3/C/DALI/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN3/X/DALI
Effective luminous flux (lm): 3700
System power (W): 36
Color temperature (K): 3000
Size version: L
SBL4000LKN3/X/ND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Size version: L
SBL4000LKN3/XB/DALI
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Size version: L
SBL4000LKN3/XB/ND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Size version: L
SBL4000LKN3/XC/DALI
Effective luminous flux (lm): 3700
System power (W): 36
Color temperature (K): 3000
Size version: L
SBL4000LKN3/XC/ND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Size version: L
SBL4000LKN4/B/DALI/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN4/B/DALI/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN4/B/DALI/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN4/B/ND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
SBL4000LKN4/B/ND/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN4/B/ND/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN4/B/ND/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN4/C/DALI/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN4/C/DALI/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN4/C/DALI/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN4/C/ND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
SBL4000LKN4/C/ND/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN4/DALI/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN4/DALI/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN4/DALI/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN4/ND/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN4/ND/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN4/ND/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKN4/X/DALI
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
SBL4000LKN4/X/ND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
SBL4000LKN4/XB/DALI
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
SBL4000LKN4/XB/ND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
SBL4000LKN4/XC/DALI
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Size version: L
SBL4000LKO3/DALI/RCONT
Effective luminous flux (lm): 3300
System power (W): 35
Color temperature (K): 3000
Size version: L
Suitable for light line configuration: Yes
SBL4000LKO3/X/ND
Effective luminous flux (lm): 3300
System power (W): 35
Color temperature (K): 3000
Size version: L
SBL4000LKO4/XB/DALI
Effective luminous flux (lm): 3300
System power (W): 35
Color temperature (K): 4000
Size version: L
SBL4000LKO4/XC/ND
Effective luminous flux (lm): 3300
System power (W): 35
Color temperature (K): 4000
Size version: L
SBL4000MKN4/B/ND/RCONT
Effective luminous flux (lm): 4200
System power (W): 40
Color temperature (K): 4000
Size version: M
Suitable for light line configuration: Yes
SBL4000MKN4/B/ND/REND
Effective luminous flux (lm): 4200
System power (W): 40
Color temperature (K): 4000
Size version: M
Suitable for light line configuration: Yes
SBL4000MKN4/B/ND/RSTART
Effective luminous flux (lm): 4200
System power (W): 40
Color temperature (K): 4000
Size version: M
Suitable for light line configuration: Yes
SBL4000MKN4/C/ND/RCONT
Effective luminous flux (lm): 4200
System power (W): 40
Color temperature (K): 4000
Size version: M
Suitable for light line configuration: Yes
SBL4000MKN4/XB/ND
Effective luminous flux (lm): 4200
System power (W): 40
Color temperature (K): 4000
Size version: M
SBL4000MKN4/XC/ND
Effective luminous flux (lm): 4200
System power (W): 40
Color temperature (K): 4000
Size version: M
SBL4SKNV2/B100ND
Show all versions

Product page - PDF

SBL_EN.pdf >

CE declaration

CE_SBL_CZ_AJ.pdf >

Assembly instruction

SBL.pdf >
SBL_R.pdf >

LDT files

MODUS SBL-ldt-data.zip >

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Zobrazit další reference
 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
