MODUS SK

Subtile linear luminaire

MODUS SK
1 M10_nasten_celkove_osv.jpg
třída ochrany I.PNG
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

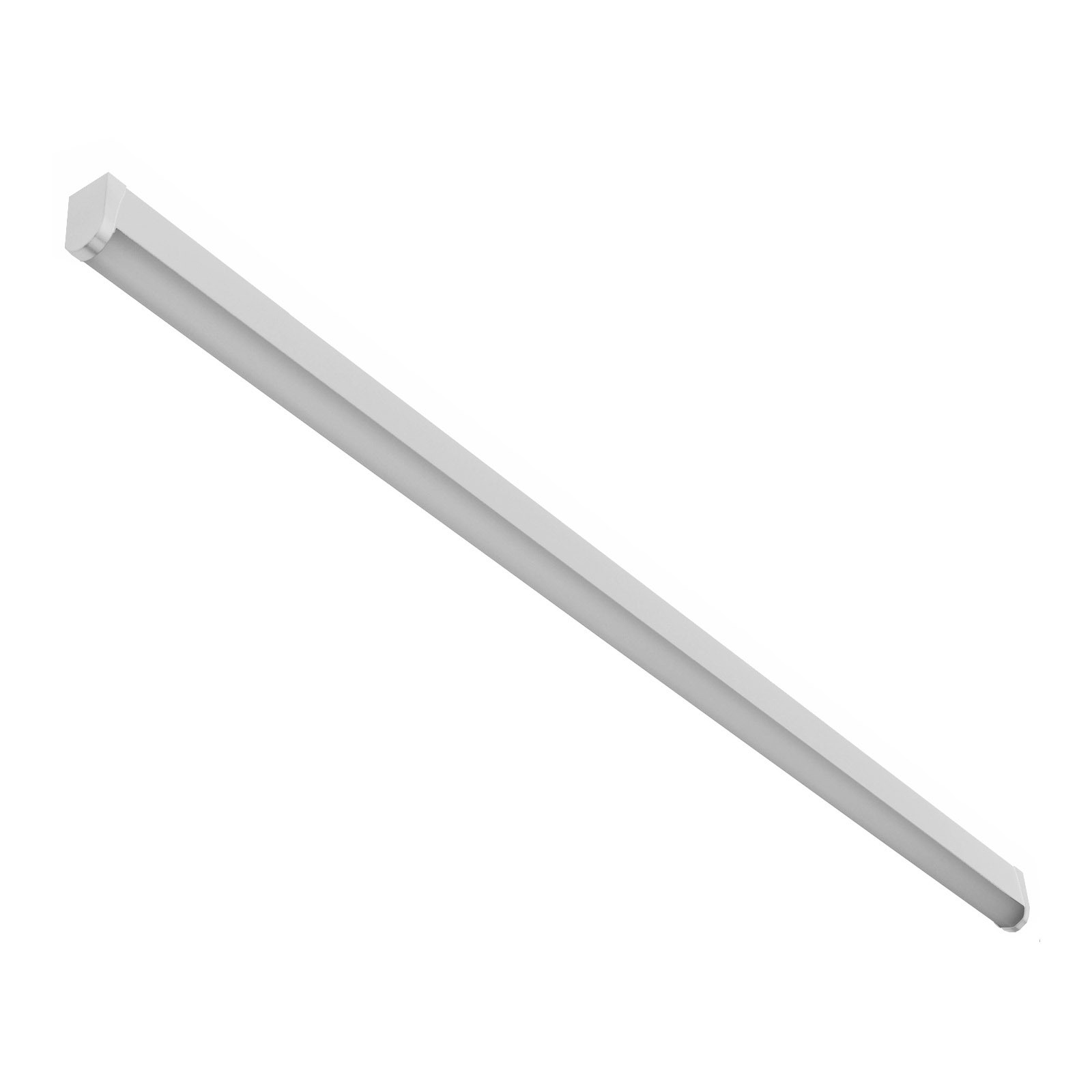

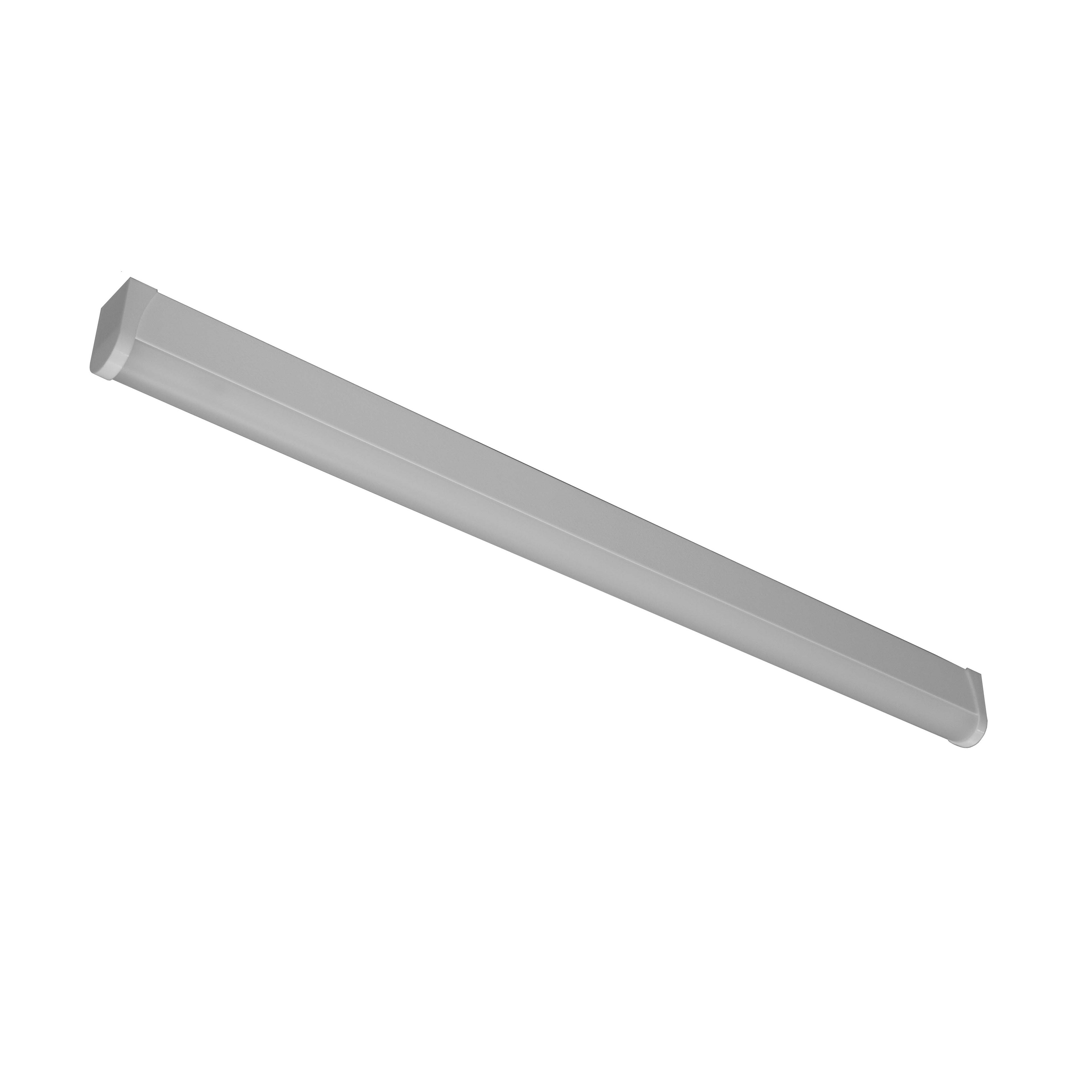

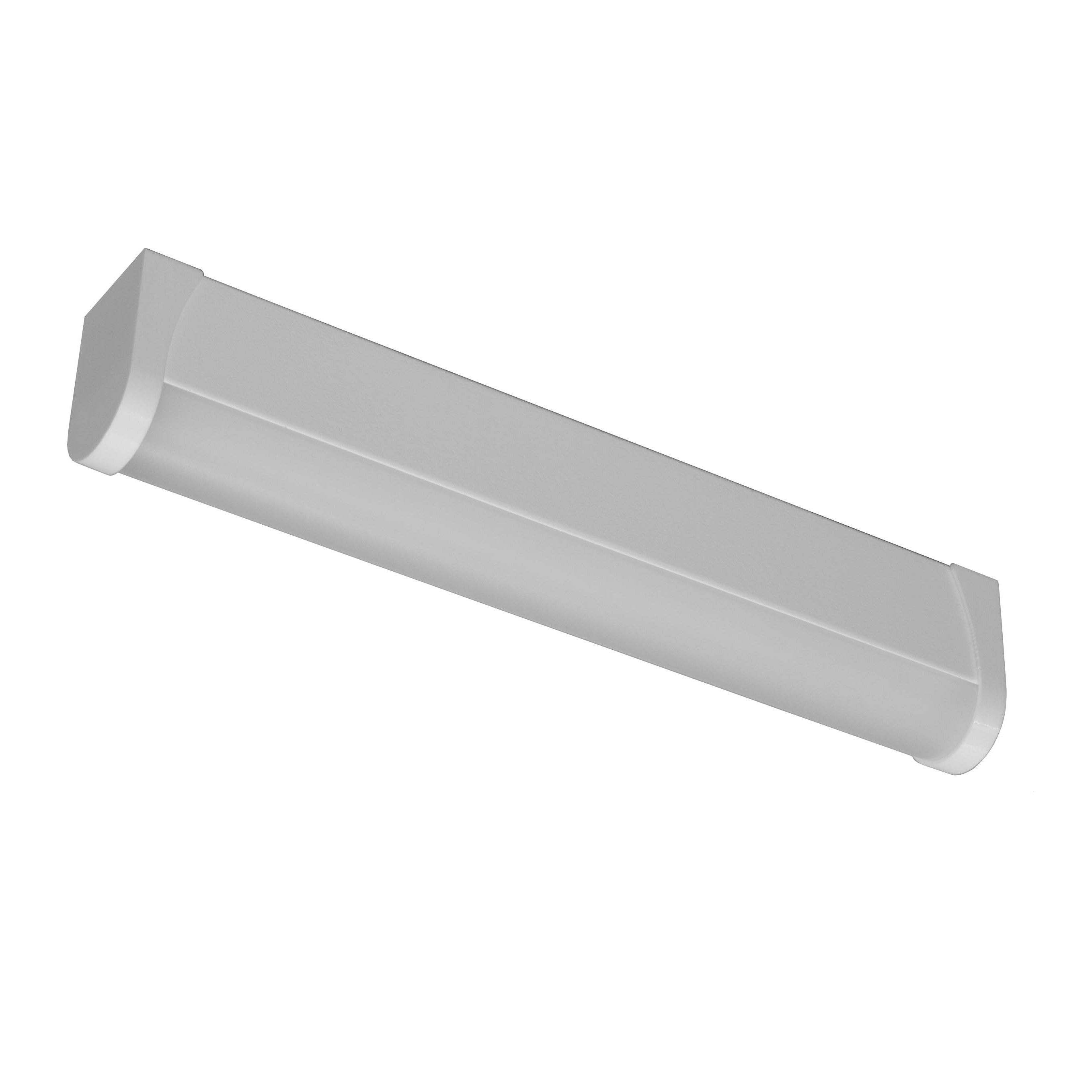

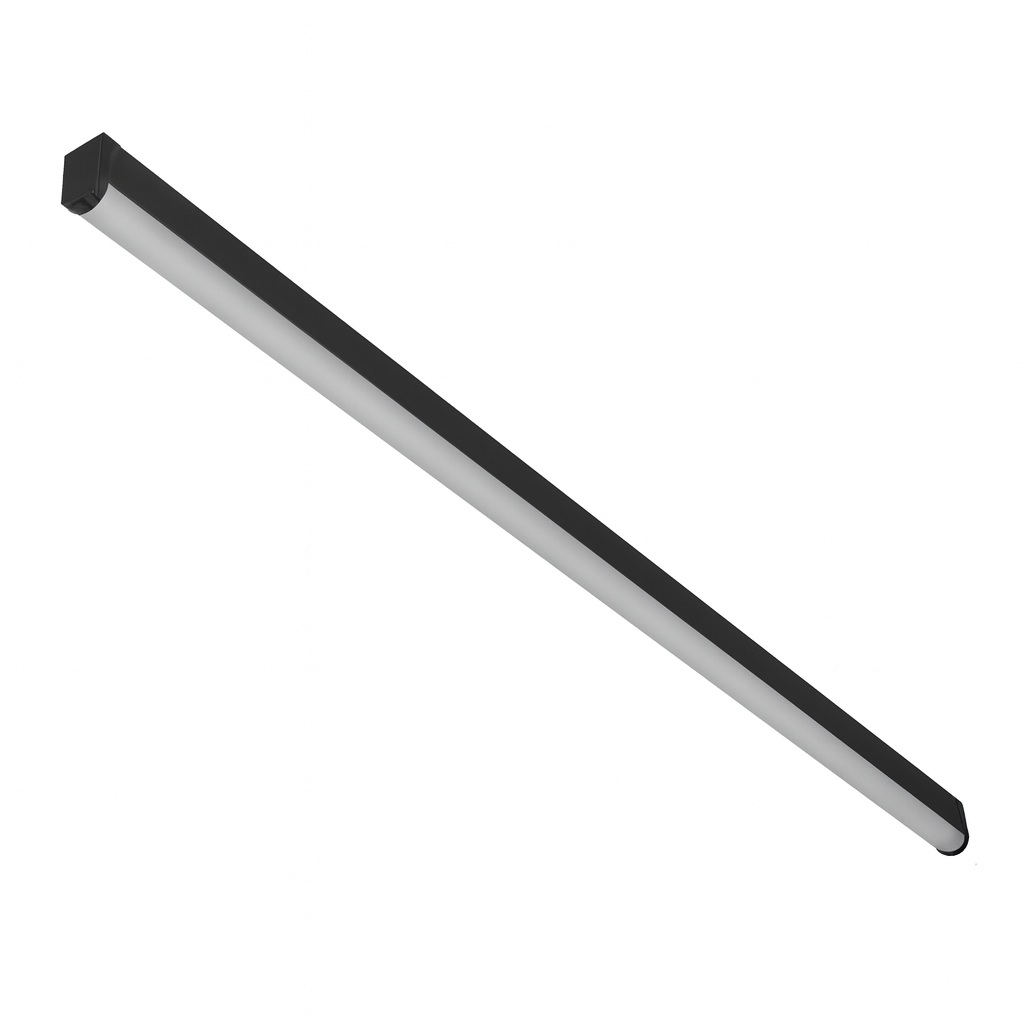

MODUS SK luminaire is produced in two versions:

SK.../VYP - version with integrated switch (typical use: undercabinet luminaire)

SK - version without switch (for general illumination)

Luminiare is delivered in these lenghts: 30, 60,120 and 150 cm.

Size version:L
1500 mm
M
1200 mm
S
600 mm
XM
800 mm
Body material:Eloxal aluminium profile
Mounting method:Ceiling surface mounting, Wall surface mountedProtection class:I
Type of control gear:LED operating device current-controlledLight source type:LED
Light outlet:DirectLight sharing:Symmetric
Nominal voltage (V):220...240
Degree of protection (IP):IP40
Color temperature (K):4000, 3000, 2700Rated lifetime L80/B50 (h):80000
Dimming DALI:YesOptical system:KO
opal cover
Made in Czech republic:YesReplaceability:Removeable light source, replaceable ballast
Removeable light source, replaceable ballast
Photobiological safety EN 62 471:RG 0
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1200
6000

System power (W)

9
41
Product name
SK1000XS3ND/B
Effective luminous flux (lm): 1200
System power (W): 9
Color temperature (K): 3000
Length (mm): 320
SK1000XS4ND/B
Effective luminous flux (lm): 1200
System power (W): 9
Color temperature (K): 4000
Length (mm): 320
SK1500S3ND/B
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Length (mm): 590
SK1500S3ND/B/VYP
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Length (mm): 590
SK1500S4DALI/B
Effective luminous flux (lm): 1500
Color temperature (K): 4000
Length (mm): 590
SK1500S4ND/B
Effective luminous flux (lm): 1500
Color temperature (K): 4000
Length (mm): 590
SK1500S4ND/B/VYP
Effective luminous flux (lm): 1500
Color temperature (K): 4000
Length (mm): 590
SK2000S3DALI/B
Effective luminous flux (lm): 2000
System power (W): 13
Color temperature (K): 3000
Length (mm): 580
SK2000S3ND/B
Effective luminous flux (lm): 2000
System power (W): 13
Color temperature (K): 3000
Length (mm): 590
SK2000S3ND/B/VYP
Effective luminous flux (lm): 2000
System power (W): 13
Color temperature (K): 3000
Length (mm): 590
SK2000S3NDMULTI/B
Effective luminous flux (lm): 2000
System power (W): 13
Color temperature (K): 3000
Length (mm): 590
SK2000S3NDMULTI/B/PIRM
Effective luminous flux (lm): 2000
System power (W): 13
Color temperature (K): 3000
Length (mm): 685
SK2000S3NDMULTI/B/VYP
Effective luminous flux (lm): 2000
System power (W): 13
Color temperature (K): 3000
Length (mm): 590
SK2000S4DALI/B
Effective luminous flux (lm): 2000
System power (W): 13
Color temperature (K): 4000
Length (mm): 580
SK2000S4ND/B
Effective luminous flux (lm): 2000
System power (W): 13
Color temperature (K): 4000
Length (mm): 590
SK2000S4ND/B/VYP
Effective luminous flux (lm): 2000
System power (W): 13
Color temperature (K): 4000
Length (mm): 590
SK2000S4NDMULTI/B
Effective luminous flux (lm): 2000
System power (W): 13
Color temperature (K): 4000
Length (mm): 590
SK2000S4NDMULTI/B/PIRM
Effective luminous flux (lm): 2000
System power (W): 13
Color temperature (K): 4000
Length (mm): 685
SK2000S4NDMULTI/B/VYP
Effective luminous flux (lm): 2000
System power (W): 13
Color temperature (K): 4000
Length (mm): 590
SK3000M3DALI/B
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 3000
Length (mm): 1180
SK3000M3ND/B
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 3000
Length (mm): 1190
SK3000M3ND/B/VYP
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 3000
Length (mm): 1180
SK3000M4DALI/B
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 4000
Length (mm): 1190
SK3000M4ND/B
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 4000
Length (mm): 1190
SK3000M4ND/B/VYP
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 4000
Length (mm): 1190
SK3000M4ND/S/VYP
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 4000
Length (mm): 1190
SK3000S4ND/B
Effective luminous flux (lm): 2800
System power (W): 19
Color temperature (K): 4000
Length (mm): 590
SK3000XM3DALI/C
Effective luminous flux (lm): 2900
System power (W): 19
Color temperature (K): 3000
Length (mm): 757
SK3000XM3ND/B
Effective luminous flux (lm): 2900
System power (W): 19
Color temperature (K): 3000
Length (mm): 757
SK3000XM3ND/B/VYP
Effective luminous flux (lm): 2900
System power (W): 19
Color temperature (K): 3000
Length (mm): 757
SK3000XM4ND/B
Effective luminous flux (lm): 2900
System power (W): 19
Color temperature (K): 4000
Length (mm): 757
SK3000XM4ND/B/VYP
Effective luminous flux (lm): 2900
System power (W): 19
Color temperature (K): 4000
Length (mm): 760
SK4000L3DALI/B
Effective luminous flux (lm): 4300
System power (W): 28
Color temperature (K): 3000
Length (mm): 1490
SK4000L3DALI/C
Effective luminous flux (lm): 4300
System power (W): 28
Color temperature (K): 3000
Length (mm): 1490
SK4000L3ND/B
Effective luminous flux (lm): 4300
System power (W): 28
Color temperature (K): 3000
Length (mm): 1490
SK4000L3ND/B/VYP
Effective luminous flux (lm): 4300
System power (W): 28
Color temperature (K): 3000
Length (mm): 1490
SK4000L4ND/B
Effective luminous flux (lm): 4300
System power (W): 28
Color temperature (K): 4000
Length (mm): 1490
SK4000L4ND/B/VYP
Effective luminous flux (lm): 4300
System power (W): 28
Color temperature (K): 4000
Length (mm): 1490
SK4000M3ND/S
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 3000
Length (mm): 1180
SK4000M3NDMULTI/B
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 3000
Length (mm): 1190
SK4000M3NDMULTI/B/VYP
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 3000
Length (mm): 1190
SK4000M4DALI/B
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 4000
Length (mm): 1180
SK4000M4NDMULTI/B
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 4000
Length (mm): 1190
SK4000M4NDMULTI/B/VYP
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 4000
Length (mm): 1190
SK5000M4ND/B
Effective luminous flux (lm): 5000
System power (W): 37
Color temperature (K): 4000
Length (mm): 1190
SK6000L4ND/B
Effective luminous flux (lm): 6000
System power (W): 41
Color temperature (K): 4000
Length (mm): 1490
SK6000L4ND/B/VYP
Effective luminous flux (lm): 6000
System power (W): 41
Color temperature (K): 4000
Length (mm): 1490
SK6000L4NDMULTI/B
Effective luminous flux (lm): 6000
System power (W): 41
Color temperature (K): 4000
Length (mm): 1490
Show all versions

Product page - PDF

SK_EN.pdf >

CE declaration

POS_CZAJ_SK.pdf >

Assembly instruction

MODUS SK.pdf >
ZL_1310001105_SK_PIR.pdf >

LDT files

MODUS SK-ldt-data.zip >
