Product series
MODUS SOL

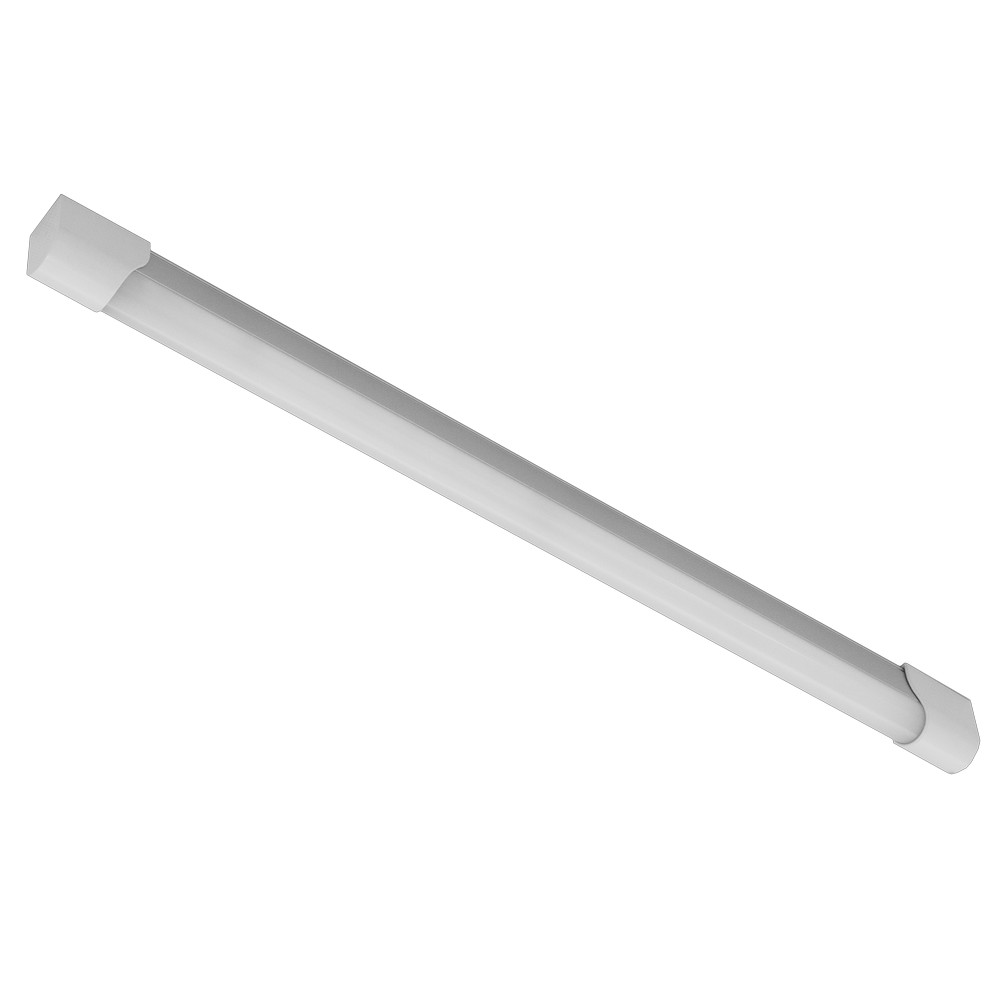

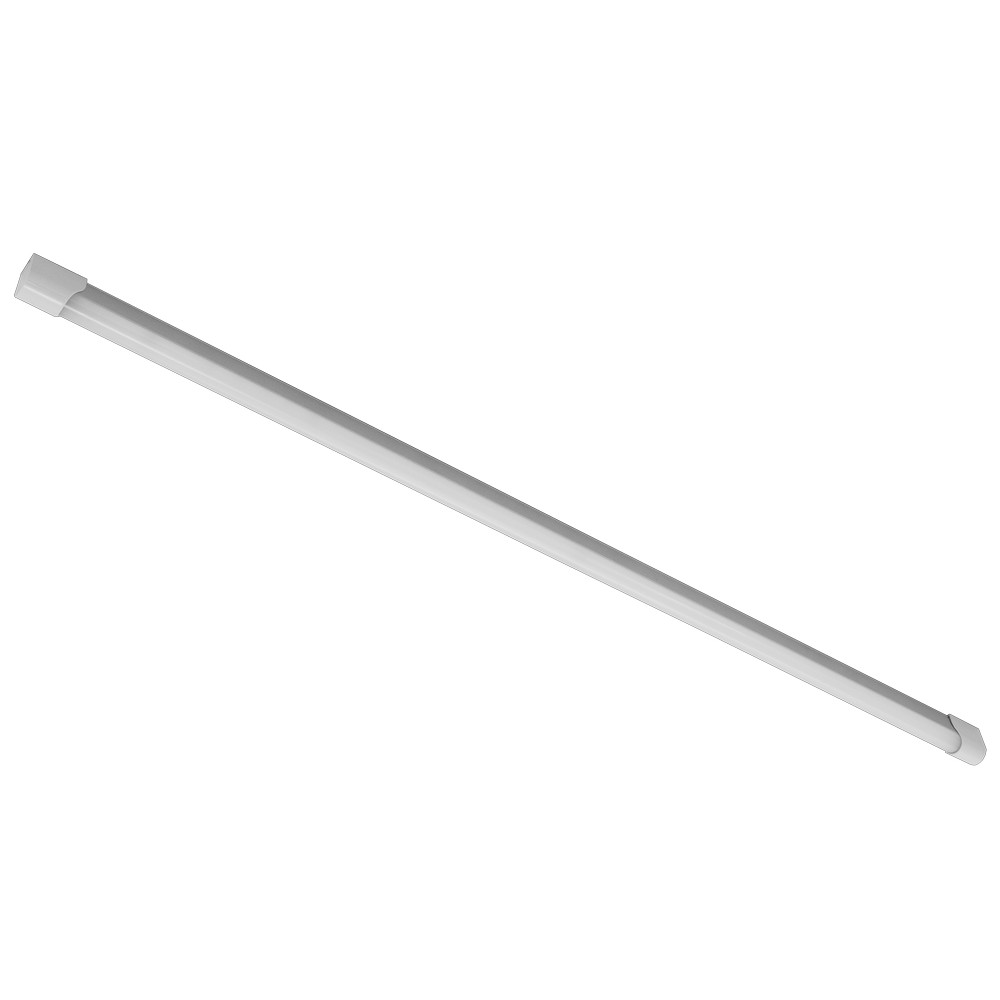

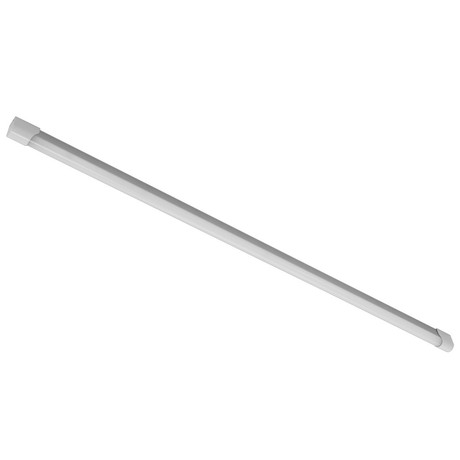

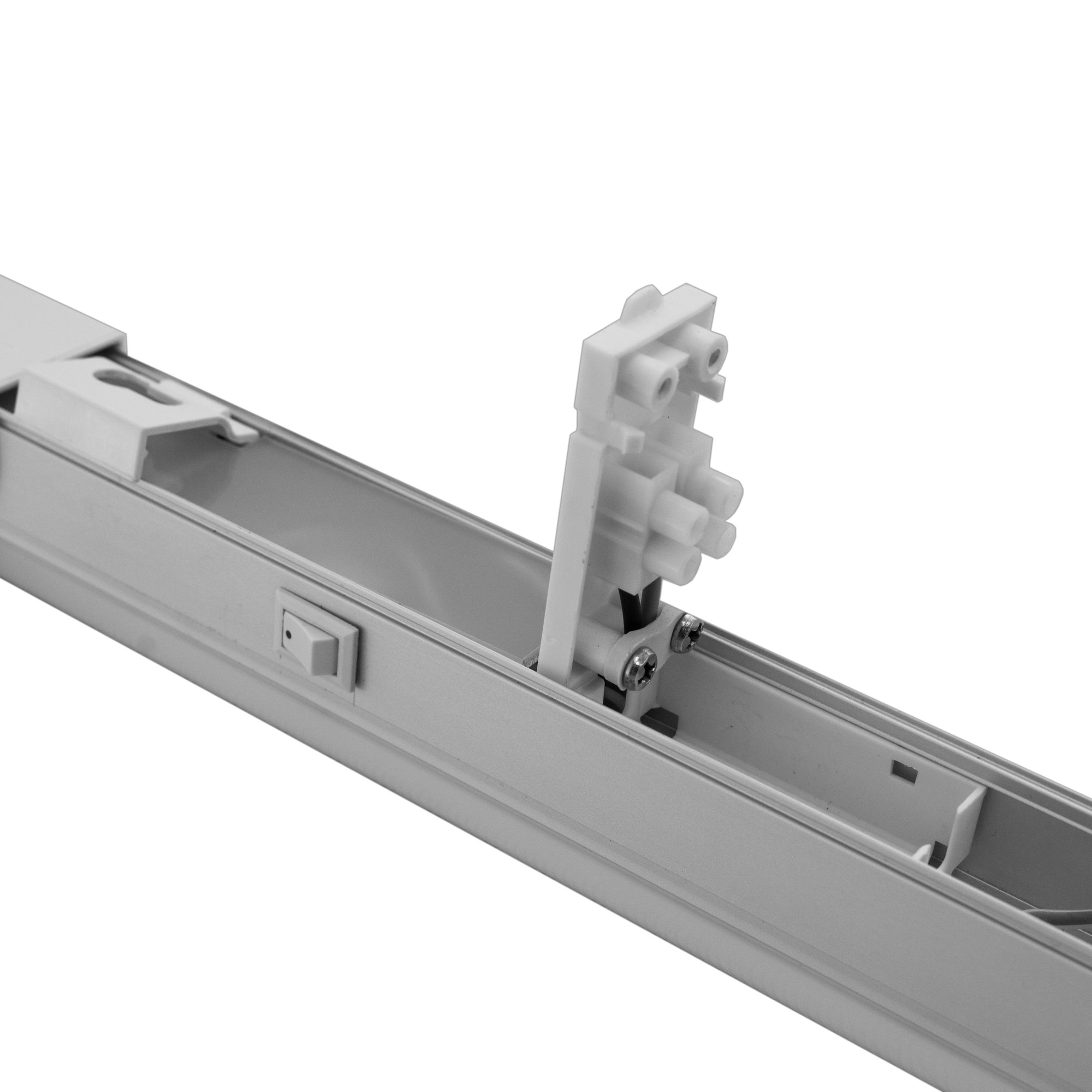

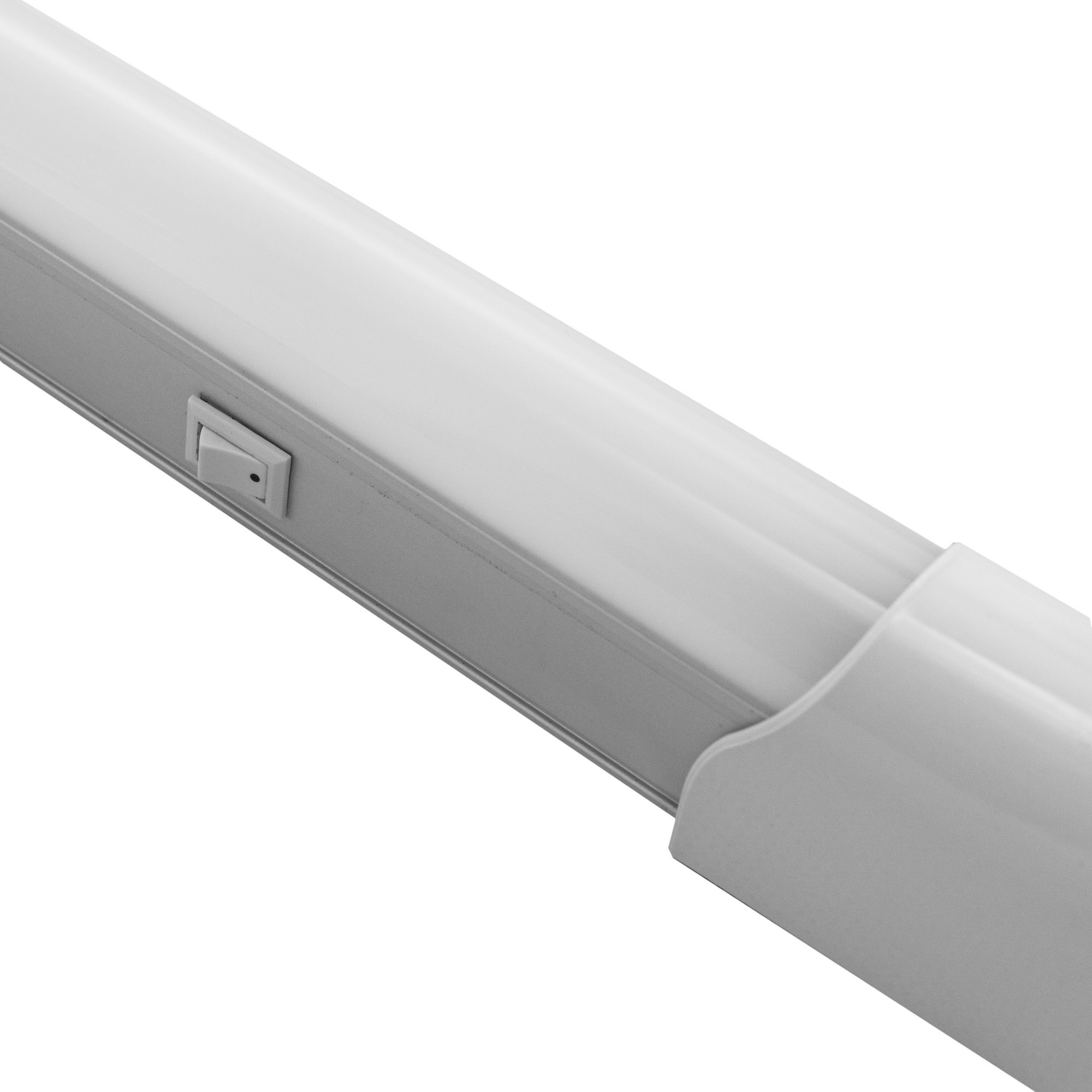

Cabinet LED luminaire with switch
Standard price from:
On request
Mainly for use in kitchen - undercabinet luminaire with switch
Body:
Eloxal aluminium profile
Optic:

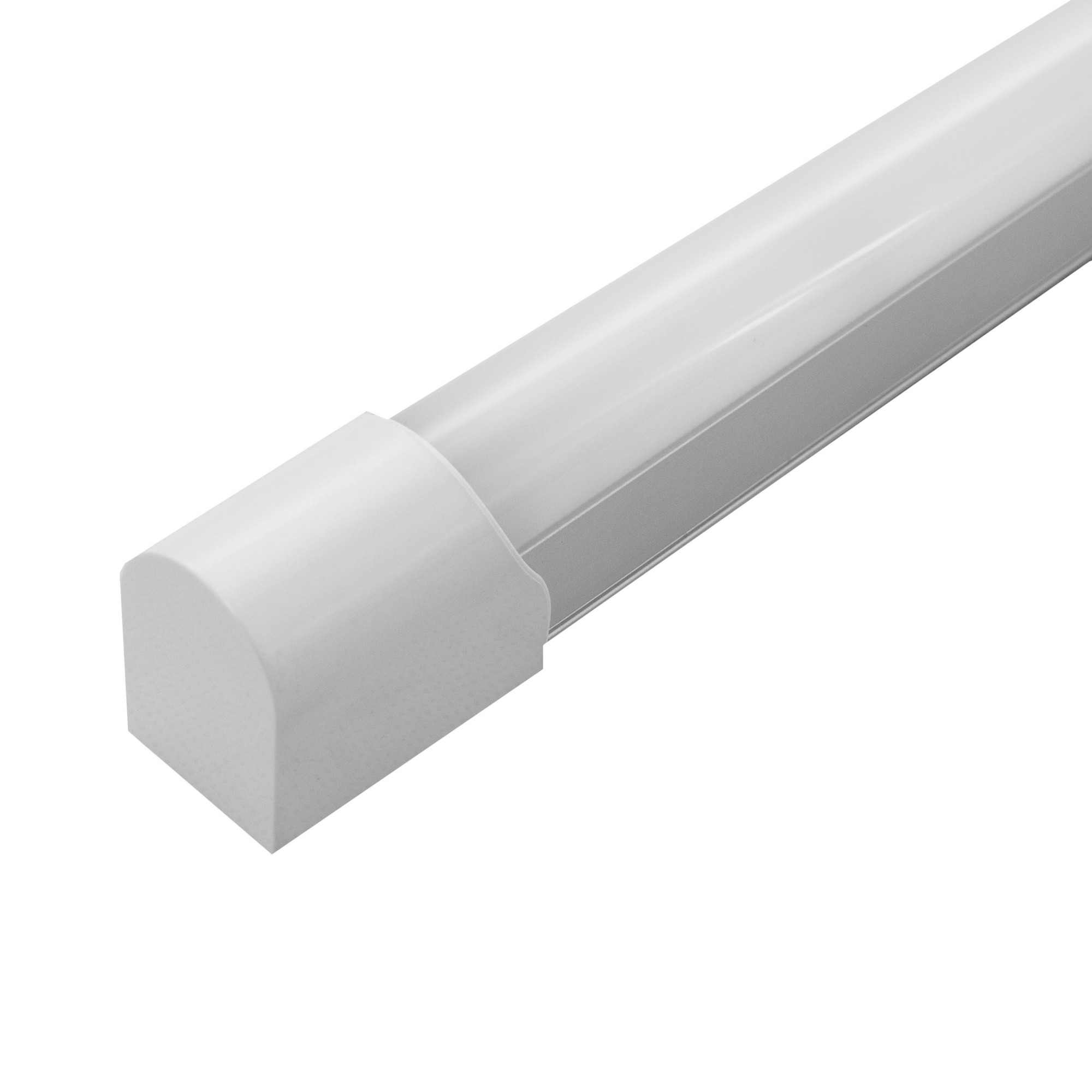

opal cover
LED:
Mid Power LED
3... warm white 3000K
4... cold white 4000K
Wirring:

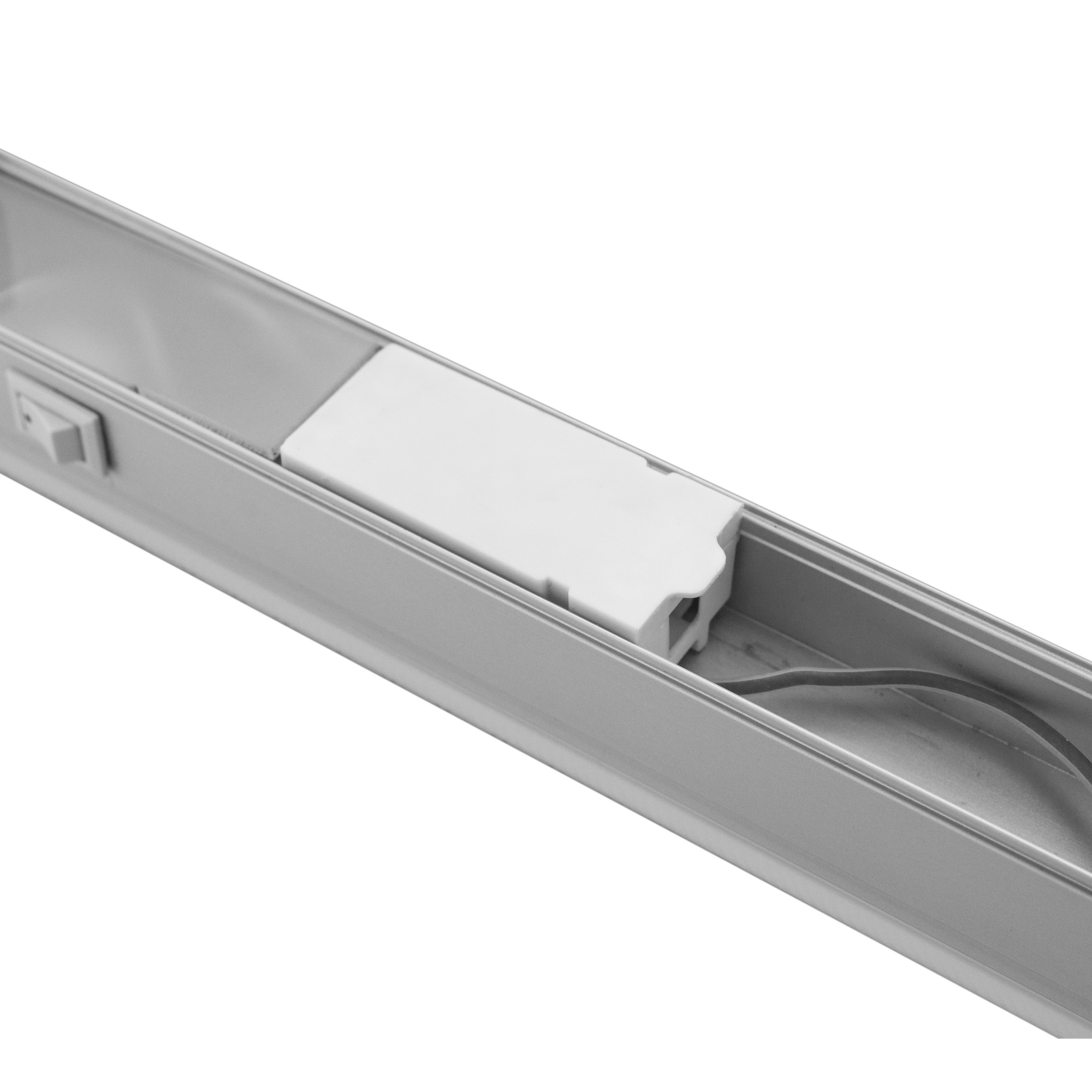

Non dimmable driver on board
| Size version: | M 1200 mm S 600 mm | Body material: | Eloxal aluminium profile | Mounting method: | Wall surface mounted, Surface mounting | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Nominal voltage (V): | 220...240 |
| Degree of protection (IP): | IP20 | Color temperature (K): | 4000, 3000 | Rated lifetime L70/B50 (h): | 30000 | Optical system: | KO opal cover | Made in Czech republic: | Yes | Replaceability: | Removeable light source , without ballast Removeable light source , without ballast | Photobiological safety EN 62 471: | RG 0 |
LoadingFilters
Effective luminous flux (lm)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Length (mm)
Size version
SOL1000S3KO/ND
Effective luminous flux (lm): 1250
Color temperature (K): 3000
SOL1000S4KO/ND
Effective luminous flux (lm): 1250
Color temperature (K): 4000
SOL2000M3KO/ND
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 3000
Length (mm): 1200
Size version: M
SOL2000M4KO/ND
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 4000
Length (mm): 1200
Size version: M
Product page - PDF
CE declaration
LDT files

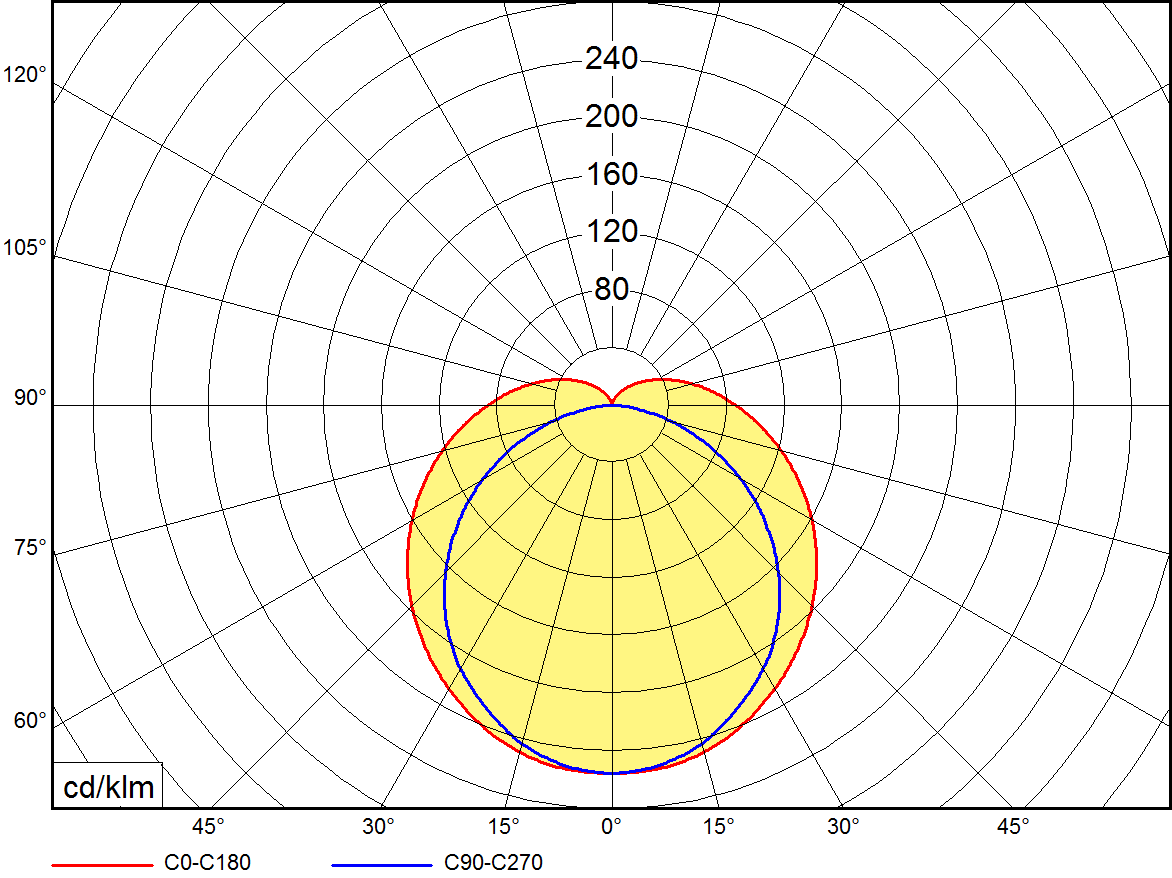

SOL.PNGProjekty realizované se svítidly MODUS:
