Product series
MODUS SPMT

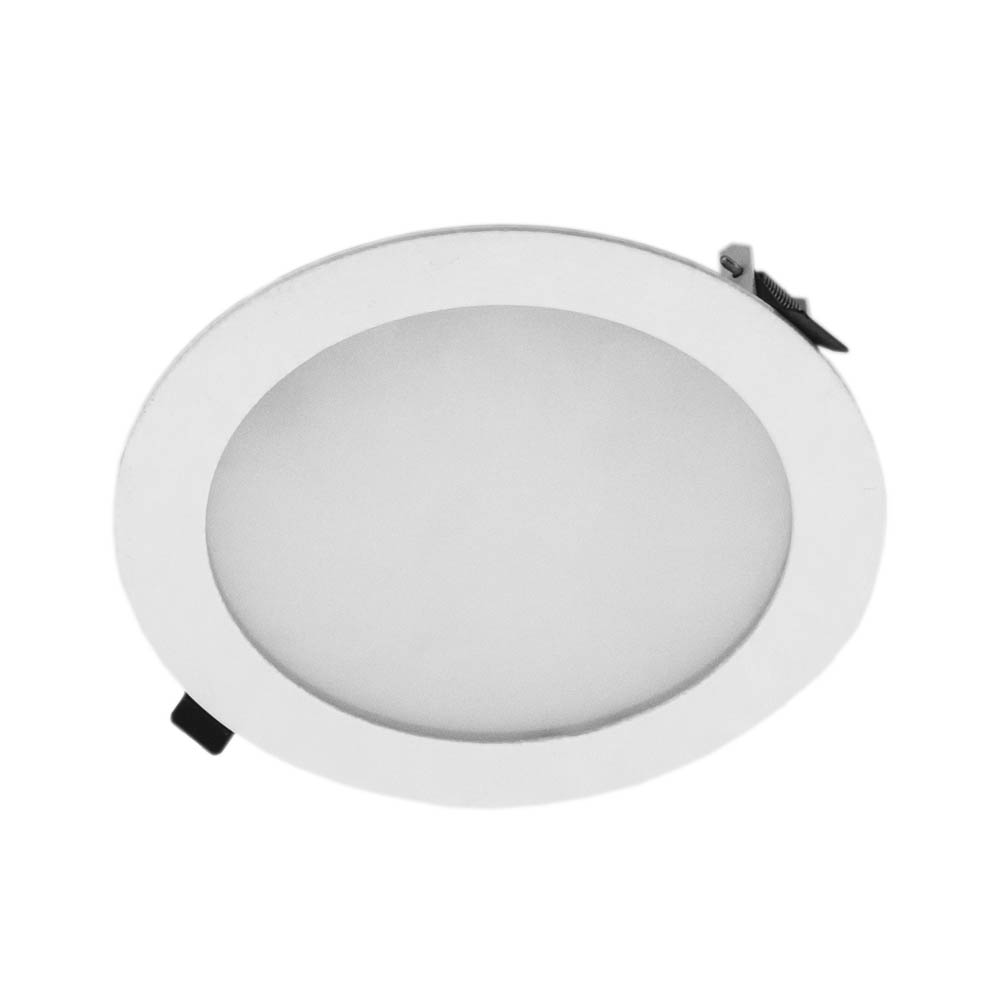

Recessed LED fitting
MODUS SPMT

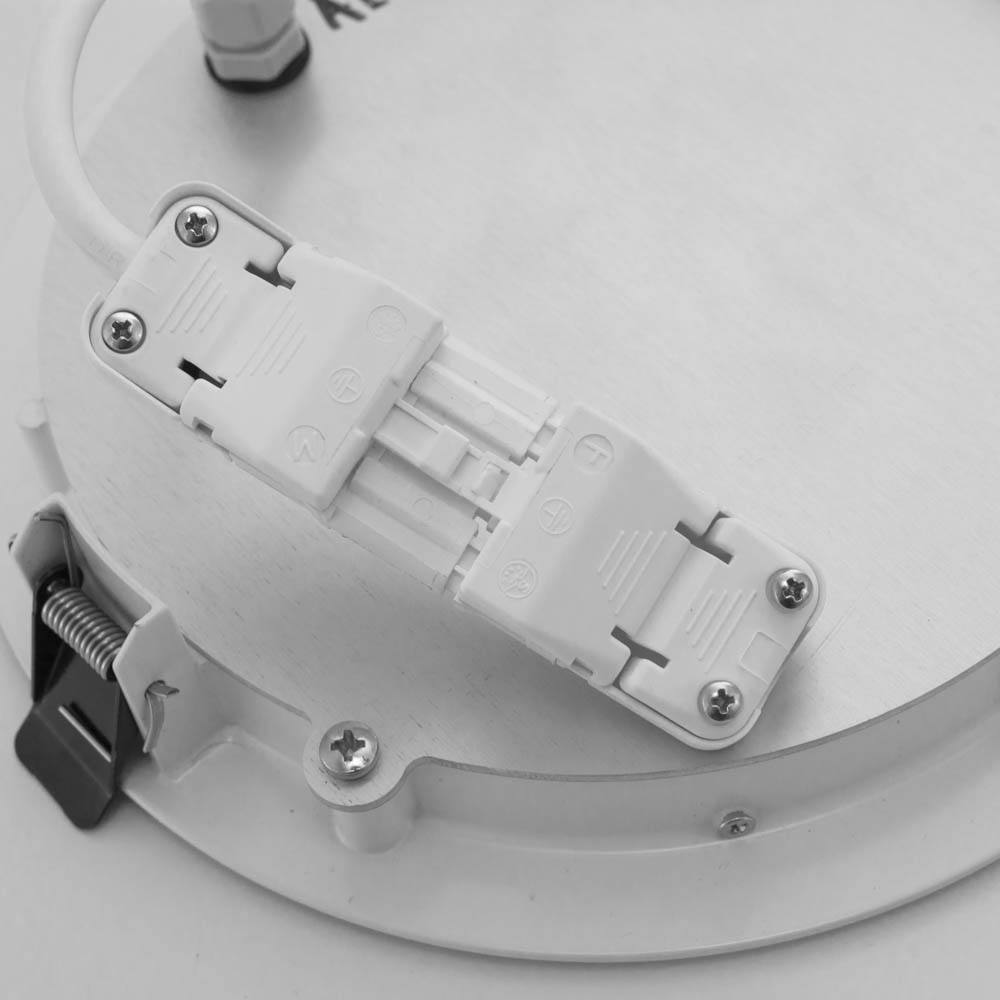

Mains connector
Price from:
950 Kč
( 1 150 Kč including VAT )Body:
White painted (RAL 9003) aluminium body
LED:
Low Power LED
CRI 80
3...warm white 3000K
4...cold white 4000K
Wiring:
LED driver (constant current)
ND – not dimmable (standard)
Application:
- Recessed installation into gypsum or raster ceiling
| Lamp type: | LED | Color temperature (K): | 3000, 4000 | Color rendering index CRI: | 80-89 | Rated life time L70/B50 (h): | 30000 | Degree of protection (IP): | IP40 | Optical system: | KO opal cover |
| Body material: | White painted aluminium body | Mounting method: | Built-in | Protection class: | I | Type of control gear: | LED operating device current-controlled |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Outer diameter (mm)
SPMT1000KO3
Effective luminous flux (lm): 900
System power (W): 11
Color temperature (K): 3000
Outer diameter (mm): 205
SPMT1000KO4
Effective luminous flux (lm): 900
System power (W): 11
Color temperature (K): 4000
Outer diameter (mm): 205
SPMT1500KO3
Effective luminous flux (lm): 1500
System power (W): 20
Color temperature (K): 3000
Outer diameter (mm): 205
SPMT1500KO4
Effective luminous flux (lm): 1500
System power (W): 20
Color temperature (K): 4000
Outer diameter (mm): 205
SPMT1500KO4/9005
Effective luminous flux (lm): 1500
System power (W): 20
Color temperature (K): 4000
Outer diameter (mm): 205
Assembly instruction
LDT files

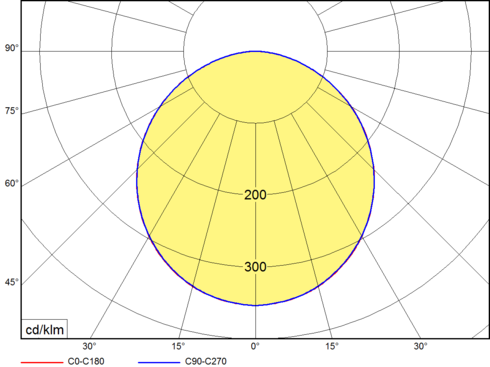

SPMT.PNGProjekty realizované se svítidly MODUS:
