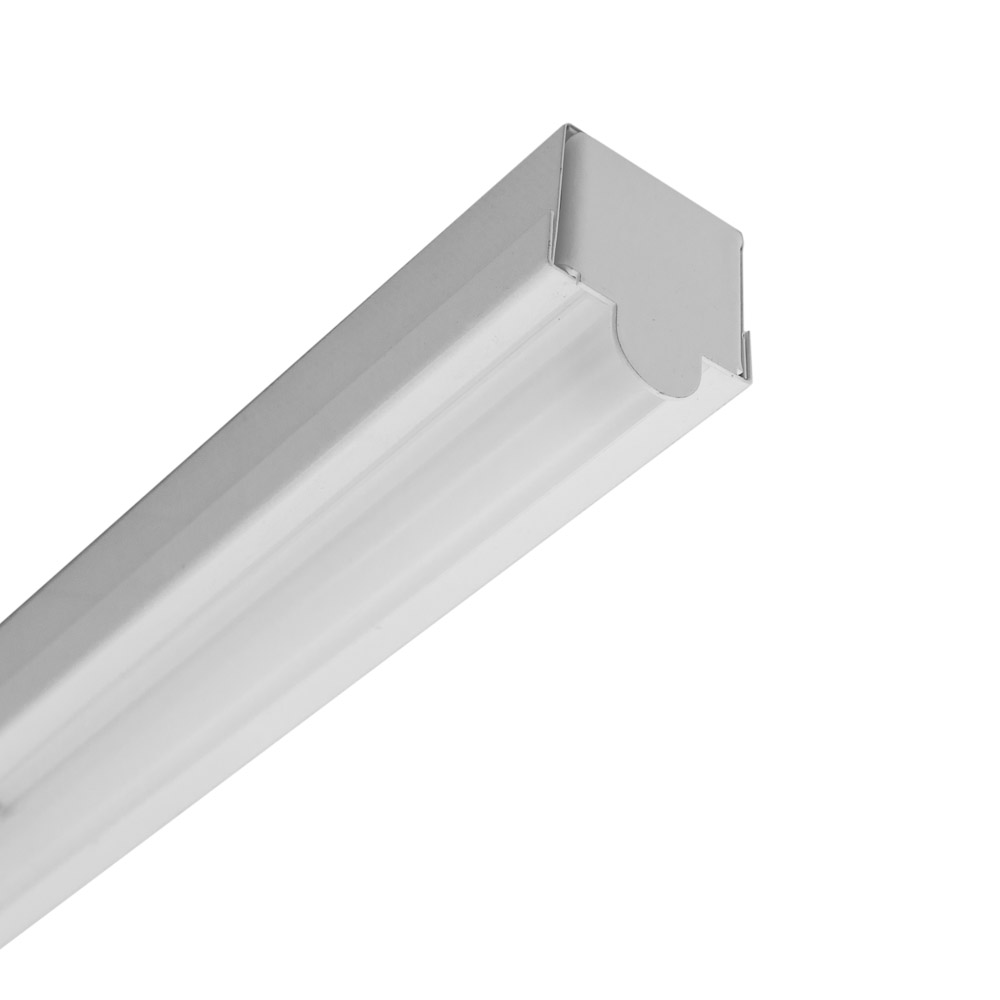

MODUS TEL R
LED linear fitting for line installation

11 L80_80000_h.jpg

Continous assembly modification of luminaire MODUS TEL.

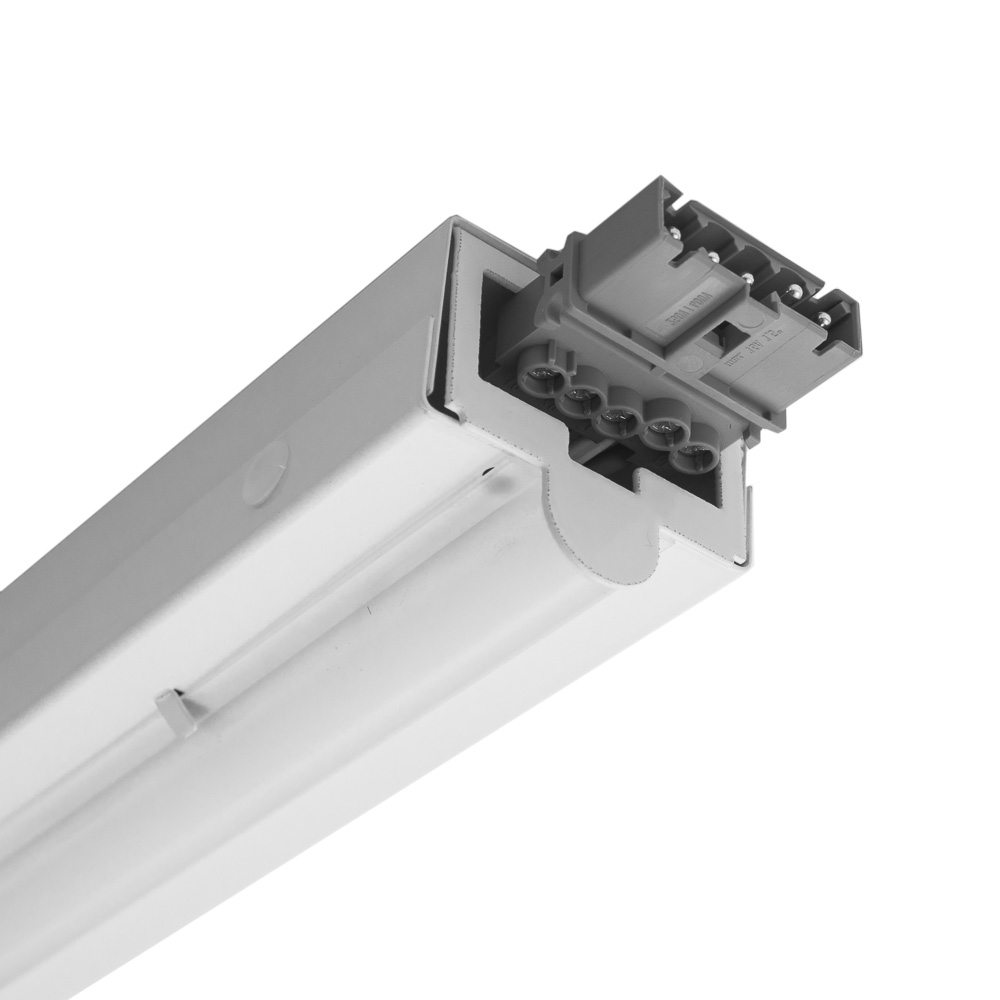

Fitting are equipped with continous 5 poles wirring 5x1,5mm2 connectors.

Nondimm luminares has black connectors and allows 3-phase connection.

DALI dimmable luminaires has blue connectors and allows 1 phase connection and DALI control signal.

Fittings L (1500mm) and M (1200mm) have connectors at both ends and contain plastic cover for covering of connection hole if it is not used.

Fittings S (600mm) and XM (750mm) can be used only at at end or start of line - there is connector only at one side.

To keep uniformity is needed to use luminaires with the same POWER CODE.

For surface mounted luminaires is not needed to use connection part "TELSPOJ".

Show more...

Main features

Lamp type:LED
Color temperature (K):3000, 4000, 5700
Color rendering index CRI:80-89, 90-100
Rated life time L80/B50 (h):80000
Degree of protection (IP):IP20
Optical system:TEL - Without reflector
TELDP - leštěná parabolická mřížka
TELN - white painted reflector - narrow beam
TELW - white painted reflector - wide beam
Size version:S - 600 mm
XM - 800 mm
M - 1200 mm
L - 1500 mm
Body material:White painted steel
Mounting method:Surface mounting, Pendant
Protection class:I
Type of control gear:LED operating device current-controlled
Suitable for light line configuration:Yes
Dimming DALI:Yes

Download

  • MODUS TELMODUS TEL

Light distribution


Accessories

Accessories TEL

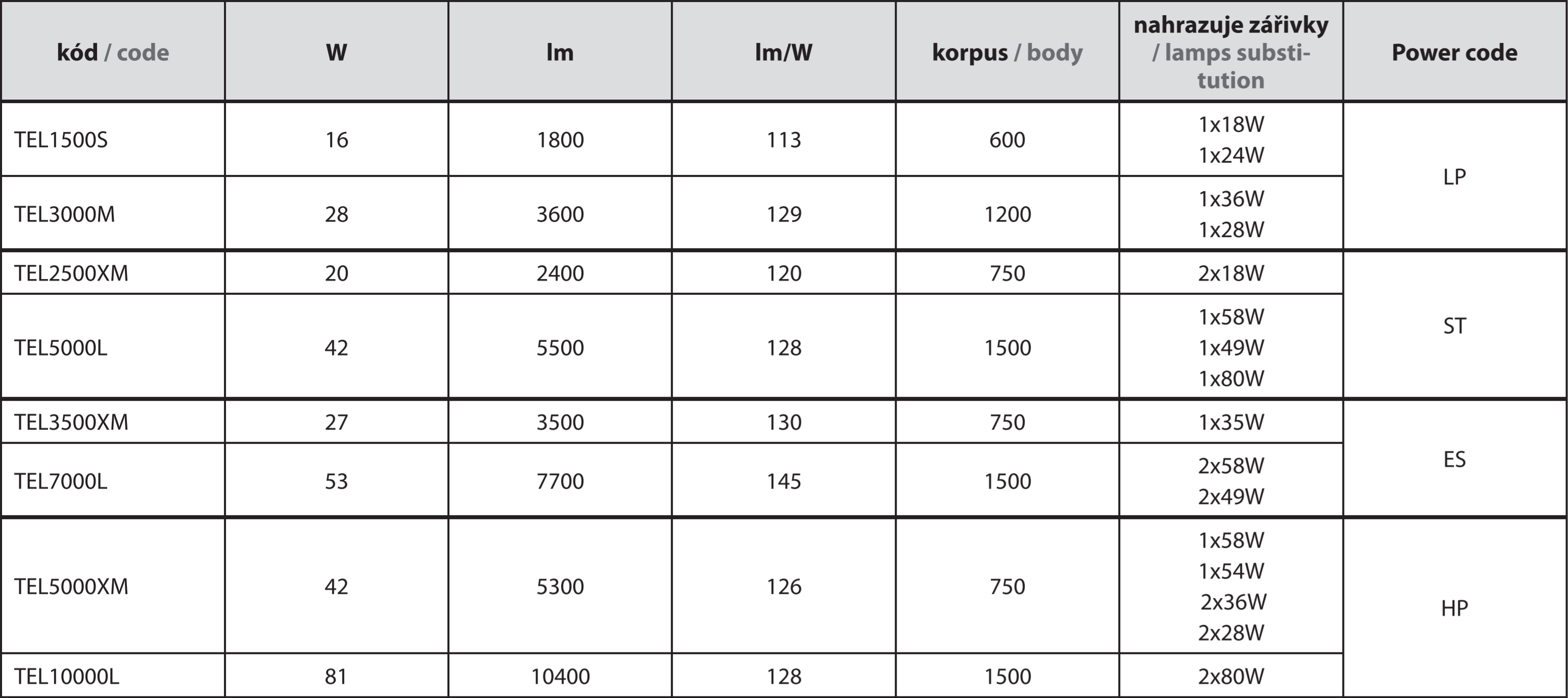

Versions

Effective luminous flux (lm): 1800
System power (W): 16
Color temperature (K): 3000
Optical system: TEL
Length (mm): 605
Effective luminous flux (lm): 1800
System power (W): 16
Color temperature (K): 4000
Optical system: TEL
Length (mm): 605
System power (W): 0
Optical system: TEL
Length (mm): 1484
System power (W): 0
Optical system: TEL
Length (mm): 1186
System power (W): 0
Optical system: TEL
Length (mm): 605
Effective luminous flux (lm): 2400
System power (W): 20
Color temperature (K): 4000
Optical system: TEL
Length (mm): 750
Effective luminous flux (lm): 3600
System power (W): 28
Color temperature (K): 3000
Optical system: TEL
Length (mm): 1186
Dimming DALI: Yes
Effective luminous flux (lm): 3600
System power (W): 28
Color temperature (K): 3000
Optical system: TEL
Length (mm): 1186
Effective luminous flux (lm): 3600
System power (W): 28
Color temperature (K): 4000
Optical system: TEL
Length (mm): 1186
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: TEL
Length (mm): 750
Effective luminous flux (lm): 5300
System power (W): 42
Color temperature (K): 4000
Optical system: TEL
Length (mm): 750
Effective luminous flux (lm): 2600
System power (W): 28
Color temperature (K): 4000
Optical system: TELDP
Length (mm): 1186
Effective luminous flux (lm): 4500
System power (W): 40
Color temperature (K): 4000
Optical system: TELDP
Length (mm): 750
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 4000
Optical system: TELN
Length (mm): 750
Effective luminous flux (lm): 4900
System power (W): 42
Color temperature (K): 4000
Optical system: TELN
Length (mm): 750
Effective luminous flux (lm): 2250
System power (W): 20
Color temperature (K): 4000
Optical system: TELW
Length (mm): 750
Effective luminous flux (lm): 3500
System power (W): 28
Color temperature (K): 4000
Optical system: TELW
Length (mm): 1186
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 4000
Optical system: TELW
Length (mm): 750
Effective luminous flux (lm): 5000
System power (W): 42
Color temperature (K): 4000
Optical system: TELW
Length (mm): 750
