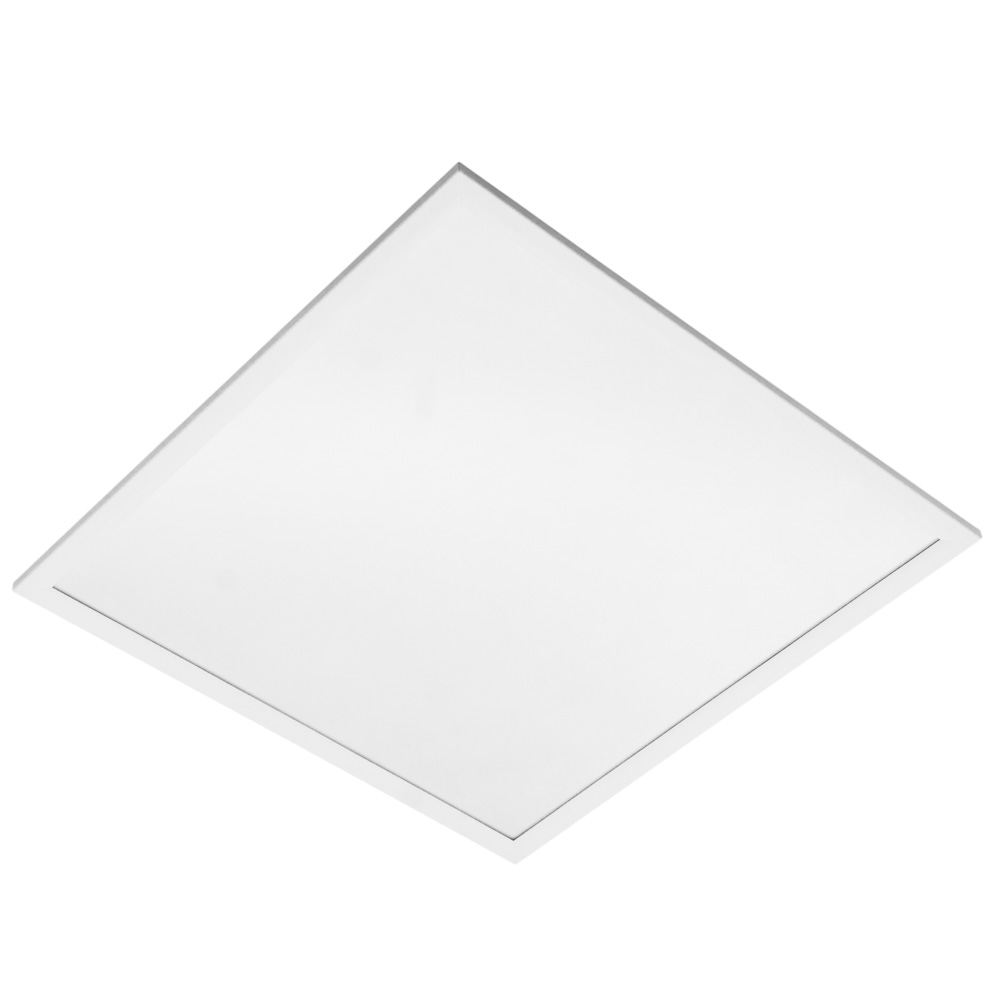

Product series

MODUS UQ

LED panel with high effectivity

MODUS UQ A
11 L80_80000_h.jpg

Price from:

2 000 Kč
( 2 420 Kč including VAT )

Body:

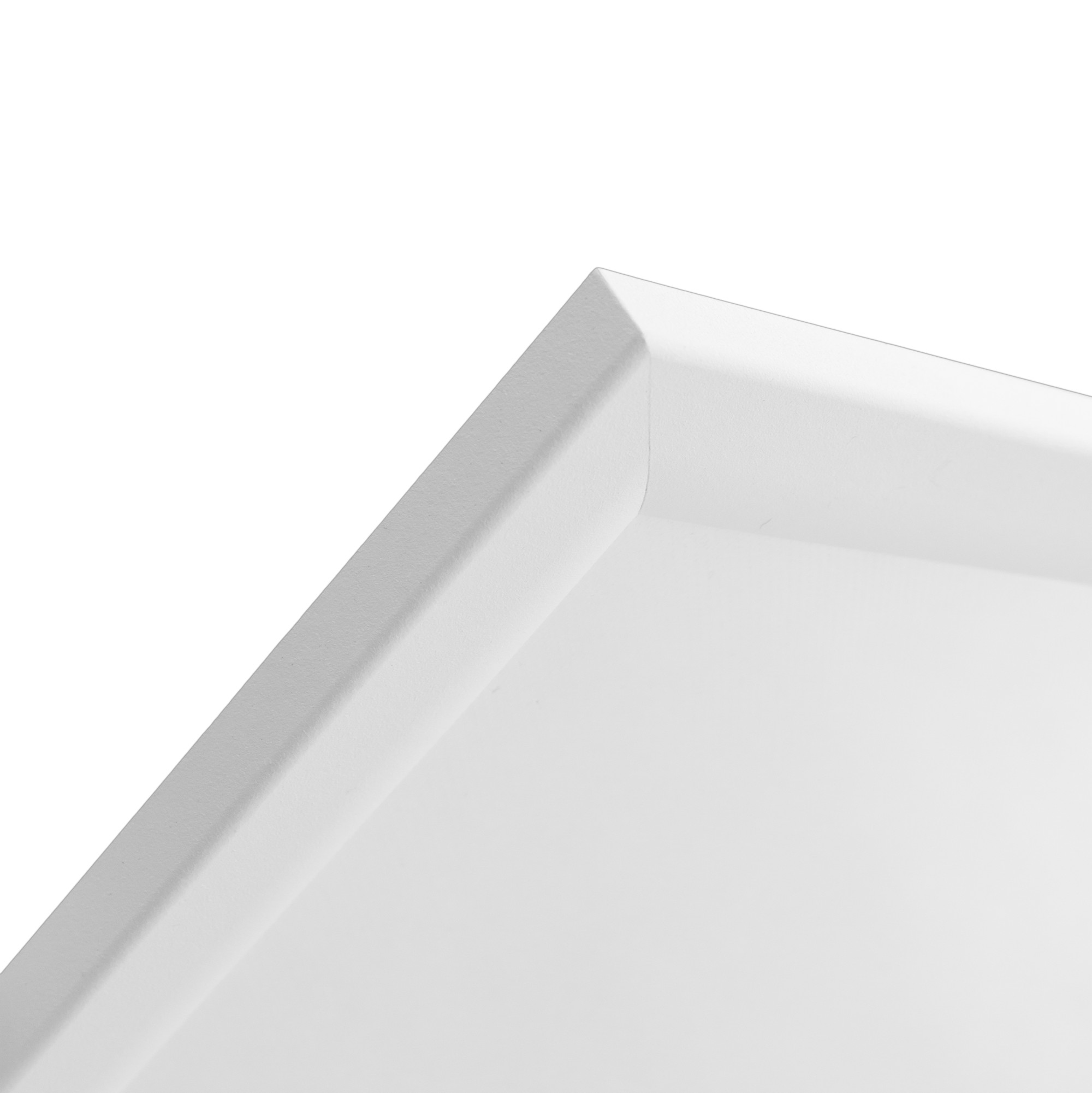

White painted (RAL9003) aluminium frame



Optic:

Translucent acrylic layer



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4…cold white 4000K

5…daylight 5700K



Wiring:

LED current driver

ND – not dimmable (standard)

DALI – dimmable DALI

DIM - dimmable 1-10V DC

PHC - phase-cut dimming

Luminaire can be supplied with wireless Bluetooth control - more information here.



Version (body shape):

UQ..A - square 600x600 mm



Installation way:

UQ - insulation class II, for recessed installation into a raster ceiling 600x600 or 625x625. Using accessories the panels can be also installed as pendant, surfaced or recessed into gypsum plasterboard ceiling



Accessories:

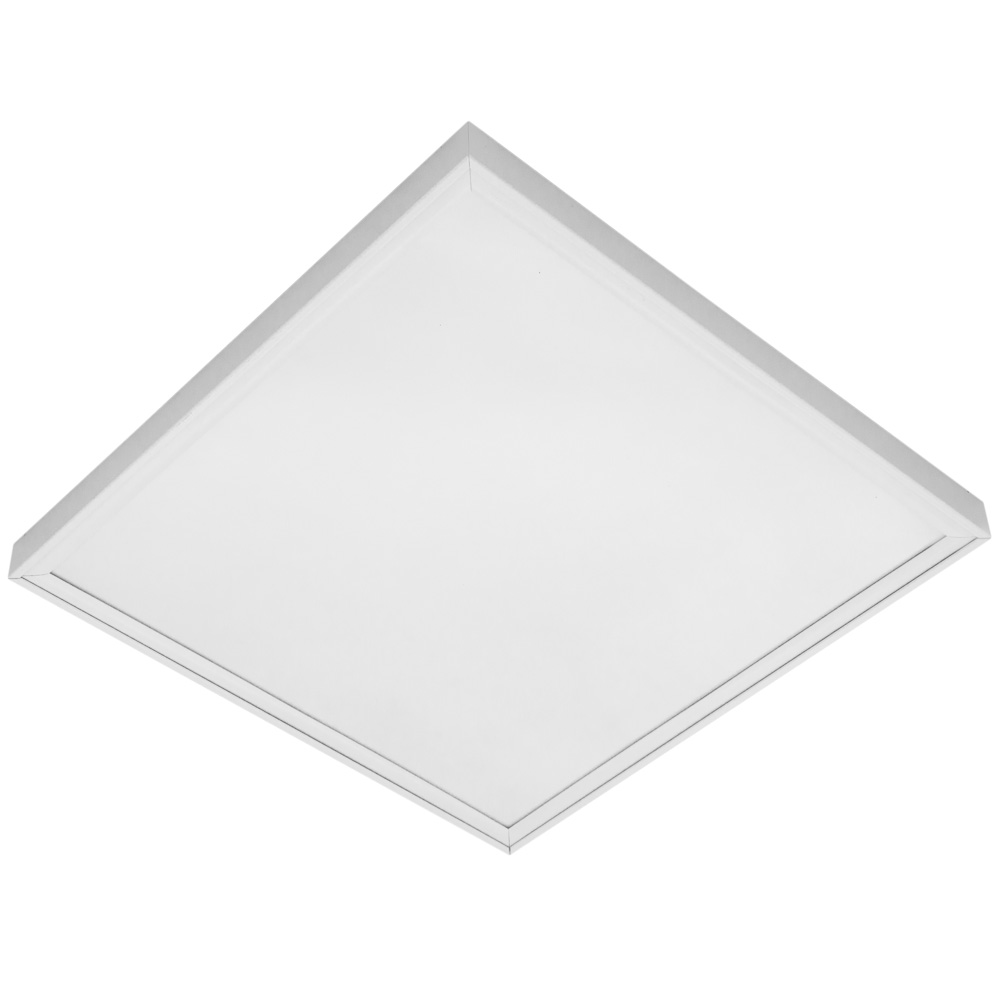

UQRAM - a frame for surface installation of UQ panels

QVESTRAM - a frame for recessed installation of UQ panels into gypsum plasterboard ceiling

51009913 - one magnetic holder for surface installation of UQ panels (4pcs / panel)

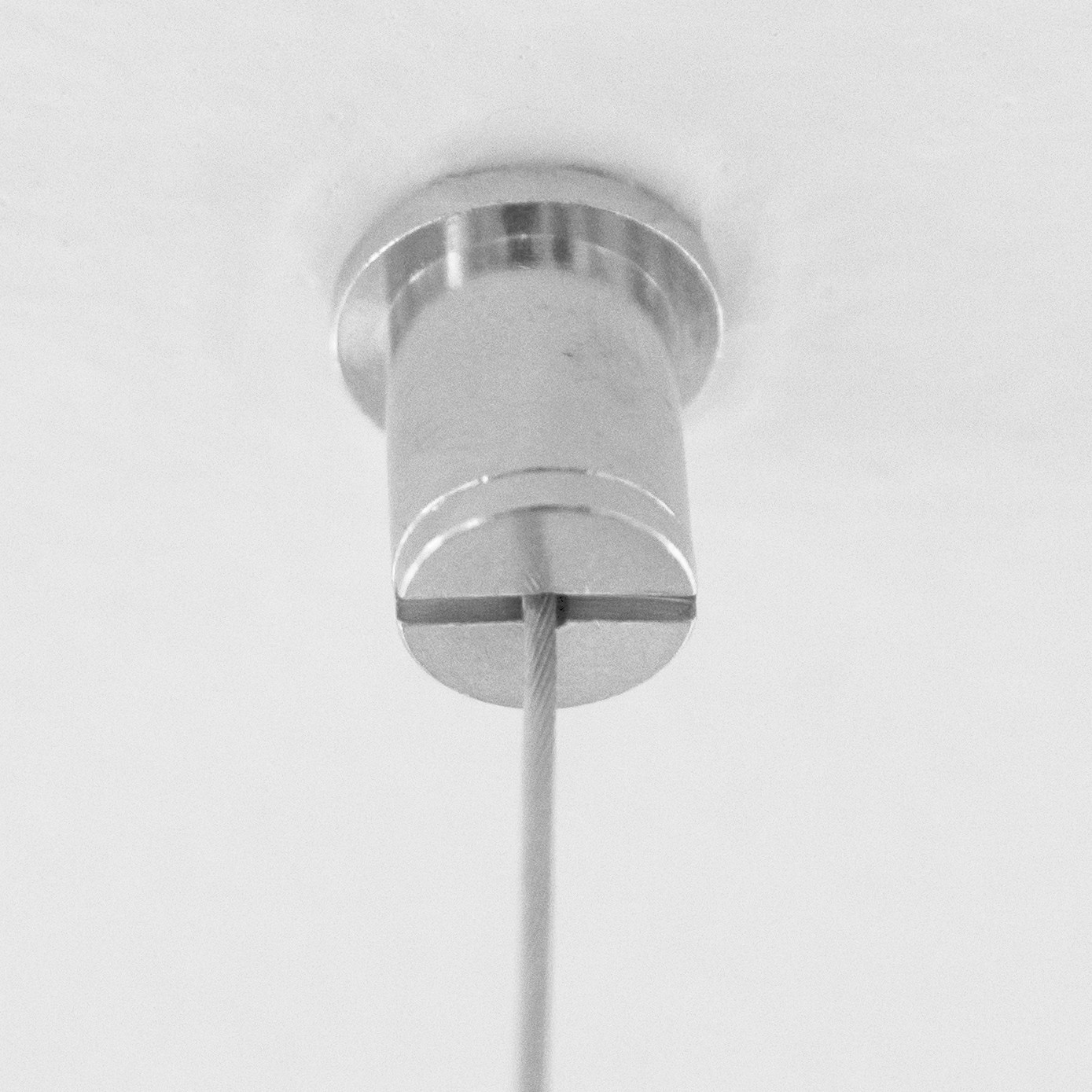

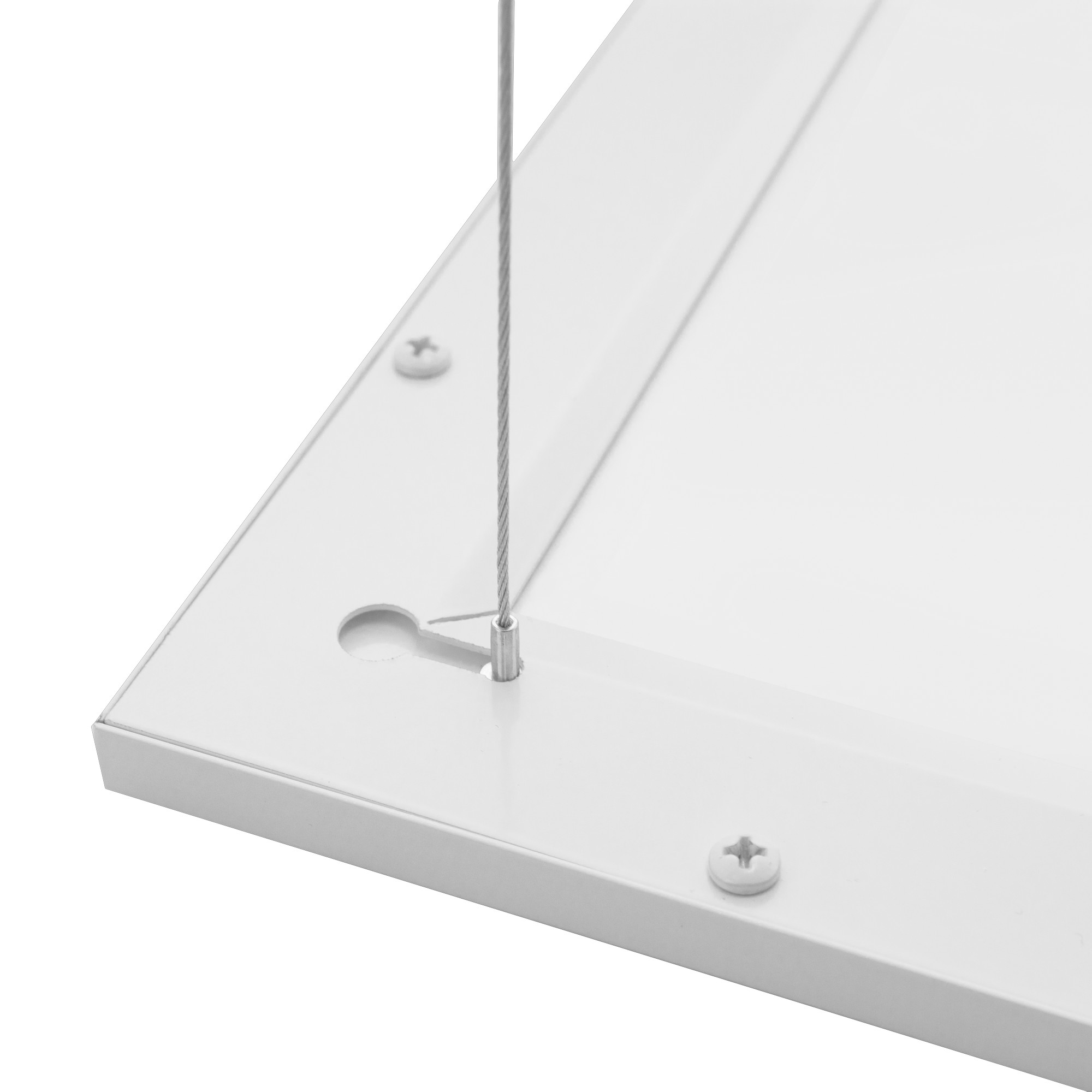

ZHUQ22 - suspension set



Lamp type:LEDColor temperature (K):3000, 4000, 5700
Color rendering index CRI:80-89, 90-100Rated life time L80/B50 (h):80000
Degree of protection (IP):IP20, IP40Optical system:UQ
high translucent acrylic
Size version:A
600x600 mm or 625x625 mm
Body material:White painted aluminium frame
Mounting method:Surface mounting, Built-in, PendantProtection class:II
Type of control gear:LED operating device current-controlledDimming 1-10 V:Yes
Dimming DALI:Yes
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

4000
5800

System power (W)

33
50
Product name
UQ3A600/1050DALI
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 3000
Optical system: UQ
Raster (mm): 600
UQ3A600/1050DIM
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 3000
Optical system: UQ
Raster (mm): 600
UQ3A600/1050ND
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 3000
Optical system: UQ
Raster (mm): 600
UQ3A600/700DALI
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: UQ
Raster (mm): 600
UQ3A600/700DALI/90
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: UQ
Raster (mm): 600
UQ3A600/700DIM
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: UQ
Raster (mm): 600
UQ3A600/700ND
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: UQ
Raster (mm): 600
UQ3A600/700ND/90
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: UQ
Raster (mm): 600
UQ3A600/FW1050ND
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 3000
Optical system: UQ
Raster (mm): 600
UQ3A625/1050DALI
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 3000
Optical system: UQ
Raster (mm): 625
UQ3A625/1050DIM
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 3000
Optical system: UQ
Raster (mm): 625
UQ3A625/1050ND
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 3000
Optical system: UQ
Raster (mm): 625
UQ3A625/700DALI
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: UQ
Raster (mm): 625
UQ3A625/700DIM
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: UQ
Raster (mm): 625
UQ3A625/700ND
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: UQ
Raster (mm): 625
UQ3C600/700DALI
UQ3D600/1400ND
Color temperature (K): 3000
Optical system: UQ
Raster (mm): 600
UQ3D600/2100ND
Color temperature (K): 3000
Optical system: UQ
Raster (mm): 600
UQ4A600/1050DALI
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 4000
Optical system: UQ
Raster (mm): 600
UQ4A600/1050DALI/90
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 4000
Optical system: UQ
Raster (mm): 600
UQ4A600/1050DIM
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 4000
Optical system: UQ
Raster (mm): 600
UQ4A600/1050ND
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 4000
Optical system: UQ
Raster (mm): 600
UQ4A600/1050ND/90
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 4000
Optical system: UQ
Raster (mm): 600
UQ4A600/700DALI
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: UQ
Raster (mm): 600
UQ4A600/700DALI/90
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: UQ
Raster (mm): 600
UQ4A600/700DALIT
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: UQ
Raster (mm): 600
UQ4A600/700DIM
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: UQ
Raster (mm): 600
UQ4A600/700ND
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: UQ
Raster (mm): 600
UQ4A625/1050DALI
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 4000
Optical system: UQ
Raster (mm): 625
UQ4A625/1050DIM
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 4000
Optical system: UQ
Raster (mm): 625
UQ4A625/1050ND
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 4000
Optical system: UQ
Raster (mm): 625
UQ4A625/700DALI
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: UQ
Raster (mm): 625
UQ4A625/700DIM
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: UQ
Raster (mm): 625
UQ4A625/700ND
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: UQ
Raster (mm): 625
UQ4D600/1400ND
Color temperature (K): 4000
Optical system: UQ
Raster (mm): 600
UQ4D600/2100ND
Color temperature (K): 4000
Optical system: UQ
Raster (mm): 600
UQ5A600/1050DALI
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 5700
Optical system: UQ
Raster (mm): 600
UQ5A600/1050DIM
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 5700
Optical system: UQ
Raster (mm): 600
UQ5A600/1050ND
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 5700
Optical system: UQ
Raster (mm): 600
UQ5A600/700DALI
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 5700
Optical system: UQ
Raster (mm): 600
UQ5A600/700DIM
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 5700
Optical system: UQ
Raster (mm): 600
UQ5A600/700ND
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 5700
Optical system: UQ
Raster (mm): 600
UQ5A600/700PHC
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 5700
Optical system: UQ
Raster (mm): 600
UQ5A600/F2700ND
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 5700
Optical system: UQ
Raster (mm): 600
UQ5A625
UQ5A625/1050DALI
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 5700
Optical system: UQ
Raster (mm): 625
UQ5A625/1050DIM
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 5700
Optical system: UQ
Raster (mm): 625
UQ5A625/1050ND
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 5700
Optical system: UQ
Raster (mm): 625
UQ5A625/700DALI
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 5700
Optical system: UQ
Raster (mm): 625
UQ5A625/700DIM
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 5700
Optical system: UQ
Raster (mm): 625
UQ5A625/700ND
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 5700
Optical system: UQ
Raster (mm): 625
UQN3A625
UQN4A625
