Product series
MODUS US

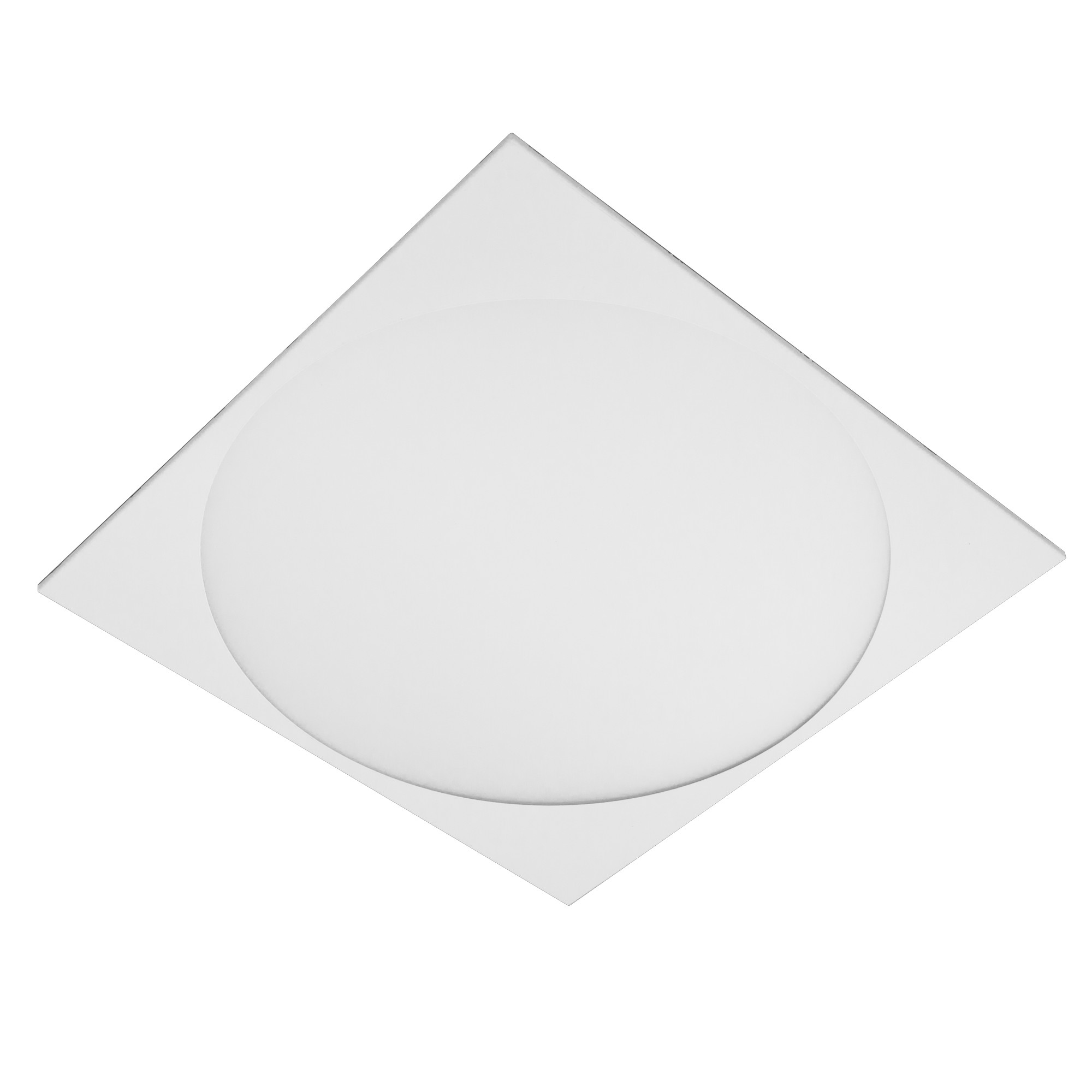

LED panel with micro-prismatic cover
MODUS US CMODUS US A
Standard price from:
On request
Body:
White painted (RAL9003) metal sheet
Optic:
Translucent acrylic layer + Microprizmatic cover
LED:
Mid Power LED
CRI 80
3...warm white 3000K
4…cold white 4000K
5…daylight 5700K
Wiring:
LED current driver
ND – not dimmable (standard)
DALI – dimmable DALI
DIM - dimmable 1-10V DC
Luminaire can be supplied with wireless Bluetooth control - more information here.
Version (body shape):
US..A - square 600x600 mm
US..C - rectangle 1200x300 mm
Variants:
US - standart fitting
USX - cost effective fitting
Installation way:
US - insulation class II, for recessed installation into a raster ceiling 600x600 or 625x625. Using accessories the panels can be also installed as surfaced or recessed into gypsum plasterboard ceiling
Accessories:
UQRAM - a frame for surface installation of US panels
QVESTRAM - a frame for recessed installation of US panels into gypsum plasterboard ceiling
| Size version: | A 600x600 mm or 625x625 mm C 1200x300 mm | Body material: | White painted steel | Mounting method: | Built-in, Surface mounting | Protection class: | II | With movement sensor: | Yes | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Anti-glare limiting UGR: | 19 | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20, IP40 |
| Fit for monitor workplace: | Yes | Color temperature (K): | 4000, 6500, 3000, 2700, 5700 | Rated lifetime L80/B50 (h): | 50000 | Dimming 1-10 V: | Yes | Dimming DALI: | Yes | Optical system: | KN nanoprizmatic cover | Made in Czech republic: | Yes | Replaceability: | Removeable light source, replaceable ballast Removeable light source, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Length (mm)
Raster (mm)
US2000A4KN600/ND
Effective luminous flux (lm): 1900
System power (W): 17
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
US3000A2KN600/DALI
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 2700
Length (mm): 596
Raster (mm): 600
US3000A2KN600/ND
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 2700
Length (mm): 596
Raster (mm): 600
US3000A3KN600/DALI
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
US3000A3KN600/DIM
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
US3000A3KN600/ND
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
US3000A3KN600/ND/FS
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
US3000A3KN600/ND/PIR
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
US3000A3KN625/DALI
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 3000
Length (mm): 622
Raster (mm): 625
US3000A3KN625/ND
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 3000
Length (mm): 622
Raster (mm): 625
US3000A4KN600/DALI
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
US3000A4KN600/ND
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
US3000A4KN600/ND/FS
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
US3000A4KN600/ND/FW
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
US3000A4KN625/ND
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 625
US3000A5KN600/ND
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 5700
Length (mm): 596
Raster (mm): 600
US3000A5KN625/ND
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 5700
Length (mm): 622
Raster (mm): 625
US3000C3KN600/DALI
Effective luminous flux (lm): 3000
System power (W): 27
Color temperature (K): 3000
Length (mm): 1196
Raster (mm): 600
US3000C3KN600/ND
Effective luminous flux (lm): 3000
System power (W): 27
Color temperature (K): 3000
Length (mm): 1196
Raster (mm): 600
US3000C4KN600/DALI
Effective luminous flux (lm): 3000
System power (W): 27
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
US3000C4KN600/DIM
Effective luminous flux (lm): 3000
System power (W): 27
Color temperature (K): 4000
Length (mm): 1196
Raster (mm): 600
US3000C4KN600/ND
Effective luminous flux (lm): 3000
System power (W): 27
Color temperature (K): 4000
Length (mm): 1196
Raster (mm): 600
US4000A2KN600/ND
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 2700
Length (mm): 596
Raster (mm): 600
US4000A3KN600/DALI
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
US4000A3KN600/DALI/F5W
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
US4000A3KN600/DIM
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
US4000A3KN600/ND
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
US4000A3KN600/ND/F2
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
US4000A3KN600/ND/FS
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
US4000A3KN600/ND/FW
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
US4000A3KN600/ND/PIR
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
US4000A3KN600/SR/S59
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
US4000A3KN600/SRS/S59
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
US4000A3KN600CIRC/DALI
Effective luminous flux (lm): 3800
System power (W): 36
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
US4000A3KN600CIRC/ND
Effective luminous flux (lm): 3800
System power (W): 36
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
US4000A3KN625/DALI
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 3000
Length (mm): 622
Raster (mm): 625
US4000A3KN625/DIM
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 3000
Length (mm): 622
Raster (mm): 625
US4000A3KN625/ND
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 3000
Length (mm): 622
Raster (mm): 625
US4000A4KN600/DALI
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
US4000A4KN600/DIM
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
US4000A4KN600/DIM/F5S
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
US4000A4KN600/ND
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
US4000A4KN600/ND/7016
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
US4000A4KN600/ND/F2
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
US4000A4KN600/ND/FS
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
US4000A4KN600/ND/FW
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
US4000A4KN600/ND/PIR
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
US4000A4KN600/SRS/S59
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
US4000A4KN600CIRC/DALI/S54
US4000A4KN600CIRC/ND
Effective luminous flux (lm): 3800
System power (W): 36
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
US4000A4KN625/DALI
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 625
US4000A4KN625/DALI/F5S
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 625
US4000A4KN625/DIM
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 625
US4000A4KN625/ND
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 625
US4000A4KN625/ND/PIR
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 625
US4000A4KN625/SRS/S59
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 625
US4000A5KN600/DALI
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 5700
Length (mm): 596
Raster (mm): 600
US4000A5KN600/ND
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 5700
Length (mm): 596
Raster (mm): 600
US4000A5KN600/ND/FS
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 5700
Length (mm): 596
Raster (mm): 600
US4000A5KN625/ND
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 5700
Length (mm): 622
Raster (mm): 625
US4000A6KN600/DALI
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 6500
Length (mm): 596
Raster (mm): 600
US4000A6KN600/ND
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 6500
Length (mm): 596
Raster (mm): 600
US4000A6KN600/ND/F2
Effective luminous flux (lm): 4100
System power (W): 36
Color temperature (K): 6500
Length (mm): 596
Raster (mm): 600
US4000C3KN600/DALI
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 3000
Length (mm): 1196
Raster (mm): 600
US4000C3KN600/DIM
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 3000
Length (mm): 1196
Raster (mm): 600
US4000C3KN600/ND
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 3000
Length (mm): 1196
Raster (mm): 600
US4000C3KN600/ND/FS
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 3000
Length (mm): 1196
Raster (mm): 600
US4000C3KN600/SRS/S59
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 3000
Length (mm): 1196
Raster (mm): 600
US4000C4KN600/DALI
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 4000
Length (mm): 1196
Raster (mm): 600
US4000C4KN600/DIM
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
US4000C4KN600/ND
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 4000
Length (mm): 1196
Raster (mm): 600
US4000C4KN600/ND/FS
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 4000
Length (mm): 1196
Raster (mm): 600
US4000C4KN600/SRS/S59
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 4000
Length (mm): 1196
Raster (mm): 600
US4000C5KN600/ND
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 5700
Length (mm): 1196
Raster (mm): 600
US4000C5KN600/ND/FS
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 5700
Length (mm): 1196
Raster (mm): 600
US4000C6KN600/ND
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 6500
Length (mm): 1196
Raster (mm): 600
US4000C6KN600/ND/FS
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 6500
Length (mm): 1196
Raster (mm): 600
USA3KN625
Color temperature (K): 3000
Length (mm): 622
Raster (mm): 625
USA4KN625
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 625
USA5KN625
Color temperature (K): 5700
Length (mm): 622
Raster (mm): 625
USC3KN600
Color temperature (K): 3000
Length (mm): 1196
Raster (mm): 600
USC4KN600
Color temperature (K): 4000
Length (mm): 1196
Raster (mm): 600
USC5KN600
Product page - PDF
CE declaration
Assembly instruction
LDT files
We are here to help
We'll advise you all, we have outstanding support.
Lighting calculations
Do you need to calculate the lighting?
LDT files
Do you need LDT data for your project?
Product support
Do not know what kind of lighting is best for you?
Connection diagrams
Do not you know how to conect luminaires properly?
