Product series MODUS PAR S

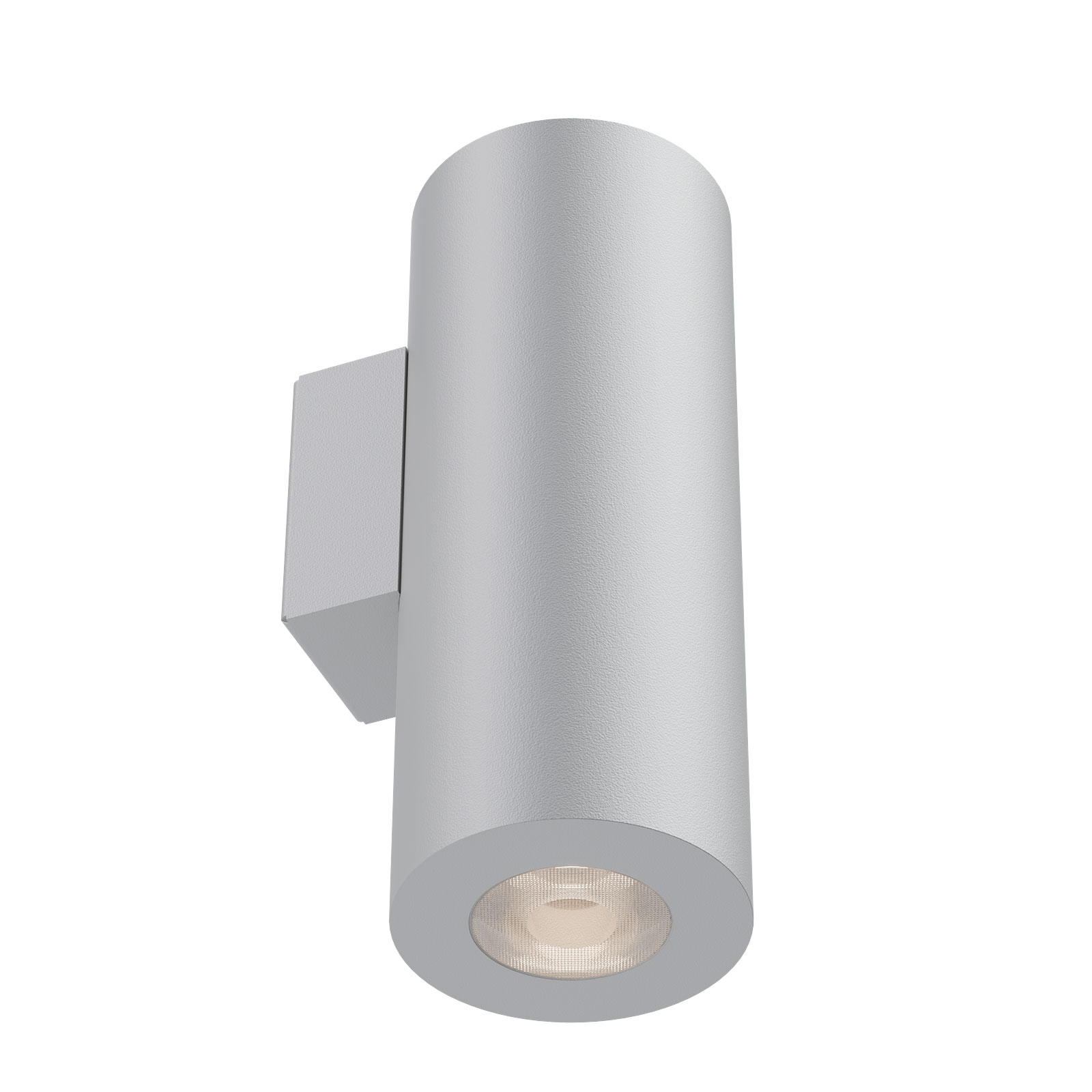

Wall spotlight MODUS PARS1000, LED 830, narrow beam 35°, direct/indirect white
Wall fitting aluminum luminaire
Code: PARS1000N3B/DI/ND
EAN: 8596099158644
This product contains a light source with energy efficiency class D
Luminaire properties
| Product category: | Downlight/spot/floodlight | Effective luminous flux (lm): | 1050 | Luminaire efficacy (lm/W): | 105 | Degree of protection (IP): | IP20 |
| Color housing: | White | Surface protection: | Powder coating | Material housing: | Aluminium | Suitable for wall mounting: | Yes | Suitable for surface mounting: | Yes |
| Made in Czech republic: | Yes |
Light source
| Light source type: | LED | Color temperature (K): | 3000 | Color rendering index CRI: | 80-89 | Colour consistency (McAdam ellipse): | SDCM3 |
| Replaceability: | Replaceable light source by professional, replaceable ballast | ||
| Light source type: | 224060401 | Energy efficiency class: | D |
Optical system
| Light outlet: | Direct/indirect | Light sharing: | Symmetric |
Dimensions
| Outer diameter (mm): | 90 | Height/depth (mm): | 220 | Weight (kg): | 1,2 |
Electrical values
| Voltage type: | AC | Type of control gear: | LED operating device current-controlled | Nominal voltage (V): | 220...240 | Control gear included: | Yes |
| No dim function: | Yes |
LDT data does not exist for this item
LoadingFilters
Effective luminous flux (lm)
Product name
Effective luminous flux (lm)
Color temperature (K)
Color housing
PARS1000N3B/DI/ND
Effective luminous flux (lm): 1050
Color temperature (K): 3000
Color housing: White
PARS1000N3B/ND
Effective luminous flux (lm): 1050
Color temperature (K): 3000
Color housing: White
PARS1000N4C/ND
Effective luminous flux (lm): 1050
Color temperature (K): 4000
Color housing: Black
PARS1000W4/7016/ND
Effective luminous flux (lm): 1050
Color temperature (K): 4000
Color housing: Anthracite
PARS1000W4C/DI/ND
Effective luminous flux (lm): 1050
Color temperature (K): 4000
Color housing: Black
PARS1500N3B/DI/ND
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Color housing: White
PARS1500N3B/ND
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Color housing: White
PARS1500N3C/DALI
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Color housing: Black
PARS1500N3C/DI/ND
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Color housing: Black
PARS1500N3C/ND
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Color housing: Black
PARS1500W3C/DALI/S54
Effective luminous flux (lm): 1500
PARS1500W3C/DI/DALI/S54
Effective luminous flux (lm): 1500
PARS1500W3C/DI/ND
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Color housing: Black
PARS1500W4B/DI/ND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
Color housing: White
PARS1500W4B/ND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
Color housing: White
PARS1500W4C/DI/ND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
Color housing: Black
PARS1500W4C/ND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
Color housing: Black
PARS3000W3C/DI/ND
Effective luminous flux (lm): 3000
Color temperature (K): 3000
Color housing: Black
PARS700N3B/DI/ND
Effective luminous flux (lm): 750
Color temperature (K): 3000
Color housing: White
PARS700N3C/DI/ND
Effective luminous flux (lm): 750
Color temperature (K): 3000
Color housing: Black
PARS700N3C/ND
Effective luminous flux (lm): 750
Color temperature (K): 3000
Color housing: Black
PARS700W4/7016/ND
Effective luminous flux (lm): 750
Color temperature (K): 4000
Color housing: Anthracite
PARS700W4C/ND
Effective luminous flux (lm): 750
Color temperature (K): 4000
Color housing: Black
