Product series

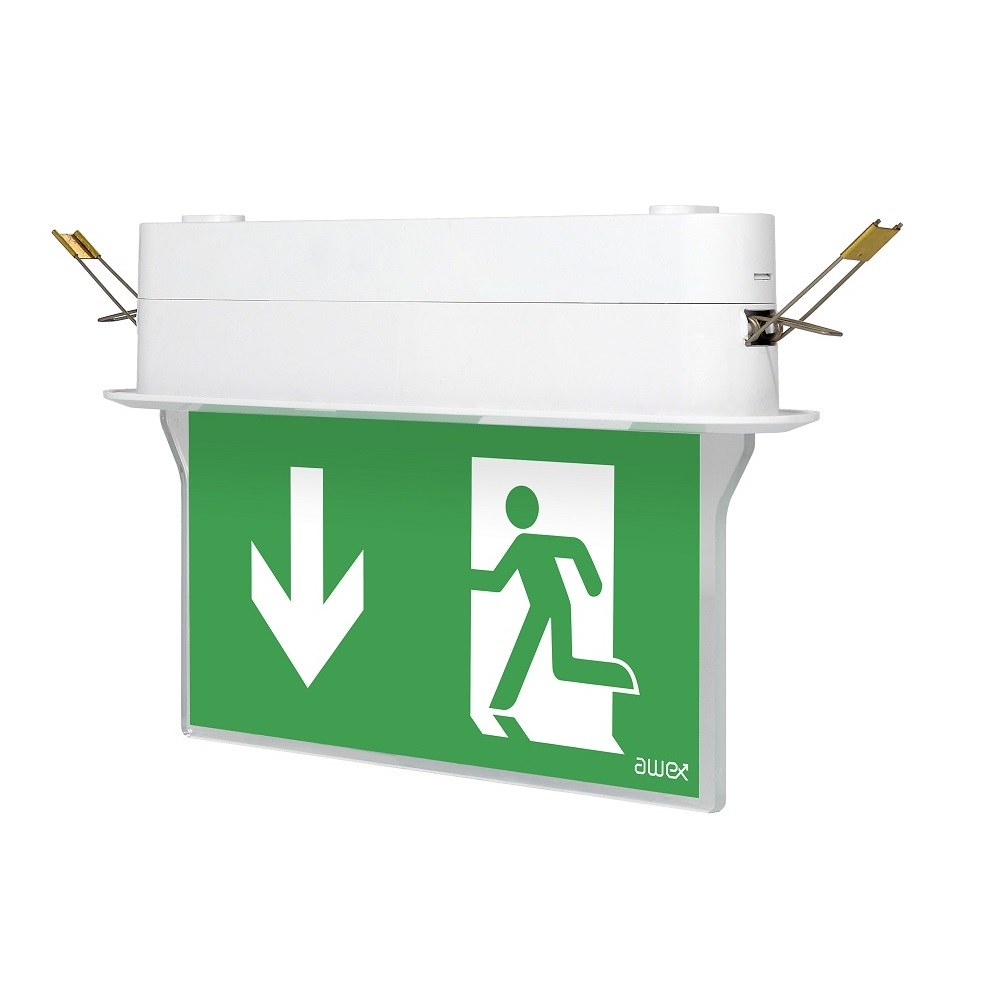

ARROW P

ARROW P

Standard price from:

On request

MATERIALS:
White, grey or black polycarbonate body • Transparent polycarbonate cover
MOUNTING:
Recessed
POWER SUPPLY:
Self contained – 220 - 240VAC/50 - 60Hz
Central battery – 220 - 240VAC/50 - 60Hz; 176 - 275VDC
Central battery FZLV II – 48VDC
Central battery FZLV – 24VDC
LIGHT SOURCE:
1W, 2W, 3W, 3x1W LED
Optics: S – without optics • O – open area • C – escape route
Colour temperature: 6000K
Lifetime: 50000h
CHARGING:
Standard: max. 24h
Premium: max. 12h; energy-saving electronic charger
AUTONOMY AND BATTERIES:
Standard: 1h or 3h, Ni-Cd 3,6V batteries
Premium: 1h or 3h, LiFePO4 6,4V batteries
INSULATION CLASS:
II or III
IP & IK RATING:
IP40, IK08
AMBIENT TEMPERATURE:
Self-contained: ta: 0°C ÷ 40°C
Central battery: ta: 0°C ÷ 50°C
OPTIONS:
• SE – non maintained • SA – maintained • AT – autotest • PT – manual test button
• RU – Rubic UNA central monitoring • RD – DALI central monitoring • FZLV – central battery
FZLV 24VDC • FZLV2 – central battery FZLV II 48VDC • CB – central battery
ADDITIONAL INFORMATION:
LED indicator signalizes mains power supply and battery charge • Deep discharge
protection • III class of insulation of FZLV and FZLV2 version
