Product series

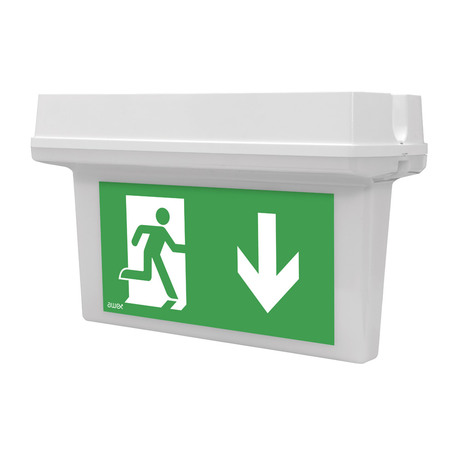

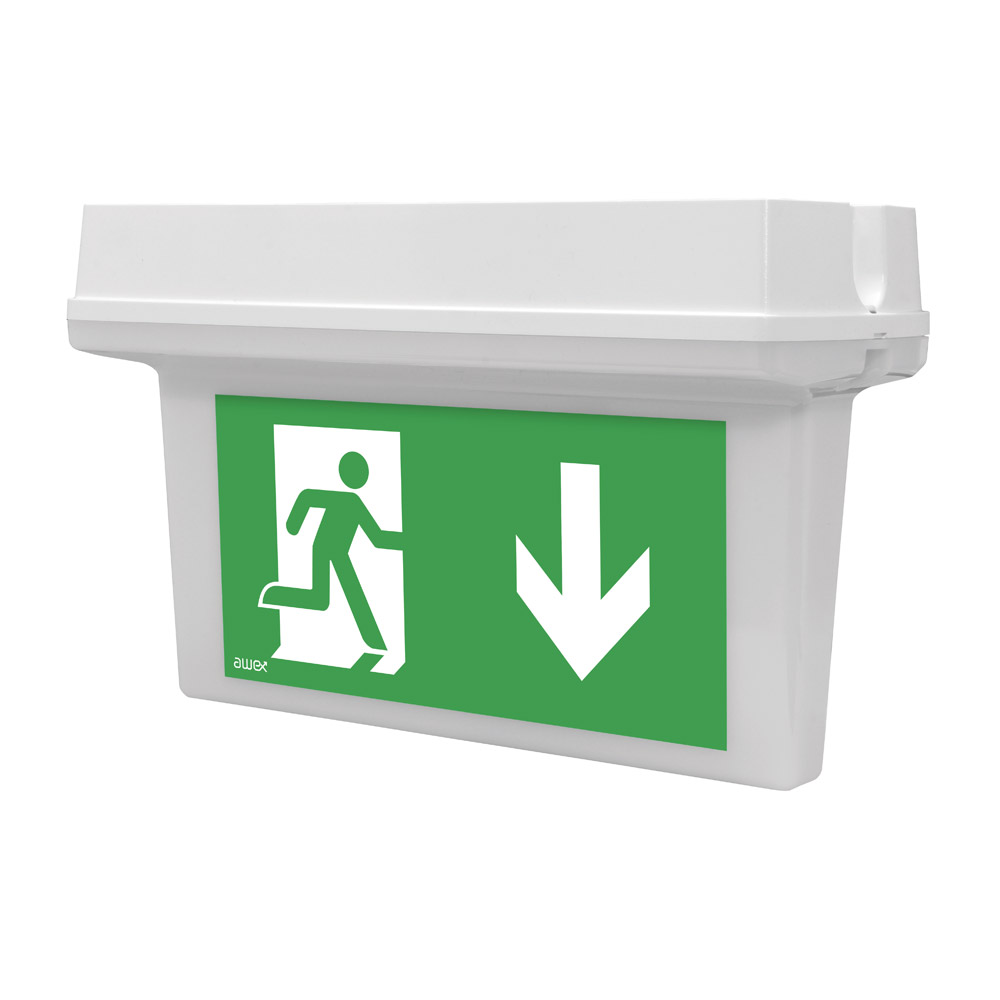

HELIOS DS LED

HELIOS DS LED

Standard price from:

On request

MATERIALS:
White polycarbonate body
Opal polycarbonate cover
MOUNTING:
Surface (ceiling)
POWER SUPPLY:
Self contained – 220 – 240VAC/50 – 60Hz
Central battery – 220 – 240VAC/50 – 60Hz; 176 – 275VDC
Central battery FZLV – 24VDC
LIGHT SOURCE:
1W, 2W LED
8W fluorescent lamp
CHARGING:
BASIC: max. 24h
STANDARD: max. 24h
PREMIUM: max. 12h; energy-saving electronic charger
AUTONOMY AND BATTERIES:
BASIC: 1h or 3h, Ni-Cd 3,6V batteries
STANDARD: 1h or 3h, Ni-Cd 3,6V batteries
PREMIUM: 1h or 3h, LiFePO4 6,4V batteries
INSULATION CLASS:
II or III
IP RATING:
IP42 or IP65
VIEWING DISTANCE:
25m
AMBIENT TEMPERATURE:
ta: 0°C÷40°C
ta: -25°C ÷ 40°C – together with heater for low temperatures
OPTIONS:
SE – non maintained
SA – maintained
PT – manual test button
AT – autotest
RU – Rubic UNA central monitoring
FZLV – central battery FZLV 24VDC
CB – central battery
ADDITIONAL INFORMATION:
LED indicator signalizes mains power supply and battery charge
Deep discharge protection
Protection against mechanical impacts – IK08
III class of insulation of FZLV version
