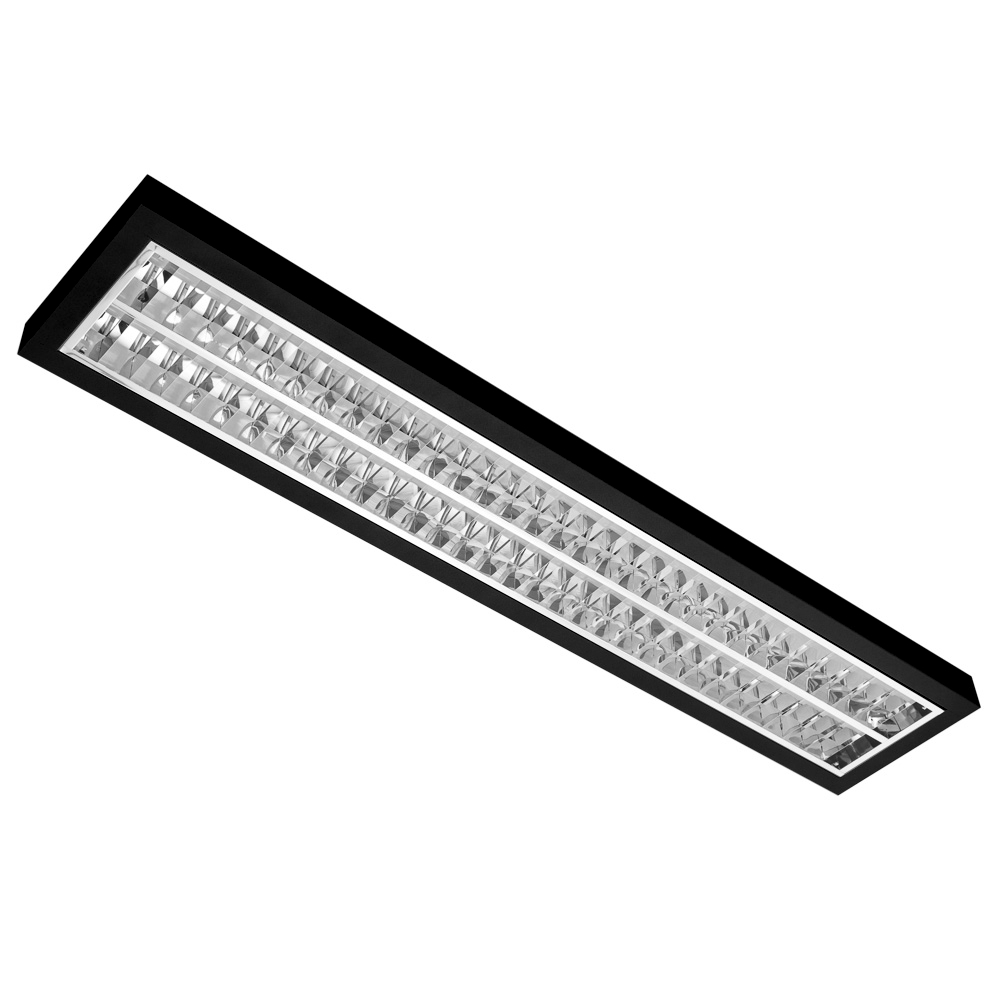

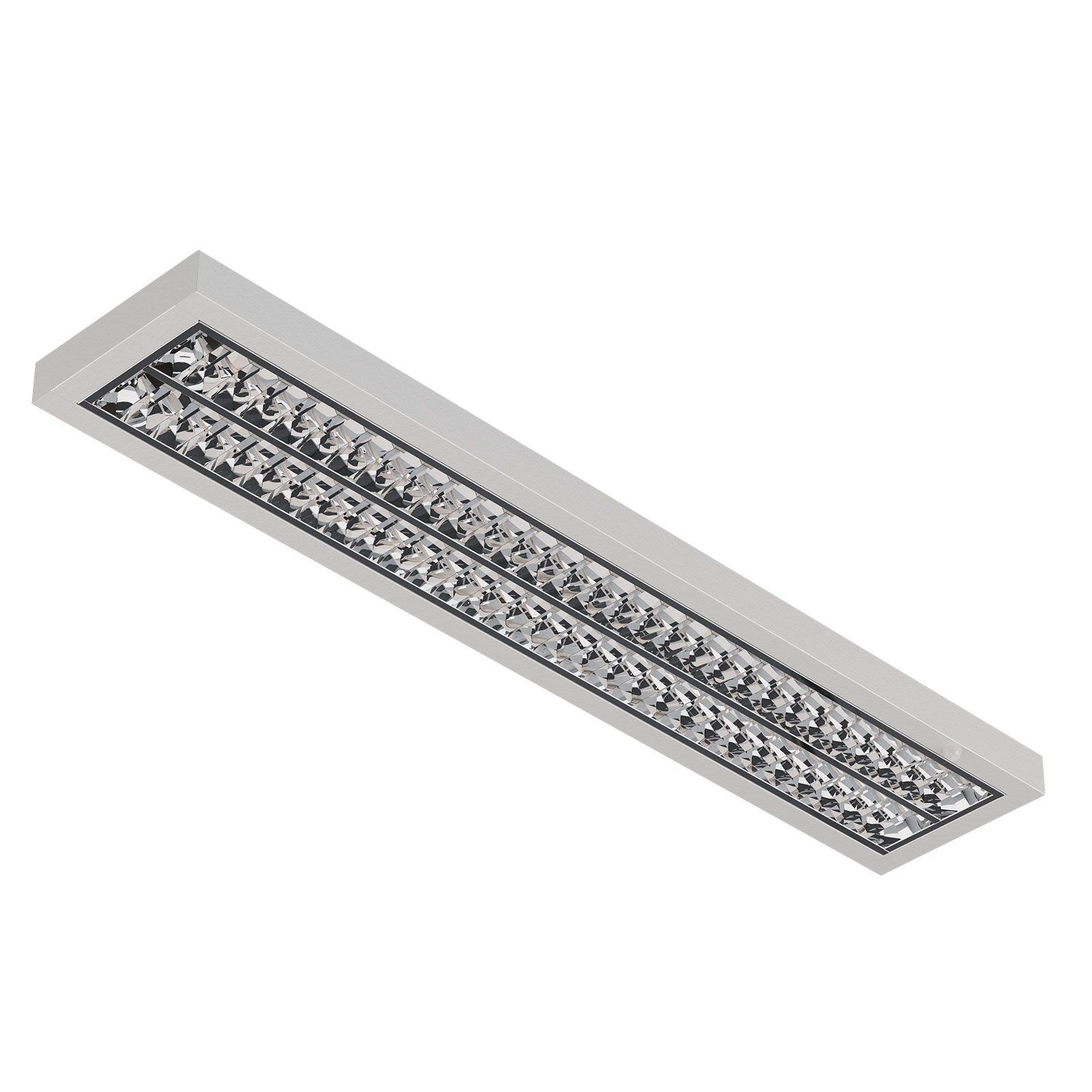

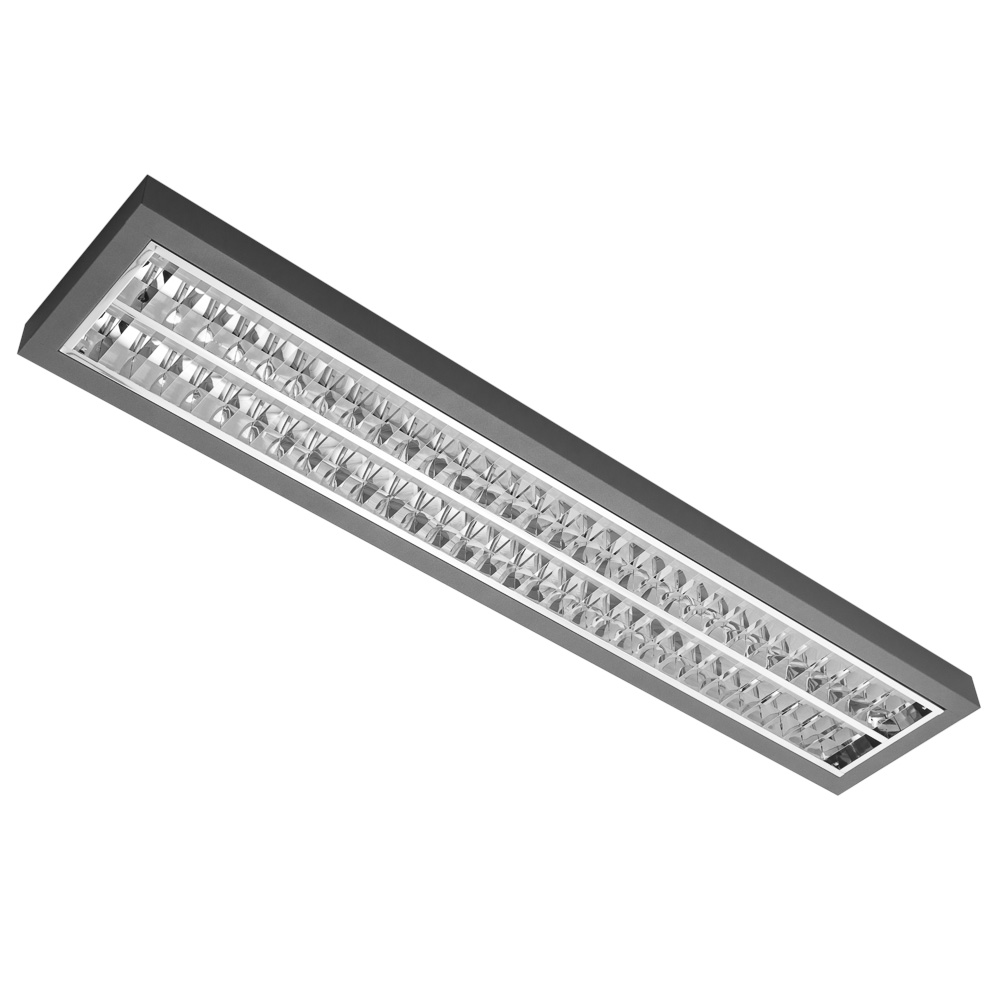

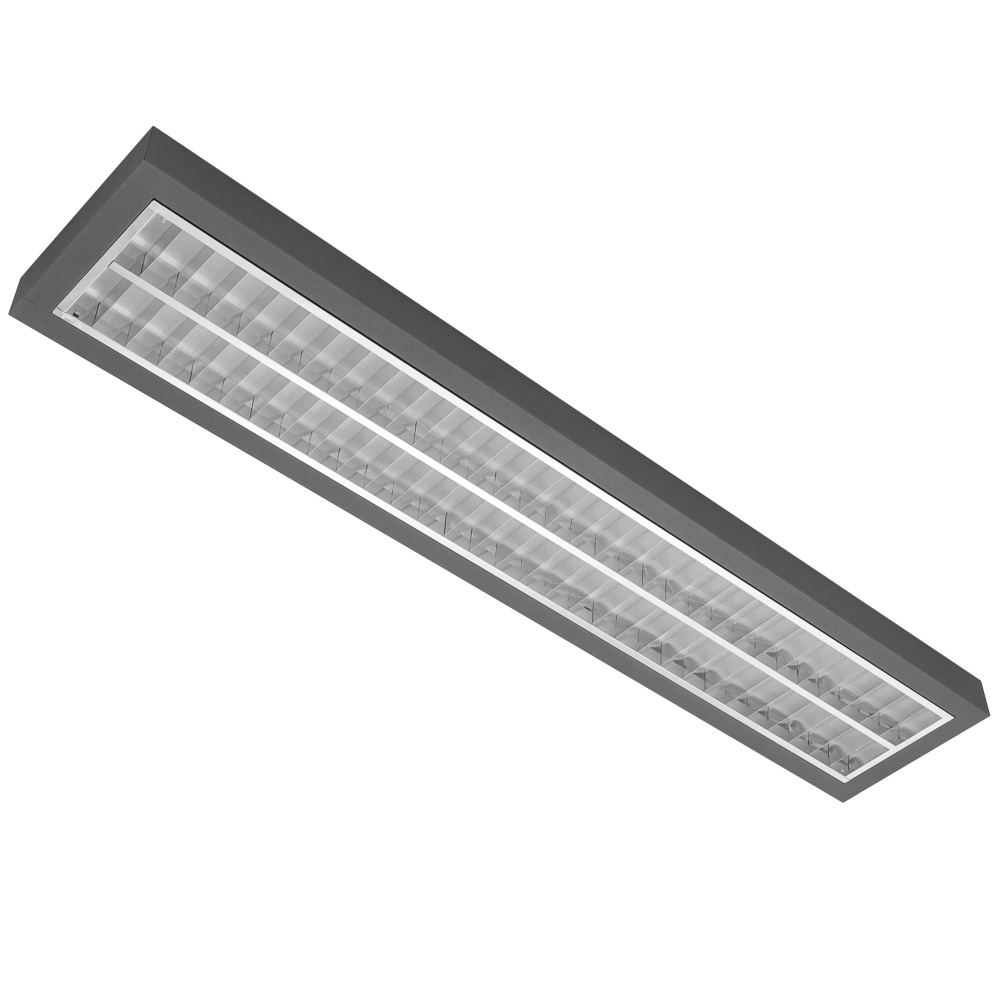

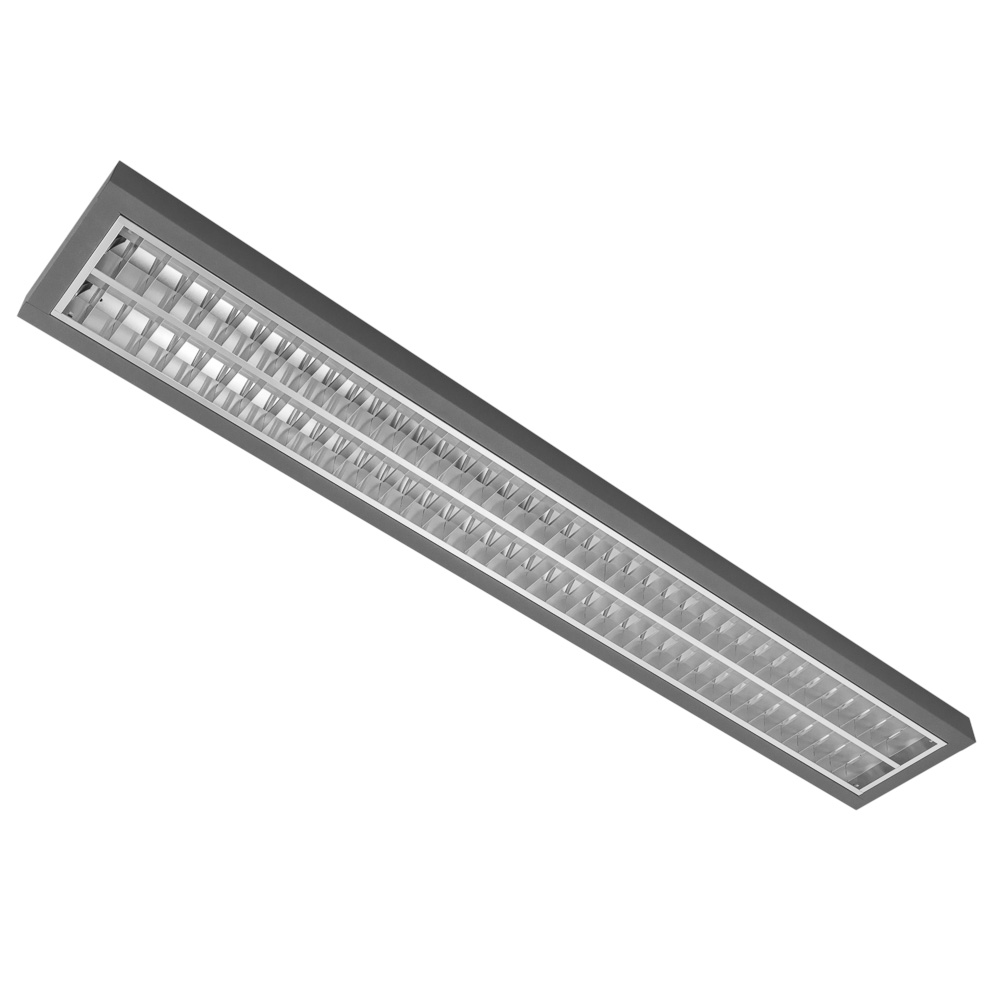

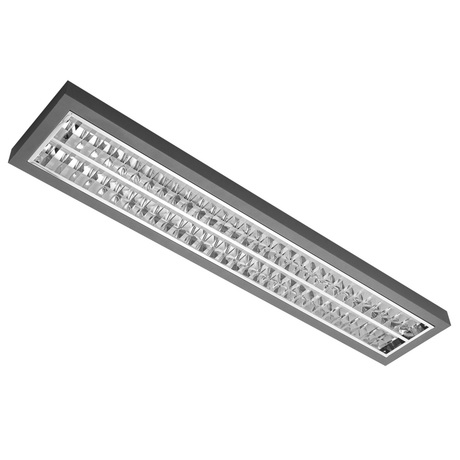

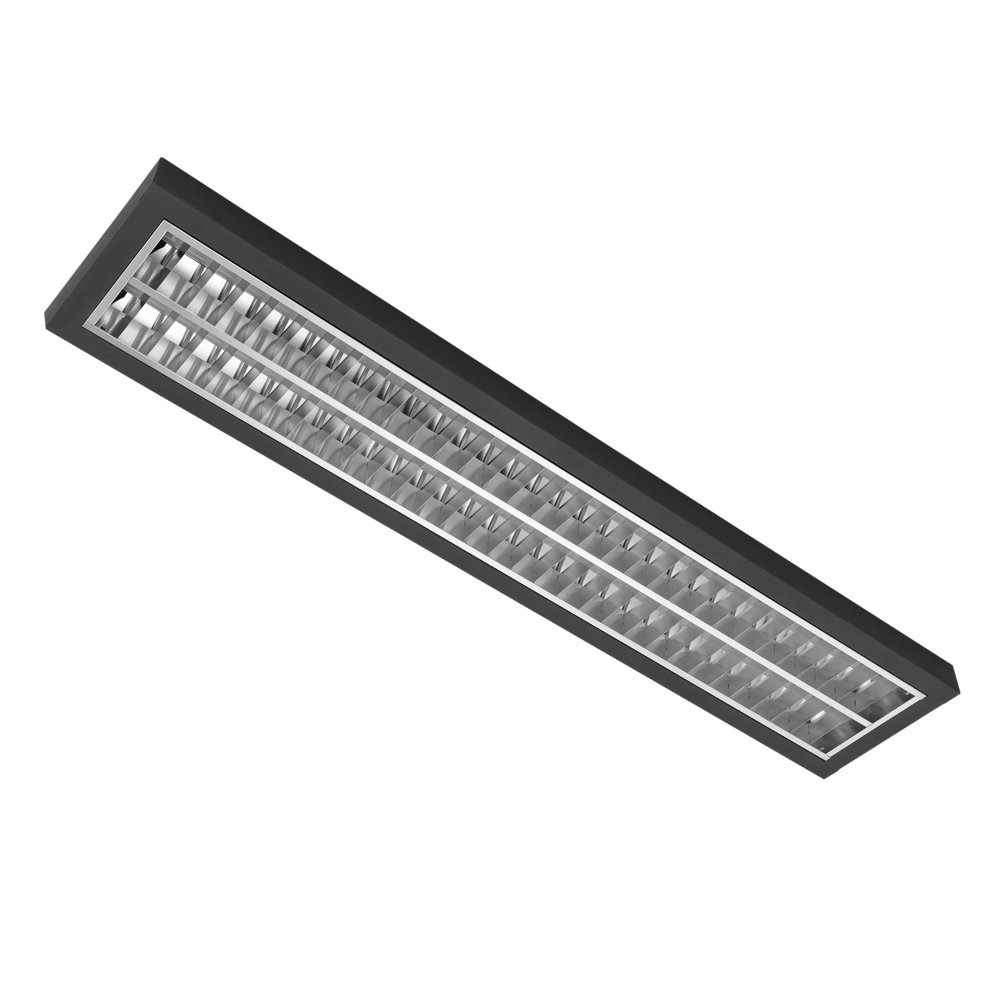

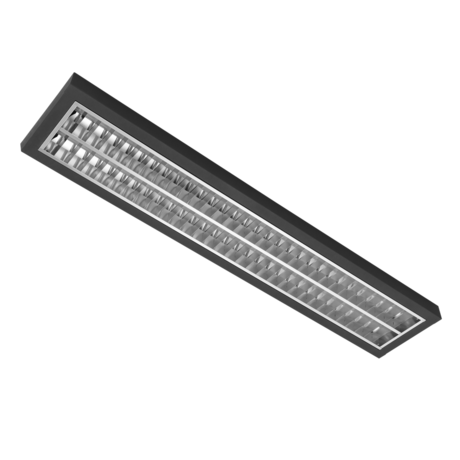

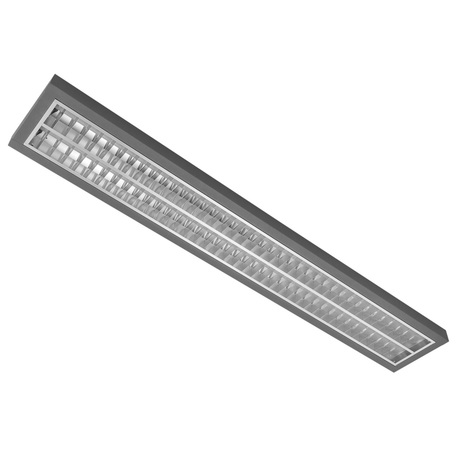

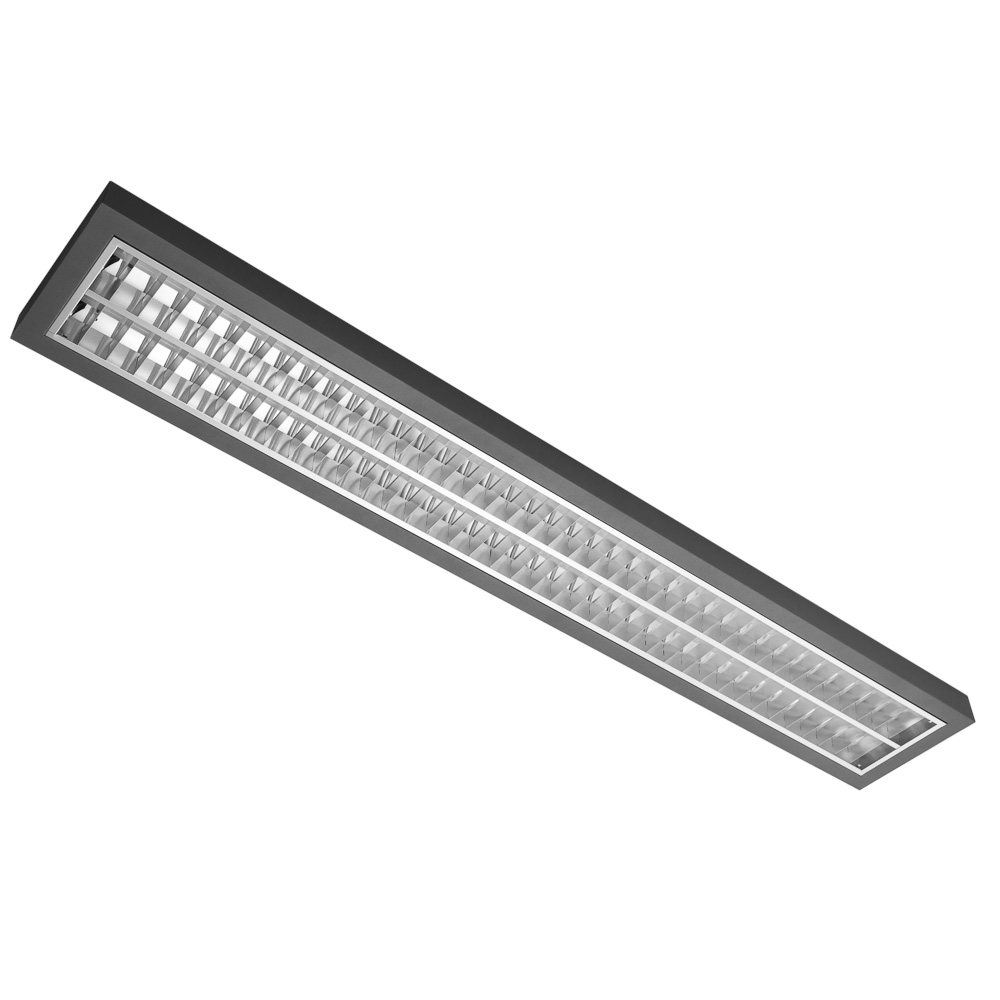

MODUS AREL
Pendant/surface louvre fitting

11 L80_80000_h.jpg

Body:

Grey painted (RAL 9007) metal sheet, on request also possible in white (RAL9016).



Optical system:

KV - double parabolic louvre category C2 of highly polished aluminium, with opal cover of LED modules

KVM - double parabolic louvre category C2 of mat aluminium, with opal cover of LED modules.

Effectivity is the same for both version (KV and KVM)

LOR both matt and highly polished louvres are equal

Due a used double optics system - there is reached UGR<19.



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V

Luminaire can be supplied with wireless Bluetooth control - more information here.



Application:

Surface or pendant installation

These LED fittings are recomended for offices, for lighting areas with high requirements for light and glare control. UGR<19



Accessories:

ZHX11 - suspension set



Other version:

AREL D/I - for direct / indirect illumination

AREL AS - asymetrical reflector

Show more...

Main features

Lamp type:LED
Color temperature (K):3000, 4000, 5700
Color rendering index CRI:80-89, 90-100
Rated life time L80/B50 (h):80000
Degree of protection (IP):IP20
Optical system:KV - opal profile + louvre ALDP
KVM - opal profile + louvre matt DP
Size version:L - 1500 mm
M - 1200 mm
Body material:White painted steel, Grey painted (RAL 9007) metal sheet
Mounting method:Surface mounting, Suspended
Fit for monitor workplace:Yes
Dimming 1-10 V:Yes
Dimming DALI:Yes

Download

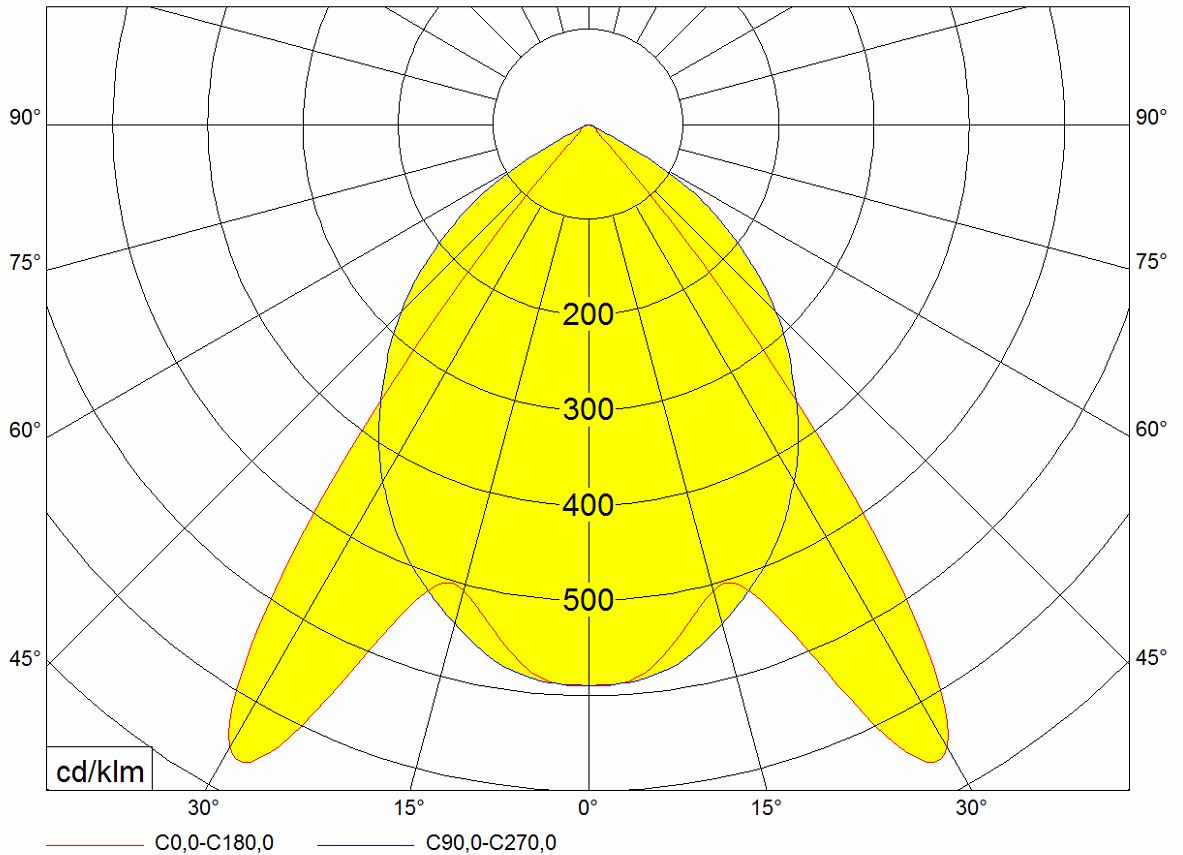

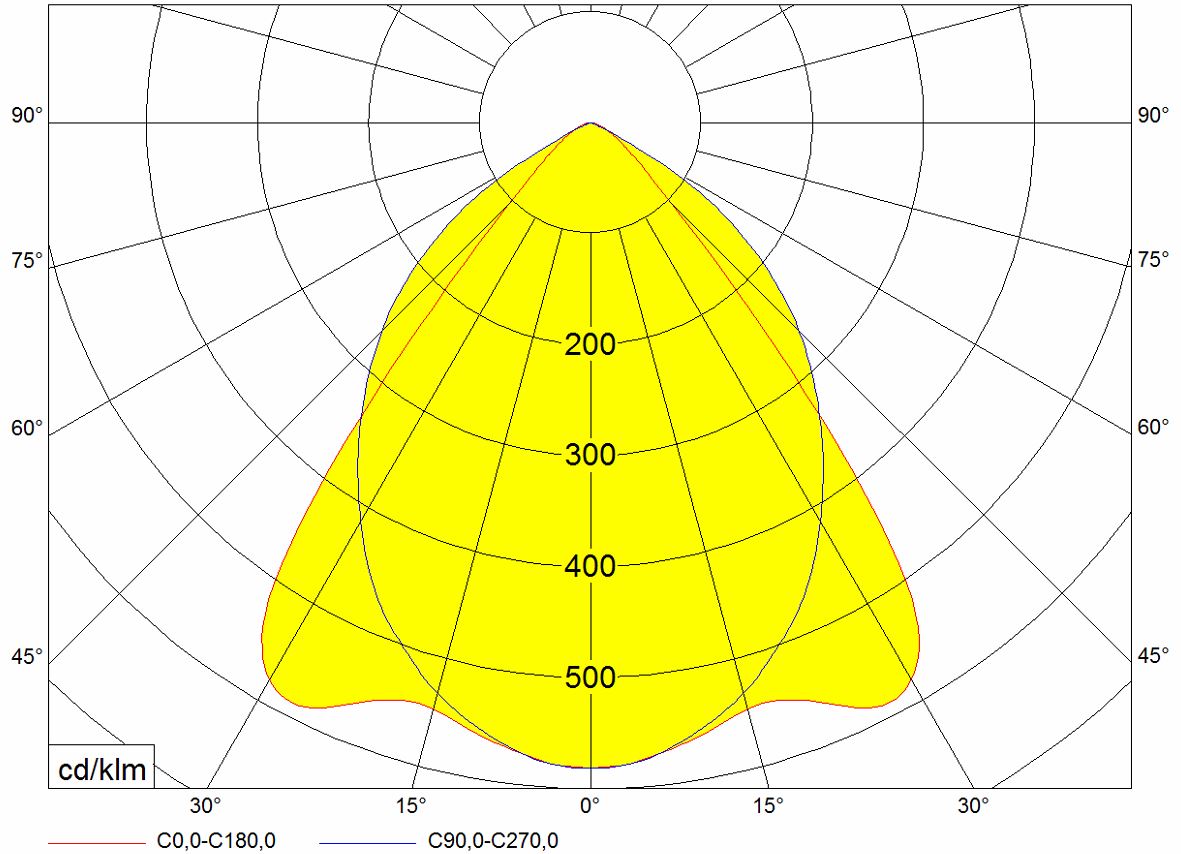

Light distribution


Accessories

Pendant mounting of luminairesWire suspensions sets

Versions

Effective luminous flux (lm): 2100
Luminaire efficacy (lm/W): 111
Color temperature (K): 3000
Optical system: KV
Length (mm): 1245
Width (mm): 160
Size version: M
Effective luminous flux (lm): 2100
Luminaire efficacy (lm/W): 111
Color temperature (K): 4000
Optical system: KV
Length (mm): 1245
Width (mm): 160
Size version: M
Effective luminous flux (lm): 2100
Luminaire efficacy (lm/W): 111
Color temperature (K): 4000
Optical system: KV
Length (mm): 1245
Width (mm): 160
Size version: M
Effective luminous flux (lm): 2150
Luminaire efficacy (lm/W): 113
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1245
Width (mm): 160
Size version: M
Dimming DALI: Yes
Effective luminous flux (lm): 2150
Luminaire efficacy (lm/W): 113
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1245
Width (mm): 160
Size version: M
Dimming 1-10 V: Yes
Effective luminous flux (lm): 2150
Luminaire efficacy (lm/W): 113
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1245
Width (mm): 160
Size version: M
Effective luminous flux (lm): 2150
Luminaire efficacy (lm/W): 113
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1245
Width (mm): 160
Size version: M
Effective luminous flux (lm): 2150
Luminaire efficacy (lm/W): 113
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1245
Width (mm): 160
Size version: M
Effective luminous flux (lm): 2150
Luminaire efficacy (lm/W): 113
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1245
Width (mm): 160
Size version: M
Dimming DALI: Yes
Effective luminous flux (lm): 2150
Luminaire efficacy (lm/W): 113
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1245
Width (mm): 160
Size version: M
Dimming 1-10 V: Yes
Effective luminous flux (lm): 2100
Luminaire efficacy (lm/W): 111
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1245
Width (mm): 160
Size version: M
Effective luminous flux (lm): 2150
Luminaire efficacy (lm/W): 113
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1245
Width (mm): 160
Size version: M
Effective luminous flux (lm): 3200
Luminaire efficacy (lm/W): 107
Color temperature (K): 3000
Optical system: KV
Length (mm): 1545
Width (mm): 160
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 3200
Luminaire efficacy (lm/W): 107
Color temperature (K): 3000
Optical system: KV
Length (mm): 1545
Width (mm): 160
Size version: L
Effective luminous flux (lm): 3200
Luminaire efficacy (lm/W): 107
Color temperature (K): 3000
Optical system: KV
Length (mm): 1545
Width (mm): 160
Size version: L
Effective luminous flux (lm): 3200
Luminaire efficacy (lm/W): 107
Color temperature (K): 4000
Optical system: KV
Length (mm): 1545
Width (mm): 160
Size version: L
Effective luminous flux (lm): 3300
Luminaire efficacy (lm/W): 110
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1545
Width (mm): 160
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 3300
Luminaire efficacy (lm/W): 110
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1545
Width (mm): 160
Size version: L
Effective luminous flux (lm): 3300
Luminaire efficacy (lm/W): 110
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1545
Width (mm): 160
Size version: L
Effective luminous flux (lm): 3300
Luminaire efficacy (lm/W): 110
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1545
Width (mm): 160
Size version: L
Effective luminous flux (lm): 3300
Luminaire efficacy (lm/W): 110
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1545
Width (mm): 160
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 3300
Luminaire efficacy (lm/W): 110
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1545
Width (mm): 160
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 3300
Luminaire efficacy (lm/W): 110
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1545
Width (mm): 160
Size version: L
Effective luminous flux (lm): 2800
Luminaire efficacy (lm/W): 93
Effective luminous flux (lm): 3300
Luminaire efficacy (lm/W): 110
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1545
Width (mm): 160
Size version: L
Effective luminous flux (lm): 3050
Luminaire efficacy (lm/W): 117
Color temperature (K): 3000
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming DALI: Yes
Effective luminous flux (lm): 3050
Luminaire efficacy (lm/W): 117
Color temperature (K): 3000
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Effective luminous flux (lm): 3050
Luminaire efficacy (lm/W): 117
Color temperature (K): 3000
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Effective luminous flux (lm): 3050
Luminaire efficacy (lm/W): 117
Color temperature (K): 4000
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Effective luminous flux (lm): 3050
Luminaire efficacy (lm/W): 117
Color temperature (K): 4000
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Effective luminous flux (lm): 3150
Luminaire efficacy (lm/W): 121
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming DALI: Yes
Effective luminous flux (lm): 3150
Luminaire efficacy (lm/W): 121
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1245
Width (mm): 245
Size version: M
Effective luminous flux (lm): 3150
Luminaire efficacy (lm/W): 121
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1245
Width (mm): 245
Size version: M
Effective luminous flux (lm): 3300
Luminaire efficacy (lm/W): 83
Effective luminous flux (lm): 2500
Luminaire efficacy (lm/W): 96
Effective luminous flux (lm): 3150
Luminaire efficacy (lm/W): 121
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1245
Width (mm): 245
Size version: M
Effective luminous flux (lm): 4100
Luminaire efficacy (lm/W): 111
Color temperature (K): 2700
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Effective luminous flux (lm): 4100
Luminaire efficacy (lm/W): 111
Color temperature (K): 3000
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming DALI: Yes
Effective luminous flux (lm): 4100
Luminaire efficacy (lm/W): 111
Color temperature (K): 3000
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming DALI: Yes
Effective luminous flux (lm): 4100
Luminaire efficacy (lm/W): 111
Color temperature (K): 3000
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming DALI: Yes
Effective luminous flux (lm): 4100
Luminaire efficacy (lm/W): 111
Color temperature (K): 3000
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming DALI: Yes
Effective luminous flux (lm): 4100
Luminaire efficacy (lm/W): 111
Color temperature (K): 3000
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming 1-10 V: Yes
Effective luminous flux (lm): 4100
Luminaire efficacy (lm/W): 111
Color temperature (K): 3000
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Effective luminous flux (lm): 4100
Luminaire efficacy (lm/W): 111
Color temperature (K): 3000
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Effective luminous flux (lm): 4100
Luminaire efficacy (lm/W): 111
Color temperature (K): 3000
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Effective luminous flux (lm): 4100
Luminaire efficacy (lm/W): 111
Color temperature (K): 3000
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Effective luminous flux (lm): 4100
Luminaire efficacy (lm/W): 111
Color temperature (K): 4000
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming DALI: Yes
Effective luminous flux (lm): 4100
Luminaire efficacy (lm/W): 111
Color temperature (K): 4000
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming 1-10 V: Yes
Effective luminous flux (lm): 4100
Luminaire efficacy (lm/W): 111
Color temperature (K): 4000
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Effective luminous flux (lm): 4100
Luminaire efficacy (lm/W): 111
Color temperature (K): 4000
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Effective luminous flux (lm): 4250
Luminaire efficacy (lm/W): 115
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming DALI: Yes
Effective luminous flux (lm): 4250
Luminaire efficacy (lm/W): 115
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming DALI: Yes
Effective luminous flux (lm): 4250
Luminaire efficacy (lm/W): 115
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming DALI: Yes
Effective luminous flux (lm): 4250
Luminaire efficacy (lm/W): 115
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming DALI: Yes
Effective luminous flux (lm): 4250
Luminaire efficacy (lm/W): 115
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming 1-10 V: Yes
Effective luminous flux (lm): 4250
Luminaire efficacy (lm/W): 115
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1245
Width (mm): 245
Size version: M
Effective luminous flux (lm): 4250
Luminaire efficacy (lm/W): 115
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1245
Width (mm): 245
Size version: M
Effective luminous flux (lm): 4250
Luminaire efficacy (lm/W): 115
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming DALI: Yes
Effective luminous flux (lm): 4250
Luminaire efficacy (lm/W): 115
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming DALI: Yes
Effective luminous flux (lm): 4250
Luminaire efficacy (lm/W): 115
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming 1-10 V: Yes
Effective luminous flux (lm): 4250
Luminaire efficacy (lm/W): 115
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1245
Width (mm): 245
Size version: M
Effective luminous flux (lm): 4250
Luminaire efficacy (lm/W): 94
Color temperature (K): 3000...6000
Optical system: KV
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming DALI: Yes
Effective luminous flux (lm): 4250
Luminaire efficacy (lm/W): 94
Color temperature (K): 3000...6000
Optical system: KVM
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming DALI: Yes
Effective luminous flux (lm): 4250
Luminaire efficacy (lm/W): 94
Color temperature (K): 3000...6000
Optical system: KVM
Length (mm): 1245
Width (mm): 245
Size version: M
Dimming DALI: Yes
Effective luminous flux (lm): 4900
Luminaire efficacy (lm/W): 120
Color temperature (K): 3000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 4900
Luminaire efficacy (lm/W): 120
Color temperature (K): 3000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 4900
Luminaire efficacy (lm/W): 120
Color temperature (K): 3000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 4900
Luminaire efficacy (lm/W): 120
Color temperature (K): 3000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 4900
Luminaire efficacy (lm/W): 120
Color temperature (K): 4000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 4900
Luminaire efficacy (lm/W): 120
Color temperature (K): 4000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 4900
Luminaire efficacy (lm/W): 120
Color temperature (K): 4000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 4900
Luminaire efficacy (lm/W): 120
Color temperature (K): 4000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 5050
Luminaire efficacy (lm/W): 123
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1545
Width (mm): 245
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 4900
Luminaire efficacy (lm/W): 120
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1545
Width (mm): 245
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 5050
Luminaire efficacy (lm/W): 123
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 5050
Luminaire efficacy (lm/W): 123
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1545
Width (mm): 245
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 5050
Luminaire efficacy (lm/W): 123
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1545
Width (mm): 245
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 5050
Luminaire efficacy (lm/W): 123
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 5050
Luminaire efficacy (lm/W): 123
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 5050
Luminaire efficacy (lm/W): 123
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1545
Width (mm): 245
Size version: L
Color temperature (K): 3000...6000
Optical system: KVM
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 6550
Luminaire efficacy (lm/W): 113
Color temperature (K): 3000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 6550
Luminaire efficacy (lm/W): 113
Color temperature (K): 3000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 6550
Luminaire efficacy (lm/W): 113
Color temperature (K): 3000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 6550
Luminaire efficacy (lm/W): 113
Color temperature (K): 3000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 6550
Luminaire efficacy (lm/W): 113
Color temperature (K): 3000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 6550
Luminaire efficacy (lm/W): 113
Color temperature (K): 3000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 6550
Luminaire efficacy (lm/W): 113
Color temperature (K): 4000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 6550
Luminaire efficacy (lm/W): 113
Color temperature (K): 4000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 6550
Luminaire efficacy (lm/W): 113
Color temperature (K): 4000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 6550
Luminaire efficacy (lm/W): 113
Color temperature (K): 4000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 6550
Luminaire efficacy (lm/W): 113
Color temperature (K): 4000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 6550
Luminaire efficacy (lm/W): 113
Color temperature (K): 4000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 6550
Luminaire efficacy (lm/W): 113
Color temperature (K): 4000
Optical system: KV
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 6850
Luminaire efficacy (lm/W): 118
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1545
Width (mm): 245
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 6850
Luminaire efficacy (lm/W): 118
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1545
Width (mm): 245
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 6850
Luminaire efficacy (lm/W): 118
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1545
Width (mm): 245
Size version: L
Dimming 1-10 V: Yes
Effective luminous flux (lm): 6850
Luminaire efficacy (lm/W): 118
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 6850
Luminaire efficacy (lm/W): 118
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 6850
Luminaire efficacy (lm/W): 118
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 6850
Luminaire efficacy (lm/W): 118
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 6850
Luminaire efficacy (lm/W): 118
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1545
Width (mm): 245
Size version: L
Dimming DALI: Yes
Effective luminous flux (lm): 6850
Luminaire efficacy (lm/W): 118
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1545
Width (mm): 245
Size version: L
Effective luminous flux (lm): 6850
Luminaire efficacy (lm/W): 118
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1545
Width (mm): 245
Size version: L

Produced in Czech Republic

Fittings are proudly produced in our production plant.

Only quality electro-components used


LED fittings

Long-life. Minimal consuption.

No service needed.


Be in touch

Do you have any question about our products?

Use our contacts here.

Where you can buy?

Distribution network
