MODUS BD
Surface-mounted LED luminaire with IP65 protection
Standard price from:

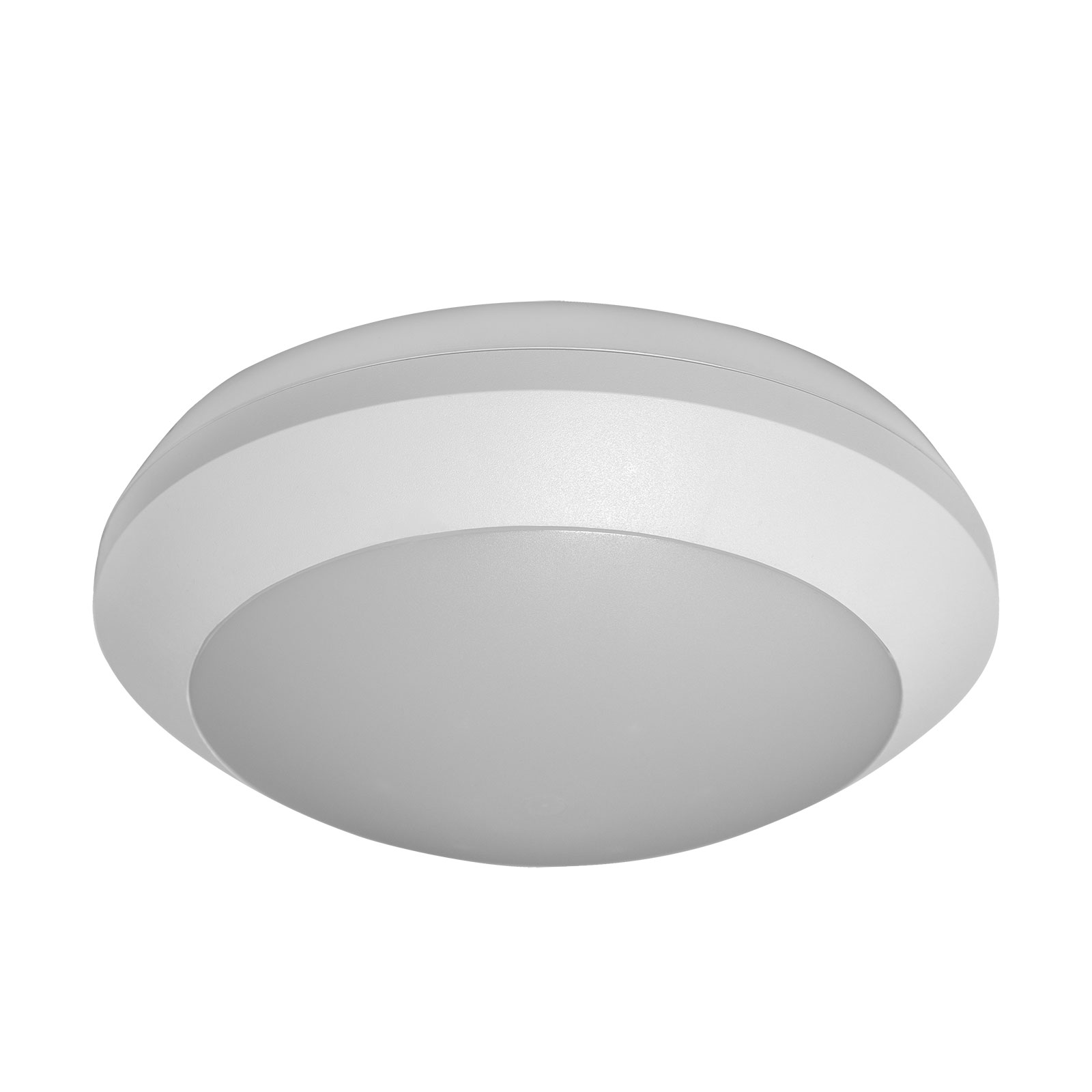

BD is a robust surface-mounted LED luminaire designed for indoor and outdoor applications where increased resistance to dust and moisture is required. With IP65 protection, it is ideal for technical, commercial, and public spaces.
The luminaire housing is made of durable polycarbonate, ensuring long service life even in demanding environments. The opal polycarbonate diffuser provides soft, uniform, and glare-free light distribution.

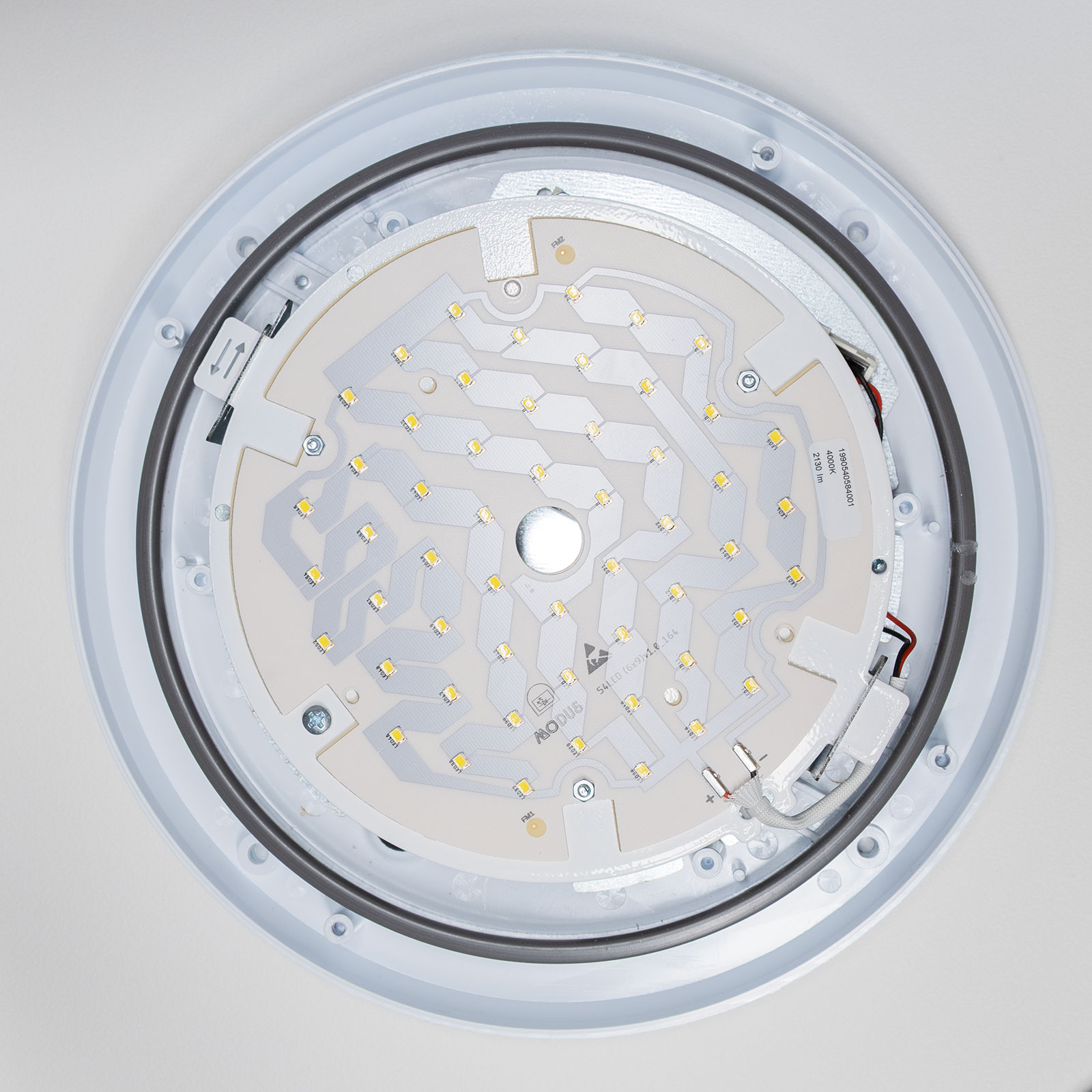

The luminaire uses Mid Power LEDs with luminous efficacy up to 120 lm/W and a lifetime of up to 100,000 hours (L70/B50). Available color temperatures include 2700 K, 3000 K, and 4000 K.
Electrical options include ON/OFF versions, DALI dimming, and variants with integrated microwave motion sensor.
Typical applications include corridors, technical rooms, parking garages, and covered outdoor areas.
| Body material: | PC body | Mounting method: | Wall surface mounted, Surface mounting | Protection class: | I | With movement sensor: | Yes | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED, Incandescent lamp | Color temperature controllable (K): | No | Light outlet: | Direct | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 |
| Degree of protection (IP): | IP65 | Color temperature (K): | 4000, 3000, 2700 | Rated lifetime L70/B50 (h): | 100000 | Dimming DALI: | Yes | Product category: | Ceiling / wall luminaires | Optical system: | KO opal cover | Made in Czech republic: | Yes | Replaceability: | Removeable light source, replaceable ballast Removeable light source, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
