Product series
MODUS BON LED

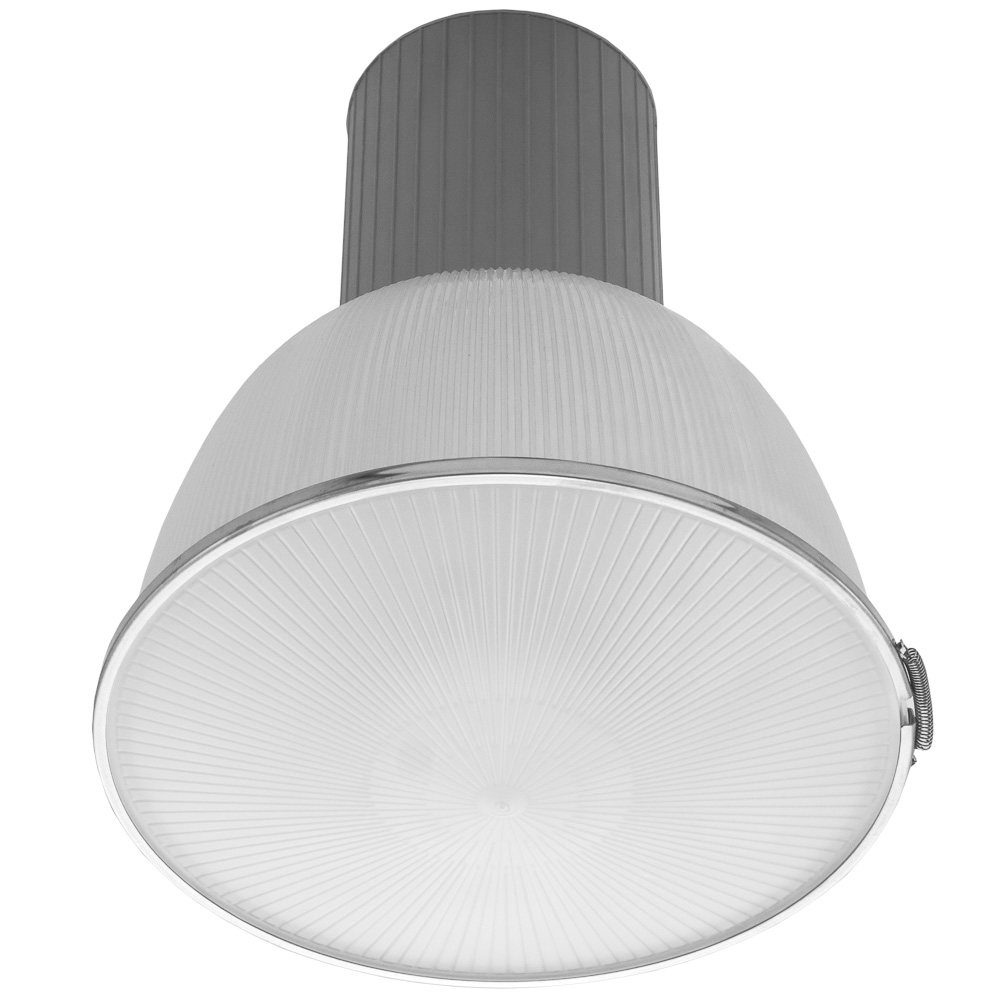

Pendant LED luminaire
MODUS BON LED
Standard price from:
On request

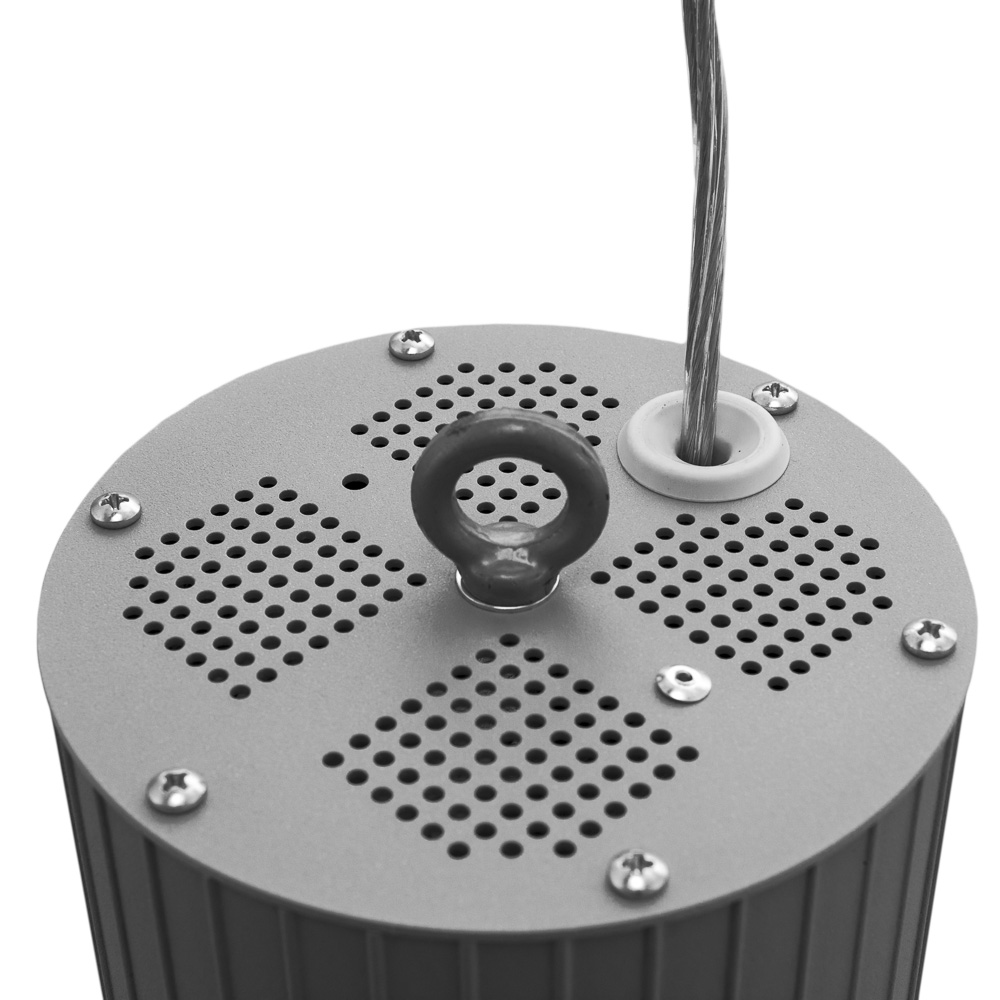

Body:
Grey painted aluminium body

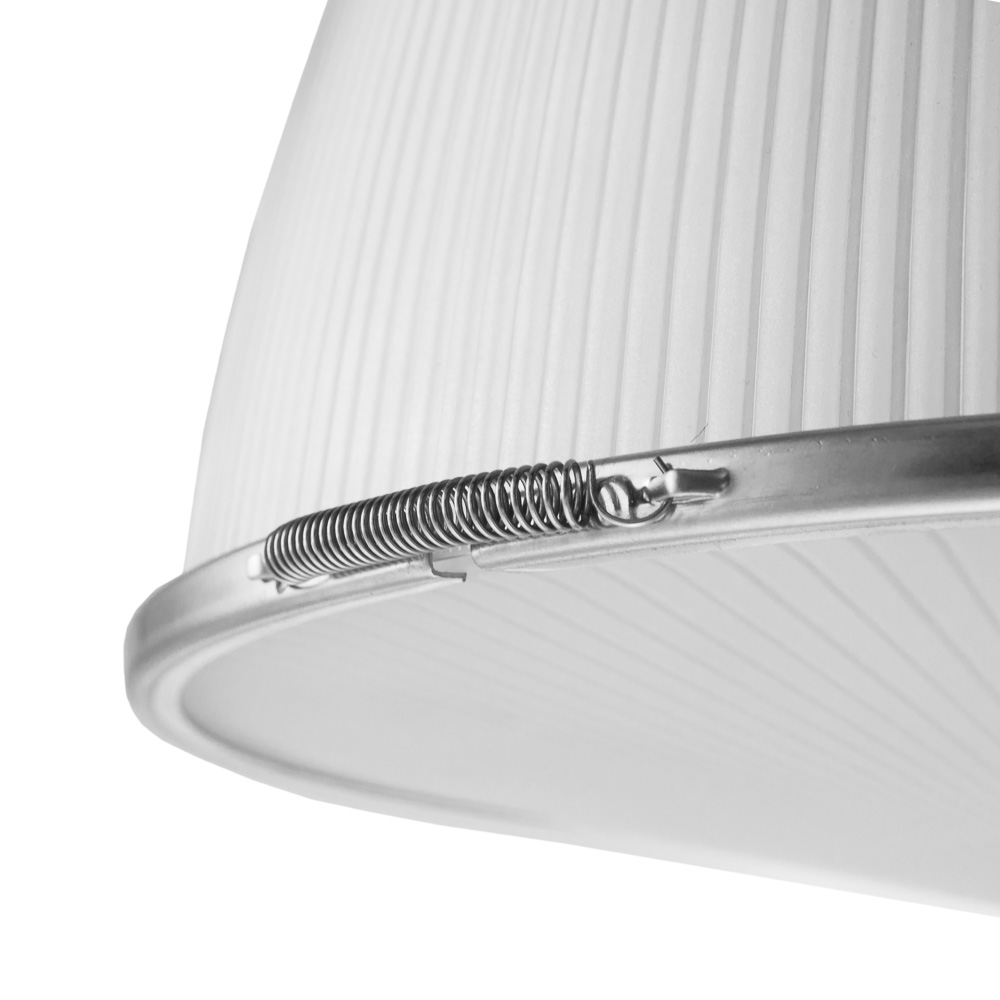

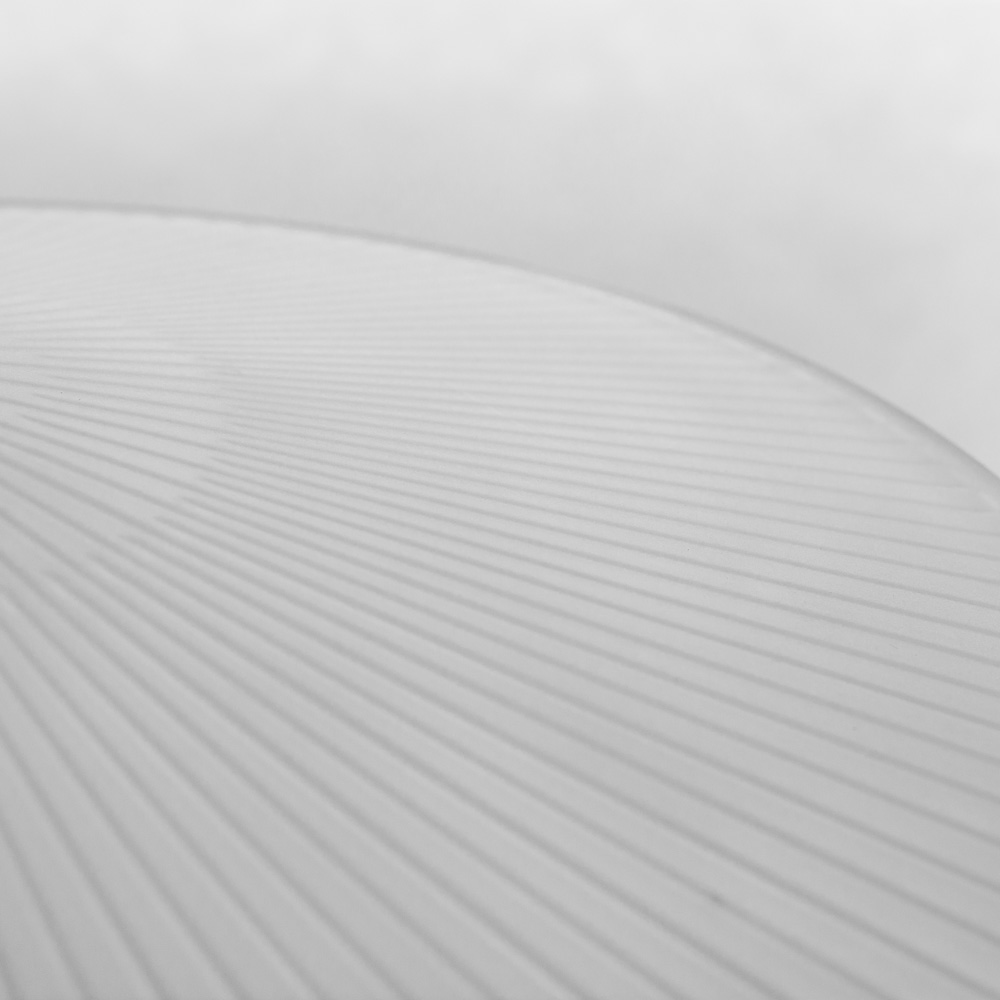

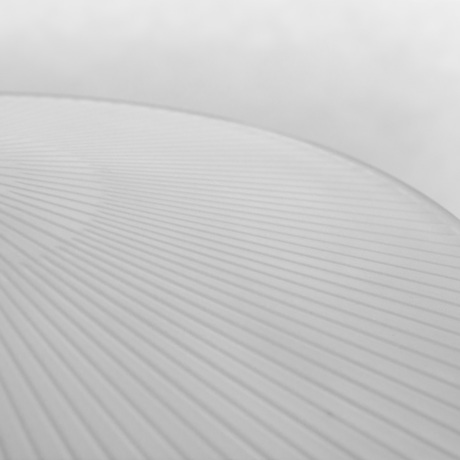

Opal plastic cover

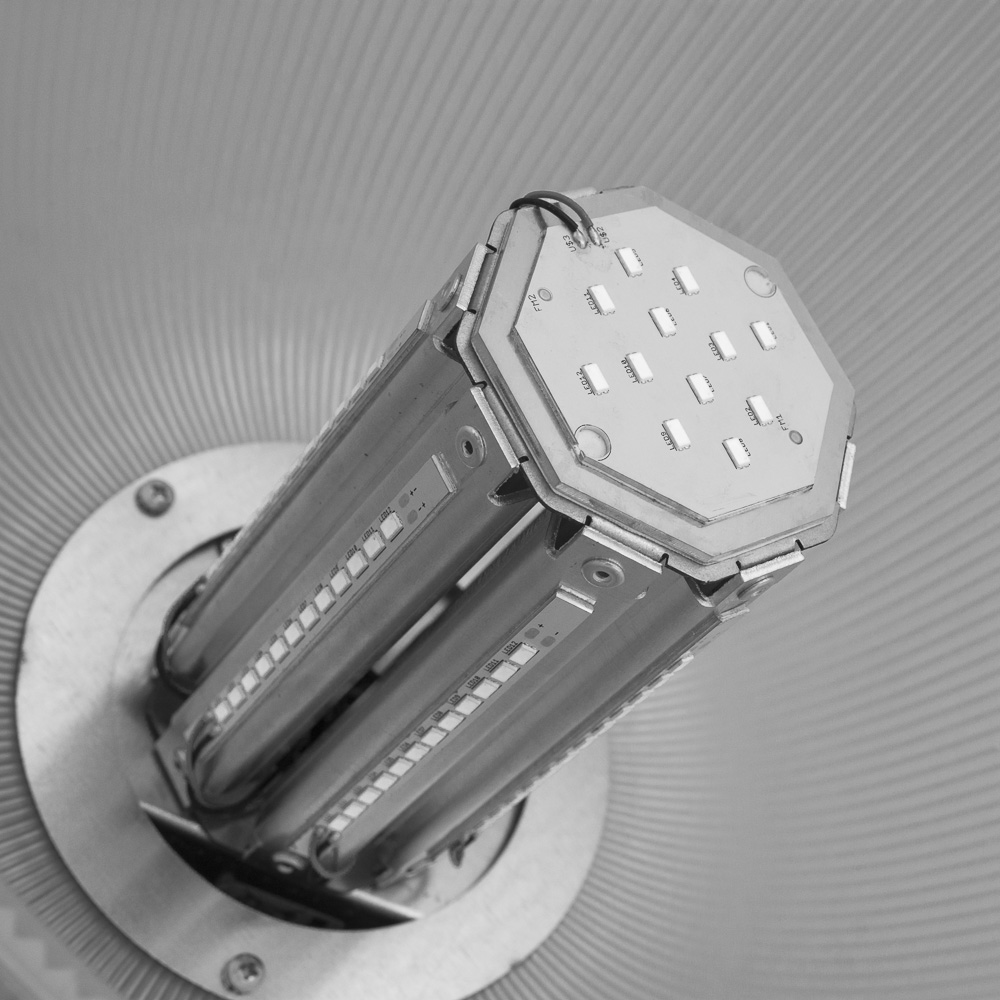

LED:
Mid Power LED
3...warm white 3000K
4...cold white 4000K
Wiring:
LED current driver
ND - not dimmable (standart)
DALI – digital dimmable DALI
Application:
Pendant luminaire for general using in industrial or shopping areas
| Body material: | Grey painted aluminium body | Mounting method: | Závěsné BAL | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 |
| Color temperature (K): | 4000, 3000, 2700, 5700 | Rated lifetime L80/B50 (h): | 80000 | Dimming DALI: | Yes | Optical system: | PCS Polycarbonate semiopal cover | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
BONLED2V1/1050ND/9003
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 2700
BONLED3V1/1050DALI
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 3000
BONLED3V1/1050ND
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 3000
BONLED3V1/1050ND/9005
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 3000
BONLED3V1/1050NDMULTI
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 3000
BONLED3V1/350ND
Effective luminous flux (lm): 1550
System power (W): 12
Color temperature (K): 3000
BONLED3V1/925ND
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 3000
BONLED3V1/F1050ND/9003
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 3000
BONLED4V1/1050DALI
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 4000
BONLED4V1/1050DALI/9005
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 4000
BONLED4V1/1050DALIT
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 4000
BONLED4V1/1050ND
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 4000
BONLED4V1/1050ND/9005
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 4000
BONLED4V1/1050ND/9016
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 4000
BONLED4V1/925ND
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 4000
Product page - PDF
CE declaration
LDT files

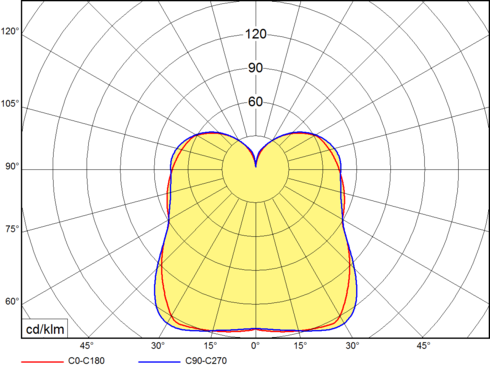

BONLED.pngProjekty realizované se svítidly MODUS:
