Product series

MODUS BRO

Surface fitting with glass cover

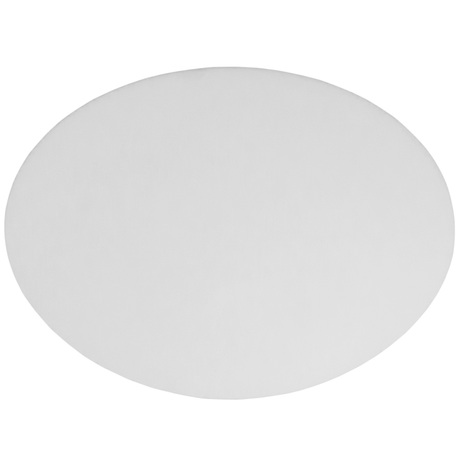

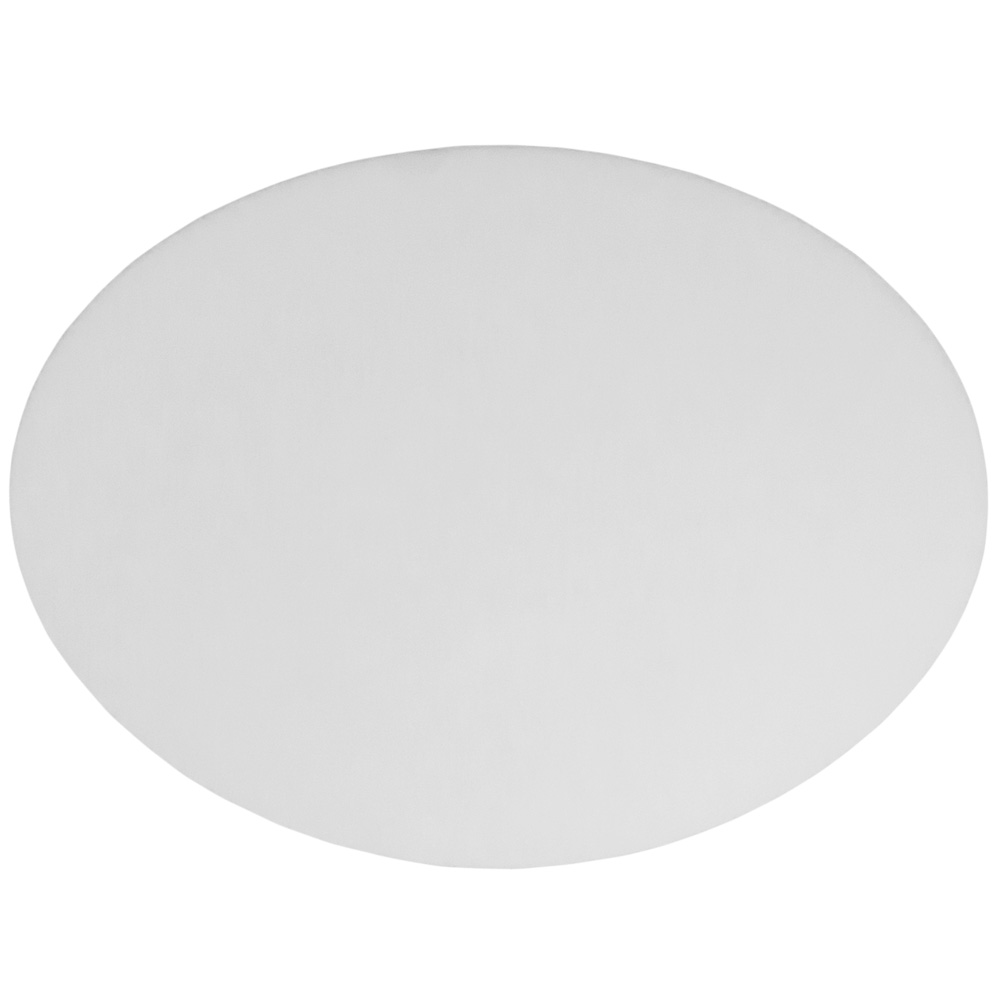

MODUS BRO 300
11 L80_80000_h.jpg

Standard size from:

On request

Body:

White painted (RAL 9003) metal sheet



Optical system:

opal glass cover - Triplex



LED:

Mid Power LED

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V

SM - integrated active presence detector

Luminaire can be supplied with wireless Bluetooth control - more information here.



Version:

300 - fitting Ø 300 mm

340- fitting Ø 340 mm

Body material:White painted steelMounting method:Surface mounting
Protection class:IWith movement sensor:Yes
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89
Lamp type:LED
Degree of protection (IP):IP40
Color temperature (K):4000, 3000Rated life time L80/B50 (h):80000
Dimming 1-10 V:YesDimming DALI:Yes
Optical system:TRIPLEX
opal glass cover
Show more...
