MODUS BRS

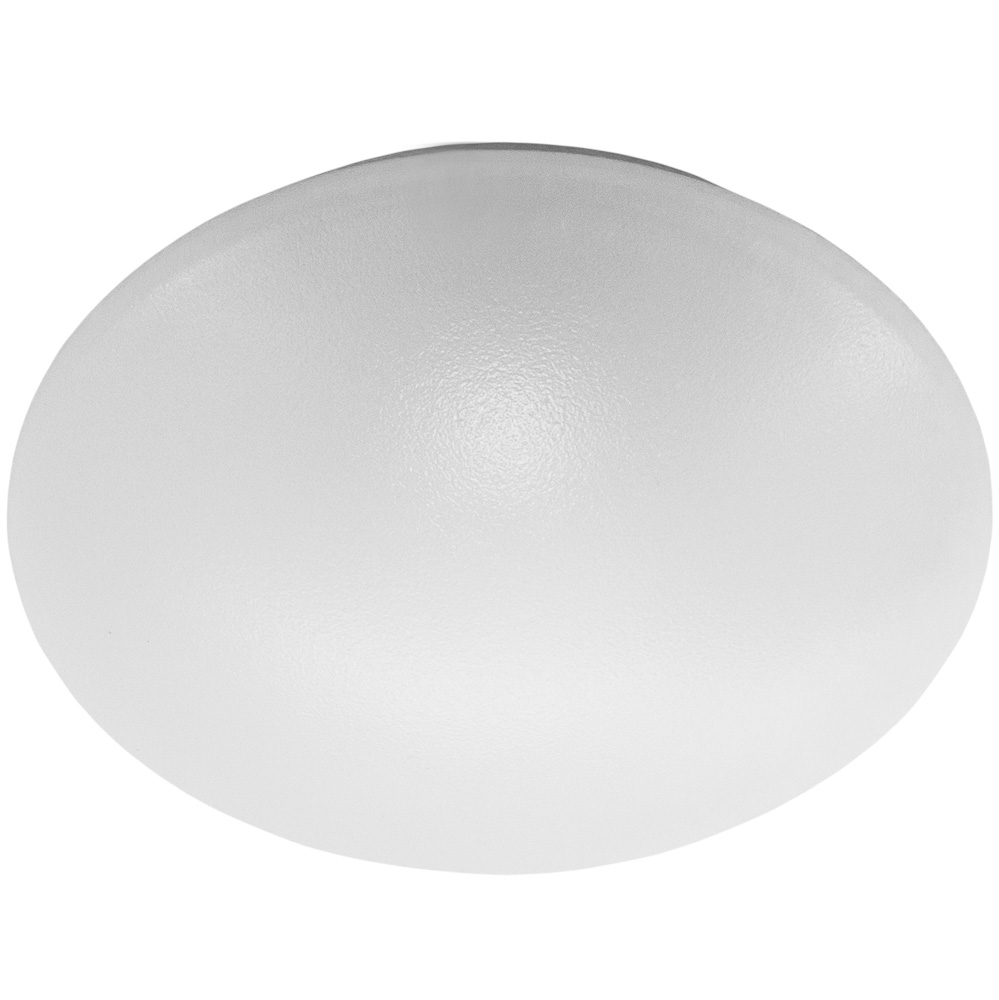

Surface LED fitting with plastic cover - IP40

MODUS BRS
MODUS BRS 300MODUS BRS 300
MODUS BRS 375MODUS BRS 375
MODUS BRS 480MODUS BRS 480
1 M10_nasten_celkove_osv.jpg
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

Body:

White painted (RAL 9003) metal sheet



Optical system:

KO - opal PMMA cover (standart)

KOPC - Opal PC cover

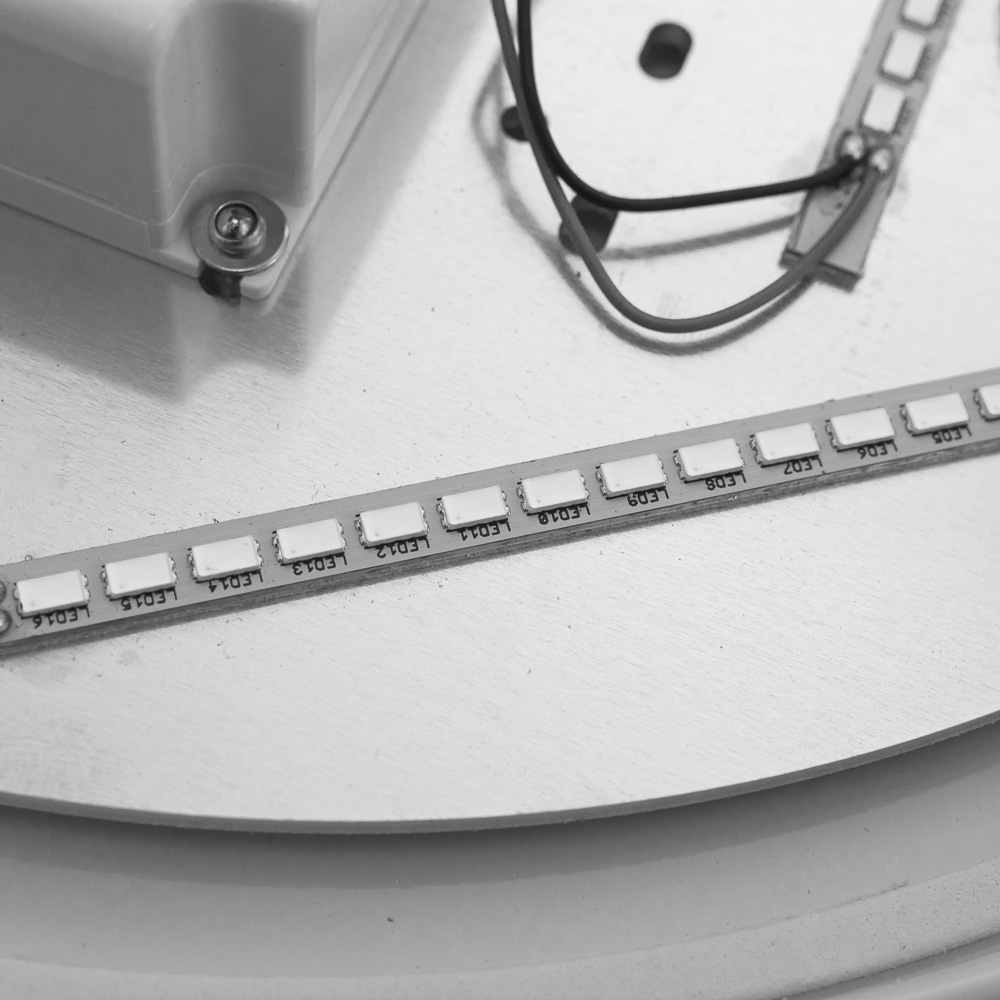

LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K

5...daylight 5700K

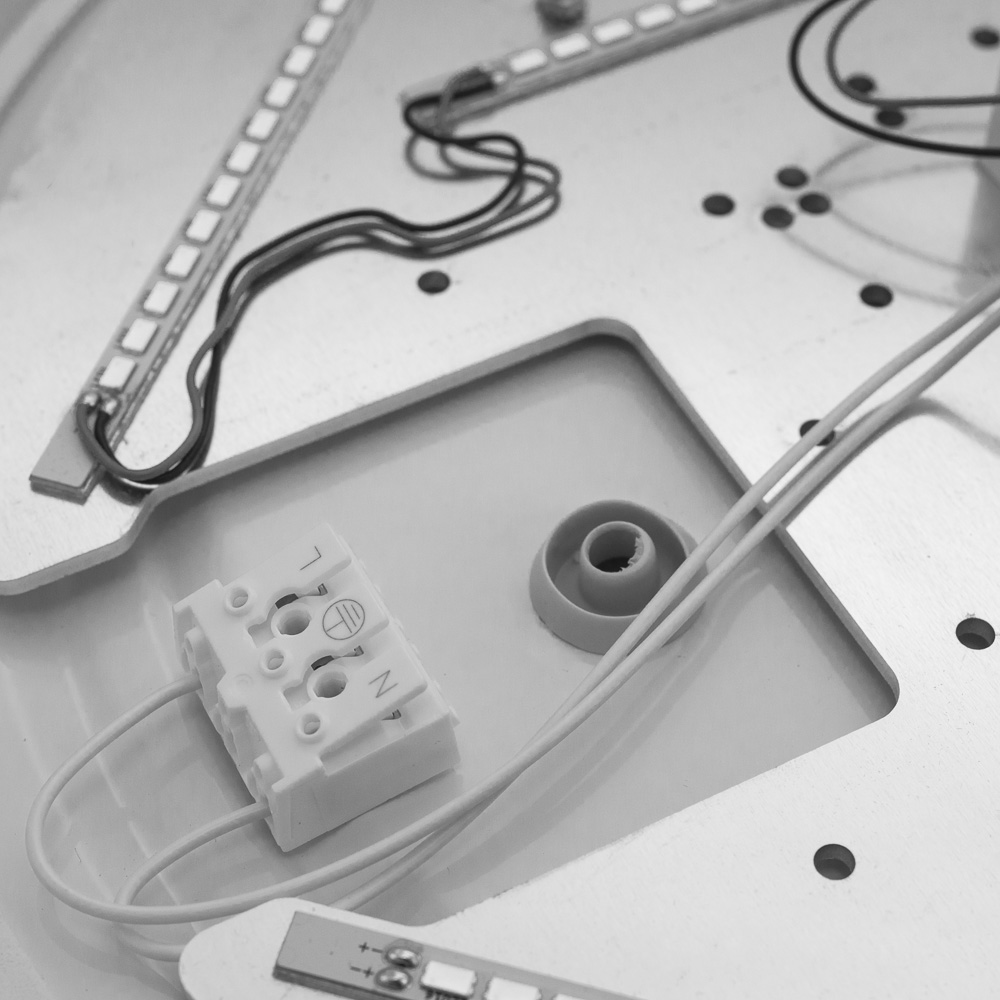

Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V

SM - integrated active presence detector - not compatible with NZ

NZ - emergency pack (except BRS300)

Luminaire can be supplied with wireless Bluetooth control - more information here.



Application:

Surface mounted luminaire for residential use, corridors, stairs, hygiene facilities.

Suitable for sites with high frequency switching or for systems switched by a presence detector.



Version:

300 - small fitting (Ø 300 mm)

375 - middle fitting (Ø 375 mm)

480 - large fitting (Ø 480 mm)

Body material:White painted steelMounting method:Wall surface mounted, Surface mounting
Protection class:IWith movement sensor:Yes
Type of control gear:LED operating device current-controlled, Not requiredColor rendering index CRI:80-89, 90-100
Light source type:LEDColor temperature controllable (K):Yes
Nominal voltage (V):220...240Degree of protection (IP):IP40
Color temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500
Rated lifetime L80/B50 (h):80000
Dimming 1-10 V:YesDimming DALI:Yes
Optical system:KO
opal cover
KOPC
polycarbonate opal cover
Made in Czech republic:Yes
Without Chinese components:AnoReplaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1200
5000

System power (W)

14
44
Product name
BRS3KO300V1/DALI
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 300
BRS3KO300V1/ND
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 300
BRS3KO300V1/NDSM
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 300
With movement sensor: Yes
BRS3KO375V2/DALI
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 375
BRS3KO375V2/DALISM/COR
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 375
With movement sensor: Yes
BRS3KO375V2/ND
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 375
BRS3KO375V2/NDNZ
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 375
BRS3KO375V2/NDNZ3
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 375
BRS3KO375V2/NDSM
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 375
With movement sensor: Yes
BRS3KO480V3/DALI
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 480
BRS3KO480V3/DIM
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 480
BRS3KO480V3/ND
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 480
BRS3KO480V3/NDNZ
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 480
BRS3KO480V3/NDSM
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 480
With movement sensor: Yes
BRS3KO480V5/ND
Effective luminous flux (lm): 5000
System power (W): 44
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 480
BRS3KOPC300V1/DIM
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 300
BRS3KOPC300V1/ND
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 300
BRS3KOPC300V1/NDSM
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 300
With movement sensor: Yes
BRS3KOPC375V2/DIM
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 375
BRS3KOPC375V2/ND
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 375
BRS3KOPC375V2/NDNZ
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 375
BRS3KOPC375V2/NDNZ3
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 375
BRS3KOPC375V2/NDSM
Effective luminous flux (lm): 2900
System power (W): 29
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 375
With movement sensor: Yes
BRS3KOPC480V3/DIM
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 480
BRS3KOPC480V3/ND
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 480
BRS3KOPC480V3/NDNZ3
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 480
BRS3KOPC480V3/NDSM
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 3000
Optical system: KOPC
Outer diameter (mm): 480
With movement sensor: Yes
BRS4KO300V1/ND
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 300
BRS4KO300V1/ND/90
Effective luminous flux (lm): 1200
System power (W): 14
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 300
BRS4KO300V1/ND/EU
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 300
BRS4KO300V1/NDSM
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 300
With movement sensor: Yes
BRS4KO375V2/ND
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 375
BRS4KO375V2/ND/90
Effective luminous flux (lm): 2400
System power (W): 27
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 375
BRS4KO375V2/ND/EU
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 375
BRS4KO375V2/NDNZ
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 375
BRS4KO375V2/NDSM
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 375
With movement sensor: Yes
BRS4KO480V3/DALI
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V3/DALINZ
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V3/ND
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V3/ND/90
Effective luminous flux (lm): 3200
System power (W): 34
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V3/NDNZ
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V3/NDNZ3
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V3/NDSM
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
With movement sensor: Yes
BRS4KO480V3/NDSMNZ
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V3/PHC
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V3/PHCNZ
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V5/ND
Effective luminous flux (lm): 5000
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
BRS4KO480V5/NDSM
Effective luminous flux (lm): 5000
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 480
With movement sensor: Yes
BRS4KOPC300V1/DIM
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 300
BRS4KOPC300V1/ND
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 300
BRS4KOPC300V1/NDSM
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 300
With movement sensor: Yes
BRS4KOPC375V2/DALI
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 375
BRS4KOPC375V2/ND
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 375
BRS4KOPC375V2/NDNZ
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 375
BRS4KOPC375V2/NDSM
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 375
With movement sensor: Yes
BRS4KOPC480V3/ND
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 480
BRS4KOPC480V3/NDNZ3
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 480
BRS4KOPC480V3/NDSM
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 4000
Optical system: KOPC
Outer diameter (mm): 480
With movement sensor: Yes
BRS5KO300V1/ND
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 5700
Optical system: KO
Outer diameter (mm): 300
BRS5KO300V1/NDSM
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 5700
Optical system: KO
Outer diameter (mm): 300
With movement sensor: Yes
BRS5KO375V2/ND
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 5700
Optical system: KO
Outer diameter (mm): 375
BRS5KO375V2/NDNZ
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 5700
Optical system: KO
Outer diameter (mm): 375
BRS5KO375V2/NDSM
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 5700
Optical system: KO
Outer diameter (mm): 375
With movement sensor: Yes
BRS5KO480V3/ND
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 5700
Optical system: KO
Outer diameter (mm): 480
BRS5KO480V3/NDNZ3
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 5700
Optical system: KO
Outer diameter (mm): 480
BRS5KO480V3/NDSM
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 5700
Optical system: KO
Outer diameter (mm): 480
With movement sensor: Yes
BRS5KOPC300V1/ND
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 5700
Optical system: KOPC
Outer diameter (mm): 300
BRS5KOPC300V1/NDSM
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 5700
Optical system: KOPC
Outer diameter (mm): 300
With movement sensor: Yes
BRS5KOPC375V2/ND
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 5700
Optical system: KOPC
Outer diameter (mm): 375
BRS5KOPC375V2/NDSM
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 5700
Optical system: KOPC
Outer diameter (mm): 375
With movement sensor: Yes
BRS5KOPC480V3/ND
Effective luminous flux (lm): 3900
System power (W): 34
Color temperature (K): 5700
Optical system: KOPC
Outer diameter (mm): 480
BRS5KOPC480V3/NDSM
Effective luminous flux (lm): 3900
System power (W): 36
Color temperature (K): 5700
Optical system: KOPC
Outer diameter (mm): 480
With movement sensor: Yes
Show all versions

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Zobrazit další reference
 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
