MODUS CD P

Suspended luminaire with a cover for installation to row

MODUS CD P

Standard price from:

On request
Distribution network
Contacts

Elegant metal luminaire with a cover for office and representative spaces.

The luminaire is offered with either an opal (KO) or nanoprismatic (KN) cover or asymetrical optic (AS).

Several variants are available:

CD - direct lighting luminaire, solo installation.

CD...DI - direct/indirect lighting luminaire, solo instalation

CD...P - direct lighting luminare, designe for installation to row (with CDSPOJ)

CD...DI/P - direct/indirect lighting luminaire, designed for instalation to row (with CDSPOJ)

CD...AS - version with asymetrical lighting distribution (for white-boards, etc.)

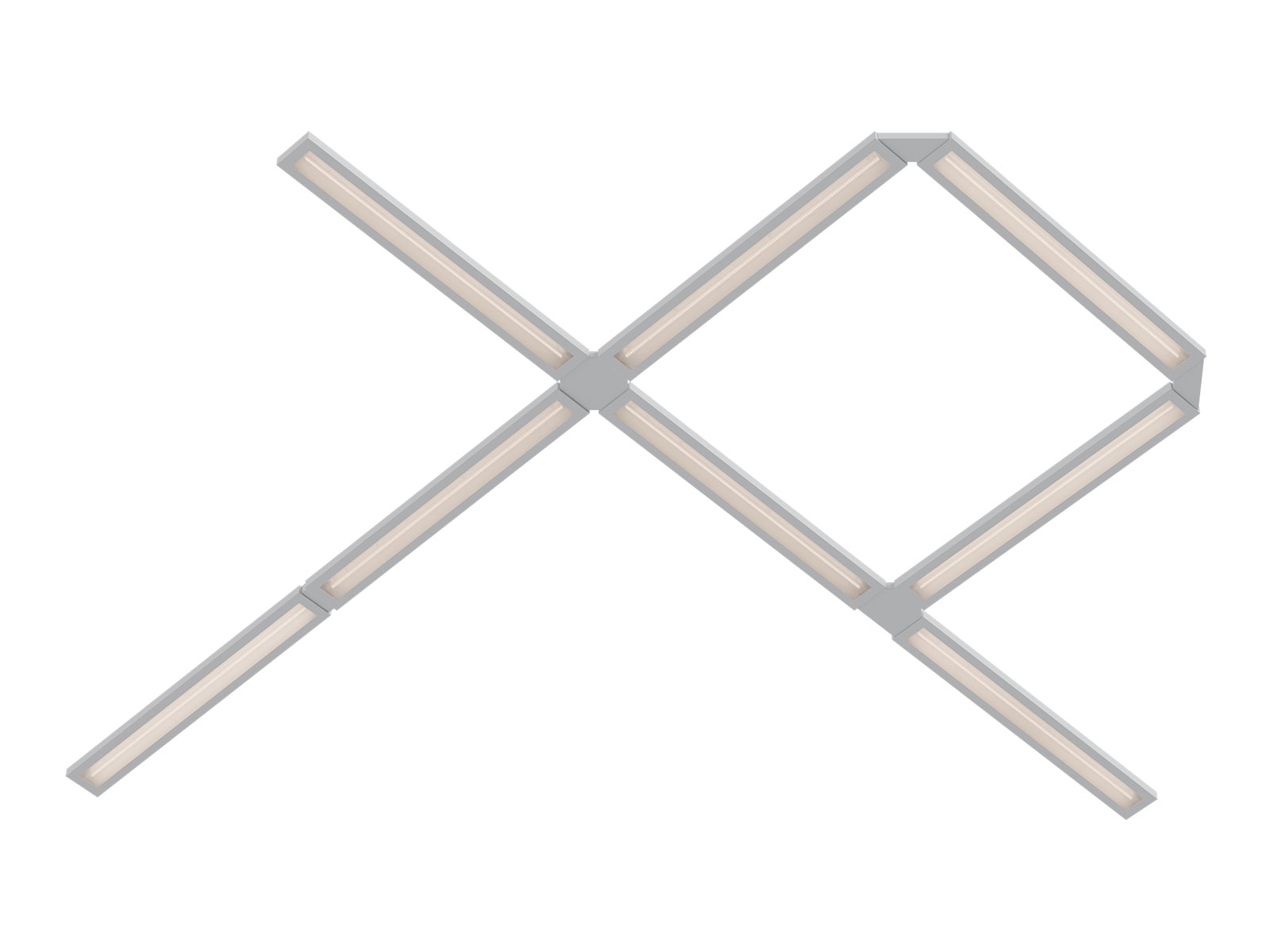

Luminaire in the "P" version have electrical input/output on both sides, and to connect them to row, the "CDSPOJ" must be used.

Suspension set is always included in the package (by the luminaires for suspended installation)

LoadingLoading

Filters

Effective luminous flux (lm)

2400
8100

System power (W)

16
56
Product name
CD2000LKN4/ND/P
Effective luminous flux (lm): 2400
System power (W): 16
Color temperature (K): 4000
Optical system: KN
Length (mm): 1580
CD4000LKN4/DI/ND/P
Effective luminous flux (lm): 4200
System power (W): 28
Color temperature (K): 4000
Optical system: KN D/I
Length (mm): 1580
CD4000LKO4/DI/ND/P
Effective luminous flux (lm): 4100
System power (W): 28
Color temperature (K): 4000
Optical system: KO
Length (mm): 1580
CD4000MKN4/DI/ND/P
Effective luminous flux (lm): 4200
System power (W): 28
Color temperature (K): 4000
Optical system: KN D/I
Length (mm): 1280
CD4000MKO4/DI/ND/P
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 4000
Optical system: KO
Length (mm): 1580
CD5000LKN4/ND/P/90
Effective luminous flux (lm): 4500
System power (W): 36
Color temperature (K): 4000
Optical system: KN
Length (mm): 1580
CD6000LKN4/DI/ND/P
Effective luminous flux (lm): 6200
System power (W): 41
Color temperature (K): 4000
Optical system: KN
Length (mm): 1580
CD6000MKN3/DI/DALI/P
Effective luminous flux (lm): 5900
System power (W): 41
Color temperature (K): 3000
Optical system: KN D/I
Length (mm): 1280
CD6000MKN3/DI/ND/P
Effective luminous flux (lm): 5900
System power (W): 41
Color temperature (K): 3000
Optical system: KN D/I
Length (mm): 1280
CD6000MKO4/DI/ND/P
Effective luminous flux (lm): 5700
System power (W): 41
Color temperature (K): 4000
Optical system: KO D/I
Length (mm): 1280
CD8000LKN4/DI/DALI/P
Effective luminous flux (lm): 8100
System power (W): 56
Color temperature (K): 4000
Optical system: KN D/I
Length (mm): 1580
