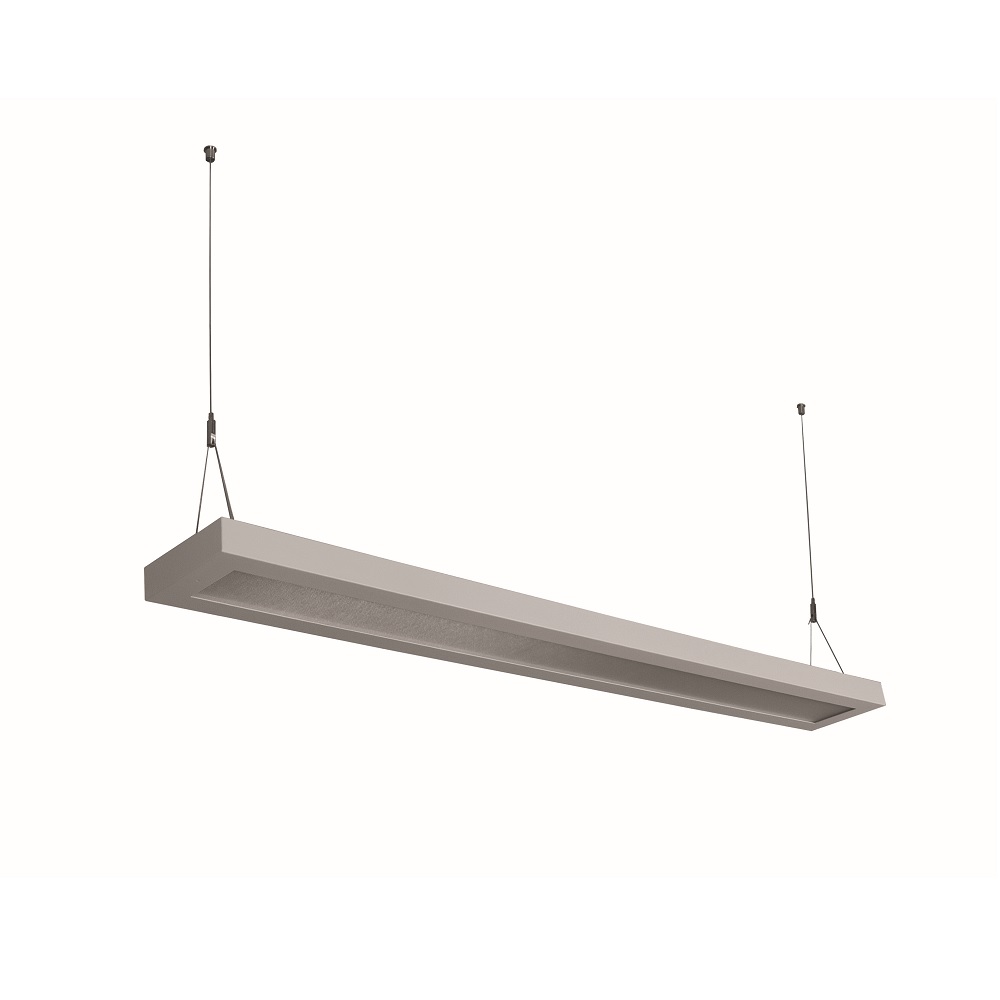

MODUS CD
Suspended luminaire with a cover
Standard price from:
Elegant metal luminaire with a cover for office and representative spaces.

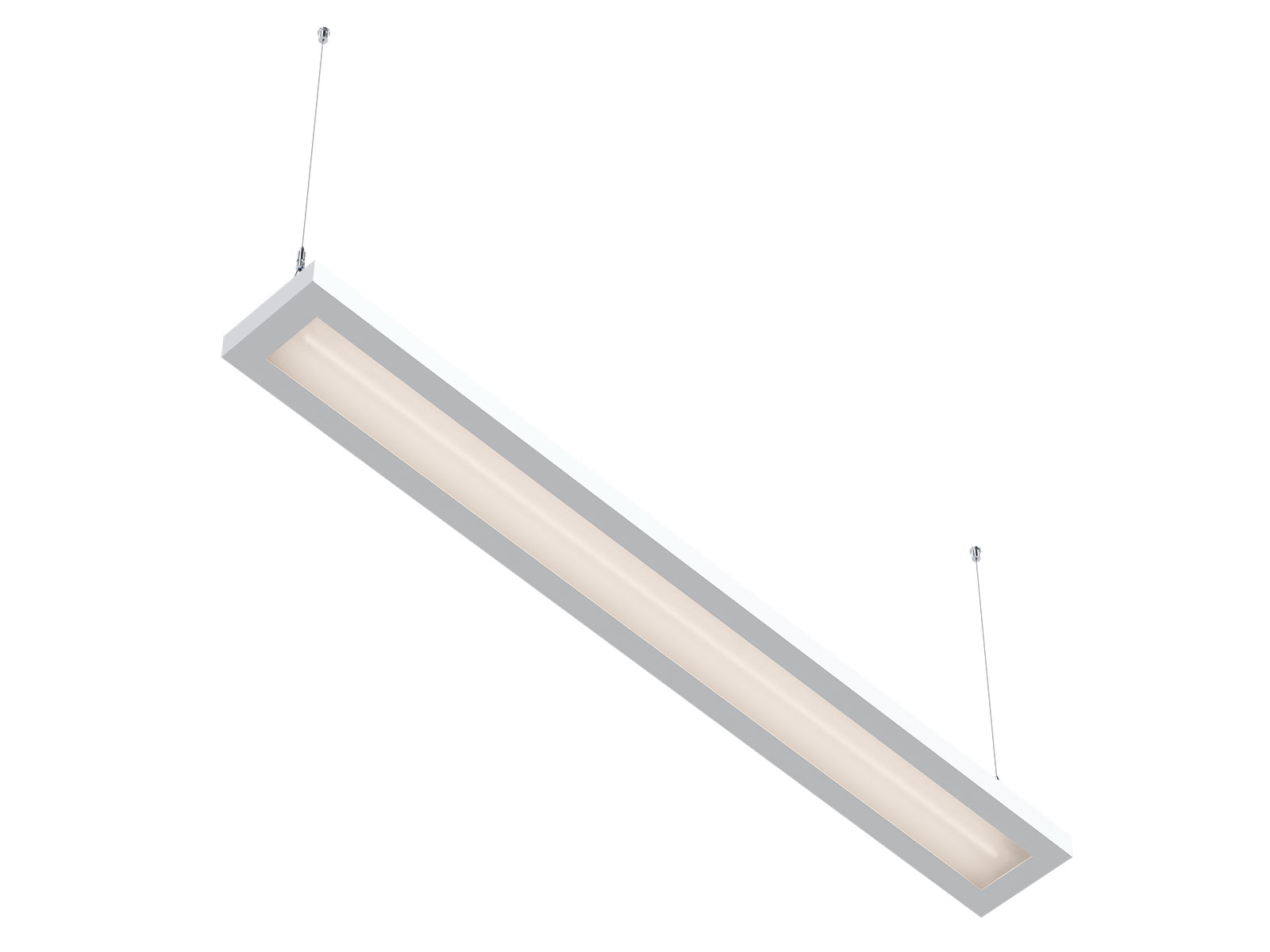

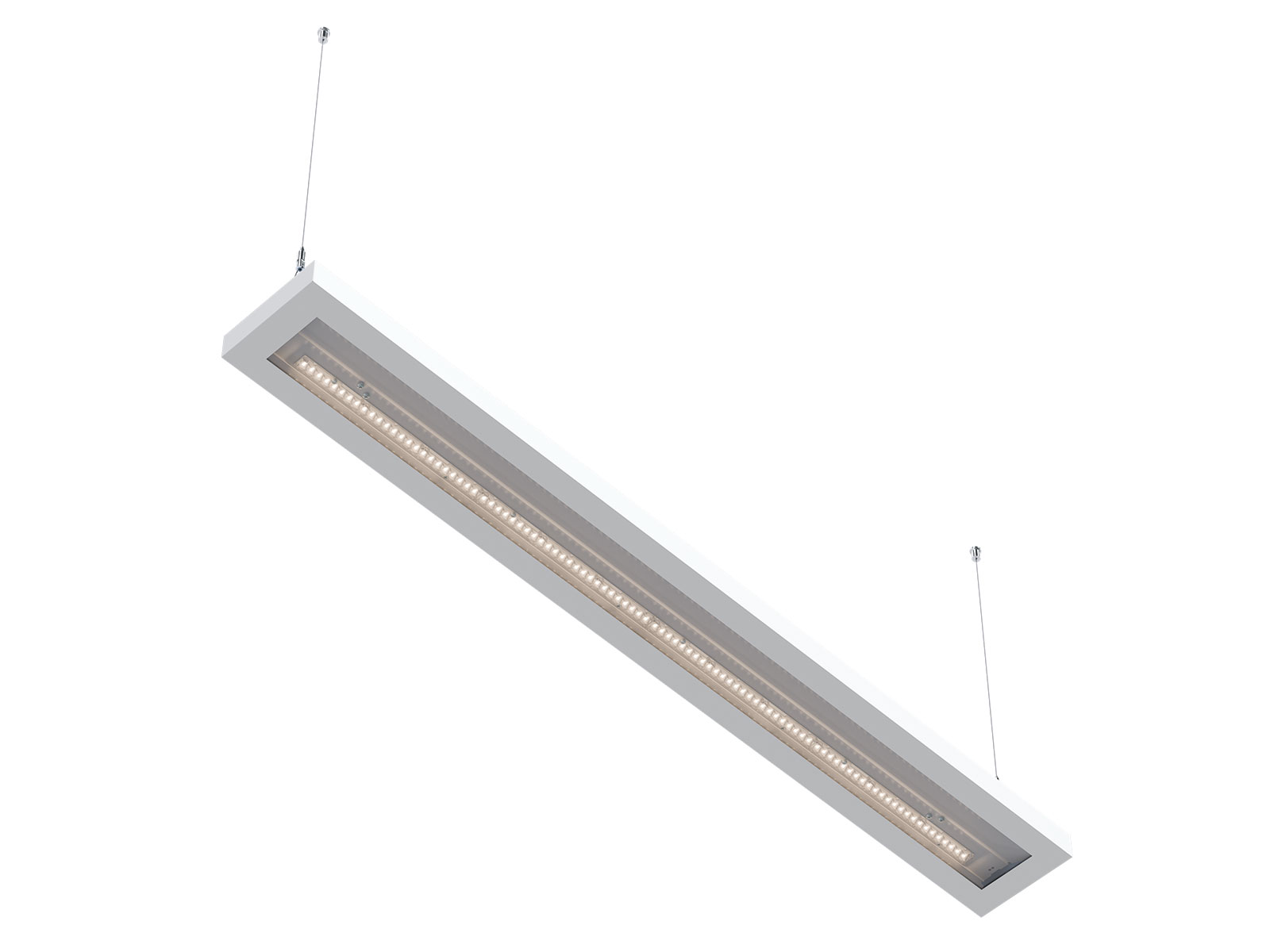

The luminaire is offered with either an opal (KO) or nanoprismatic (KN) cover.
Several variants are available:
CD - direct lighting luminaire, solo installation.
CD...DI - direct/indirect lighting luminaire, solo instalation
CD...P - direct lighting luminare, designe for installation to row (with CDSPOJ)
CD...DI/P - direct/indirect lighting luminaire, designed for instalation to row (with CDSPOJ)
Luminaire in the "P" version have electrical input/output on both sides, and to connect them to row, the "CDSPOJ" must be used.
Suspension set is always included in the package.
| Body material: | Painted steel | Mounting method: | Pendant | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89, 90-100 | Light source type: | LED | Anti-glare limiting UGR: | 19 | Suitable for light line configuration: | Yes | Light outlet: | Direct, Direct/indirect | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 |
| Fit for monitor workplace: | Yes | Color temperature (K): | 4000, 6500, 3000, 2700, 5700 | Rated lifetime L80/B50 (h): | 80000 | Dimming DALI: | Yes | Product category: | Pendant luminaire | Optical system: | KO opal cover KN nanoprizmatic cover | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 | MODUS SMART: | Bluetooth Bluetooth Active Ahead Active Ahead HubSense HubSense |
