Product series New

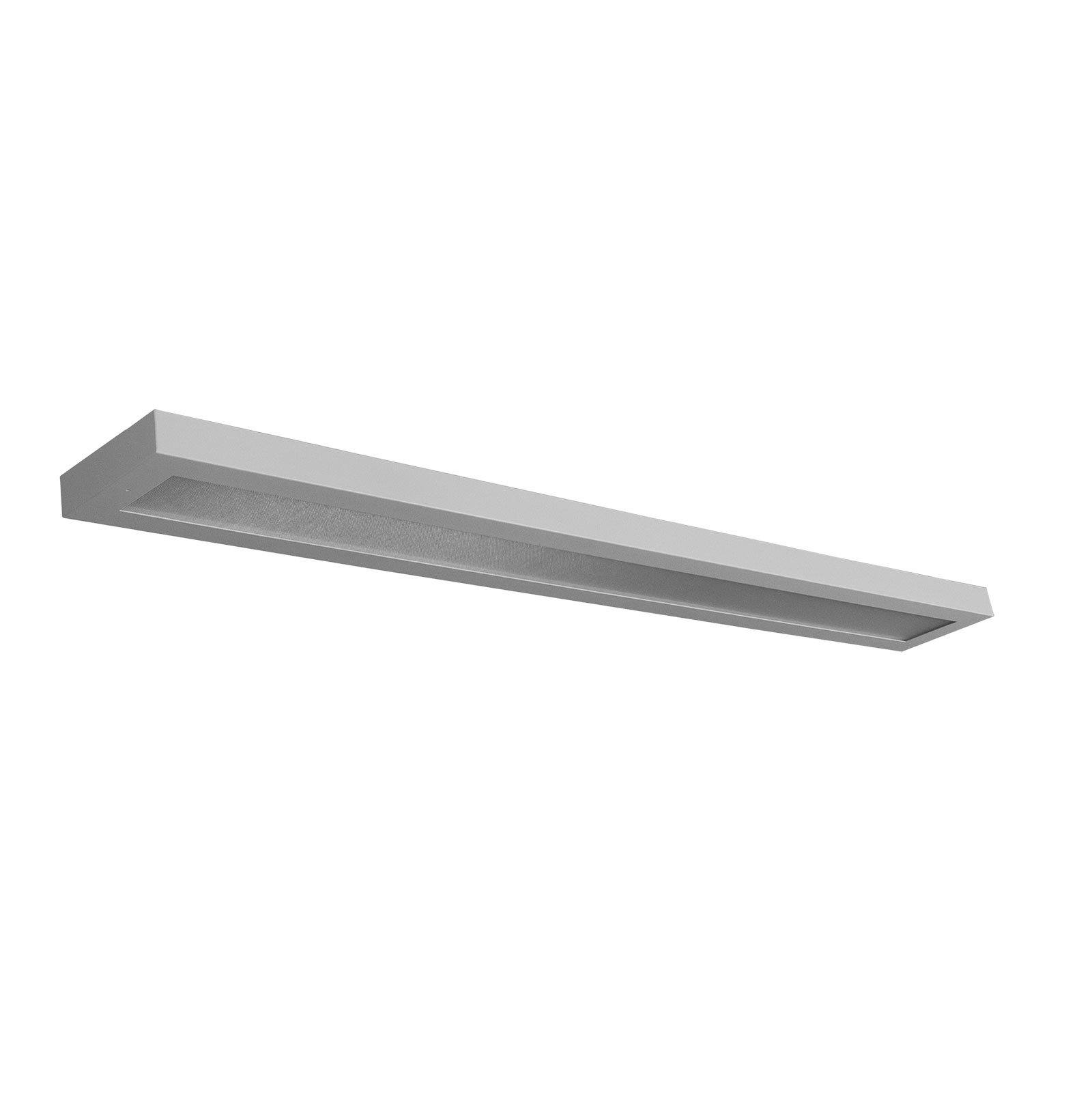

MODUS CDP
Surface luminaire with a cover
Standard price from:
On request
Elegant metal luminaire with a cover for office and representative spaces.
The luminaire is offered with either an opal (KO) or nanoprismatic (KN) cover or asymetrical optic (AS).
Several variants are available:
CDP - direct lighting luminaire, solo installation.
CDP...P - direct lighting luminare, designe for installation to row (with CDSPOJ)
| Body material: | Painted steel | Mounting method: | Surface mounting | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89, 90-100 | Light source type: | LED | Light outlet: | Direct, Direct/indirect | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 | Fit for monitor workplace: | Yes |
| Color temperature (K): | 4000, 6500, 3000, 2700, 5700 | Rated lifetime L70/B50 (h): | 100000 100000 | Dimming DALI: | Yes | Product category: | Ceiling / wall luminaires | Optical system: | KO opal cover | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 | MODUS SMART: | Yes, Bluetooth Bluetooth |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Length (mm)
CDP3000MKN4/ND
Effective luminous flux (lm): 2900
System power (W): 19
Color temperature (K): 4000
Optical system: KN
Length (mm): 1280
CDP4000LKN4/ND
Effective luminous flux (lm): 4100
System power (W): 28
Color temperature (K): 4000
Optical system: KN
Length (mm): 1580
CDP4000MKN3/DALI
Effective luminous flux (lm): 4200
System power (W): 28
Color temperature (K): 3000
Optical system: KN
Length (mm): 1280
CDP4000MKN3/ND
Effective luminous flux (lm): 4200
System power (W): 28
Color temperature (K): 3000
Optical system: KN
Length (mm): 1280
CDP4000MKN4/DALI
Effective luminous flux (lm): 4200
System power (W): 28
Color temperature (K): 4000
Optical system: KN
Length (mm): 1280
CDP4000MKN4/ND
Effective luminous flux (lm): 4200
System power (W): 28
Color temperature (K): 4000
Optical system: KN
Length (mm): 1280
CDP4000MKO4/ND
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 4000
Optical system: KO
Length (mm): 1280
CDP5000LKN4/ND
Effective luminous flux (lm): 5300
System power (W): 36
Color temperature (K): 4000
Optical system: KN
Length (mm): 1580
CDP6000LKN4/DALI
Effective luminous flux (lm): 5800
System power (W): 40
Color temperature (K): 4000
Optical system: KN
Length (mm): 1580
CDP6000LKN4/ND
Effective luminous flux (lm): 5800
System power (W): 40
Color temperature (K): 4000
Optical system: KN
Length (mm): 1580
CDP7000LKN4/ND
Effective luminous flux (lm): 6700
System power (W): 48
Color temperature (K): 4000
Optical system: KN
Length (mm): 1580
Product page - PDF
CE declaration
Assembly instruction
LDT files
