Product series New
MODUS CDP P

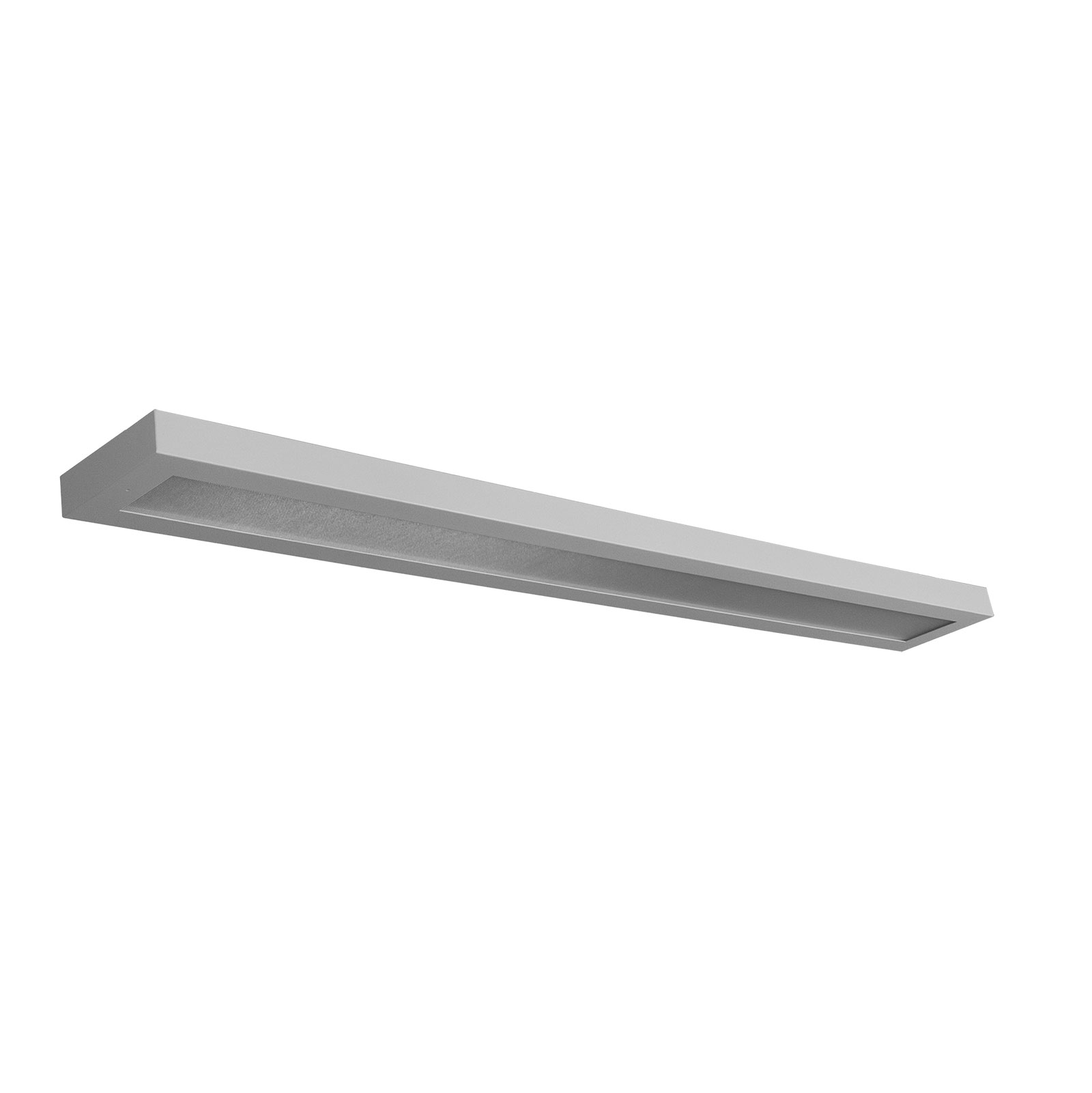

Surface luminaire with a cover for installation to row
Standard price from:
On request
Elegant metal luminaire with a cover for office and representative spaces.
The luminaire is offered with either an opal (KO) or nanoprismatic (KN) cover or asymetrical optic (AS).
Several variants are available:
CDP - direct lighting luminaire, solo installation.
CDP...P - direct lighting luminare, designe for installation to row (with CDSPOJ)
| Body material: | Painted steel | Mounting method: | Surface mounting | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89, 90-100 | Light source type: | LED | Light outlet: | Direct | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 | Color temperature (K): | 4000, 6500, 3000, 2700, 5700 |
| Rated lifetime L70/B50 (h): | 100000 100000 | Dimming DALI: | Yes | Product category: | Ceiling / wall luminaires | Optical system: | KO opal cover KN nanoprizmatic cover | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 | MODUS SMART: | Yes, Bluetooth Bluetooth |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Length (mm)
CDP4000MKN3/DALI/P
Effective luminous flux (lm): 4200
System power (W): 28
Color temperature (K): 3000
Optical system: KN
Length (mm): 1280
CDP4000MKN3/ND/P
Effective luminous flux (lm): 4200
System power (W): 28
Color temperature (K): 3000
Optical system: KN
Length (mm): 1280
CDP4000MKN4/DALI/P
Effective luminous flux (lm): 4200
System power (W): 28
Color temperature (K): 4000
Optical system: KN
Length (mm): 1280
CDP4000MKN4/ND/P
Effective luminous flux (lm): 4200
System power (W): 28
Color temperature (K): 4000
Optical system: KN
Length (mm): 1280
CDP6000LKN3/ND/P
Effective luminous flux (lm): 5800
System power (W): 40
Color temperature (K): 3000
Optical system: KN
Length (mm): 1580
CDP6000LKN4/ND/P
Effective luminous flux (lm): 5800
System power (W): 40
Color temperature (K): 4000
Optical system: KN
Length (mm): 1580
